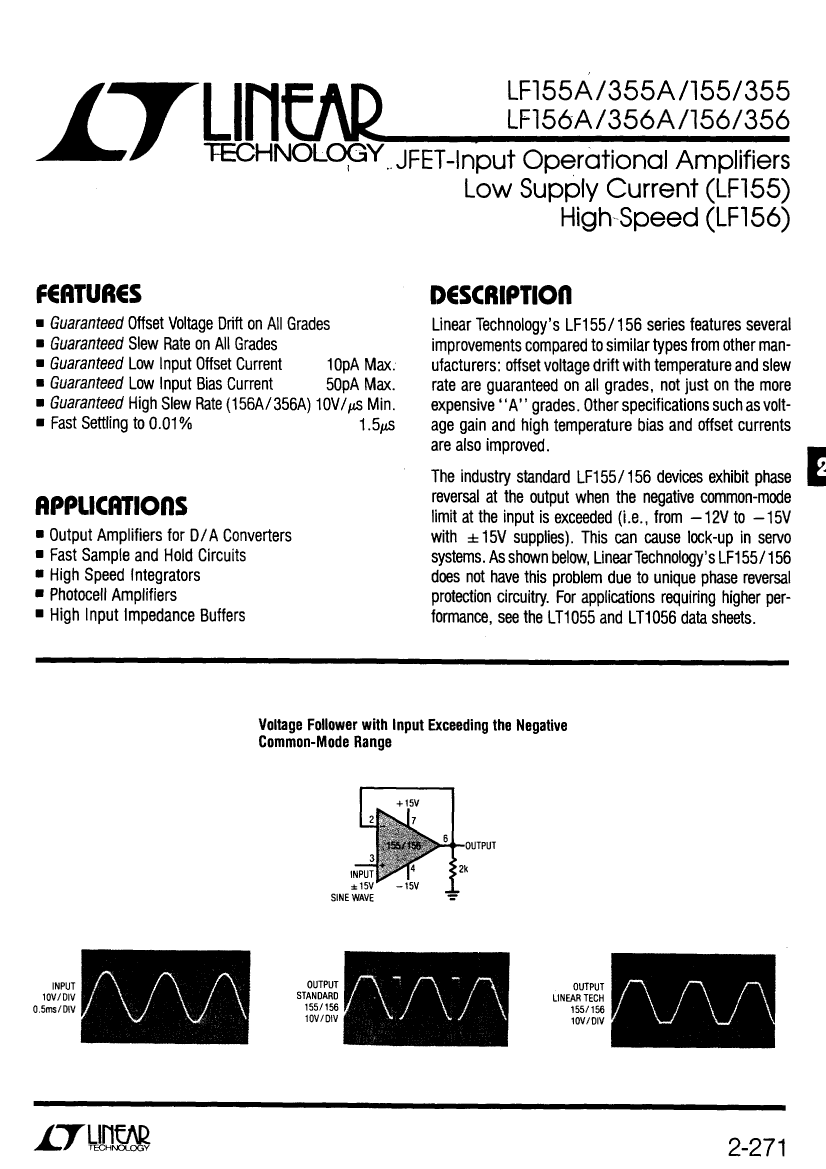

LF156AH Overview

OP-AMP, 2500 uV OFFSET-MAX, 4.5 MHz BAND WIDTH, MBCY8

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible

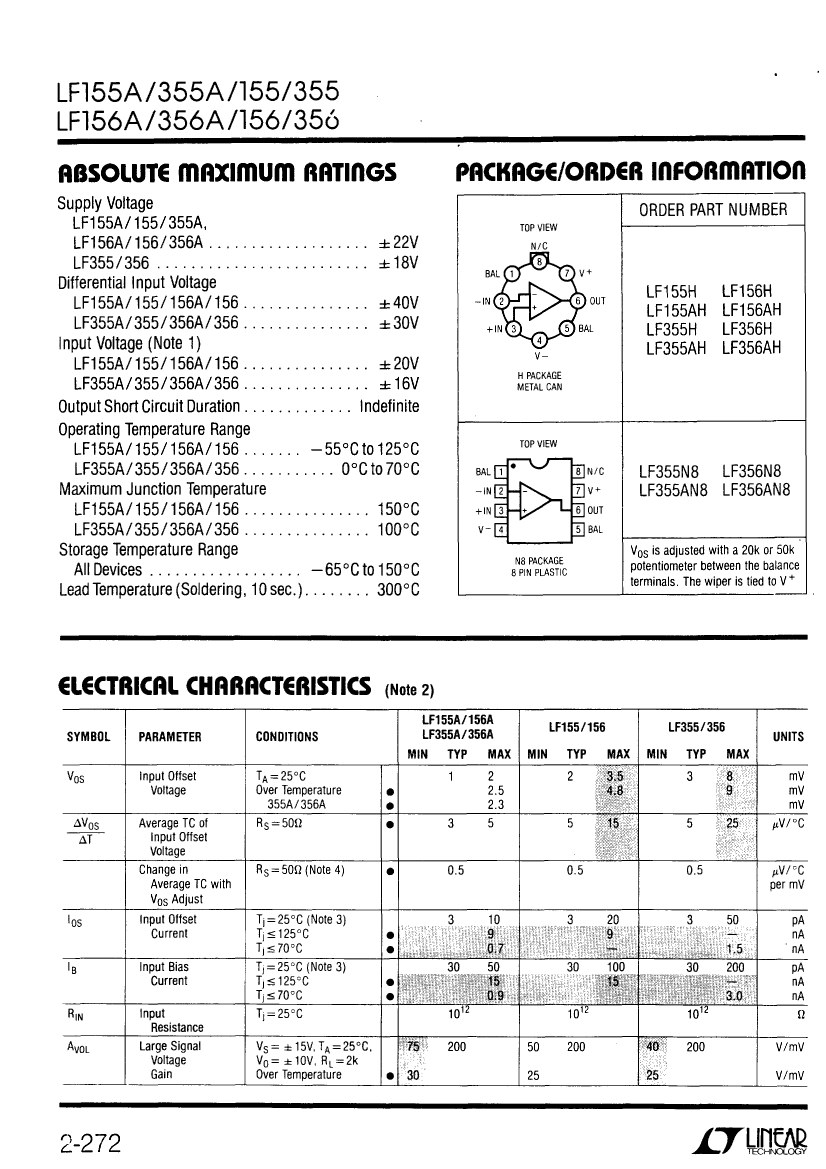

Parts packaging code	BCY
package instruction	METAL CAN-8
Contacts	8
Reach Compliance Code	unknow
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK

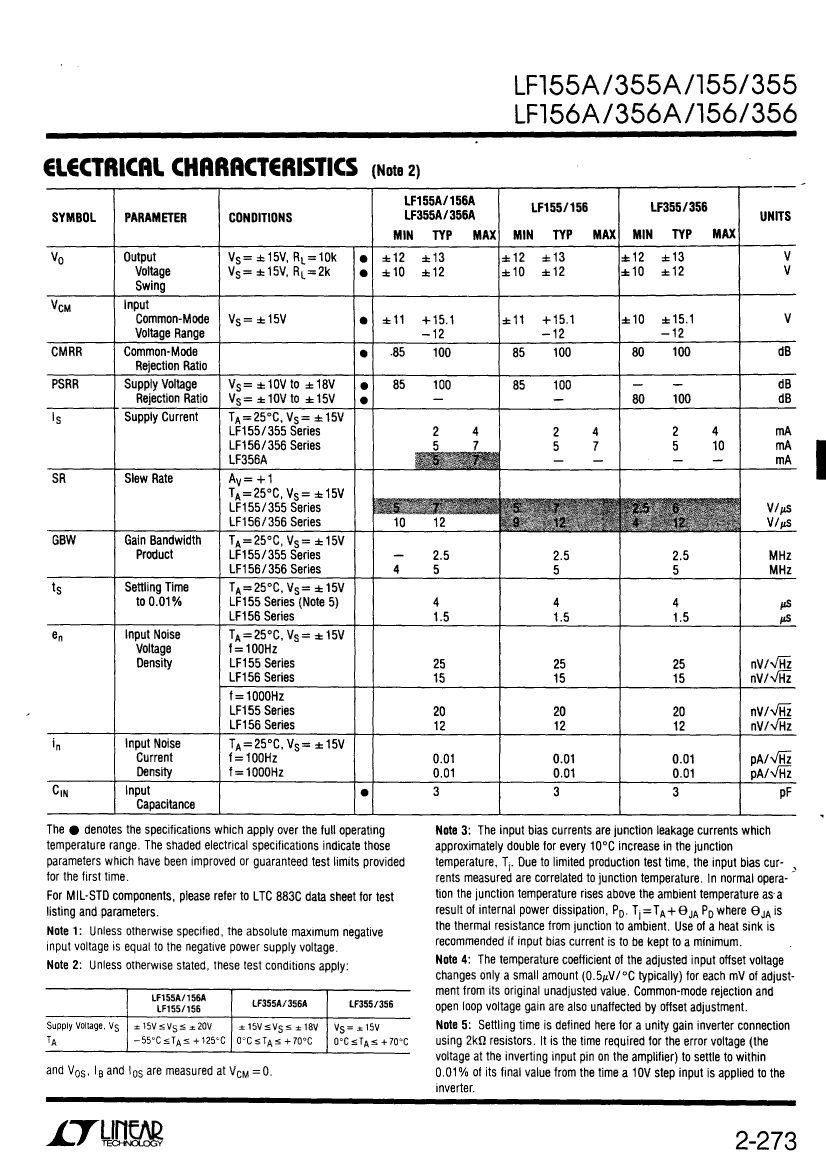

Maximum average bias current (IIB)	0.0001 µA
Maximum bias current (IIB) at 25C	0.00005 µA
Nominal Common Mode Rejection Ratio	100 dB
frequency compensation	YES
Maximum input offset current (IIO)	0.009 µA
Maximum input offset voltage	2500 µV
JESD-30 code	O-MBCY-W8
JESD-609 code	e0
low-bias	YES
low-dissonance	NO
Negative supply voltage upper limit	-22 V
Nominal Negative Supply Voltage (Vsup)	-20 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C

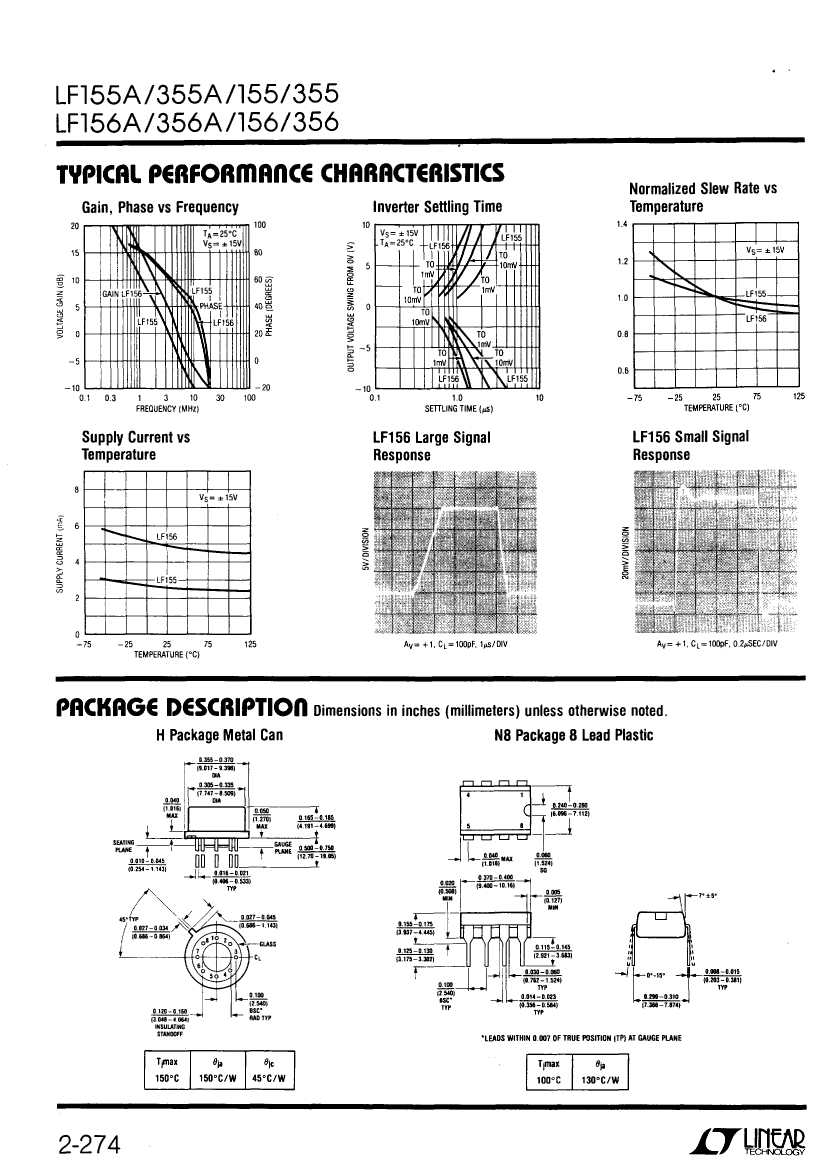

Package body material	METAL
Encapsulate equivalent code	CAN8,.2
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-15/+-20 V
Certification status	Not Qualified
minimum slew rate	10 V/us
Nominal slew rate	12 V/us
Maximum slew rate	7 mA
Supply voltage upper limit	22 V
Nominal supply voltage (Vsup)	20 V
surface mount	NO
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	5000 kHz
Minimum voltage gain	30000
Base Number Matches	1
