LD431450

Description
900 A, 1600 V, SCR
CategoryAnalog mixed-signal IC    Trigger device
File Size102KB,5 Pages
ManufacturerPOWEREX
Websitehttp://www.pwrx.com/Home.aspx
Environmental Compliance
Download Datasheet Parametric Compare View All

LD431450 Overview

900 A, 1600 V, SCR

LD431450 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerPOWEREX
package instructionFLANGE MOUNT, R-XXFM-X7
Contacts7
Reach Compliance Codeunknow
Other featuresUL RECOGNIZED
Shell connectionISOLATED
ConfigurationSERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Maximum DC gate trigger current200 mA
Maximum DC gate trigger voltage1.5 V
Quick connection description2G-2GR
Description of screw terminalsA-K-AK
JESD-30 codeR-XXFM-X7
Maximum leakage current80 mA
On-state non-repetitive peak current13000 A
Number of components2
Number of terminals7
Maximum on-state current500000 A
Maximum operating temperature130 °C
Minimum operating temperature-40 °C
Package body materialUNSPECIFIED
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum rms on-state current900 A
Off-state repetitive peak voltage1400 V
Repeated peak reverse voltage1400 V
surface mountNO
Terminal formUNSPECIFIED
Terminal locationUNSPECIFIED
Maximum time at peak reflow temperatureNOT SPECIFIED
Trigger device typeSCR

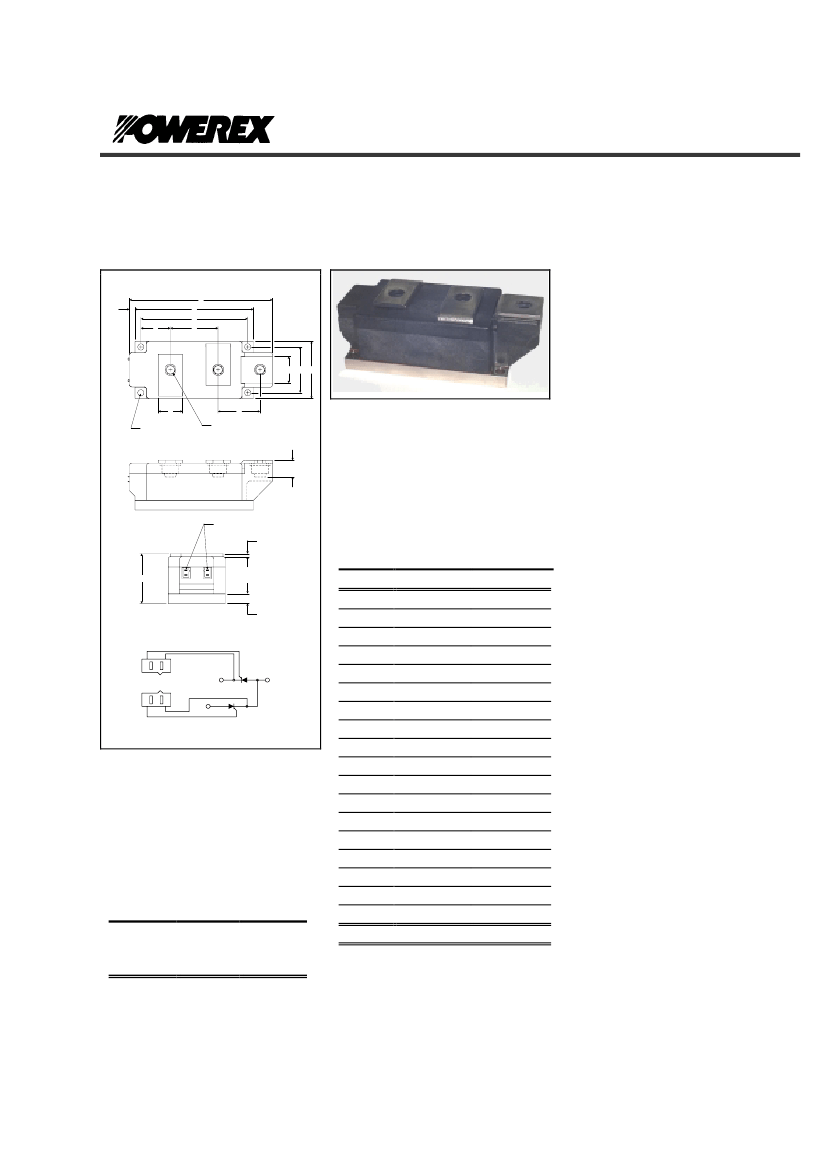

LD43__50
Powerex, Inc., Hillis Street, Youngwood, Pennsylvania 15697 (724) 925-7272
POW-R-BLOK
Dual SCR Isolated Module
500 Amperes / Up to 1600 Volts
TM
OUTLINE DRAWING
A
R
B
C
J
F
Description:
Powerex Dual SCR Modules are
designed for use in applications
requiring phase control and isolated
packaging. The modules are isolated
for easy mounting with other
components on a common heatsink.
TM
POW-R-BLOK
has been tested and
recognized by the Underwriters
Laboratories.
LD43__50
Dual SCR
TM
POW-R-BLOK Module
500 Amperes / 800-1600 Volts
K
G
D
3
2
1
L
Q - DIA. (4 TYP.)
H
P - M10 THD (3 TYP.)
M
Features:
T
T
T
T
T
Electrically Isolated Heatsinking
Aluminum Nitride Isolator
Compression Bonded Elements
Metal Baseplate
Low Thermal Impedance
for Improved Current Capability
T
UL Recognized
T - (4 TYP.)
S
LD43 Outline Dimensions
E
4
5
7
6
Dimension
A
N
Inches
5.91
4.88
4.41
2.36
2.05
1.97
1.89
1.73
1.22
1.10
1.00
0.69
0.39
M10 Metric
0.26 Dia.
0.24
0.12
.110 x .032
Millimeters
150.0
124.0
112.0
60.0
52.0
50.0
48.0
44.0
31.0
28.0
25.4
17.5
10.0
M10
6.5 Dia.
6.0
3.0
2.5 x 0.8
B
C
D
Benefits:
T
No Additional Insulation
Components Required
T
Easy Installation
T
No Clamping Components
Required
T
Reduce Engineering Time
5 4
6 7
3
2
1
E
F
G
H
CONNECTION DIAGRAM
J
K
Applications:
T
T
T
T
T
Bridge Circuits
AC & DC Motor Drives
Battery Supplies
Power Supplies
Large IGBT Circuit Front Ends
Ordering Information
:
L
M
N
P
Q
R
S
T
Select the complete eight-digit
module part number from the table
below.
Example: LD431650 is a 1600V,
500 Ampere Dual SCR Isolated
TM
POW-R-BLOK
Module.
Type
LD43
Voltage
Volts
(x100)
08
10
12
14
16
Current
Amperes
(x10)
50
Note: Dimensions are for reference only.
Revision Date: 12/04/2002

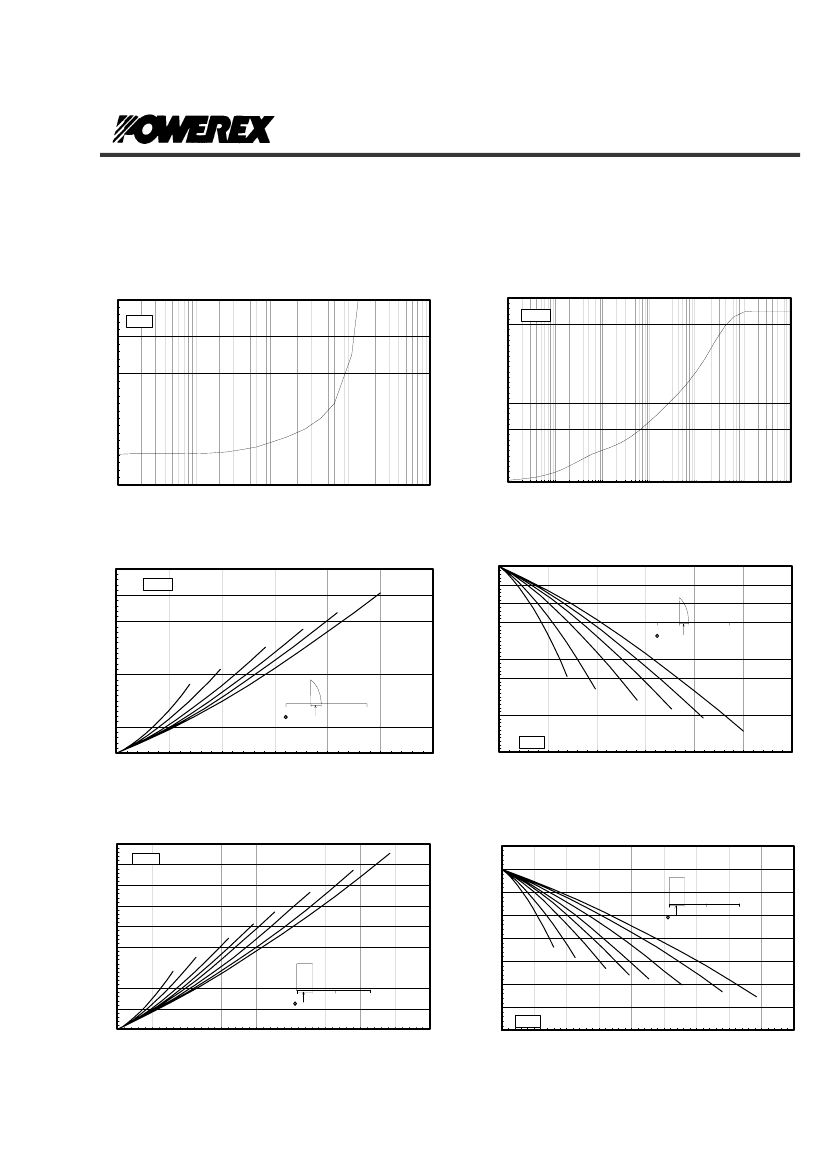

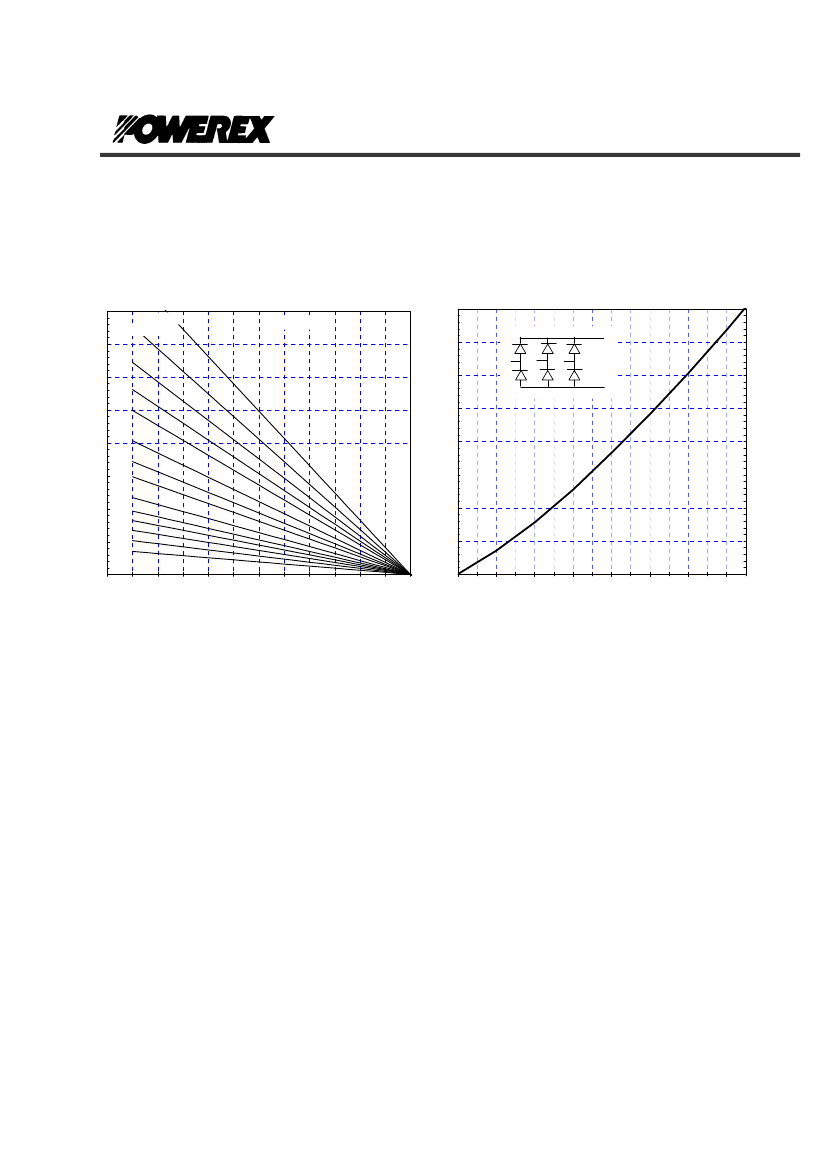

LD431450 Related Products

LD431450 LD4350 LD431650 LD431250 LD431050 LD430850
Description 900 A, 1600 V, SCR 900 A, 1600 V, SCR 900 A, 1600 V, SCR 900 A, 1600 V, SCR 900 A, 1600 V, SCR 900 A, 1600 V, SCR
Shell connection ISOLATED ISOLATED ISOLATED ISOLATED ISOLATED ISOLATED
Number of components 2 2 2 2 2 2
Number of terminals 7 7 7 7 7 7
Off-state repetitive peak voltage 1400 V 1600 V 1600 V 1200 V 1000 V 800 V
Terminal form UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED
Terminal location UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED
Is it lead-free? Lead free - Lead free Lead free - Lead free
Is it Rohs certified? conform to - conform to conform to - conform to
Maker POWEREX - POWEREX POWEREX POWEREX POWEREX
package instruction FLANGE MOUNT, R-XXFM-X7 - FLANGE MOUNT, R-XXFM-X7 FLANGE MOUNT, R-XXFM-X7 FLANGE MOUNT, R-XXFM-X7 FLANGE MOUNT, R-XXFM-X7
Contacts 7 - 7 7 7 7
Reach Compliance Code unknow - unknow unknow unknow unknow
Other features UL RECOGNIZED - UL RECOGNIZED UL RECOGNIZED UL RECOGNIZED UL RECOGNIZED
Configuration SERIES CONNECTED, CENTER TAP, 2 ELEMENTS - SERIES CONNECTED, CENTER TAP, 2 ELEMENTS SERIES CONNECTED, CENTER TAP, 2 ELEMENTS SERIES CONNECTED, CENTER TAP, 2 ELEMENTS SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Maximum DC gate trigger current 200 mA - 200 mA 200 mA 200 mA 200 mA
Maximum DC gate trigger voltage 1.5 V - 1.5 V 1.5 V 1.5 V 1.5 V
Quick connection description 2G-2GR - 2G-2GR 2G-2GR 2G-2GR 2G-2GR
Description of screw terminals A-K-AK - A-K-AK A-K-AK A-K-AK A-K-AK
JESD-30 code R-XXFM-X7 - R-XXFM-X7 R-XXFM-X7 R-XXFM-X7 R-XXFM-X7
Maximum leakage current 80 mA - 80 mA 80 mA 80 mA 80 mA
On-state non-repetitive peak current 13000 A - 13000 A 13000 A 13000 A 13000 A
Maximum on-state current 500000 A - 500000 A 500000 A 500000 A 500000 A
Maximum operating temperature 130 °C - 125 °C 130 °C 130 °C 130 °C
Minimum operating temperature -40 °C - -40 °C -40 °C -40 °C -40 °C
Package body material UNSPECIFIED - UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED
Package shape RECTANGULAR - RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form FLANGE MOUNT - FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT
Peak Reflow Temperature (Celsius) NOT SPECIFIED - NOT SPECIFIED NOT SPECIFIED - NOT SPECIFIED
Certification status Not Qualified - Not Qualified Not Qualified Not Qualified Not Qualified
Maximum rms on-state current 900 A - 900 A 900 A 900 A 900 A
Repeated peak reverse voltage 1400 V - 1600 V 1200 V 1000 V 800 V
surface mount NO - NO NO NO NO
Maximum time at peak reflow temperature NOT SPECIFIED - NOT SPECIFIED NOT SPECIFIED - NOT SPECIFIED
Trigger device type SCR - SCR SCR SCR SCR
