54142UF: DescriptionTAB Terminal, 2mm2,; CategoryThe connector terminals; File Size29KB，1 Pages; ManufacturerABB; Websitehttp://www.abb.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

54142UF Overview

TAB Terminal, 2mm2,

54142UF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
terminal gender	FEMALE
Terminal and terminal strip types	TAB TERMINAL
Conductor cross section	2 mm2
Wire gauge	2 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

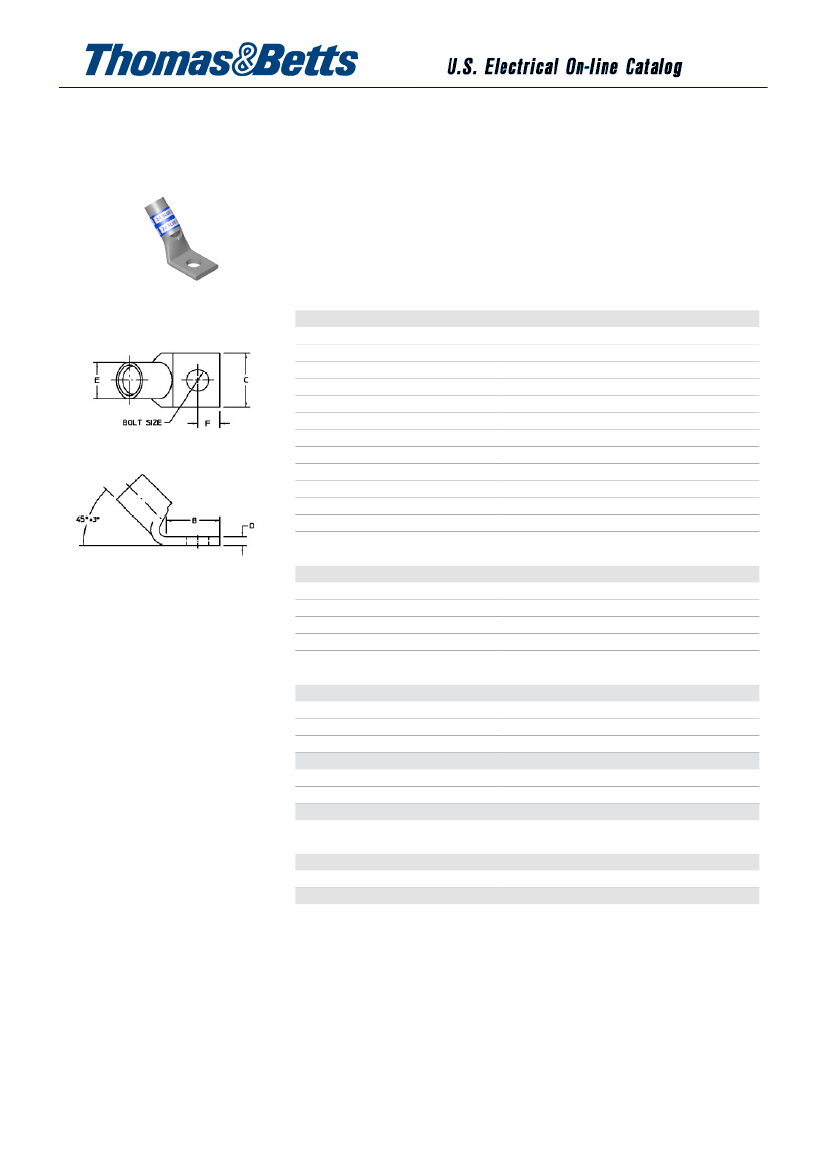

T&B Catalog Number:

UPC Number:

Description:

54142UF

78621086968

Copper One-Hole Lug - 45 degree Stan-

dard Barrel - max 35KV, #2 AWG Wire, 5/

16" Bolt Size, Tin Plated with Inspection

Hole, Brown 33

Active

Status:

General

Material

Finish

Wire Size

Number of Studs

Stud Size

Tongue Angle

Barrel Length

Barrel Shape

Tongue Width

Peep Hole

Marking

Hole Shape

Die Color

Die Code

Copper

Tin Plated

#2 AWG

1

5/16

45

Standard

Y

Standard

Round

Brown

33

1.531

0.719

2.031

0.078

0.406

0.344

25

Each

3.2 lbs. per 100

Available on Website

Dimensions given for reference only. Dimensions

may vary up to +/- .030.

Dimension Information

A (inches)

B (inches)

C (inches)

D (inches)

E (inches)

F (inches)

Packaging

Package in Units

T&B Sold in UOM

T&B Weight Per UOM

Application Support

Overview

Connector & Tooling Chart

Notes

Certifications

RoHS Compliance

Yes

Certifications

File Nbr:

E9809

For further technical assistance, please contact us...

Thomas & Betts - USA

8155 T&B Blvd.

Memphis, TN 38125

www.tnb.com

T&B Technical Support

MS 3B-50

8155 T&B Blvd.

Memphis, TN 38125

Hours: 7AM - 6PM CDT

Monday-Friday

Phone: (888) 862-3289

Fax: (901) 252-1321

Email:techsupport@tnb.com
