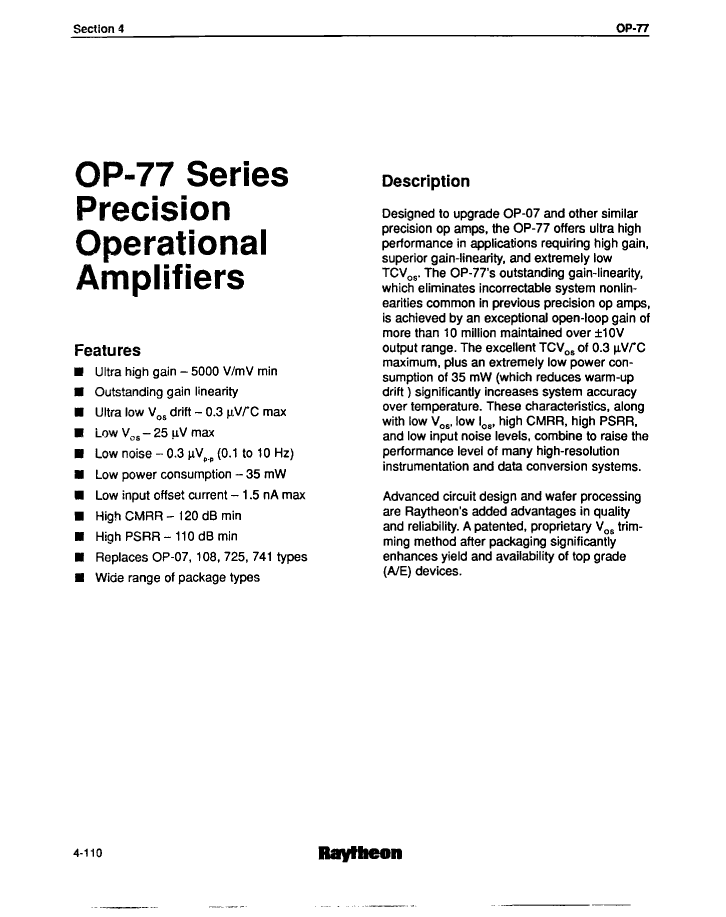

5962-8773801GX amplifier basic information:
5962-8773801GX is an OPERATIONAL AMPLIFIER.

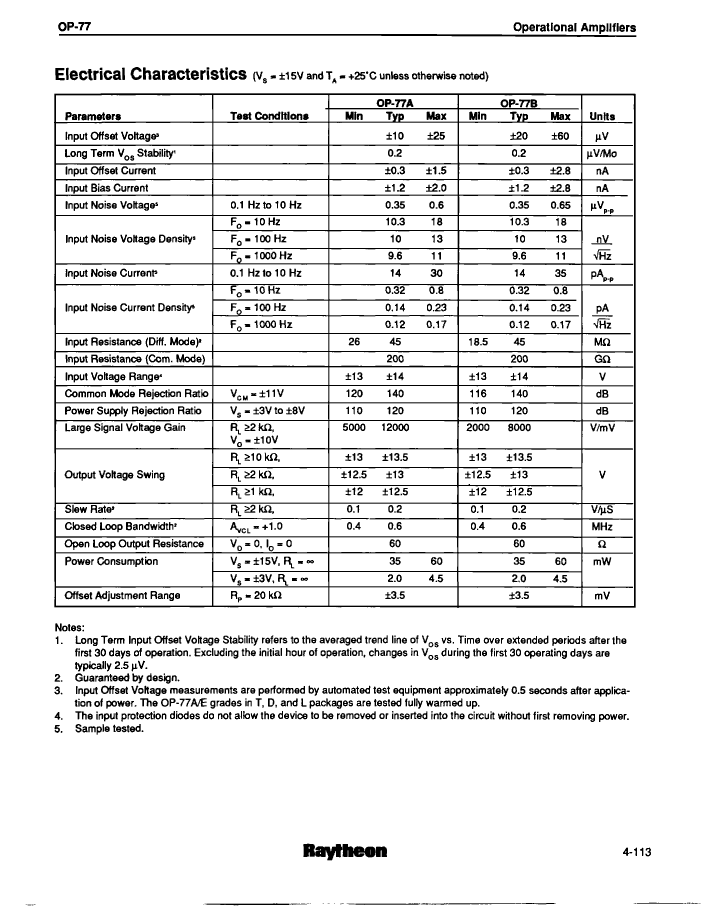

5962-8773801GX amplifier core information:
The minimum operating temperature of 5962-8773801GX is -55 °C and the maximum operating temperature is 125 °C. Its maximum average bias current is 0.006 µA
When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the 5962-8773801GX gain becomes 0.707 times the low-frequency gain is 600 kHz.
The nominal supply voltage of 5962-8773801GX is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of 5962-8773801GX is 120 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)

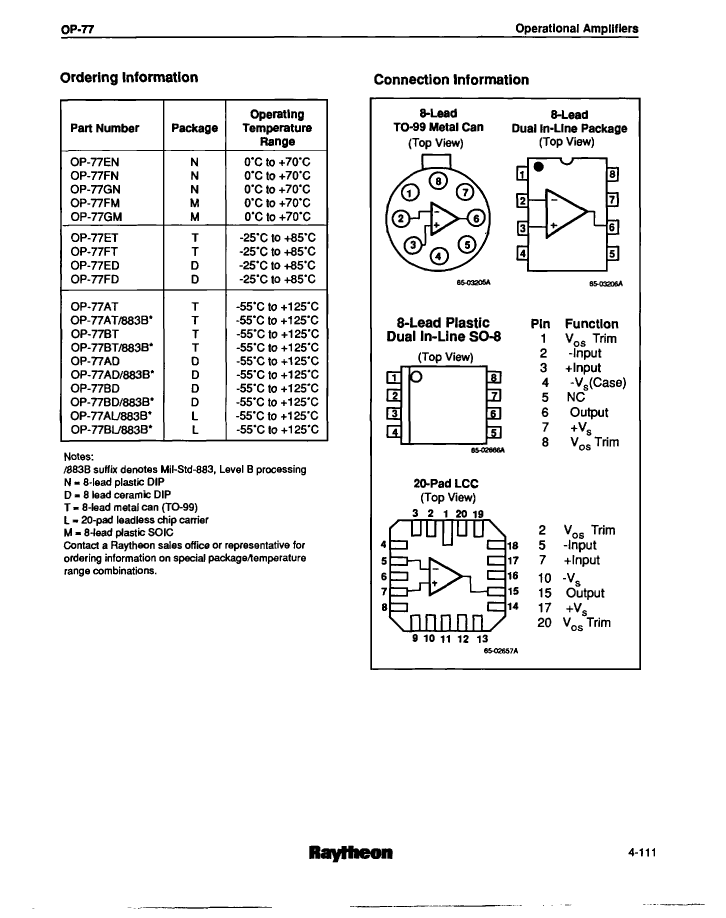

Related dimensions of 5962-8773801GX:
5962-8773801GX has 8 terminals. Its terminal position type is: BOTTOM.

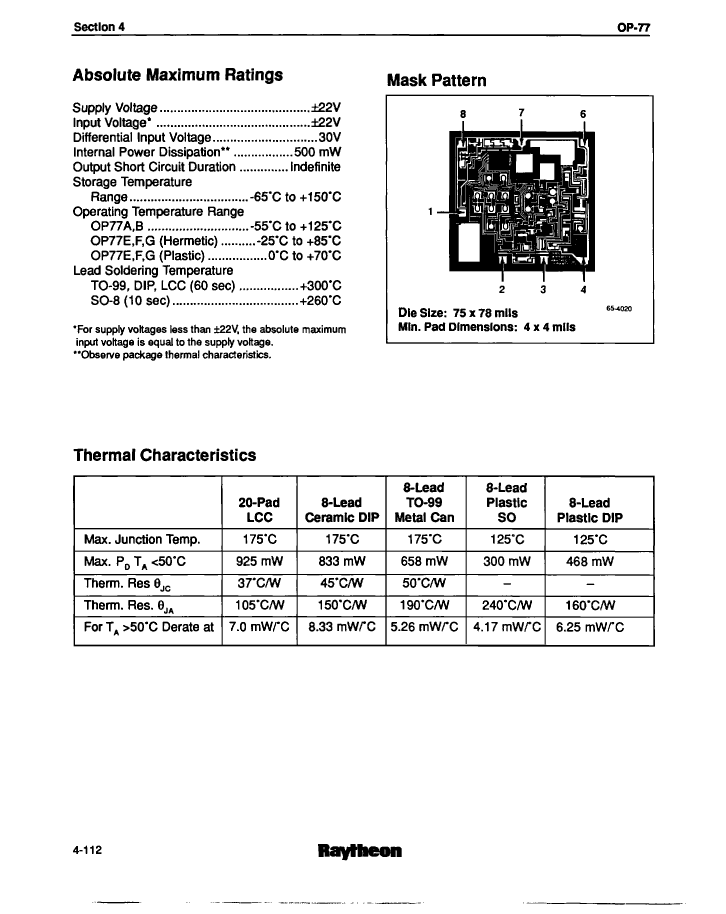

5962-8773801GX amplifier additional information:
Its temperature grade is: MILITARY. The corresponding JESD-30 code is: O-MBCY-W8. The packaging code of 5962-8773801GX is: TO-99. The material of 5962-8773801GX packaging is mostly METAL. And its package shape is ROUND.
5962-8773801GX package pin formats are: CYLINDRICAL. Its terminal form is: WIRE.
5962-8773801GX amplifier basic information:
5962-8773801GX is an OPERATIONAL AMPLIFIER.
5962-8773801GX amplifier core information:
The minimum operating temperature of 5962-8773801GX is -55 °C and the maximum operating temperature is 125 °C. Its maximum average bias current is 0.006 µA
When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the 5962-8773801GX gain becomes 0.707 times the low-frequency gain is 600 kHz.
The nominal supply voltage of 5962-8773801GX is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of 5962-8773801GX is 120 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of 5962-8773801GX:
5962-8773801GX has 8 terminals. Its terminal position type is: BOTTOM.
5962-8773801GX amplifier additional information:
Its temperature grade is: MILITARY. The corresponding JESD-30 code is: O-MBCY-W8. The packaging code of 5962-8773801GX is: TO-99. The material of 5962-8773801GX packaging is mostly METAL. And its package shape is ROUND.
5962-8773801GX package pin formats are: CYLINDRICAL. Its terminal form is: WIRE.

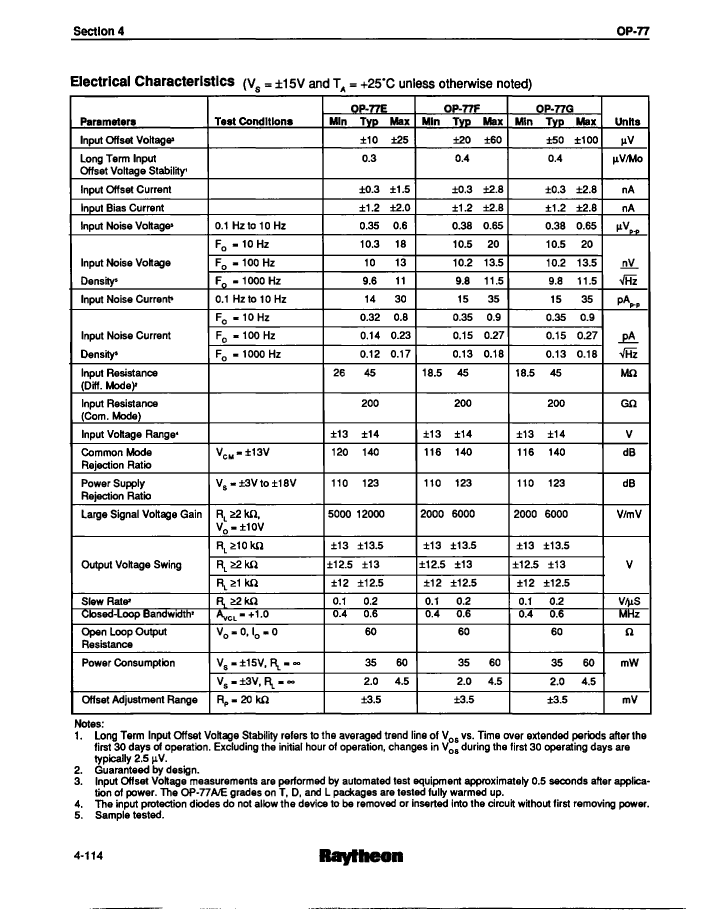

| Parameter Name | Attribute value |
| Reach Compliance Code | unknown |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Maximum average bias current (IIB) | 0.006 µA |
| Nominal Common Mode Rejection Ratio | 110 dB |
| Maximum input offset voltage | 120 µV |
| JESD-30 code | O-MBCY-W8 |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of functions | 1 |
| Number of terminals | 8 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | METAL |
| encapsulated code | TO-99 |
| Package shape | ROUND |
| Package form | CYLINDRICAL |
| Certification status | Not Qualified |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | NO |
| technology | BIPOLAR |
| Temperature level | MILITARY |
| Terminal form | WIRE |
| Terminal location | BOTTOM |
| Nominal Uniform Gain Bandwidth | 600 kHz |
| Base Number Matches | 1 |
| 5962-8773801GX | 5962-8773801PX | 5962-8773802GX | 5962-8773802PX | |
|---|---|---|---|---|
| Description | Operational Amplifier, 1 Func, 120uV Offset-Max, BIPolar, MBCY8, | Operational Amplifier, 1 Func, 120uV Offset-Max, BIPolar, CDIP8, | Operational Amplifier, 1 Func, 60uV Offset-Max, BIPolar, MBCY8, | Operational Amplifier, 1 Func, 60uV Offset-Max, BIPolar, CDIP8, |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| Amplifier type | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER |
| Maximum average bias current (IIB) | 0.006 µA | 0.006 µA | 0.004 µA | 0.004 µA |
| Nominal Common Mode Rejection Ratio | 110 dB | 110 dB | 120 dB | 120 dB |
| Maximum input offset voltage | 120 µV | 120 µV | 60 µV | 60 µV |
| JESD-30 code | O-MBCY-W8 | R-GDIP-T8 | O-MBCY-W8 | R-GDIP-T8 |
| Nominal Negative Supply Voltage (Vsup) | -15 V | -15 V | -15 V | -15 V |
| Number of functions | 1 | 1 | 1 | 1 |
| Number of terminals | 8 | 8 | 8 | 8 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C |
| Package body material | METAL | CERAMIC, GLASS-SEALED | METAL | CERAMIC, GLASS-SEALED |
| encapsulated code | TO-99 | DIP | TO-99 | DIP |
| Package shape | ROUND | RECTANGULAR | ROUND | RECTANGULAR |
| Package form | CYLINDRICAL | IN-LINE | CYLINDRICAL | IN-LINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Nominal supply voltage (Vsup) | 15 V | 15 V | 15 V | 15 V |
| surface mount | NO | NO | NO | NO |
| technology | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal form | WIRE | THROUGH-HOLE | WIRE | THROUGH-HOLE |
| Terminal location | BOTTOM | DUAL | BOTTOM | DUAL |
| Nominal Uniform Gain Bandwidth | 600 kHz | 600 kHz | 600 kHz | 600 kHz |
| Base Number Matches | 1 | 1 | 1 | 1 |
