The LCB110 is a 1-Form-B relay which uses optically
coupled MOSFET technology to provide 3750V of input
to output isolation. The efficient MOSFET switches and
photovoltaic die use Clare’s patented OptoMOS
®
archi-
tecture. A highly efficient GaAIAs infrared LED controls
the optically coupled input. The LCB110 has low on
resistance and is well suited for most applications
requiring a normally closed relay. The device is avail-
able in small 6-pin dual in line package in standard
though hole and surface mount lead bend.
Approvals
•
UL Recognized: File Number E76270
•
CSA Certified: File Number LR 43639-10
•
BSI Certified to:
•
BS EN 60950:1992 (BS7002:1992)
Certificate #: 7344
•
BS EN 41003:1993
Certificate #: 7344
Applications
•
Telecommunications
•
Telecom Switching
•
Tip/Ring Circuits
•
Modem Switching (Laptop, Notebook, Pocket
Size)
•
Hookswitch
•
Dial Pulsing
•
Ground Start
•
Ringer Injection
•
Instrumentation
•
Multiplexers
•
Data Acquisition
•
Electronic Switching
•
I/O Subsystems
•
Meters (Watt-Hour, Water, Gas)
•
Medical Equipment-Patient/Equipment Isolation
•
Security
•
Aerospace
•
Industrial Controls
Ordering Information
Part #
LCB110
LCB110S
LCB110STR
Description
6 Pin DIP (50/Tube)
6 Pin Surface Mount (50/Tube)
6 Pin Surface Mount (1000/Reel)
Pin Configuration
LCB110 Pinout
AC/DC Configuration
1
2
3
6
5
4
LCB110 Pinout
DC Only Configuration
1
2
3
6
5
4
+ Control
– Control
NC
Load
Do Not Use
Load
+ Control
– Control
NC
+ Load
– Load
Switching Characteristics of
Normally Closed (Form B) Devices
10ms
CONTROL
+90%
+10%
T
OFF
+
90%
T
ON
DS-LCB110-R6.0
www.clare.com
1
LCB110
Absolute Maximum Ratings (@ 25˚ C)
Parameter
Input Power Dissipation
Input Control Current
Peak (10ms)
Reverse Input Voltage
Total Power Dissipation
Isolation Voltage
Input to Output
Operational Temperature
Storage Temperature
Soldering Temperature
DIP Package
Surface Mount Package
(10 Seconds Max.)
1
2
Min
-
-
-
-
-
3750
-40
-40
-
-
Typ Max Units
- 150
1
mW
-
50
mA
-
1
A
-
5
V
- 800
2
mW
-
-
-
-
-
-
V
RMS
+85
°C
+125 °C
+260
+220
°C
°C
Absolute Maximum Ratings are stress ratings. Stresses in
excess of these ratings can cause permanent damage to
the device. Functional operation of the device at these or
any other conditions beyond those indicated in the opera-
tional sections of this data sheet is not implied. Exposure of
the device to the absolute maximum ratings for an extend-
ed period may degrade the device and effect its reliability.
Derate Linearly 1.33 mw/˚C
Derate Linearly 6.67 mw/˚C
Electrical Characteristics
Parameter
Output Characteristics @ 25°C
Load Voltage (Peak)
Load Current (Continuous)
AC/DC Configuration
DC Configuration
Peak Load Current
On-Resistance
AC/DC Configuration
DC Configuration
Off-State Leakage Current
Switching Speeds
Turn-On
Turn-Off
Output Capacitance
Input Characteristics @ 25°C
Input Control Current
Input Dropout Current
Input Voltage Drop
Reverse Input Voltage
Reverse Input Current
Input to Output Capacitance
Input to Output Isolation
Conditions
-
-
-
10ms
I
L
=120mA
I
L
=200mA
V
L
=35OV
I
F
=5mA, V
L
=10V
I
F
=5mA, V
L
=10V
50V; f=1MHz
I
L
=120mA
-
I
F
=5mA
-
V
R
=5V
-
-
Symbol
V
L
I
L
I
L
I
L
R
ON
R
ON
I
LEAK
T
ON
T
OFF
C
OUT
I
F
I
F
V
F
V
R
I
R
C
I/O
V
I/O
Min
-
-
-
-
-
-
-
-
-
-
5
0.4
0.9
-
-
-
3750
Typ
-
-
-
-
23
7
-
-
-
25
-
0.7
1.2
-
-
3
-
Max
350
120
200
350
35
10
1
3
3
-
50
-
1.4
5
10
-
-
Units
V
mA
mA
mA
Ω
Ω
µA
ms
ms
pF
mA
mA
V
V
µA
pF
V
RMS
2
www.clare.com
Rev. 6.0
LCB110
PERFORMANCE DATA*
35
30
Device Count (N)
LCB110
Typical LED Forward Voltage Drop
(N=50 Ambient Temperature = 25°C)
I
F
= 5mADC
LCB110
Typical On-Resistance Distribution
(N=50 Ambient Temperature = 25°C)
(Load Current = 120mADC)
25
25
Device Count (N)
20
15
10
5
0
Device Count (N)
22.4
22.7
23.0
23.3
23.6
23.9
24.2
20
15
10
5
0
LCB110
Typical Blocking Voltage Distribution
(N=50 Ambient Temperature = 25°C)
I
F
=5mA
25
20
15
10
5
0
1.17
1.19
1.21
1.23
1.25
LED Forward Voltage Drop (V)
On-Resistance (Ω)
410
420
430
440
450
460
Blocking Voltage (V)
LCB110
Typical I
F
for Switch Operation
(N=50 Ambient Temperature = 25°C)
(Load Current = 120mADC)
25
20
15
10
5
0
0.45
0.50
0.55
0.60
0.65
0.70
0.75
LED Current (mA)
25
20
15
10
5
0
LCB110
Typical I
F
for Switch Dropout
(N=50 Ambient Temperature = 25°C)
(Load Current = 120mADC)
25
20
15
10
5
0
0.40
0.45
0.50
0.55
0.60
0.65
0.70
LCB110
Typical Turn-On Time
(N=50 Ambient Temperature = 25°C)
(Load Current = 120mADC; I
F
= 5mADC)
Device Count (N)
Device Count (N)
Device Count (N)
0.18
0.25
0.32
0.39
0.46
0.53
LED Current (mA)
Turn-On (ms)
25
20
15
10
5
0
LCB110
Typical Turn-Off Time
(N=50 Ambient Temperature = 25°C)
(Load Current = 120mADC; I
F
= 5mADC)
Load Current (mA)
LCB110
Typical Load Current vs. Temperature
220
200
LCB110
Typical Leakage vs. Temperature
(Measured across Pins 5 & 6 or 7&8)
0.045
0.040
0.035
Leakage (µA)
0.030
0.025
0.020
0.015
0.010
0.005
0
-40
-20
0
20
40
60
80
100
Temperature (°C)
DC Configuration
Device Count (N)
180
160
140
120
100
80
60
40
AC/DC Configuration
0.75
0.80
0.85
0.90
0.95
1.0
1.05
-40
-20
0
20
40
60
80
100
120
Turn-Off (ms)
Temperature (°C)
520
Blocking Voltage (V
RMS
)
490
LCB110
Typical Blocking Voltage vs. Temperature
(I
F
-5mA)
LCB110
Typical Turn-On vs. Temperature
(Load Current = 120mADC)
0.6
0.5
0.4
0.3
0.2
0.1
0
Turn-Off (ms)
Turn-On (ms)
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
-40
-20
0
20
40
60
80
100
-40
LCB110
Typical Turn-Off vs. Temperature
(Load Current = 120mADC)
5mA
460
430
400
370
340
-40
-20
0
20
40
60
80
100
Temperature (°C)
10mA
5mA
-20
0
20
40
60
80
100
Temperature (°C)
Temperature (°C)
*The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please contact our application
department.
Rev. 6.0
www.clare.com
3
LCB110
PERFORMANCE DATA*
LCB110
Typical LED Forward Voltage Drop
vs. Temperature
LED Forward Voltage Drop (V)
1.8
1.6
Turn-On (ms)
1.4
1.2
1.0
0.8
-40
-20
0
20
40
60
80
100
120
Temperature (°C)
LCB110
Typical Turn-On vs. LED Forward Current
(Load Current = 120mADC)
0.3000
0.2500
0.2000
0.1500
0.1000
0.0500
0
0
5
10
15
20
25
30
35
40
45
50
LED Forward Current (mA)
Turn-Off (ms)
LCB110
Typical Turn-Off vs. LED Forward Current
(Load Current = 120mADC)
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
0
5
10
15
20
25
30
35
40
45
50
LED Forward Current (mA)
50mA
10mA
5mA
LCB110
Typical On-Resistance vs. Temperature
(Load Current = Max Rated over Temperature)
60.000
On-Resistance (Ω)
50.000
On-Resistance
40.000
30.000
20.000
10.000
DC Configuration
0
-40
-20
0
20
40
60
80
100
Temperature (°C)
AC/DC Configuration
LCB110
Typical On-Resistance vs. Temperature
(Load Current = 100mA)
50
45
40
35
30
25
20
15
10
5
0
-40
-20
0
20
40
LCB110
Typical I
F
for Switch Operation vs. Temperature
(Load Current = 120mADC)
3.0
2.5
LED Current (mA)
2.0
1.5
1.0
0.5
Instantaneous
60
80
100
0
-40
-20
0
20
40
60
80
100
Temperature (°C)
Temperature (°C)
LCB110
Typical I
F
for Switch Dropout vs. Temperature
(Load Current = 120mADC)
3.0
Load Current (mA)
2.5
LED Current (mA)
2.0
1.5
1.0
0.5
0
-40
-20
0
20
40
60
80
100
Temperature (°C)
LCB110
Typical Load Current vs. Load Voltage
(Ambient Temperature = 25°C)
150
100
50
0
-50
-100
-150
-4
-3
-2
-1
0
1
2
3
4
Load Voltage (V)
Load Current (A)
LCB110
Energy Rating Curve
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
10µs 100µs 1ms 10ms 100ms
Time
1s
10s 100s
*The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please contact our application
department.
4
www.clare.com
Rev. 6.0
LCB110

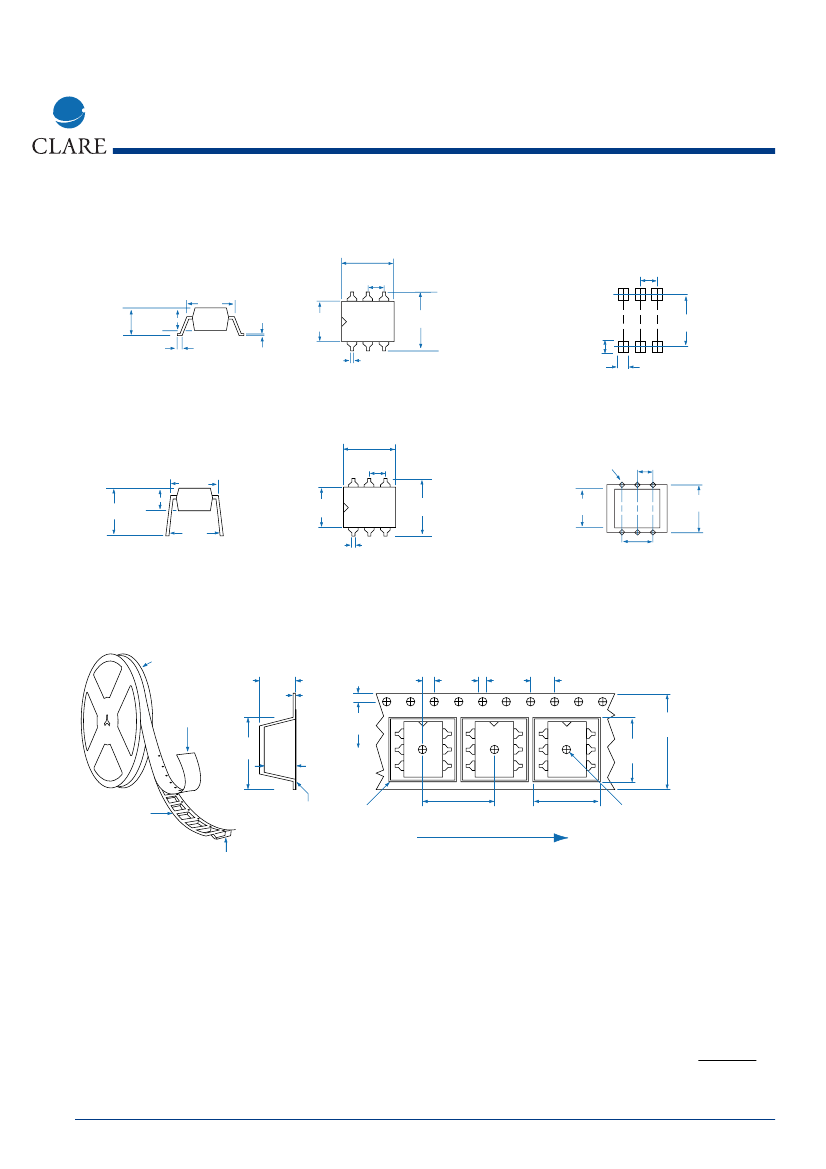

MECHANICAL DIMENSIONS
6 Pin DIP Surface Mount (“S” Suffix)
7.620
±
.254
(.300
±
.010)
4.445
±
.127
(.175
±
.005)
3.302
(.130)
.635 TYP.
(.025)
.254 TYP.
(.010)
6.350
±
.127
(.250
±
.005)
8.382
±
.635
(.330
±
.025)
2.540
±
.127
(.100
±
.005)
PC Board Pattern
(Top View)
2.540
±
.127
(.100
±
.005)
9.525
±
.254
(.375
±
.010)
1.905
±
.127
(.075
±
.005)
8.305
±
.127
(.327
±
.005)
.457
±
.076
(.018
±
.003)
1.499
±
.127
(.059
±
.005)
6 Pin DIP Through Hole (Standard)
7.620
±
.254
(.300
±
.010)
3.302
(.130)
6.350
±
.127
(.250
±
.005)
9.144
±
.508
(.360
±
.020)
8.382
±
.635
(.330
±
.025)
2.540
±
.127
(.100
±
.005)
PC Board Pattern
(Top View)
6-.800 DIA.
(6-.031 DIA.)
9.144
(.360)
6.350
±
.127
(.250
±
.005)
2.540
±
.127
(.100
±
.005)
7.620
±
.127
(.300
±
.005)
7.239 TYP.
(.285)
.457
±
.076
(.018
±
.003)
5.080
±
.127
(.200
±
.005)
Tape and Reel Packaging for 6 Pin Surface Mount Package
