LCA100 is a 350V, 120mA, 25Ω 1-Form-A relay. It fea-
tures the lowest on-resistance in an OptoMOS relay with
350V peak load voltage. Current limiting version is also
available. (“L” suffix)
Features
•
Small 6 Pin DIP Package
•
Low Drive Power Requirements (TTL/CMOS
Compatible)
•
No Moving Parts
•
High Reliability
•
Arc-Free With No Snubbing Circuits
•
3750V
RMS
Input/Output Isolation
•
FCC Compatible
•
VDE Compatible
•
No EMI/RFI Generation
•
Machine Insertable, Wave Solderable
•
Surface Mount and Tape & Reel
Versions Available
Approvals
•
UL Recognized: File Number E76270
•
CSA Certified: File Number LR 43639-10
•
BSI Certified to:
•
BS EN 60950:1992 (BS7002:1992)
Certificate #: 7344
•
BS EN 41003:1993
Certificate #: 7344
Ordering Information
Applications
•
Telecommunications
•
Telecom Switching
•
Tip/Ring Circuits
•
Modem Switching (Laptop, Notebook, Pocket Size)
•
Hookswitch
•
Dial Pulsing
•
Ground Start
•
Ringer Injection
•
Instrumentation
•
Multiplexers
•
Data Acquisition
•
Electronic Switching
•
I/O Subsystems
•
Meters (Watt-Hour, Water, Gas)
•
Medical Equipment—Patient/Equipment Isolation
•
Security
•
Aerospace
•
Industrial Controls
Part #
LCA100
LCA100S
LCA100STR
Description
6 Pin DIP (50/Tube)
6 Pin Surface Mount (50/Tube)
6 Pin Surface Mount (1000/Reel)
Pin Configuration
LCA100/LCA100L Pinout
DC Only Configuration
1
2
3
6
5
4
+ Control
– Control
Do Not Use
+ Load
– Load
Switching Characteristics of
Normally Open (Form A) Devices
10ms
CONTROL
LOAD 10%+
+90%
10%+
T
ON
T
OFF
DS-LCA100-R1
www.clare.com
1
LCA100
Absolute Maximum Ratings (@ 25˚ C)
Parameter
Input Power Dissipation
Input Control Current
Peak (10ms)
Reverse Input Voltage
Total Power Dissipation
Isolation Voltage
Input to Output
Operational Temperature
Storage Temperature
Soldering Temperature
(10 Seconds Max.)
DIP Package
Surface Mount Package
1
2
Min
-
-
-
-
-
3750
-40
-40
Typ Max Units
-
-
-
-
-
-
-
-
150
1
50
1
5
800
2
-
+85
+125
mW
mA
A
V
mW
V
RMS
°C
°C
Absolute Maximum Ratings are stress ratings. Stresses
in excess of these ratings can cause permanent damage
to the device. Functional operation of the device at these
or any other conditions beyond those indicated in the
operational sections of this data sheet is not implied.
Exposure of the device to the absolute maximum ratings
for an extended period may degrade the device and effect
its reliability.
-
-
-
-
+260
+220
°C
°C
Derate Linearly 1.33 mw/˚C
Derate Linearly 6.67 mw/˚C
Electrical Characteristics
Parameter
Output Characteristics @ 25°C
Load Voltage (Peak)
Load Current (Continuous)
AC/DC Configuration
DC Configuration
Peak Load Current
On-Resistance
AC/DC Configuration
DC Configuration
Off-State Leakage Current
Switching Speeds
Turn-On
Turn-Off
Output Capacitance
Input Characteristics @ 25°C
Input Control Current
Input Dropout Current
Input Voltage Drop
Reverse Input Voltage
Reverse Input Current
Input to Output Capacitance
Input to Output Isolation
I
L
=120mA
-
I
F
=5mA
-
V
R
=5V
-
-
I
F
I
F
V
F
V
R
I
R
C
I/O
V
I/O
5
0.4
0.9
-
-
-
3750
-
0.7
1.2
-
-
3
-
50
-
1.4
5
10
-
-
mA
mA
V
V
µA
pF
V
RMS
-
-
-
10ms
I
L
=120mA
I
L
=200mA
V
L
=35OV
I
F
=5mA, V
L
=10V
I
F
=5mA, V
L
=10V
50V; f=1MHz
V
L
I
L
I
L
I
LPK
R
ON
R
ON
I
LEAK
T
ON
T
OFF
C
OUT
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
35
350
120
200
350
25
8
1
5
5
-
V
mA
mA
mA
Ω
Ω
µA
ms
ms
pF
Conditions
Symbol
Min
Typ
Max
Units
2
www.clare.com
Rev. 1
LCA100
PERFORMANCE DATA*
35
30
Device Count (N)
LCA100
Typical LED Forward Voltage Drop
(N=50 Ambient Temperature = 25°C)
I
F
= 5mADC
LCA100
Typical On-Resistance Distribution
(N=50 Ambient Temperature = 25°C)
(Load Current = 120mADC)
35
30
Device Count (N)
25
20
15
10
5
0
Device Count (N)
13.93 14.05 14.17 14.29 14.41 14.54 14.66
On-Resistance (Ω)
35
30
25
20
15
10
5
0
LCA100
Typical Blocking Voltage Distribution
(N=50 Ambient Temperature = 25°C)
25
20
15
10
5
0
1.17
1.19
1.21
1.23
1.25
LED Forward Voltage Drop (V)
369.8 374.6 379.4 384.1 388.9 393.7 398.4
Blocking Voltage (V)
LCA100
Typical I
F
for Switch Operation
(N=50 Ambient Temperature = 25°C)
(Load Current = 120mADC)
25
20
15
10
5
0
0.85
0.90
0.95
1.00
1.05
1.10
1.15
LED Current (mA)
25
20
15
10
5
0
LCA100
Typical I
F
for Switch Dropout
(N=50 Ambient Temperature = 25°C)
(Load Current = 120mADC)
25
20
15
10
LCA100
Typical Turn-On Time
(N=50 Ambient Temperature = 25°C)
(Load Current = 120mADC; I
F
= 5mADC)
Device Count (N)
Device Count (N)
Device Count (N)
5
0
0.85
0.90
0.95
1.00
1.05
1.10
1.15
1.72
1.87
2.02
2.17
2.32
2.46
2.61
LED Current (mA)
Turn-On (ms)
25
20
15
10
LCA100
Typical Turn-Off Time
(N=50 Ambient Temperature = 25°C)
(Load Current = 120mADC; I
F
= 5mADC)
Load Current (mA)
LCA100
Typical Load Current vs. Temperature
180
160
140
120
100
80
60
40
20
0
Leakage (µA)
0.016
0.014
0.012
0.010
0.008
0.006
0.004
0.002
-40
-20
0
20
40
60
80
100
120
0
-40
LCA100
Typical Leakage vs. Temperature
(Measured across Pins 4 & 6)
Device Count (N)
20mA
10mA
5mA
5
0
0.06
0.08
0.10
0.13
0.15
0.17
0.19
Turn-Off (ms)
-20
0
20
40
60
80
100
Temperature (°C)
Temperature (°C)
LCA100
Typical Blocking Voltage
vs. Temperature
410
LCA100
Typical Turn-On vs. Temperature
(Load Current = 120mADC)
3.000
2.500
5mA
Turn-Off (ms)
LCA100
Typical Turn-Off vs. Temperature
(Load Current = 100mADC)
0.50
0.45
0.40
0.35
0.30
0.25
0.20
0.15
0.10
0.05
0
-40
-20
0
20
40
60
80
100
120
Temperature (°C)
Blocking Voltage (V
RMS
)
405
Turn-On (ms)
400
395
390
385
380
375
-40
-20
0
20
40
60
80
100
Temperature (°C)
2.000
1.500
1.000
0.500
0
-40
-20
0
20
40
60
80
100 120
Temperature (°C)
10mA
20mA
The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please contact
our application department.
Rev. 1
www.clare.com
3
LCA100
PERFORMANCE DATA*
LCA100
Typical LED Forward Voltage Drop
vs. Temperature
LED Forward Voltage Drop (V)
1.8
1.6
Turn-On (ms)
LCA100
Typical Turn-On vs. LED Forward Current
(Load Current = 120mADC)
3.0
2.5
2.0
1.5
1.0
0.5
0
Turn-Off (ms)
LCA100
Typical Turn-Off vs. LED Forward Current
(Load Current = 120mADC)
0.30
0.25
0.20
0.15
0.10
0.05
0
1.4
1.2
1.0
0.8
-40
-20
0
20
40
60
80
50mA
30mA
20mA
10mA
5mA
100
120
0
5
10
15
20
25
30
35
40
45
50
0
5
10
15
20
25
30
35
40
45
50
Temperature (°C)
LED Forward Current (mA)
LED Forward Current (mA)
30
On-Resistance (Ω)
25
20
15
10
5
0
LCA100
Typical On-Resistance vs. Temperature
(Load Current = 120mADC; I
F
= 5mADC)
LCA100
Typical I
F
for Switch Operation
vs. Temperature
(Load Current = 120mADC)
5.0
LED Current (mA)
LED Current (mA)
4.0
3.0
2.0
1.0
0
5.0
4.0
3.0
2.0
1.0
0
LCA100
Typical I
F
for Switch Dropout
vs. Temperature
(Load Current = 120mADC)
-40
-20
0
20
40
60
80
100 120
-40
-20
0
20
40
60
80
100 120
-40
-20
0
20
40
60
80
100
120
Temperature (°C)
Temperature (°C)
Temperature (°C)
150
Load Current (mA)
100
LCA100
Typical Load Current vs. Load Voltage
(Ambient Temperature = 25°C)
I
F
= 5mADC
LCA100
Energy Rating Curve
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
10µs 100µs 1ms 10ms 100ms
Time
50
0
-50
-100
-150
-3
-2
-1
0
1
2
3
Load Voltage (V)
Load Current (A)
1s
10s 100s
The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please contact
our application department.
4
www.clare.com
Rev. 1
LCA100

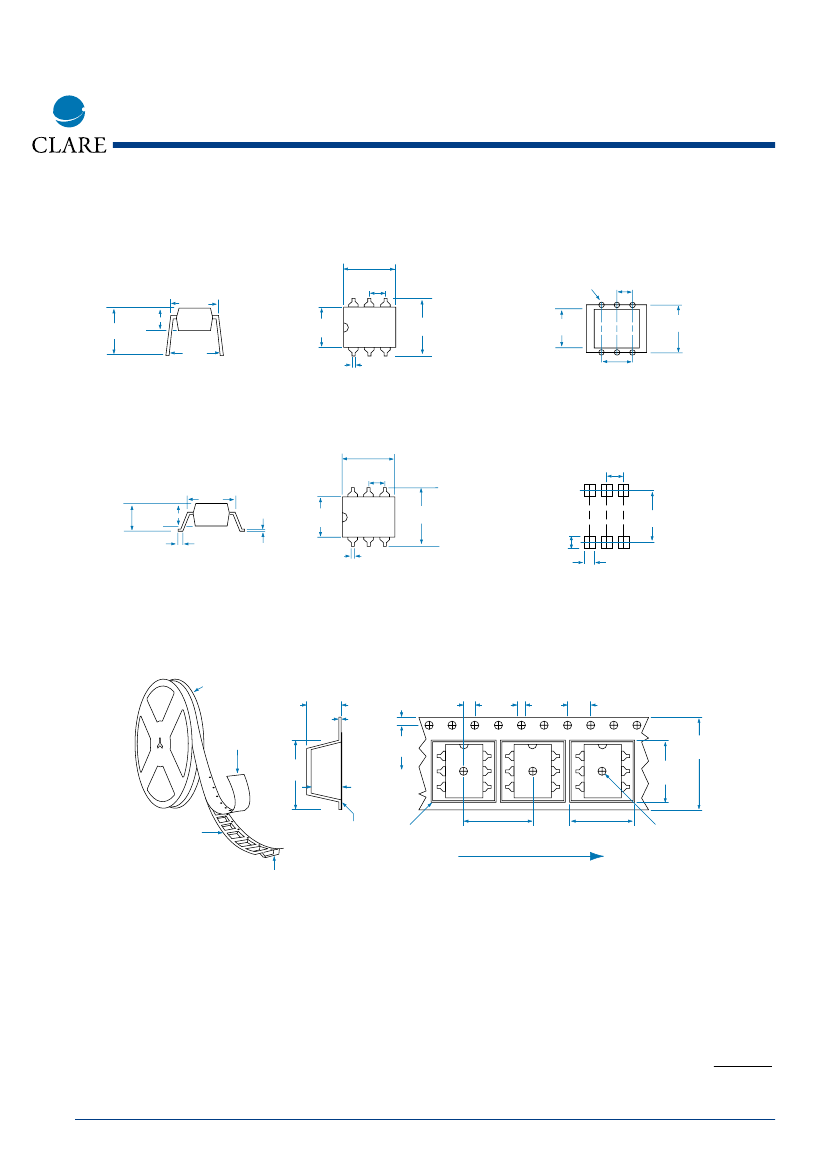

Mechanical Dimensions
6 Pin DIP Through Hole (Standard)
7.620
±
.254
(.300
±
.010)
3.302
(.130)
6.350
±
.127
(.250
±
.005)
9.144
±
.508
(.360
±
.020)
8.382
±
.635
(.330
±
.025)
2.540
±
.127
(.100
±
.005)
PC Board Pattern
(Top View)
6-.800 DIA.
(6-.031 DIA.)
9.144
(.360)
6.350
±
.127
(.250
±
.005)
2.540
±
.127
(.100
±
.005)
7.620
±
.127
(.300
±
.005)
7.239 TYP.
(.285)
.457
±
.076
(.018
±
.003)
5.080
±
.127
(.200
±
.005)
6 Pin DIP Surface Mount (“S” Suffix)
7.620
±
.254
(.300
±
.010)
4.445
±
.127
(.175
±
.005)
3.302
(.130)
.635 TYP.
(.025)
.254 TYP.
(.010)
6.350
±
.127
(.250
±
.005)
8.382
±
.635
(.330
±
.025)
2.540
±
.127
(.100
±
.005)
PC Board Pattern
(Top View)
2.540
±
.127
(.100
±
.005)
9.525
±
.254
(.375
±
.010)
1.905
±
.127
(.075
±
.005)
8.305
±
.127
(.327
±
.005)
.457
±
.076
(.018
±
.003)
1.499
±
.127
(.059
±
.005)
Tape and Reel Packaging for 6 Pin Surface Mount Package
