The LC89950 is an IC that provides 1H delay processing
for color difference signals used in PAL and SECAM
format TV. The LC89950 has two CCD systems, one for
the R-Y and one for the B-Y signal, and drives these
CCDs with a 4-MHz clock generated within the IC. It uses
a sandcastle-shaped three-value input clock with a 1 H (64
µs) period.
• Auto-bias and input clamping circuits
• 4-MHz output circuit
Package Dimensions
unit: mm
3003A-DIP14
[LC89950]
Features
• 5-V single-voltage power supply
• Two input and output systems, one each for R-Y and B-
Y signals
• Takes a sandcastle pulse (SCP) as the input clock, and
converts that to a burst gate pulse (BGP) signal
internally.
• Generates the CCD drive pulses (4 MHz) from the input
clock using a PLL circuit.
• Uses BGP as clamp pulses and clamps the no signal
section (back porch) once every horizontal scan period.
• The output signal is in-phase with the input signal
SANYO: DIP14
Functions
•
•
•
•
•
Two on-chip 254.5-bit CCD shift registers
CCD drive circuits
Sample-and-hold circuit
Burst gate pulse detection circuit
256
×
PLL circuit
Specifications
Absolute Maximum Ratings
at Ta = 25°C
Parameter
Supply voltage
Allowable power dissipation
Operating temperature
Storage temperature
Symbol
V
DD
Pd max
Topr
Tstg
Conditions
Ratings
–0.3 to +6.0
450
–10 to +60
–55 to +125
Unit
V
mW
°C
°C
Allowable Operating Ranges
at Ta = 25°C
Parameter
Supply voltage
Input signal amplitude
Symbol
V
DD
V
INPP(R-Y)
V
INPP(B-Y)
Conditions
min
4.75
typ
5.0
500
500
max
5.25
700
700
Unit
V
mV
mV
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquarters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110 JAPAN
D3097HA(OT) No. 5440-1/5
LC89950
Electrical Characteristics
at Ta = 25°C, V
DD
= 5.0 V, Fscp = 15.625 kHz
Switch States
Parameter
Current drain
Output pin voltage (pin 1)
Output pin voltage (pin 3)
Input pin voltage (pin 7)
Input pin voltage (pin 5)
Voltage gain
Differential voltage gain
Frequency characteristics
Symbol
SW1
I
DD
V
OUT
(R-Y)
V
OUT
(B-Y)
V
IN
(R-Y)
V
IN
(B-Y)
G
V
(R-Y)
G
V
(B-Y)
∆G
V
G
f
(R-Y)
G
f
(B-Y)
+L6 (R-Y)
+L6 (B-Y)
–L6 (R-Y)
–L6 (B-Y)
Lclk (R-Y)
Lclk (B-Y)
No (R-Y)
No (B-Y)
Z
OUT
(R-Y)
Z
OUT
(B-Y)
Td (R-Y)
Td (B-Y)
a/b
b
a
b
a
a
b
a↔b
a
b
a
b
a
b
a
b
a
b
a
b
a
b
SW2
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a↔b
a↔b
a
a
SW3
a/b
a/b
a/b
a/b
a/b
a
a
a
a
a
a
a
b
b
a
a
a
a
a
a
a
a
SW4
a/b
a/b
a/b
a/b
a/b
a
a
a
a
a
b
b
b
b
a
a
b
b
a
a
a
a
Test
conditions
1
2
2
2
2
3
3
3
4
4
5
5
5
5
6
6
7
7
8
8
9
9
200
200
–3
–3
57
57
57
57
min
5
0.7
0.7
1.4
1.4
–2
–2
typ
10
1.7
1.7
2.4
2.4
0
0
0.1
–1
–1
60
60
60
60
7
7
1
1
300
300
63.80
63.80
63
63
63
63
12
12
2
2
400
400
max
15
2.7
2.7
3.4
3.4
+2
+2
0.3
Unit
mA
V
V
V
V
dB
dB
dB
dB
dB
%
%
%
%
mVrms
mVrms
mVrms
mVrms
Ω
Ω
µs
µs
Positive phase input linearity +L6
Inverted input linearity
–L6
Clock leakage (4 MHz)
Noise level
Output impedance
Delay time
Sandcastle Pulse (Input Clock) Conditions
Parameter
Input frequency*1
Input pulse width
High level*2
Mid level*3
Low level
Symbol
Fscp
TW bgp
Vhigh
Vmid
Vlow
Conditions
min
14.625
3.0
5.9
2.5
–0.3
typ
15.625
4.0
6.5
3.5
0
max
16.625
5.0
7.5
4.4
2.5
Unit
kHz
µs
V
V
V
Notes: 1. Indicates the synchronization range for the PLL circuit. The delay time changes with the input frequency.
2. Vhigh is the minimum value between c and d.
3. Vmid is the maximum value between a and b and between e and f.
No. 5440-2/5
LC89950
Test Conditions
1. Measure the power-supply current when no input signal is supplied.
2. Measure the pin voltages on each pin when no input signal is supplied.
3. Let V
OUT
be the OUT pin signal amplitude when a 200-kHz 350-mVp-p sine wave is input.
Then, the voltage gain (G
V
) for each of the R-Y and B-Y I/O systems is given by:
V
OUT
[mVp-p]
G
V
= 20log ——————— [dB]
350 [mVp-p]
The R-Y and B-Y voltage gains (∆G
V
) are:
∆G
V
= | G
V
(R-Y) –G
V
(B-Y)|
4. Let V1 be the OUT pin output when a 100-kHz 200-mVp-p sine wave is input.
Let V2 be the OUT pin output when a 1-MHz 200-mVp-p sine wave is input.
V2 [mVp-p]
G
f
= 20log ——————— [dB]
V1 [mVp-p]
5. Input a 5-stage step waveform (350 mVp-p) and measure the levels a and b in the output signals.
Perform those measurements for both positive phase and inverted signal inputs.
<Positive phase signal input>
<Inverted signal input>
6. Measure the noise spectrum of the output signal when no input is supplied and read the 4-MHz peak.
7. Pass the output signal through a 2-MHz low-pass filter and a 100-kHz high-pass filter. Then, measure that output with
a noise meter, when no input signal is supplied. Use a 2-MHz low-pass filter with an attenuation of –60 dB at 4-MHz.
8. Input a 200-kHz 350-mVp-p sine wave.
Let V1 be the OUT pin output when SW2 is set to a.
Let V2 be the OUT pin output when SW2 is set to b.
V1 [mVp-p] – V2 [mVp-p]
Z
O
= ————————————
×
500 [Ω]
V2 [mVp-p]
9. Measure the delay time of the OUT pin output with respect to the input signal. When taking this measurement, exclude
the delay associated with the low-pass filter.
No. 5440-3/5
LC89950

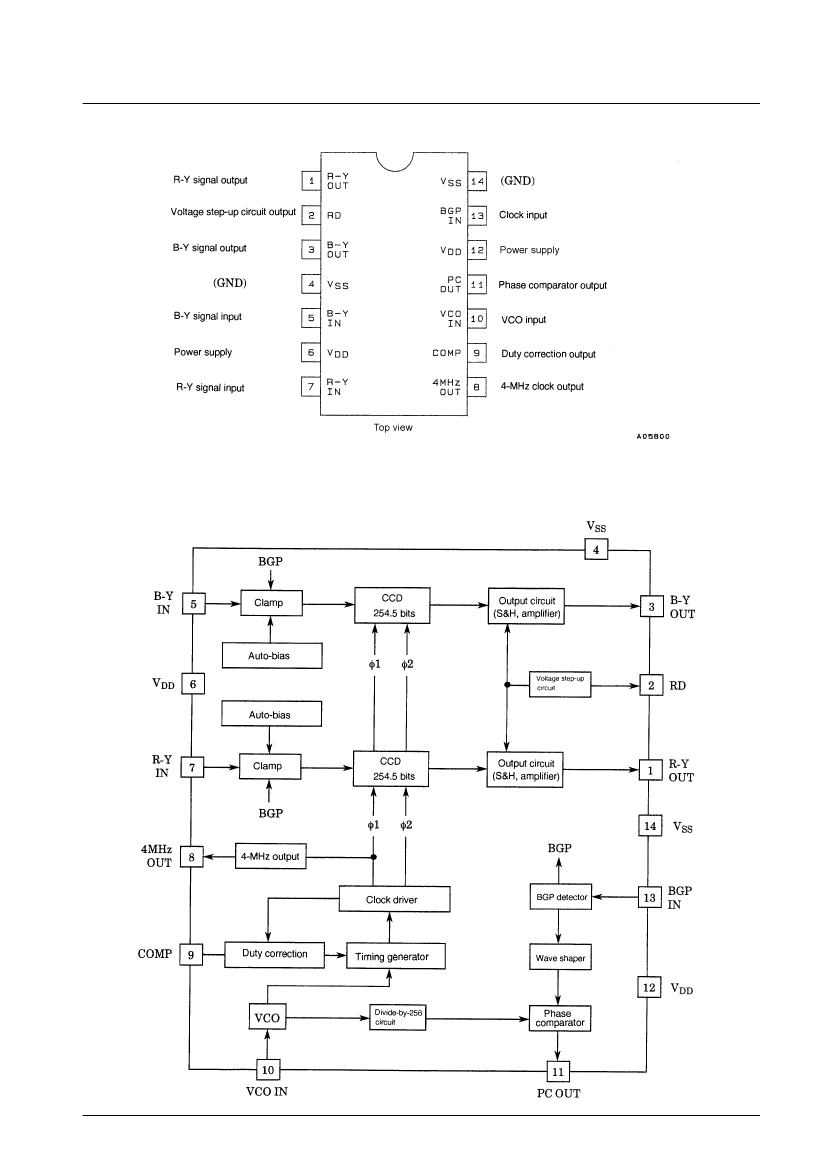

Pin Assignment
Note: Pins 1 and 3 are referred to collectively as the “OUT pin.”
Block Diagram
No. 5440-4/5
LC89950
Test Circuit
Notes: 1. Adjust VR (2 kΩ) so that the output amplitudes when SW3 is set to the a and b positions are equal.
2. LPF is a 2-MHz low-pass filter. Use a filter with an attenuation of –60 dB at 4 MHz.
3. The operational amplifier (AD842JN) is a non-inverting amplifier, and the gain from the SW1 output to the operational amplifier output should be 0 dB.

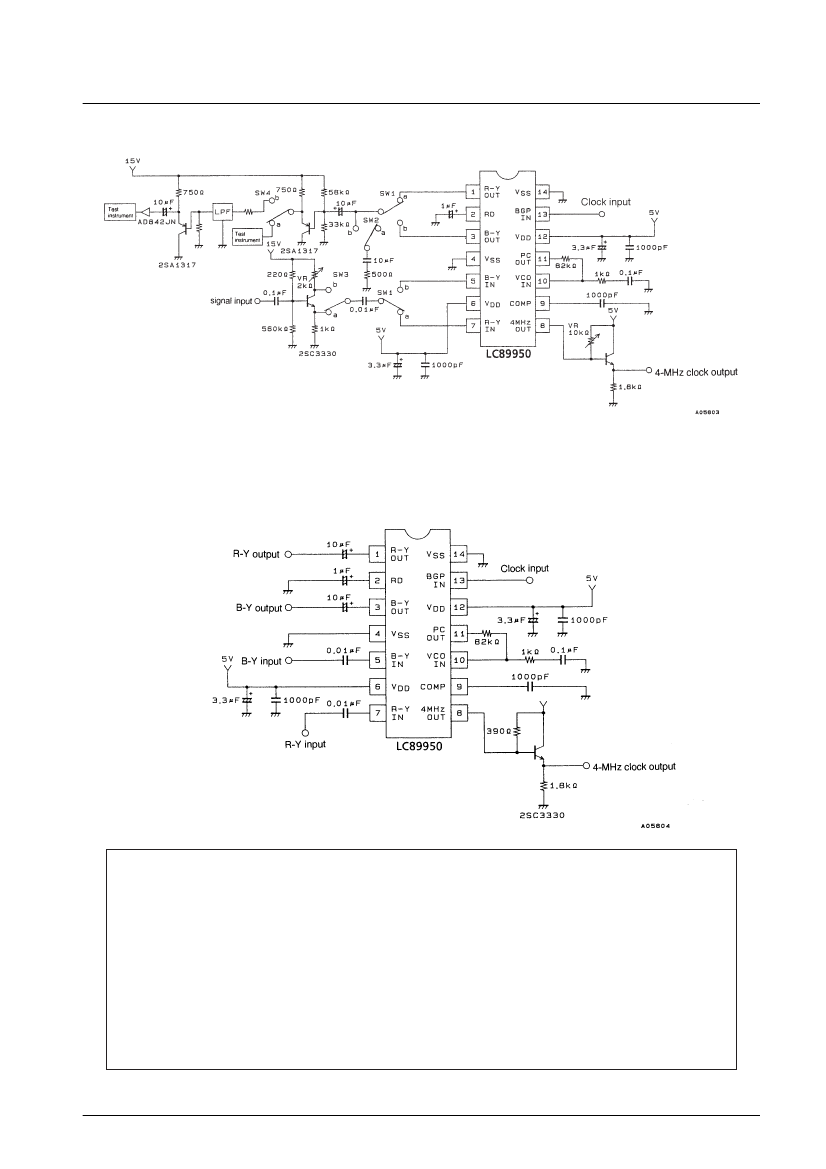

Sample Application Circuit
s
No products described or contained herein are intended for use in surgical implants, life-support systems, aerospace
equipment, nuclear power control systems, vehicles, disaster/crime-prevention equipment and the like, the failure of
which may directly or indirectly cause injury, death or property loss.
s
Anyone purchasing any products described or contained herein for an above-mentioned use shall:
Accept full responsibility and indemnify and defend SANYO ELECTRIC CO., LTD., its affiliates, subsidiaries and
distributors and all their officers and employees, jointly and severally, against any and all claims and litigation and all
damages, cost and expenses associated with such use:
Not impose any responsibility for any fault or negligence which may be cited in any such claim or litigation on
SANYO ELECTRIC CO., LTD., its affiliates, subsidiaries and distributors or any of their officers and employees
jointly or severally.
s
Information (including circuit diagrams and circuit parameters) herein is for example only; it is not guaranteed for
volume production. SANYO believes information herein is accurate and reliable, but no guarantees are made or implied
regarding its use or any infringements of intellectual property rights or other rights of third parties.
This catalog provides information as of December, 1997. Specifications and information herein are subject to
