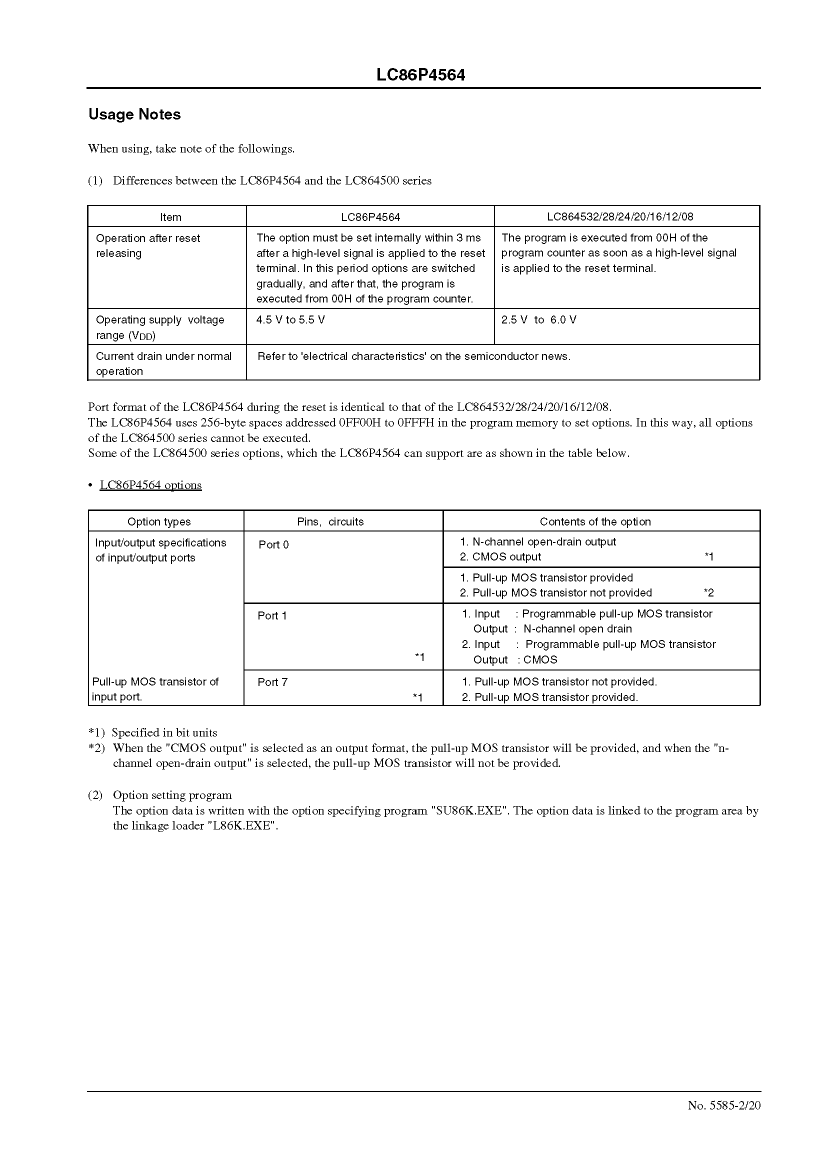

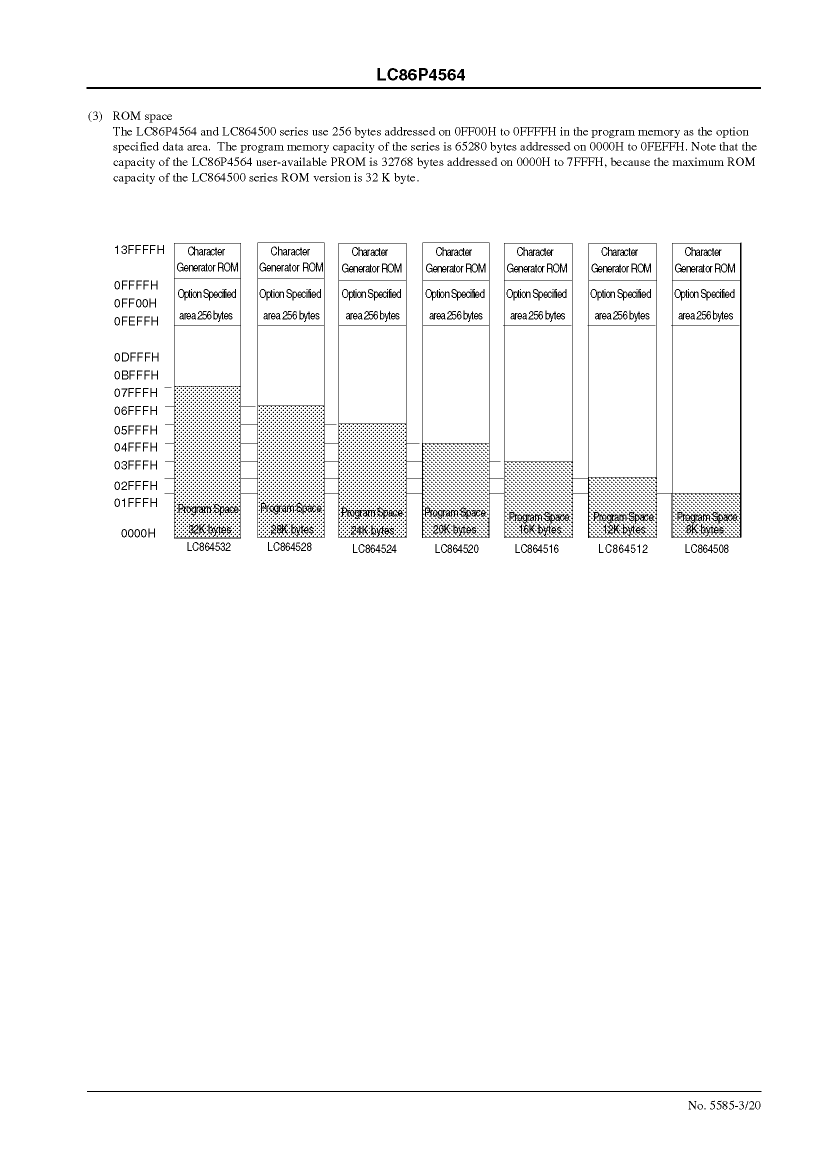

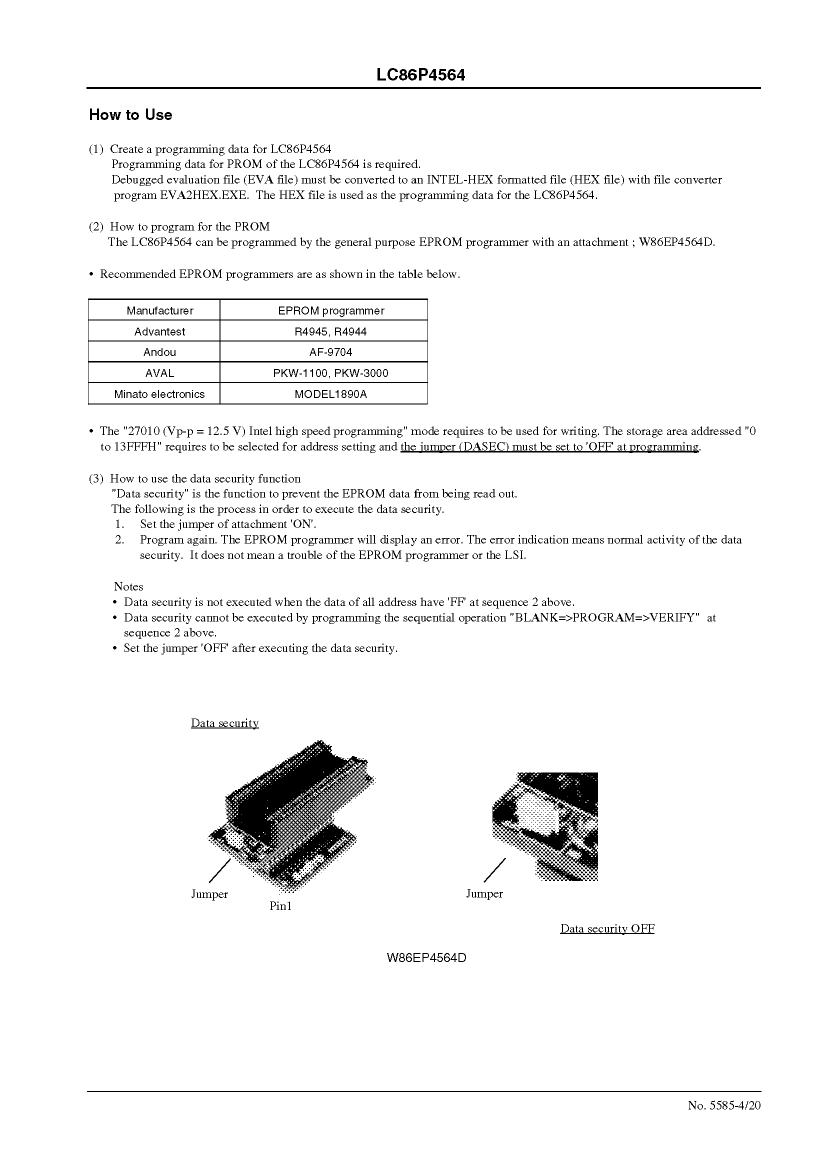

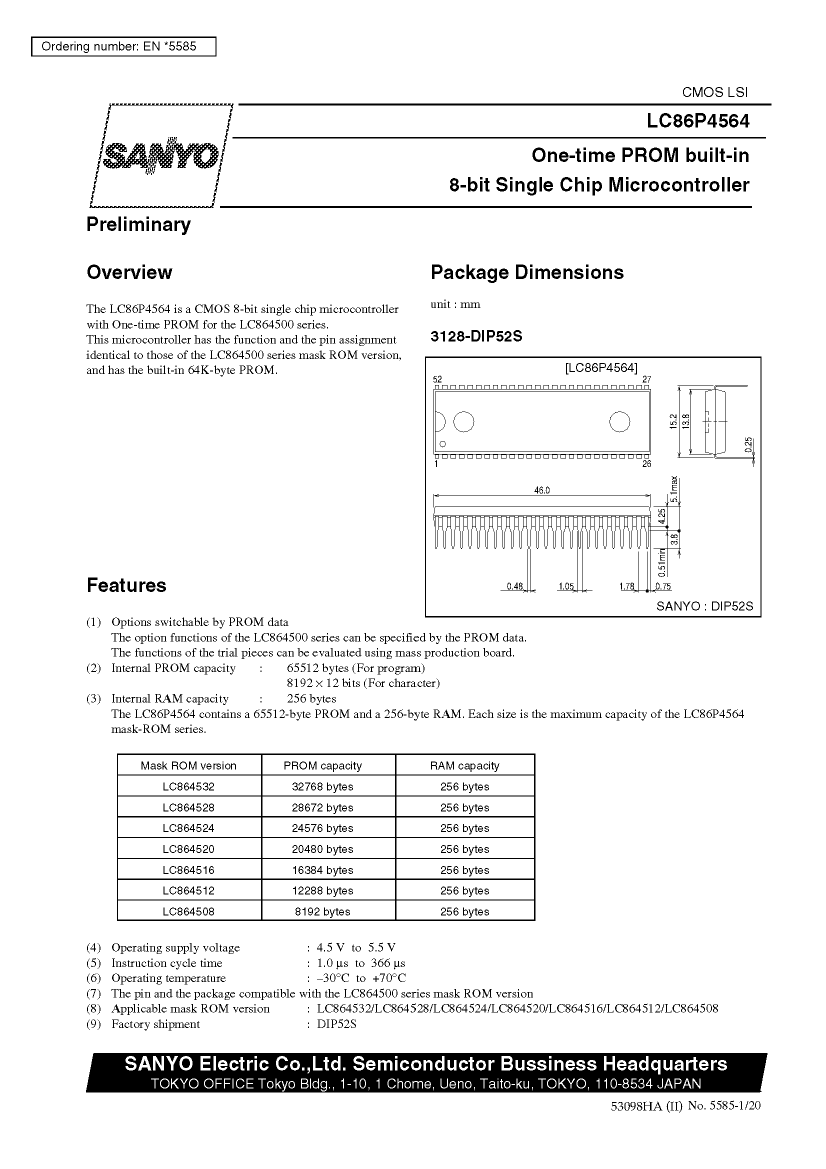

LC86P4564 datasheet, PDF - EEWORLD Datasheet

LC86P4564: DescriptionOne-time PROM built-in 8-Bit Single Chip Microcontroller　　　　　　; CategoryThe embedded processor and controller Microcontrollers and processors; File Size361KB，20 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric View All

LC86P4564 Overview

One-time PROM built-in 8-Bit Single Chip Microcontroller　　　　　　

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SANYO
Parts packaging code	DIP
package instruction	SDIP, SDIP52,.6
Contacts	52
Reach Compliance Code	unknow
Has ADC	YES
Address bus width
bit size	8
maximum clock frequency	12.24 MHz
DAC channel	YES
DMA channel	NO
External data bus width
JESD-30 code	R-PDIP-T52
JESD-609 code	e0
length	46 mm
Number of I/O lines	24
Number of terminals	52
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	SDIP
Encapsulate equivalent code	SDIP52,.6
Package shape	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	256
rom(word)	65512
ROM programmability	OTPROM
Maximum seat height	5.1 mm
speed	12.24 MHz
Maximum slew rate	32 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	1.778 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
