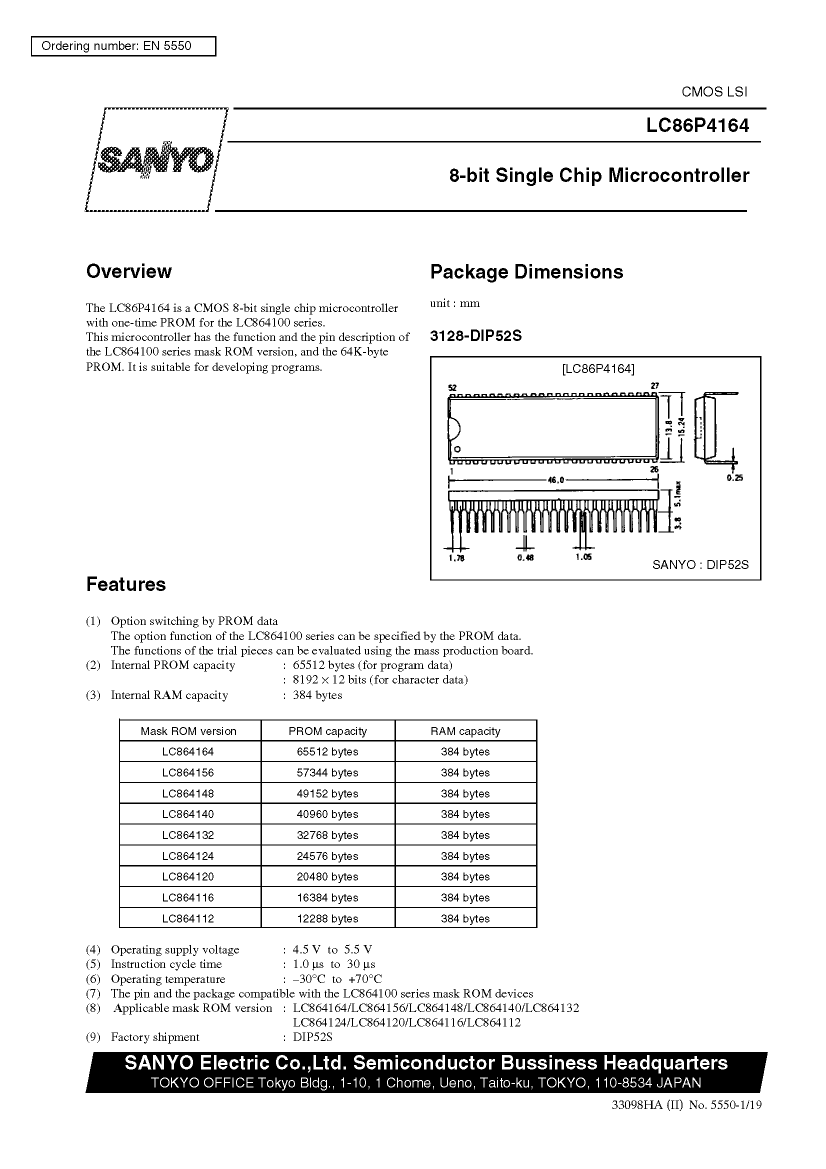

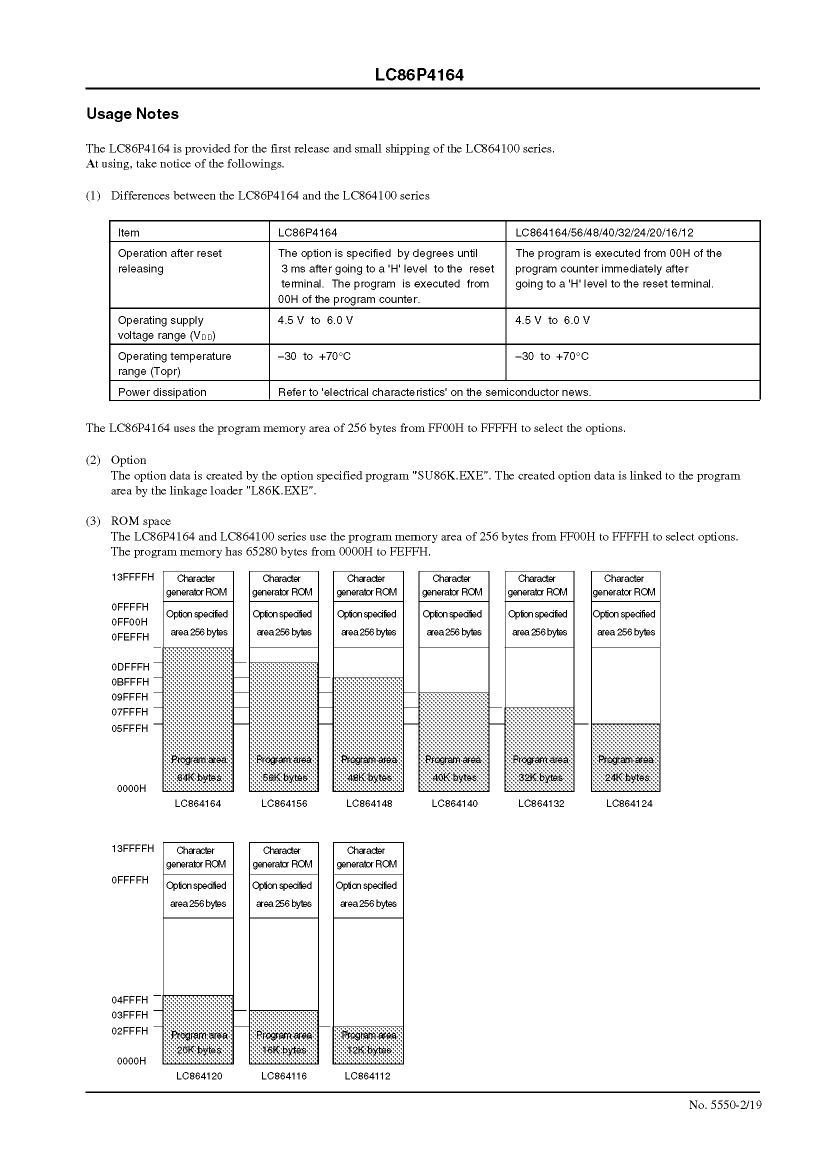

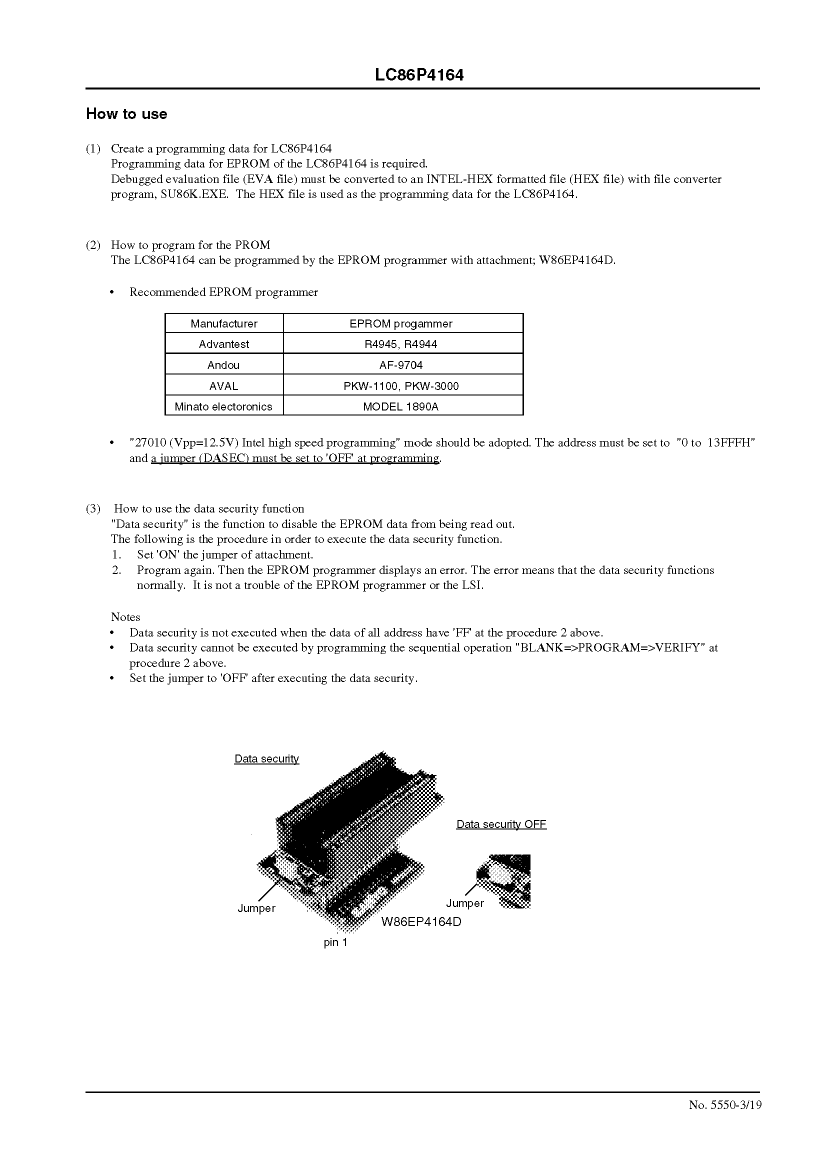

LC86P4164 Overview

8-Bit Single Chip Microcontroller　　　　

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SANYO
Parts packaging code	DIP
package instruction	SDIP, SDIP52,.6
Contacts	52
Reach Compliance Code	unknow
Has ADC	YES
Address bus width
bit size	8
maximum clock frequency	12.24 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDIP-T52
JESD-609 code	e0
length	46 mm
Number of I/O lines	24
Number of terminals	52
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	SDIP
Encapsulate equivalent code	SDIP52,.6
Package shape	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	384
rom(word)	65512
ROM programmability	OTPROM
Maximum seat height	5.1 mm
speed	12.24 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	1.778 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

	LC86P4164	LC864164	LC864132	LC864156	LC864148	LC864140	LC864120	LC864116	LC864124	LC864112
Description	8-Bit Single Chip Microcontroller	8-Bit Single Chip Microcontroller	8-Bit Single Chip Microcontroller	8-Bit Single Chip Microcontroller	8-Bit Single Chip Microcontroller	8-Bit Single Chip Microcontroller	8-Bit Single Chip Microcontroller	8-Bit Single Chip Microcontroller	8-Bit Single Chip Microcontroller	8-Bit Single Chip Microcontroller
