LC78212 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> LC78212

LC78212: DescriptionDUAL 7-CHANNEL, AUDIO/VIDEO SWITCH, PDIP30; CategoryAnalog mixed-signal IC The signal circuit; File Size104KB，6 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

LC78212 Overview

DUAL 7-CHANNEL, AUDIO/VIDEO SWITCH, PDIP30

LC78212 Parametric

Parameter Name	Attribute value
Maker	SANYO
Parts packaging code	DIP
package instruction	SDIP, SDIP30,.4
Contacts	30
Reach Compliance Code	unknow
Analog Integrated Circuits - Other Types	AUDIO/VIDEO SWITCH
JESD-30 code	R-PDIP-T30
length	27.2 mm
Maximum negative supply voltage (Vsup)	-18.5 V
Negative supply voltage minimum (Vsup)
Nominal Negative Supply Voltage (Vsup)	-18 V
Number of channels	8
Number of functions	2
Number of terminals	30
Nominal off-state isolation	55 dB
Maximum operating temperature	75 °C
Minimum operating temperature	-30 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SDIP
Encapsulate equivalent code	SDIP30,.4
Package shape	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH
power supply	+-18 V
Certification status	Not Qualified
Maximum seat height	4.95 mm
Maximum supply voltage (Vsup)	18.5 V
Minimum supply voltage (Vsup)	6 V
Nominal supply voltage (Vsup)	18 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal form	THROUGH-HOLE
Terminal pitch	1.778 mm
Terminal location	DUAL
width	10.16 mm

Preview

Download Datasheet

View All

Ordering number : EN4817A

CMOS LSI

LC78211, 78212, 78213

Analog Function Switch

Applications

Function switching under serial data control in amplifiers,

receivers, and other electronic equipment

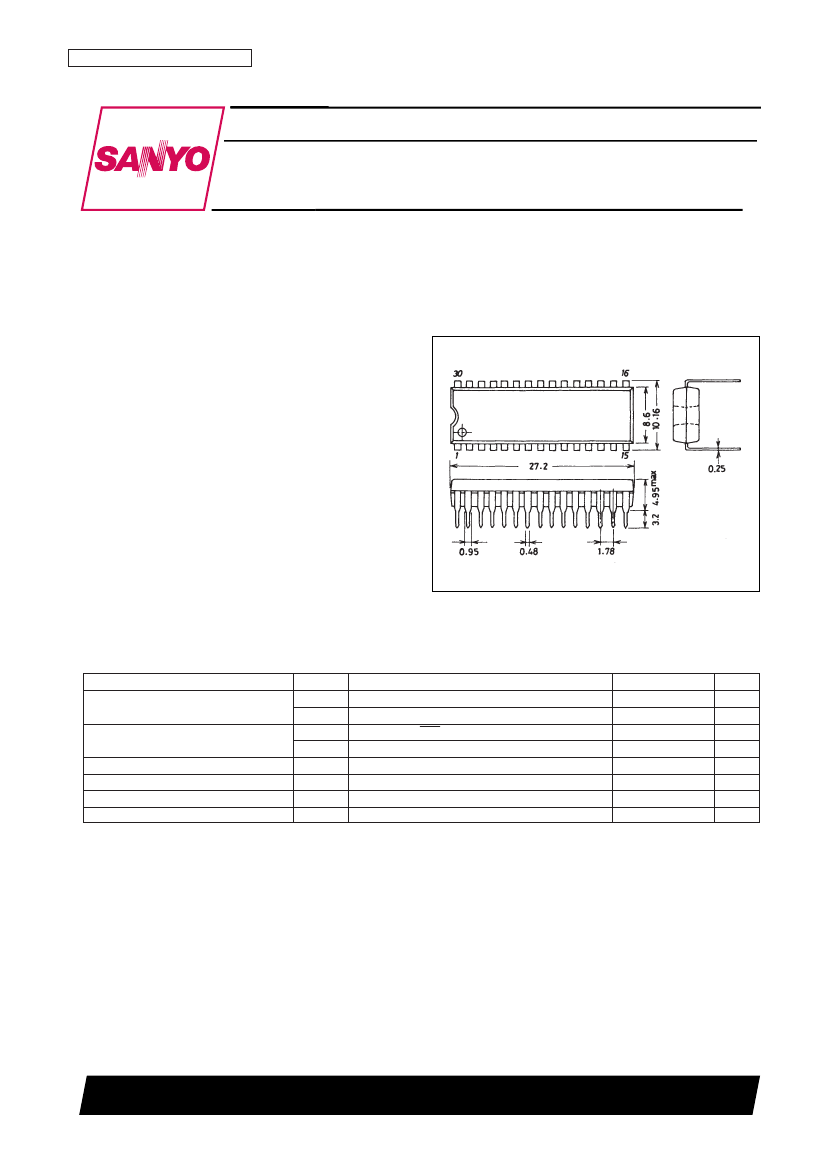

Package Dimensions

unit: mm

3061-DIP30S

[LC78211, 78212, 78213]

Features

• Two sets of eight (or in the LC78213, seven) built-in

circuits with three switching configurations available

based on differing internal connections

• Control according to serial data sent from a micro-

processor, and easy connection to 5 V microprocessors

• Two identical products can be connected to a shared bus

due to the provision of a select pin (S).

• A reset pin that turns off all analog switches

• A ±20 V withstand voltage rating allows these products

to provide a wide dynamic range.

SANYO: DIP30S

Specifications

Absolute Maximum Ratings

at Ta = 25°C

Parameter

Maximum supply voltage

Symbol

max

∆V

Pd max

Topr

Tstg

DI, CL, CE, S, RES

L1 to L8, R1 to R8, LCOM1 to LCOM4, RCOM1 to RCOM4

With the switch on

≤

75°C

Conditions

Ratings

–0.3 to +20

–20 to +0.3

–0.3 to +20

– 0.3 to V

+ 0.3

0.5

100

–30 to +75

–40 to +125

Unit

°C

Maximum input voltage

Analog switch potential difference when on

Allowable power dissipation

Operating temperature range

Storage temperature range

SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquarters

TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110 JAPAN

73096HA (OT)/72994 TH (OT) No. 4817-1/6

LC78212 Related Products

	LC78212	LC78213	LC78211
Description	DUAL 7-CHANNEL, AUDIO/VIDEO SWITCH, PDIP30	DUAL 7-CHANNEL, AUDIO/VIDEO SWITCH, PDIP30	DUAL 7-CHANNEL, AUDIO/VIDEO SWITCH, PDIP30
Maker	SANYO	SANYO	SANYO
Parts packaging code	DIP	DIP	DIP
package instruction	SDIP, SDIP30,.4	SDIP, SDIP30,.4	SDIP, SDIP30,.4
Contacts	30	30	30
Reach Compliance Code	unknow	unknow	unknown
Analog Integrated Circuits - Other Types	AUDIO/VIDEO SWITCH	AUDIO/VIDEO SWITCH	AUDIO/VIDEO SWITCH
JESD-30 code	R-PDIP-T30	R-PDIP-T30	R-PDIP-T30
length	27.2 mm	27.2 mm	27.2 mm
Maximum negative supply voltage (Vsup)	-18.5 V	-18.5 V	-18.5 V
Nominal Negative Supply Voltage (Vsup)	-18 V	-18 V	-18 V
Number of channels	8	7	8
Number of functions	2	2	2
Number of terminals	30	30	30
Nominal off-state isolation	55 dB	55 dB	55 dB
Maximum operating temperature	75 °C	75 °C	75 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SDIP	SDIP	SDIP
Encapsulate equivalent code	SDIP30,.4	SDIP30,.4	SDIP30,.4
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH	IN-LINE, SHRINK PITCH	IN-LINE, SHRINK PITCH
power supply	+-18 V	+-18 V	+-18 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.95 mm	4.95 mm	4.95 mm
Maximum supply voltage (Vsup)	18.5 V	18.5 V	18.5 V
Minimum supply voltage (Vsup)	6 V	6 V	6 V
Nominal supply voltage (Vsup)	18 V	18 V	18 V
surface mount	NO	NO	NO
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.778 mm	1.778 mm	1.778 mm
Terminal location	DUAL	DUAL	DUAL
width	10.16 mm	10.16 mm	10.16 mm
