LC7234 datasheet, PDF - EEWORLD Datasheet

LC7234: DescriptionSingle-Chip PLL and Microcontroller with LCD Driver　　; CategoryThe embedded processor and controller Microcontrollers and processors; File Size362KB，15 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric View All

LC7234 Overview

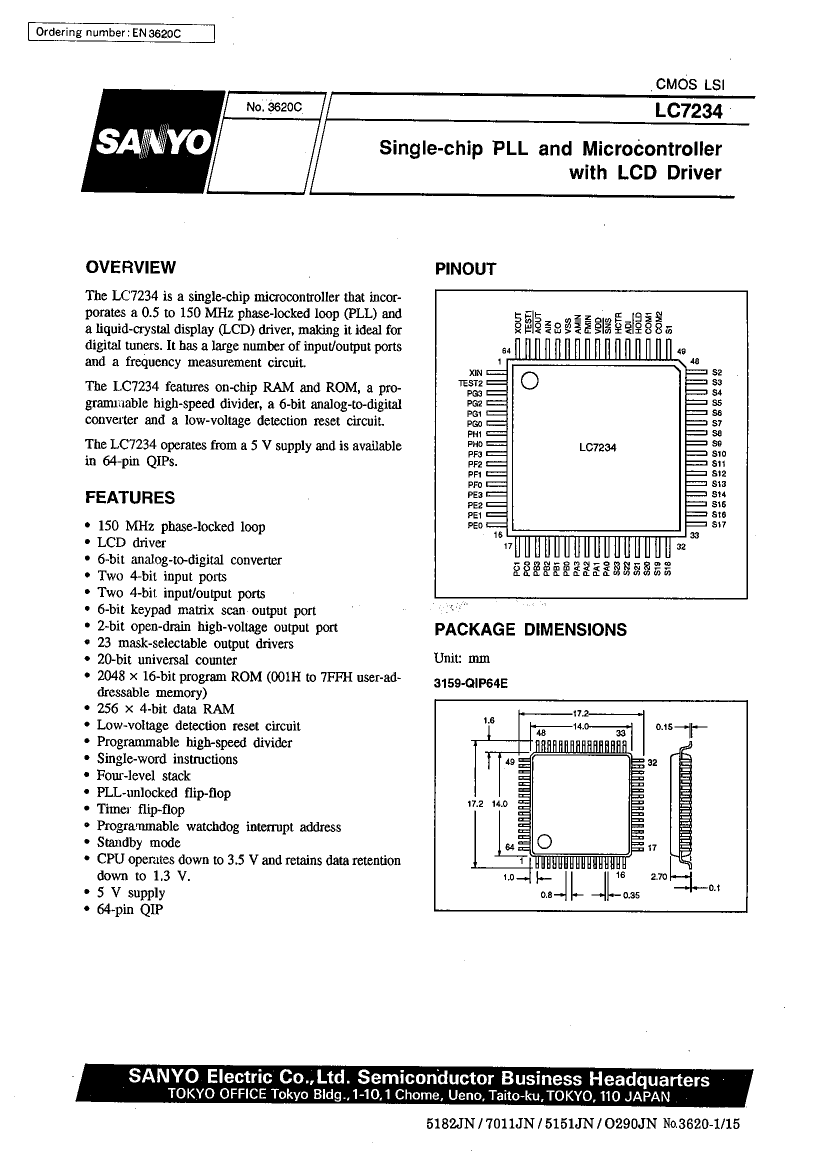

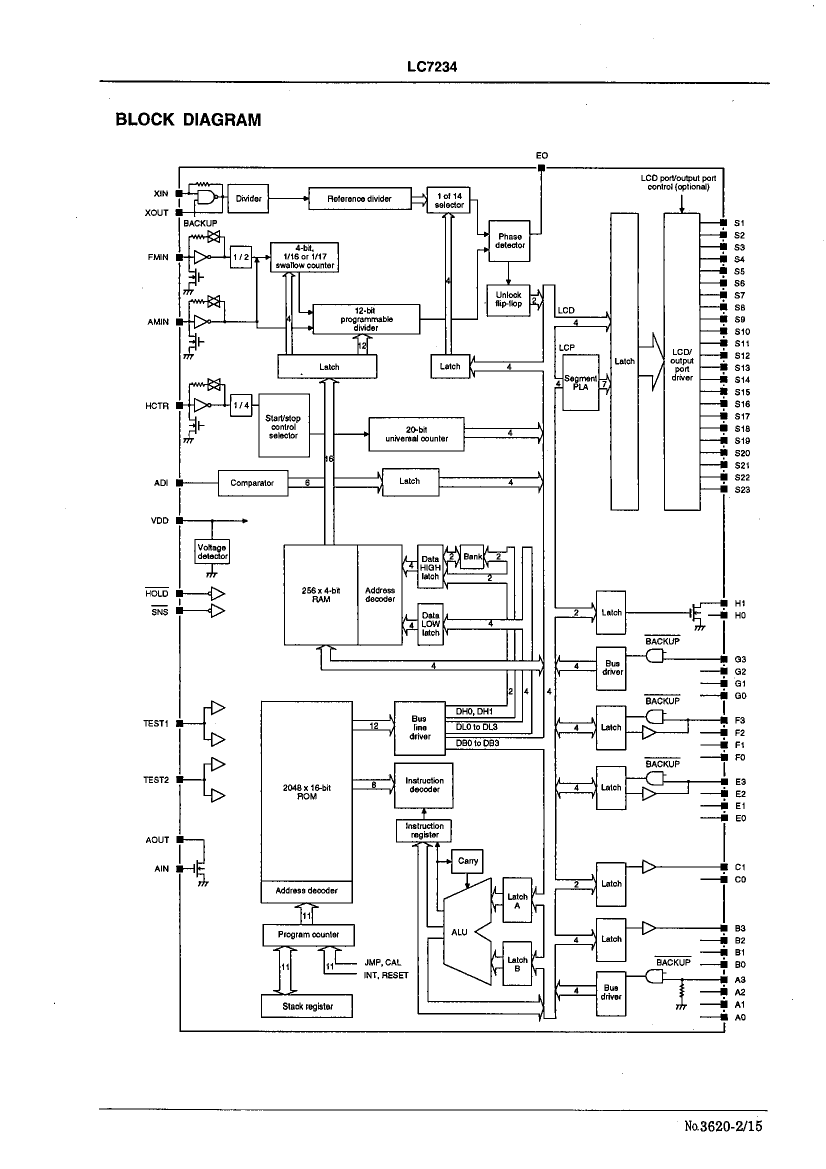

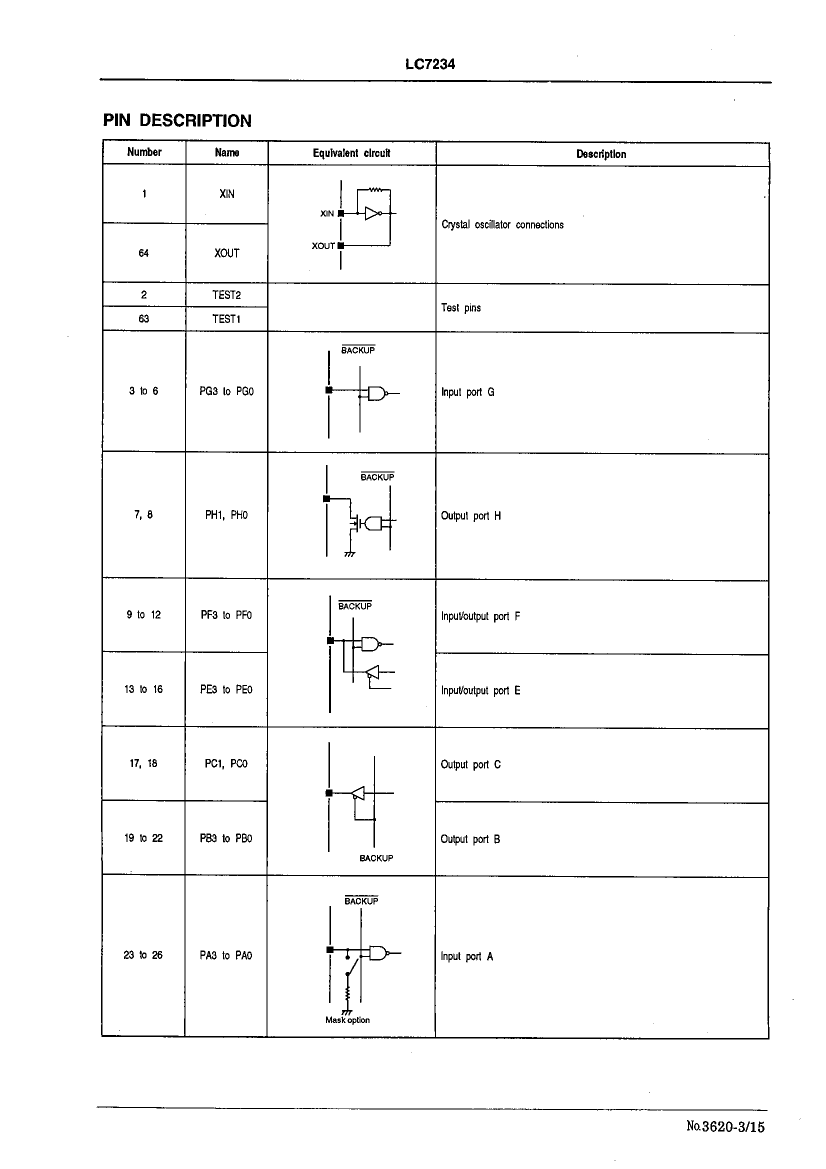

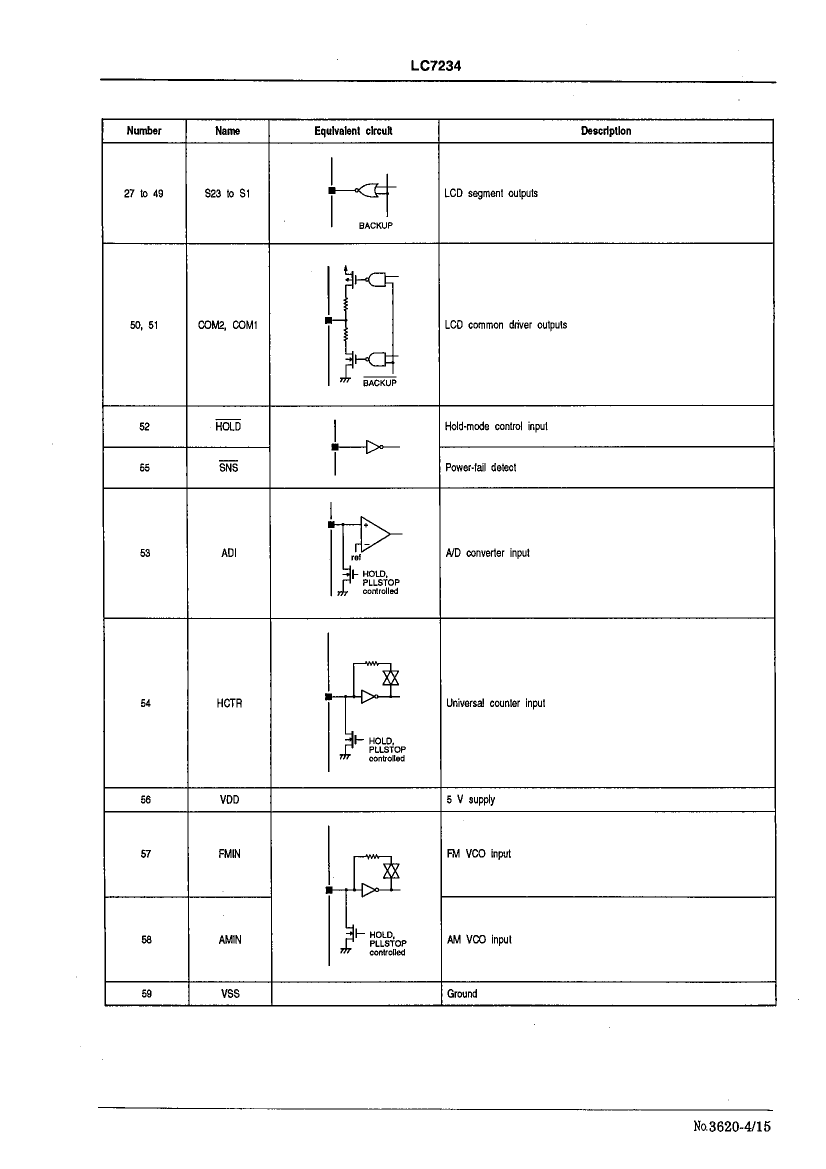

Single-Chip PLL and Microcontroller with LCD Driver　　

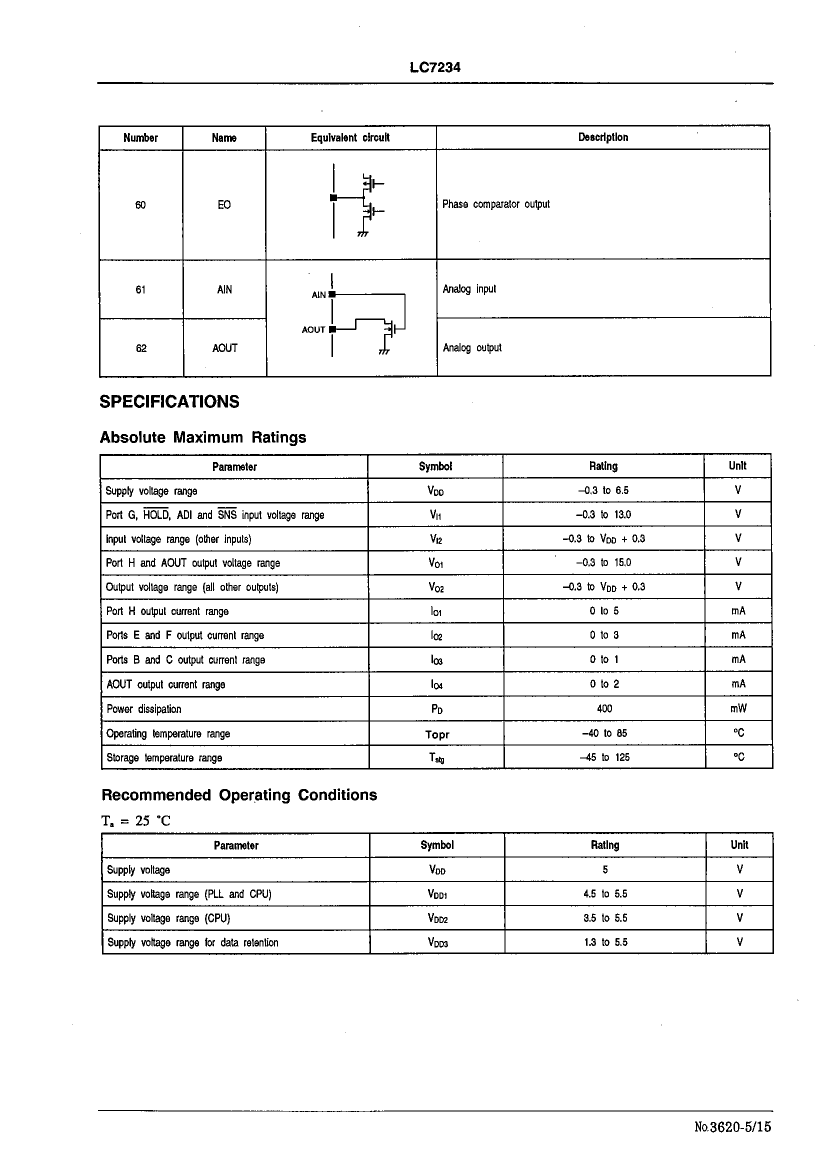

Parameter Name	Attribute value
Maker	SANYO
Parts packaging code	QFP
package instruction	QFP, QFP64,.66SQ,32
Contacts	64
Reach Compliance Code	unknow
Has ADC	NO
Address bus width
bit size	4
maximum clock frequency	5 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	S-PQFP-G64
length	14 mm
Number of I/O lines	24
Number of terminals	64
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP64,.66SQ,32
Package shape	SQUARE
Package form	FLATPACK
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	128
rom(word)	2048
ROM programmability	MROM
Maximum seat height	3 mm
speed	150 MHz
Maximum slew rate	20 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	3.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
