HFJT1-2450-L77RL: DescriptionModular Connectors / Ethernet Connectors 10/100 1x1 Tab UP RJ45 G(O)/G(O) LED; CategoryThe connector The connector; File Size412KB，2 Pages; ManufacturerHALO Electronics

Download Datasheet Parametric View All

HFJT1-2450-L77RL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HFJT1-2450-L77RL	-	-	View	Buy Now

HFJT1-2450-L77RL Overview

Modular Connectors / Ethernet Connectors 10/100 1x1 Tab UP RJ45 G(O)/G(O) LED

HFJT1-2450-L77RL Parametric

Parameter Name	Attribute value
Maker	HALO Electronics
Reach Compliance Code	unknown
ECCN code	EAR99
Board mount options	PEG
body width	0.537 inch
subject depth	1 inch
body length	0.625 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact style	TELCOM, MODULAR
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating temperature	70 °C
Minimum operating temperature
PCB contact pattern	STAGGERED
Plating thickness	30u inch
reliability	COMMERCIAL
Terminal length	0.12 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8

Preview

Download Datasheet

View All

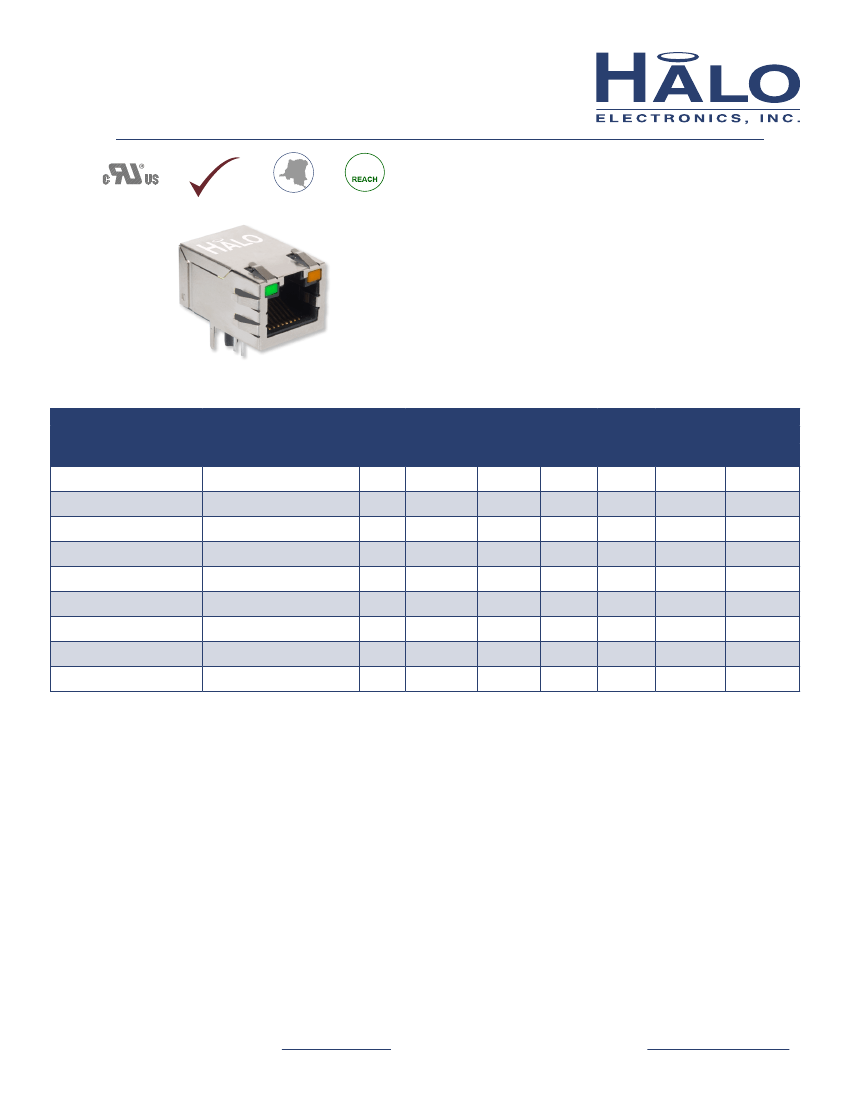

FastJack

™

1x1 Tab-Up 10/100BASE-T RJ45

RoHS

Compliant

Conflict

FREE

ü

Product Features:

10/100BASE-T Ethernet RJ45

IEEE802.3u Compliant

350uH min OCL at 8mA DC Bias Across the

Full Temp Range

30µ” Gold Plating (min) on Contacts

100% Compliance Testing

1500Vrms Hi-Pot

Proprietary Robust Contact Design

Part Number

Standard Temp

Extended Temp

(0 to 70°C)

(-40 to +85°C)

HFJT1-2450RL

HFJT1-2450-L11RL

HFJT1-2450-L12RL

HFJT1-2450-L15RL

HFJT1-2450-L17RL

HFJT1-2450-L21RL

HFJT1-2450-L55RL

HFJT1-2450-L77RL

HFJT1-2450-L78RL

HFJT1-E2450RL

HFJT1-E2450-L11RL

HFJT1-E2450-L12RL

HFJT1-E2450-L15RL

HFJT1-E2450-L17RL

HFJT1-E2450-L21RL

HFJT1-E2450-L55RL

HFJT1-E2450-L77RL

HFJT1-E2450-L78RL

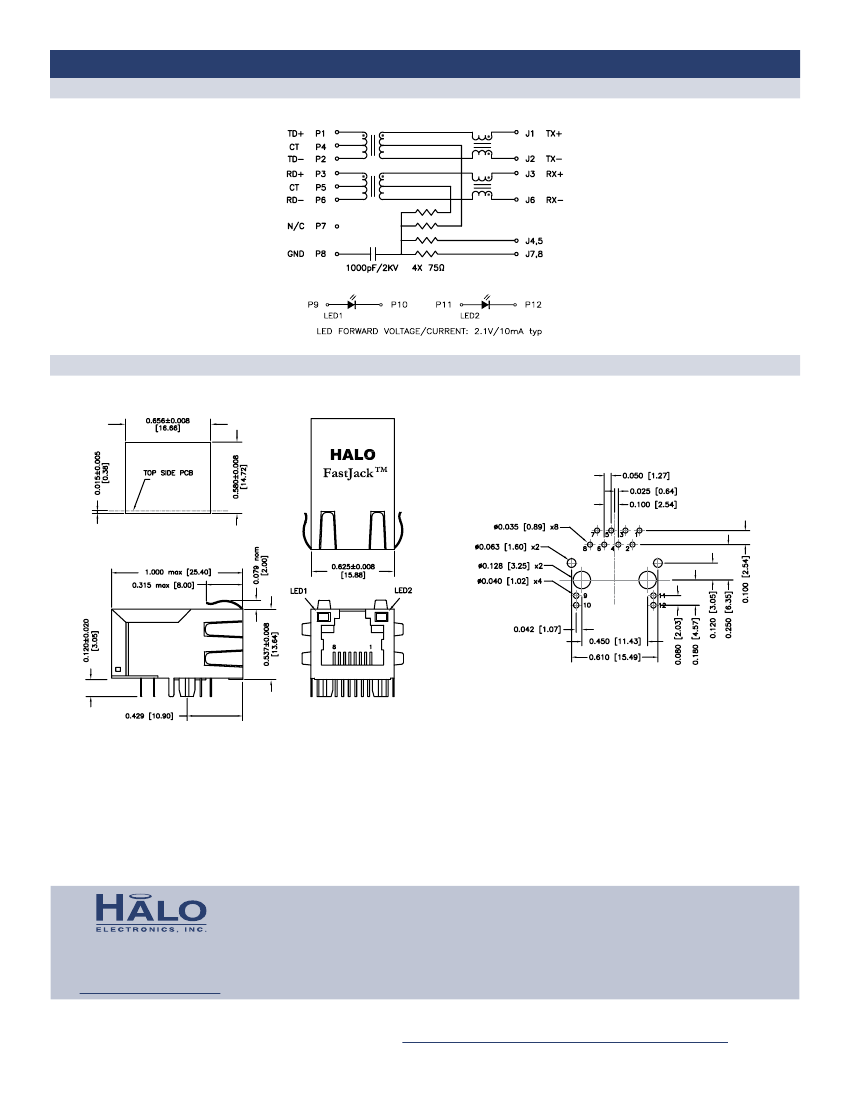

Circuit

A

LED’s

(L/R)

None

G/G

G/Y

G/G(Y)

G/G(O)

Y/G

G(Y)/G(Y)

G(O)/G(O)

G(O)/O(G)

Return Loss (min)

Insertion

1-30MHz 40MHz 50MHz 60-80MHz Loss (max)

-18dB

-15.5dB -13.6dB

-12dB

-1.1dB

Notes:

1. LED Key : G = Green, Y = Yellow, O = Orange, ( ) = Bi-Color

2. Other LED colors, bi-colors, polarities, and current limiting versions available

3. Unshielded and without ground shield tabs available

4. Part specific datasheets available

5. Lightning strike and power line cross versions available

For additional information contact your

local representative,

or HALO’s support staff at (650) 903-3800 or

info@haloelectronics.com
