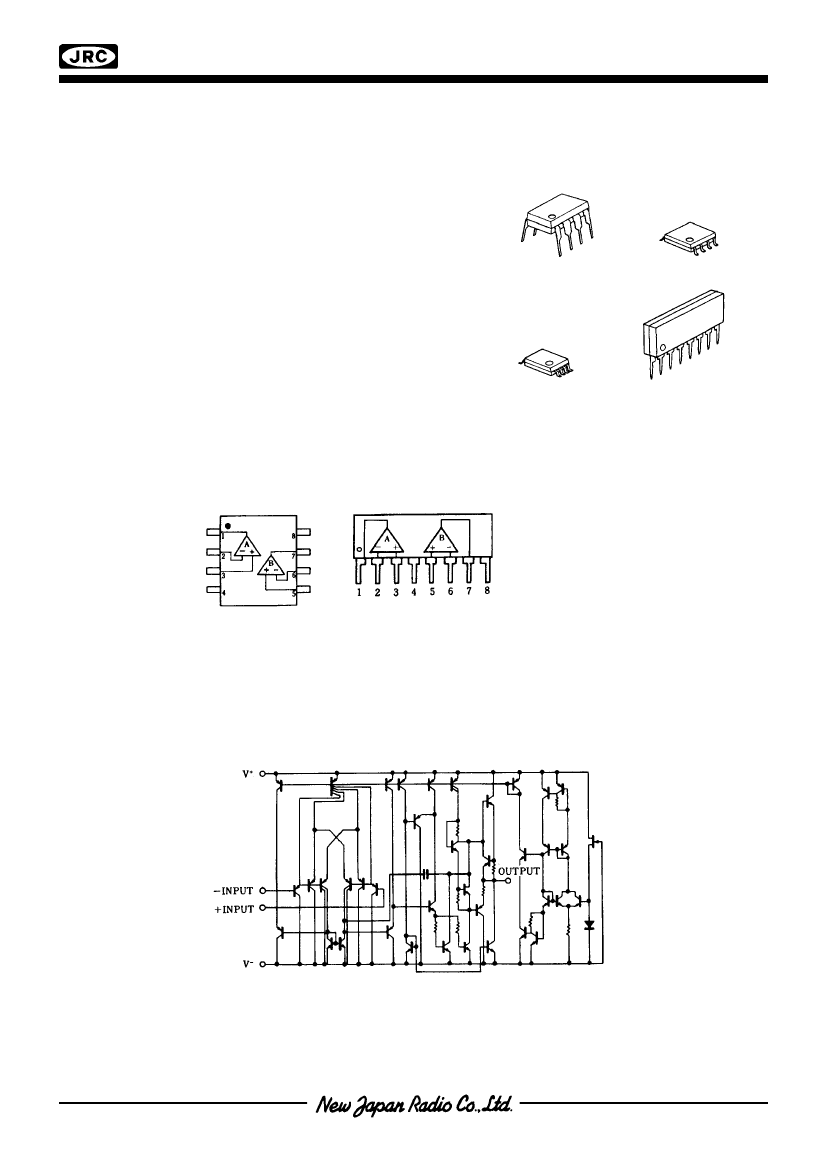

NJM3404A

SINGLE-SUPPLY DUAL OPERATIONAL AMPLIFIER

■

GENERAL DESCRIPTION

The NJM3404A is high performance single supply dual

operational amplifier.The NJM3404A is a half type of the

NJM3403A,quad operational amplifier.

The NJM3404A is improved version of the NJM2904 on slew

rate & cross-over distortion.

■

FEATURES

●

Single Supply

●

Operating Voltage

●

Low Operating Current

●

Slew Rate

●

Package Outline

●

Bipolar Technology

■

PIN CONFIGURATION

PIN FUNCTION

1.A

OUTPUT

2.A –INPUT

3.A +INPUT

4.V

5.B +INPUT

6.B –INPUT

7.B OUTPUT

8.V

■

PACKAGE OUTLINE

NJM3404AD

NJM3404AM

( +4V~+36V )

( 2.0mA typ. )

( 1.2V/µs typ. )

DIP8,DMP8,SIP8,SSOP8

NJM3404AV

NJM3404AL

NJM3404AD

NJM3404AM

NJM3404AV

NJM3404AL

■

EQUIVALENT CIRCUIT

( 1/2 Shown )

Ver.2003-03-18

-1-

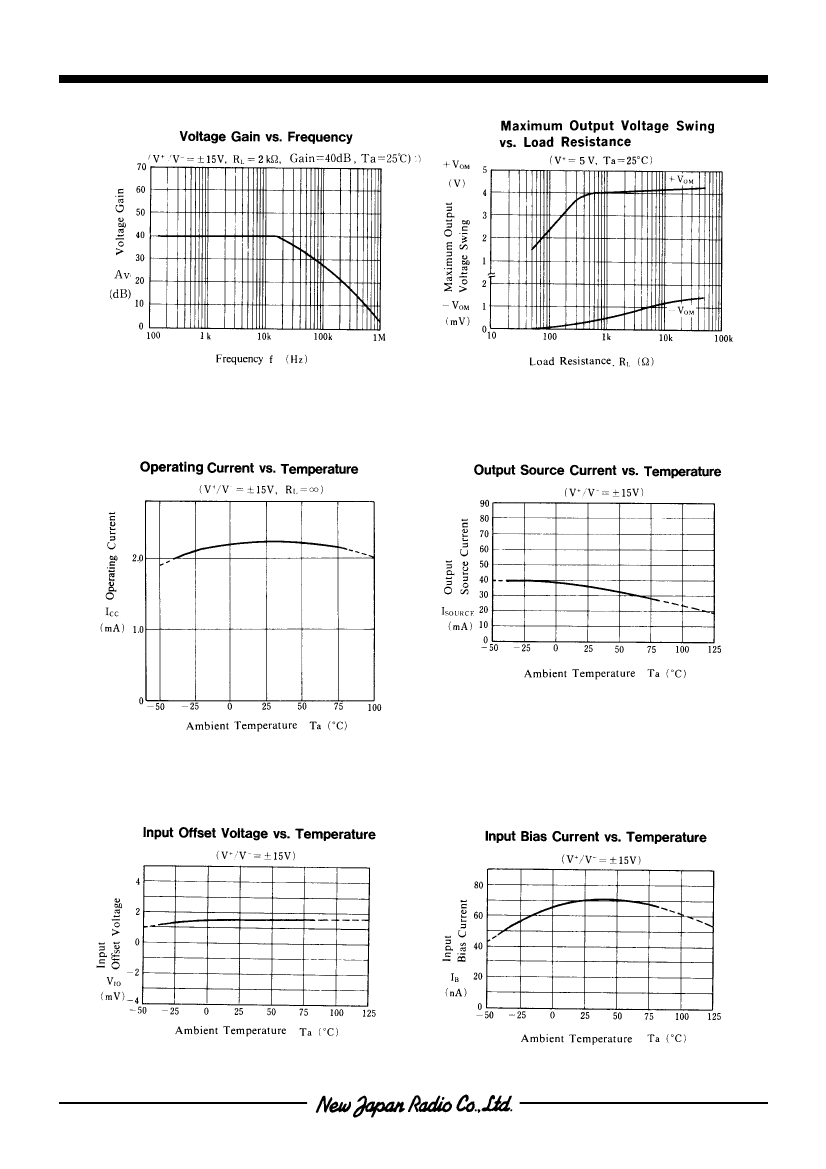

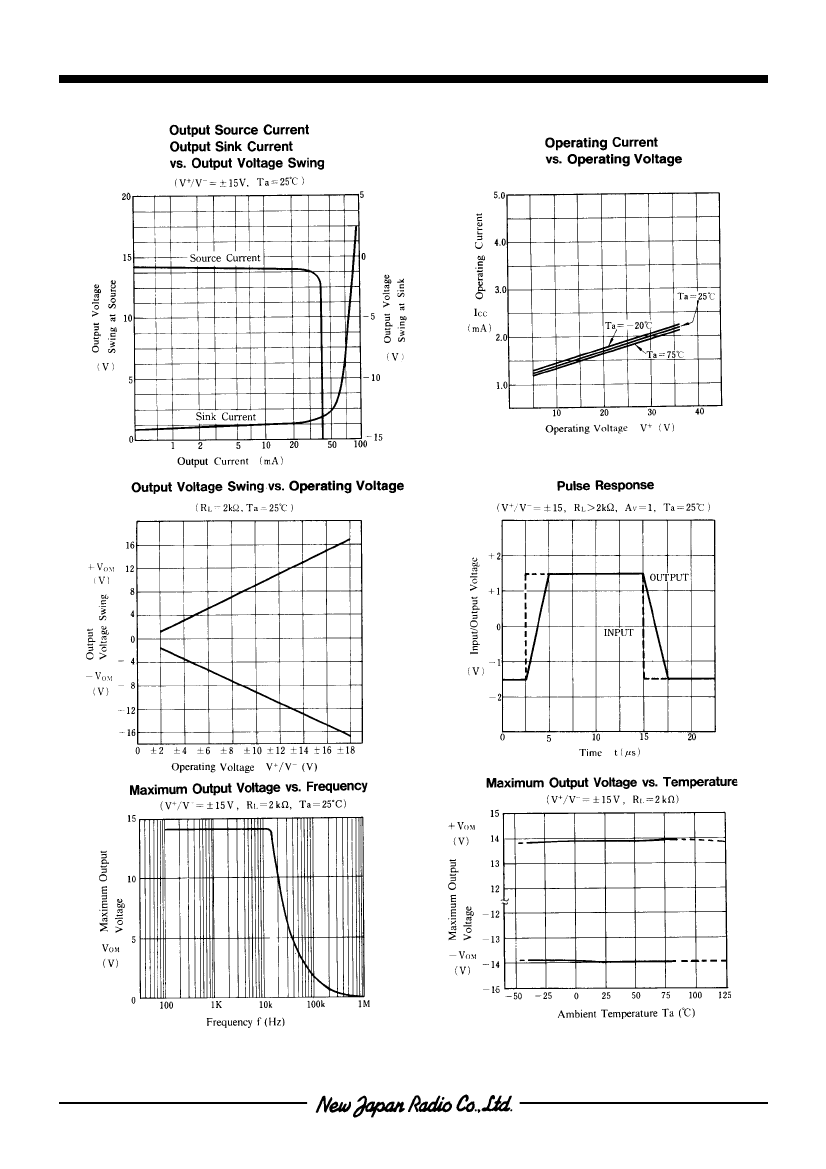

NJM3404AV-TE2 Related Products

	NJM3404AV-TE2	NJM3404AM-TE1	NJM3404AM-TE3
Description	Operational Amplifiers - Op Amps Dual Single Supply	Operational Amplifiers - Op Amps Dual Single Supply	Operational Amplifiers - Op Amps Dual Single Supply
Manufacturer	New JRC	New JRC	New JRC
Product Category	Operational Amplifiers - Op Amps	Operational Amplifiers - Op Amps	Operational Amplifiers - Op Amps
RoHS	Details	Details	Details
Mounting Style	SMD/SMT	SMD/SMT	SMD/SMT
Package / Case	SSOP-8	DMP-8	DMP-8
Supply Voltage - Max	36 V	36 V	36 V
Output Current per Channel	30 mA	30 mA	30 mA
Number of Channels	2 Channel	2 Channel	2 Channel
GBP - Gain Bandwidth Product	1.2 MHz	1.2 MHz	1.2 MHz
SR - Slew Rate	1.2 V/us	1.2 V/us	1.2 V/us
CMRR - Common Mode Rejection Ratio	70 dB	70 dB	70 dB
Ib - Input Bias Current	200 nA	200 nA	200 nA
Vos - Input Offset Voltage	5 mV	5 mV	5 mV
Supply Voltage - Min	4 V	4 V	4 V
Operating Supply Current	3.5 mA	3.5 mA	3.5 mA
Maximum Operating Temperature	+ 85 C	+ 85 C	+ 85 C
Minimum Operating Temperature	- 40 C	- 40 C	- 40 C
Shutdown	No Shutdown	No Shutdown	No Shutdown
Amplifier Type	General Purpose Amplifier	General Purpose Amplifier	General Purpose Amplifier
Height	1.15 mm	1.6 mm	1.6 mm
Length	3.5 mm	5 mm	5 mm
Product	Operational Amplifiers	Operational Amplifiers	Operational Amplifiers
Supply Type	Single, Dual	Single, Dual	Single, Dual
Technology	Bipolar	Bipolar	Bipolar
Width	4.4 mm	5 mm	5 mm
Dual Supply Voltage	+/- 3 V, +/- 5 V, +/- 9 V	+/- 3 V, +/- 5 V, +/- 9 V	+/- 3 V, +/- 5 V, +/- 9 V
Maximum Dual Supply Voltage	+/- 18 V	+/- 18 V	+/- 18 V
Minimum Dual Supply Voltage	+/- 2 V	+/- 2 V	+/- 2 V
Operating Supply Voltage	4 V to 36 V, +/- 2 V to +/- 18 V	4 V to 36 V, +/- 2 V to +/- 18 V	4 V to 36 V, +/- 2 V to +/- 18 V
Pd - Power Dissipation	800 mW	300 mW	300 mW
Factory Pack Quantity	2000	2000	2000
Voltage Gain dB	100 dB	100 dB	100 dB
Product Attribute	Attribute Value	-	Attribute Value
Packaging	Reel	Reel	Reel
