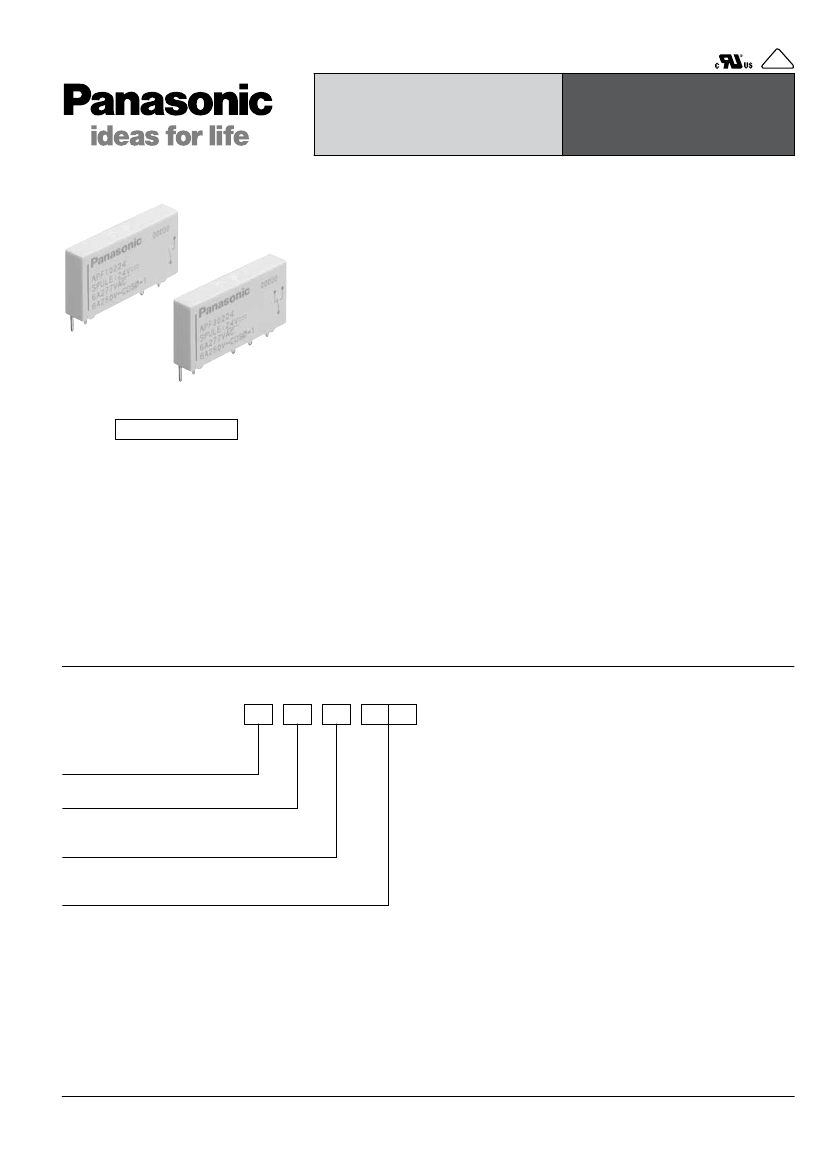

4H: 4.5 V 05: 5 V 06: 6 V 09: 9 V 12: 12 V 18: 18 V
24: 24 V 48: 48 V 60: 60 V
Note: Certified by UL/C-UL and VDE
0
ASCTB205E 201202-T
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e/
PF (APF)
TYPES
Contact arrangement
Nominal coil voltage
4.5V DC
5V DC
6V DC
9V DC
1 Form A
(AgNi type)
12V DC
18V DC
24V DC
48V DC
60V DC
4.5V DC
5V DC
6V DC
9V DC
1 Form A
(AgNi type/Au-plated)
12V DC
18V DC
24V DC
48V DC
60V DC
Standard packing: Tube: 20 pcs.; Case: 1,000 pcs.
Part No.
APF1024H
APF10205
APF10206
APF10209
APF10212
APF10218
APF10224
APF10248
APF10260
APF1034H
APF10305
APF10306
APF10309
APF10312
APF10318
APF10324
APF10348
APF10360
1 Form C
(AgNi type/Au-plated)
1 Form C
(AgNi type)
Contact arrangement
Nominal coil voltage
4.5V DC
5V DC
6V DC
9V DC
12V DC
18V DC
24V DC
48V DC
60V DC
4.5V DC
5V DC
6V DC
9V DC
12V DC
18V DC
24V DC
48V DC
60V DC
Part No.
APF3024H
APF30205
APF30206
APF30209
APF30212
APF30218
APF30224
APF30248
APF30260
APF3034H
APF30305
APF30306
APF30309
APF30312
APF30318
APF30324
APF30348
APF30360
RATING
1. Coil data
Nominal coil
voltage
4.5V DC
5V DC
6V DC
9V DC
12V DC
18V DC
24V DC
48V DC
60V DC
Pick-up voltage
(at 20°C
68°F)
Drop-out voltage
(at 20°C
68°F)
Nominal operating
current
[±10%] (at 20°C
68°F)
37.8mA
34.0mA
28.3mA
18.9mA
14.2mA
9.4mA
7.1mA
4.5mA
2.9mA
Coil resistance
[±10%] (at 20°C
68°F)
119Ω
147Ω
212Ω
476Ω
847Ω
1,906Ω
3,388Ω
10,618Ω
20,570Ω
Nominal operating
power
Max. applied voltage
(at 20°C
68°F)
Max. 70%V
nominal voltage
(Initial)
Min. 5%V
nominal voltage
(Initial)
170mW
120%V of
nominal voltage
217mW
175mW
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e/
ASCTB205E 201202-T
PF (APF)
2. Specifications
Characteristic
Arrangement
Contact
Contact resistance (Initial)
Contact material
Nominal switching capacity (resistive load)
Max. switching power (resistive load)
Rating
Max. switching voltage
Max. switching current
Nominal operating power
Min. switching capacity (Reference value)*
1
Insulation resistance (Initial)
Breakdown voltage
(Initial)
Electrical
characteristics
Between open contacts
Item
1 Form A
Specifications
1 Form C
Max. 100 mΩ (By voltage drop 6 V DC 1A)
AgNi type, AgNi type/Au-plated
6 A 250 V AC
1,500 VA
250V AC
6 A (AC)
170 mW (5 to 24 V DC), 217 mW (48 V DC), 175 mW (60 V DC)
100 mA 5 V DC (without Au-plated), 1 mA 1 V DC (with Au-plated)
Min. 1,000MΩ (at 500V DC)
Measurement at same location as “Breakdown voltage” section.
1,000 Vrms for 1 min. (Detection current: 10 mA)
4,000 Vrms for 1 min. (Detection current: 10 mA)
6,000 V
Max. 45°C
113°F
(By resistive method, nominal coil voltage applied to the coil; contact carrying current: 6A.)
Max. 8 ms
(Nominal coil voltage applied to the coil, excluding contact bounce time.)
Max. 4 ms
(Nominal coil voltage applied to the coil, excluding contact bounce time.) (without diode)
Min. 49 m/s
2
Min. 98 m/s
2
(Half-wave pulse of sine wave: 11 ms;
(Half-wave pulse of sine wave: 11 ms;
detection time: 10µs)
detection time: 10µs)
Min. 980 m/s
2
(Half-wave pulse of sine wave: 11 ms.)
10 to 55 Hz at double amplitude of 1 mm (Detection time: 10µs.)
10 to 55 Hz at double amplitude of 1.5 mm
Min. 5×10
6
(at 180 times/min.)
N.O.: Min. 5×10
4
N.O.: Min. 5×10
4
, N.C.: Min. 3×10
4
(at resistive load, 6 times/min. and
(at resistive load, 6 times/min. and
nominal switching capacity)
nominal switching capacity)
Ambient temperature: –40°C to +85°C
–40°F to +185°F;
Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature)
Approx. 5 g
.18 oz
Between contact and coil
Surge breakdown voltage*
2
(Between contact and coil) (Initial)
Temperature rise (coil) (at 20°C
68°F)
Operate time (at 20°C
68°F)
Release time (at 20°C
68°F)
Functional
Destructive
Functional
Destructive
Shock resistance
Mechanical
characteristics
Vibration resistance
Mechanical
Expected life
Electrical*
4
Conditions
Unit weight
Conditions for operation, transport and storage*
3
Notes: *1. This value can change due to the switching frequency, environmental conditions, and desired reliability level, therefore it is recommended to check this with the
actual load.
*2. Wave is standard shock voltage of
±1.2×50µs
according to JEC-212-1981
*3. The upper operation ambient temperature limit is the maximum temperature that can satisfy the coil temperature rise value. Refer to “Usage, transport and storage
conditions” in NOTES.
*4. For cycle lifetime, refer to “Cautions for use 4)” in NOTES.
ASCTB205E 201202-T
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e/
PF (APF)

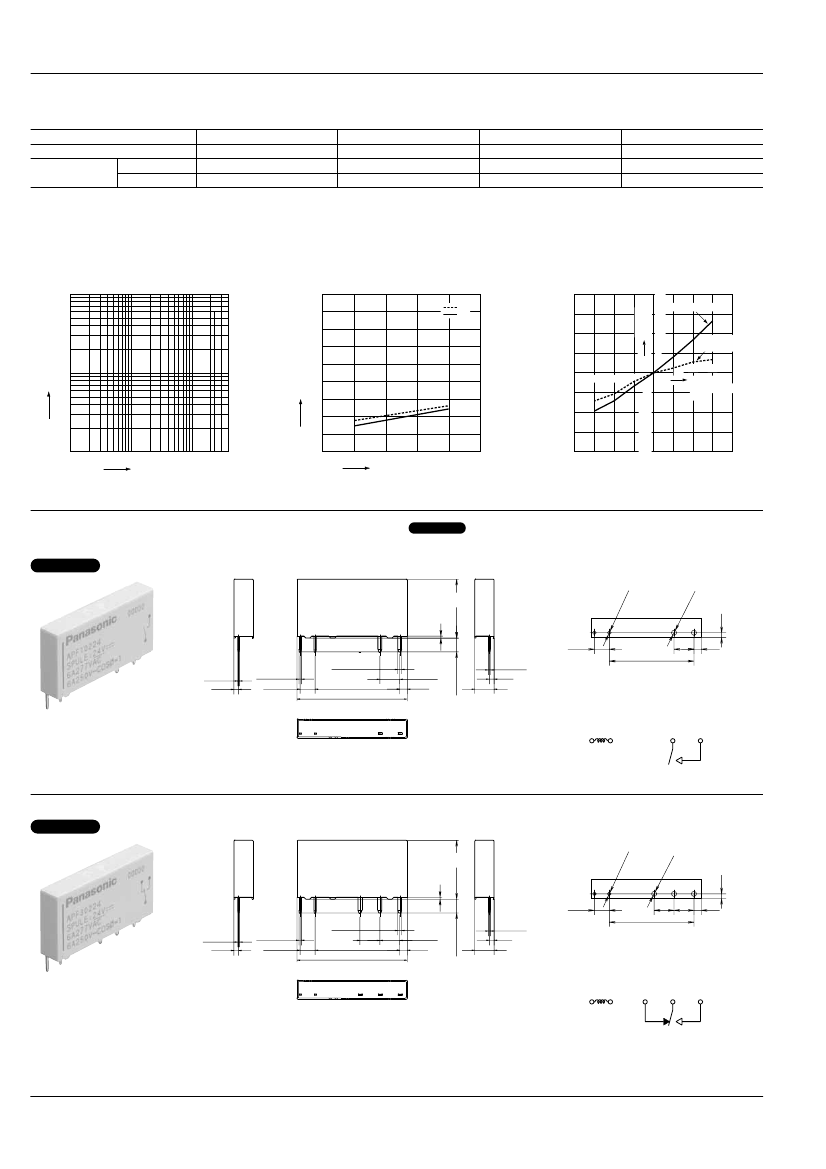

REFERENCE DATA
1. Electrical life
Tested sample: APF30224
Load type
Resistive load
Inductive load
AC 15
DC 13
Voltage
250V AC
250V AC
24V DC
Current
6A
3A
2A
Ambient temperature
85°C
185°F
25°C
77°F
25°C
77°F
No. of ops.
30,000
20,000
6,000
Notes: 1. Switch contacts are all on N.O. side.
2. AC 15 and DC 13 comply with IEC-60947-5-1 testing conditions.
2. Max. switching capacity (AC)
3. Coil temperature rise
Tested sample: APF30224
Measured portion: Inside the coil
Ambient temperature: 28°C
82°F
4. Ambient temperature characteristics
Tested sample: APF30224, 6 pcs.
Temperature rise,
°C
Contact current, A
6
5
4
3
2
1
0.5
0.4
0.3
0.2
80
70
60
50
40
30
20
10
10 20 30 50 100 250
Contact voltage, V
0
90
100
6A
0A
Rate of
change, %
10
90
20
15
10
5
Pick-up voltage
Drop-out
voltage
40 60 85
Ambient
temperature,
°C
-40
-20
0
-5
-10
-15
0
20
110
120
130
Coil applied voltage, %V
140
-20
DIMENSIONS
(mm
inch)
1. 1 Form A type
CAD Data
The CAD data of the products with a
CAD Data
mark can be downloaded from: http://industrial.panasonic.com/ac/e/
