881H-1CC-F-S-12VDC datasheet, PDF

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 881H-1CC-F-S-12VDC

881H-1CC-F-S-12VDC: DescriptionGeneral Purpose Relays SPDT 16A 12VDC; CategoryTopical application Mechanical and electrical/engineering/automation; File Size111KB，7 Pages; ManufacturerSong Chuan

Download Datasheet Parametric Compare View All

881H-1CC-F-S-12VDC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	881H-1CC-F-S-12VDC	-	-	View	Buy Now

881H-1CC-F-S-12VDC Overview

General Purpose Relays SPDT 16A 12VDC

881H-1CC-F-S-12VDC Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Song Chuan
Product Category	General Purpose Relays
RoHS	Details
Product	Power Relay
Coil Voltage	12 VDC
Contact Form	SPDT (1 Form C)
Contact Termination	Solder Pin
Mounting Style	Through Hole
Coil Termination	Solder Pin
Coil Resistance	360 Ohms
Coil Current	33 mA
Contact Material	Silver Nickel (AgNi)
Height	15.7 mm
Length	29 mm
Power Consumption	400 mW
Width	12.7 mm

Preview

Download Datasheet

View All

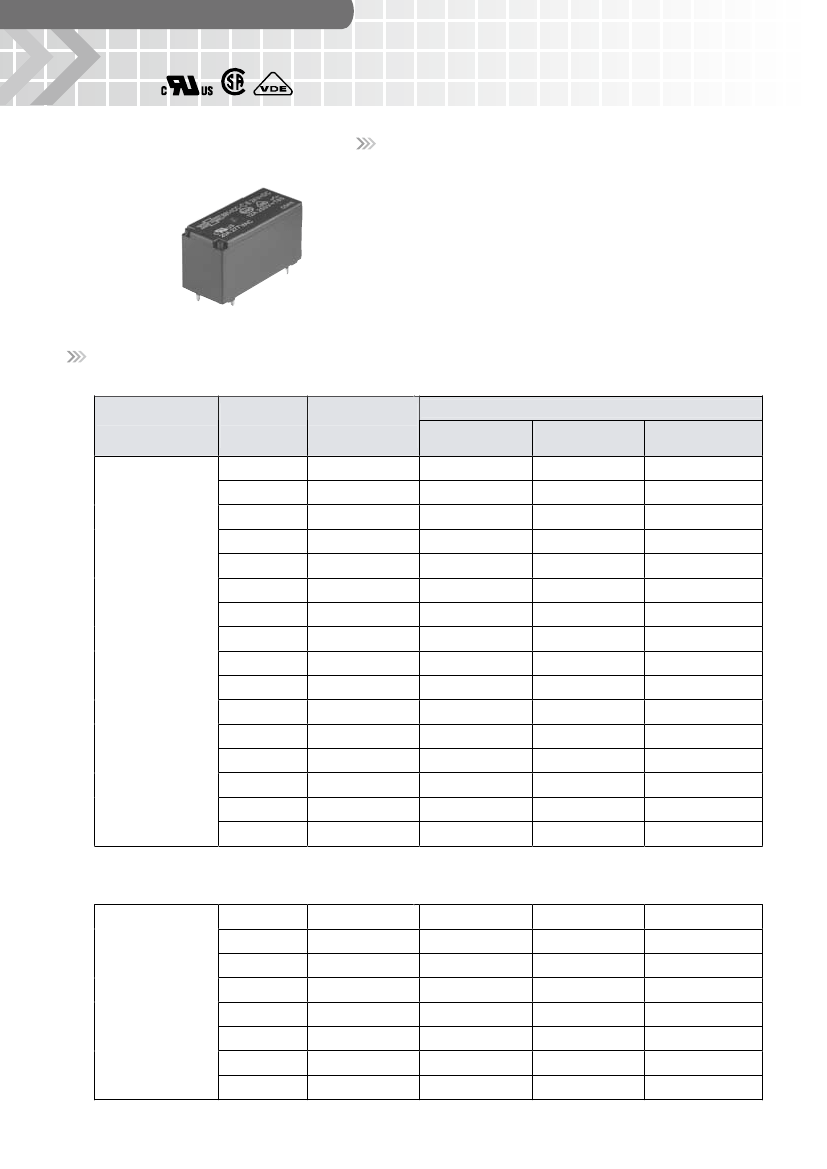

881

SONG CHUAN

Features

High rating miniature PCB Relay.

UL/CUL CSA VDE approved.

Low power consumption 400mW coil.

20A 277VAC/SPDT, 10A 277VAC/DPDT & TV-8

ratings are approved.

Low profile 15.7mm and high insulation system Class F.

High CTI 250 material & New Glow Wire Approved. (E version)

Comply with RoHS-Directive 2002/95/EC.

Type List

Standard Type

Terminal

style

Contact

form

1A (SPNO)

1C (SPDT)

2A (DPNO)

2C (DPDT)

1A (SPNO)

1C (SPDT)

2A (DPNO)

2C (DPDT)

PCB terminal

1A (SPNO)

1C (SPDT)

2A (DPNO)

2C (DPDT)

1A (SPNO)

1C (SPDT)

2A (DPNO)

2C (DPDT)

UL Insulation

system approval

-----------

Flux tight

881-1AC-C

881-1CC-C

881-2AC-C

881-2CC-C

881-1AC-F-C

881-1CC-F-C

881-2AC-F-C

881-2CC-F-C

881-1AH-C

881-1CH-C

881-2AH-C

881-2CH-C

881-1AH-F-C

881-1CH-F-C

881-2AH-F-C

881-2CH-F-C

Designation (provided with)

Sealed type

881-1AC-V

881-1CC-V

881-2AC-V

881-2CC-V

881-1AC-F-V

881-1CC-F-V

881-2AC-F-V

881-2CC-F-V

881-1AH-V

881-1CH-V

881-2AH-V

881-2CH-V

881-1AH-F-V

881-1CH-F-V

881-2AH-F-V

881-2CH-F-V

Sealed type

washable

881-1AC-S

881-1CC-S

881-2AC-S

881-2CC-S

881-1AC-F-S

881-1CC-F-S

881-2AC-F-S

881-2CC-F-S

881-1AH-S

881-1CH-S

881-2AH-S

881-2CH-S

881-1AH-F-S

881-1CH-F-S

881-2AH-F-S

881-2CH-F-S

Note 881A Special footprint 5.0mm pinning version can be selected

High Power Type

1A (SPNO)

1C (SPDT)

1A (SPNO)

PCB terminal

1C (SPDT)

1A (SPNO)

1C (SPDT)

1A (SPNO)

1C (SPDT)

-----------

881H-1AC-C

881H-1CC-C

881H-1AC-F-C

881H-1CC-F-C

881H-1AH-C

881H-1CH-C

881H-1AH-F-C

881H-1CH-F-C

881H-1AC-V

881H-1CC-V

881H-1AC-F-V

881H-1CC-F-V

881H-1AH-V

881H-1CH-V

881H-1AH-F-V

881H-1CH-F-V

881H-1AC-S

881H-1CC-S

881H-1AC-F-S

881H-1CC-F-S

881H-1AH-S

881H-1CH-S

881H-1AH-F-S

881H-1CH-F-S
