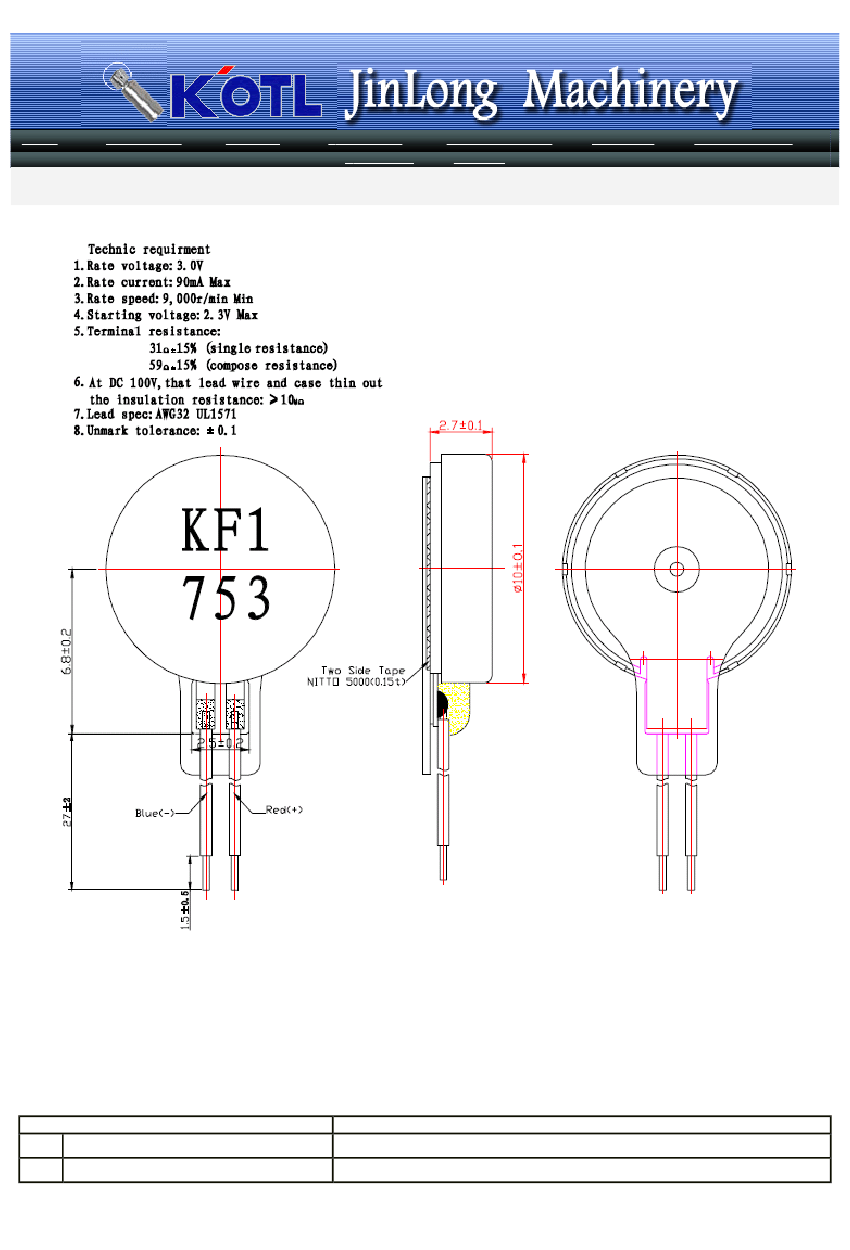

Part No.
C1026B002F
1.
General
This specification applies to coin permanent-magnetic motors DC model
C1026B
series.
2. Operating condition
Item
2-1
Rated voltage
2-2
Operating voltage
Specification
3.0 V DC
2.7~3.3 V DC
http://www.vibratormotor.com/vib/c1026b002f.html (1 of 4) [11/9/2009 12:59:24 PM]
Coin Vibration Motor Coin Vibrating Motors Coin Vibrator Motors
2-3
2-4
2-5
Rotation
Operating environment
Storage environment
CW(clockwise) or CCW(contrary clockwise)
-20°C
~+60°C,
Ordinary Humidity
-30°C
~+70°C,
Ordinary Humidity
3. Measuring condition
Item
3-1 Temperature
3-2 Humidity
3-2 Air pressure
3-4 Power supply
Specification
25±3°C
65±20% RH
1013±40 hPa
DC power supply or battery 3.0V
4. Electrical initial characteristics
Item
4-1
4-2
4-3
4-4
4-5
4-6
Rated speed
Rated current
Starting current
Starting voltage
Insulation resistance
Terminal
resistance
Specification
9,000
rpm Min
90 mA Max
120 mA Max
2.3 V DC Max
10 MΩ Min
31
Ω
±
15%
59
Ω
±
15%
Condition
At rated voltage
Motor is rotating at min starting voltage.
At DC 100V between lead wire and case.
At
25C°
5. Mechanical characteristics
Item
5-1
5-2
Bracket deflection strength
Mechanical noise
At rated voltage, back ground noise 28dB(A) Max
Specification
9.8 N or more
50 dB(A)Max
http://www.vibratormotor.com/vib/c1026b002f.html (2 of 4) [11/9/2009 12:59:24 PM]
Coin Vibration Motor Coin Vibrating Motors Coin Vibrator Motors
6. Durability characteristics
Item
Specification
Requirements
6-1
Lifetime
After the test, motors shall be approved as specified in
item 7-1.
Test cycle 50,000 cycles
6-2
6-3
Low temp
exposure
High temp
exposure
Temperature : -30°C
Time
: 96 h
After 4 hours exposure in ordinary temperature and
humidity, motors shall be approved as specified in item
7-2.
Temperature : +70°C
Time
: 96 h
Temperature : +40°C
6-4
Humidity
exposure
Humidity : 95%RH
Exposure time : 96 h
No condensation of moisture
6-5
Vibration
Displacement : 1.5mm (p-p)
Frequency:
10~55Hz
Acceleration: 22m/s2
Period: 10 Minutes log sweep
(10~55~10Hz)
Condition : This motion shall be applied for a period of 10
minutes in each of 3 mutually perpendicular axes.
After the test motors shall be approved as specified in
item 7-2.
Test state: Set the motor to the approximately 100 g (include
the motor) weight of block drop the motor on the concrete
6-6
Free fall
floor.
Height
Direction
:1.5 m
: ±x, ±y, ±z
After the test motors shall be approved as specified in
item 7-2.
Number of times: Each 3 times
Shock : 29,420 N m/s
2
Equivalent (3,000 G)
6-7
Heat stock test
After the test motors shall be approved as specified in
item 7-2.
Test cycle: 15 cycles.
7.
Requirements
http://www.vibratormotor.com/vib/c1026b002f.html (3 of 4) [11/9/2009 12:59:24 PM]
Coin Vibration Motor Coin Vibrating Motors Coin Vibrator Motors
Item
Requirements
1) Rated speed:
2) Rated current:
data-30 %
Initial
Min/ data+50 %
Initial
Max
data-30 %
Initial
Min/ data+50 %
Initial
Max
2.5 V DC Max
7-1
Table A
3) Starting voltage:
4) Insulation resistance: 10 MΩ Min
1) Rated speed:
2) Rated current:
7-2
Table B
3) Starting voltage:
4) Terminal resistance:
Initial data±20 % Max
Initial data±20 % Max
2.5 V DC Max
Initial data±15%
Max
8.
Matters to be paid attention to when using motor
8-1 Unless it is used in accordance with the specifications, the performance and life may be considerably reduced .
Due attention should be paid to voltage and range for use
8-2 Avoid use or save the motor in the following environment.
1. High temperature and high humidity area.
2. Corrosive gas such as H
2
S•SO
2
•NO
2
•Cl
2.
3. Dusty area.
8-3 Due attention must be paid to the handling and working environments because such objects as iron powder if
attracted by the motor magnent, will cause noise, characteristic deterioration thus reducing the reliability.
8-4 Please confirm enough no problem of standards and laws and ordinances on your cellular.
8-5 To handle the motor, hold the motor case softly.
8-6 Rust of plate (steel) and similar edge should be OK.
