20HV10B152KN Overview

Multilayer Ceramic Capacitors MLCC - Leaded

20HV10B152KN Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	KEMET
Product Category	Multilayer Ceramic Capacitors MLCC - Leaded
Capacitance	1500 pF
Voltage Rating DC	2 kVDC
Dielectric	X7R
Tolerance	10 %
Lead Spacing	4.32 mm
Case Style	Conformally Coated
Maximum Operating Temperature	+ 200 C
Minimum Operating Temperature	- 55 C
Product	General Type MLCCs
Operating Temperature Range	- 55 C to + 125 C
Capacitance - nF	1.5 nF
Capacitance - uF	0.0015 uF

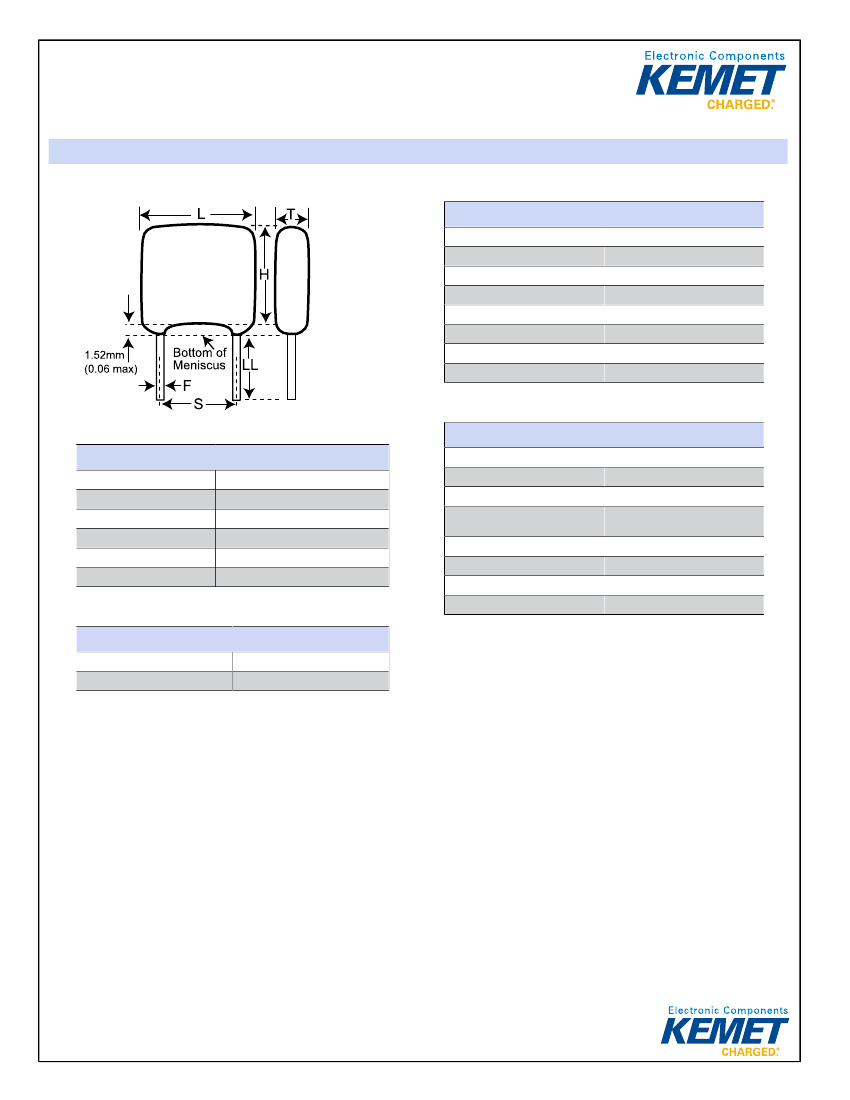

Preview

Download Datasheet

View All

KEMET Part Number: 10HV34B105KN

(10HV34B105K)

HV RAD-LDD Indust X7R HV, Ceramic, 1 uF, 10%, 1000 VDC, X7R, Commercial, High Voltage, Lead Spacing = 24.76mm

General Information

Supplier:

Series:

Style:

Description:

Features:

RoHS:

Termination:

Failure Rate:

KEMET

HV RAD-LDD Indust X7R HV

Radial

Commercial, High Voltage

Commercial

Yes

Nickel

N/A

Specifications

Dimensions

26.67mm MAX

12.7mm MAX

6.86mm MAX

24.76mm +/-0.76mm

31.75mm MIN

0.635mm +0.102/-0.051mm

Capacitance:

Capacitance Tolerance:

Voltage DC:

Dielectric Withstanding

Voltage:

Temperature Range:

Temperature Coefficient:

Dissipation Factor:

Insulation Resistance:

1 uF

10%

1000 VDC

1,500 V

-55/+125C

X7R

2.5%

1 GOhms

Packaging Specifications

Packaging:

Packaging Quantity:

Bulk, Bag

Statements of suitability for certain applications are based on our knowledge of typical operating conditions for such applications, but are not intended to constitute - and

we specifically disclaim - any warranty concerning suitability for a specific customer application or use. This Information is intended for use only by customers who have the

requisite experience and capability to determine the correct products for their application. Any technical advice inferred from this Information or otherwise provided by us

with reference to the use of our products is given gratis, and we assume no obligation or liability for the advice given or results obtained.

Generated 10/04/2018 - 32cac76e-825b-4a3c-b426-1cb4a4fb4113
