VJ0805H822JXAAC

Description
Multilayer Ceramic Capacitors MLCC - SMD/SMT
CategoryPassive components
File Size100KB,6 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

VJ0805H822JXAAC Online Shopping

Suppliers Part Number Price MOQ In stock
VJ0805H822JXAAC - - View Buy Now

VJ0805H822JXAAC Overview

Multilayer Ceramic Capacitors MLCC - SMD/SMT

VJ0805H822JXAAC Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerVishay
Product CategoryMultilayer Ceramic Capacitors MLCC - SMD/SMT
Capacitance8200 pF
Voltage Rating DC50 VDC
DielectricX8R
Tolerance5 %
Case Code - in0805
Case Code - mm2012
Maximum Operating Temperature+ 150 C
Minimum Operating Temperature- 55 C
ProductGeneral Type MLCCs
PackagingReel
Package / Case0805 (2012 metric)
Termination StyleSMD/SMT
TypeSMD MLCCs for High Temperature, X8R Dielectric
Voltage Rating AC-
Capacitance - nF8.2 nF
Capacitance - uF0.0082 uF
Factory Pack Quantity3000
Unit Weight0.000194 oz

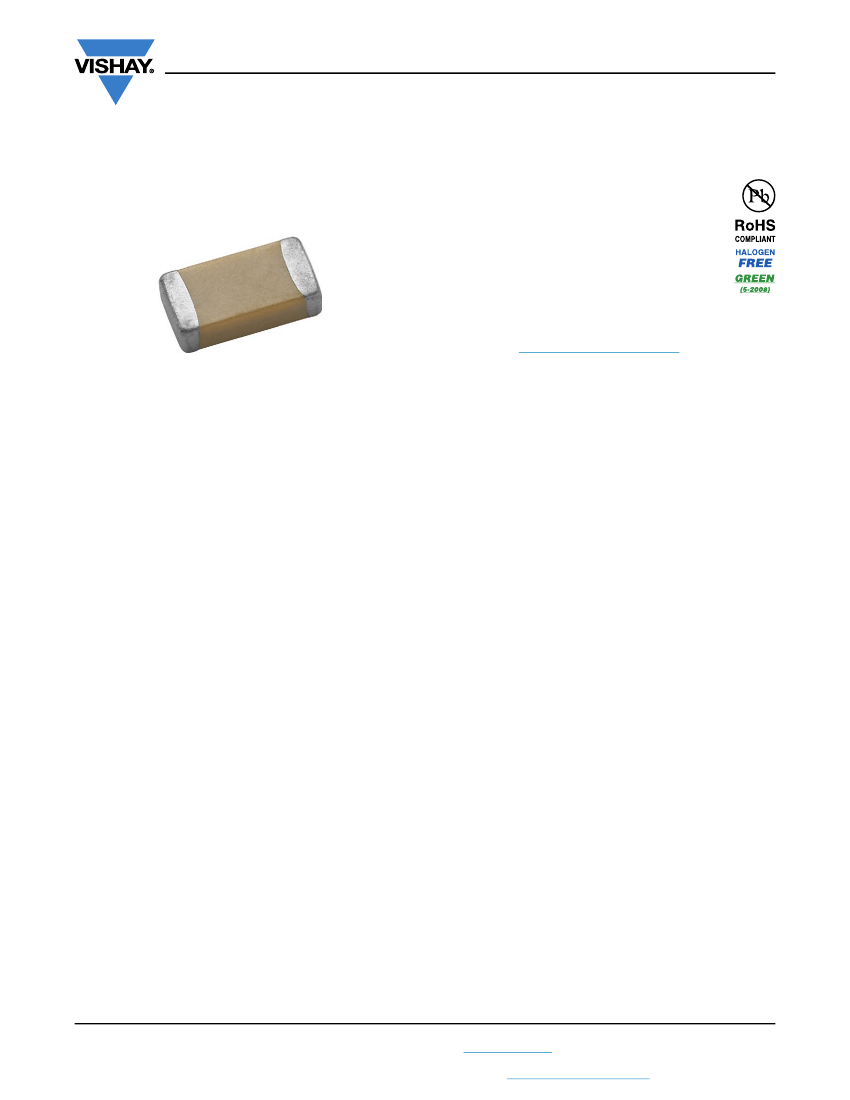

VJ X8R
www.vishay.com
Vishay Vitramon
Surface Mount Multilayer Ceramic Chip Capacitors
for High Temperature Applications
FEATURES
• Specialty: high temperature applications
• High operating temperature dielectric,
up to +150 °C
• Maintains capacitance at high temperature for
frequency stability
• Wet build process
• Reliable Noble Metal Electrode (NME) system
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
Available
APPLICATIONS
• High temperature modules
ELECTRICAL SPECIFICATIONS
Note
• Electrical characteristics at +25 °C unless otherwise specified.
Operating Temperature:
-55 °C to +150 °C
Capacitance Range:
330 pF to 220 nF
Voltage Range:
25 V
DC
to 100 V
DC
Temperature Coefficient of Capacitance (TCC):
± 15 % from -55 °C to +150 °C
Dissipation Factor (DF):
25 V ratings: 3.5 % maximum at 1.0 V
RMS
and 1 kHz
> 25 V ratings: 2.5 % maximum at 1.0 V
RMS
and 1 kHz
Aging Rate:
1 % maximum per decade
Insulation Resistance (IR):
at +25 °C and rated voltage 100 000 M minimum or
1000
F,
whichever is less
at +125 °C and rated voltage 10 000 M minimum or
100
F,
whichever is less
Dielectric Strength Test:
performed per method 103 of EIA-198-2-E
Applied test voltage:
100 V
DC
-rated: 250 % of rated voltage
Revision: 25-May-2018
Document Number: 45006
1
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
