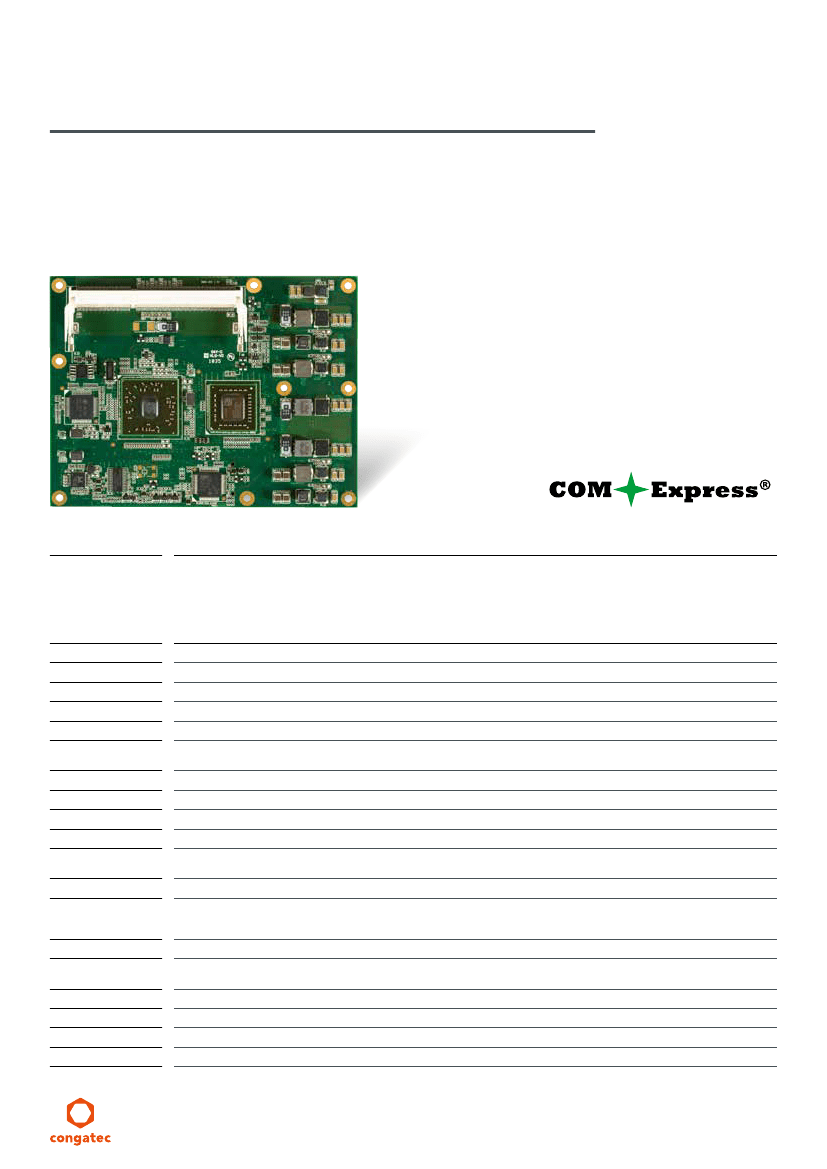

conga-BAF
High graphics performance with low
power consumption
- Based on AMD Embedded G-Series Processors
- Best price/performance ratio
- High performance graphics
Formfactor
CPU
COM Express™ Basic | (95 x 125 mm) | Type II Connector Layout
AMD Embedded G-Series Processors
AMD G-T56N
AMD G-T40N
AMD G-T44R
AMD G-T40R
AMD G-T40E
1.6 GHz Dual Core
1.0 GHz Dual Core
1.2 GHz Single Core
1.0 GHz Single Core
1.0 GHz Dual Core
cache 512 kB x2
cache 512 kB x2
cache 512 kB
L2 cache 512 kB
L2 cache 512 kB x2
18W
9W
9W
5.5W
6.4W
DRAM
Chipset
Ethernet
I/O Interfaces
Sound
Graphics
LVDS
DisplayPort
HDMI or DVI
CRT
congatec Board Controller
Embedded BIOS Features
Security
Single channel up to two 4 GB DDR3 SO-DIMM memory (up to 1066 MHz)
AMD A55E Controller Hub
Gigabit Ethernet | Realtek RTL8111E
6x PCI ExpressTM x1 lanes | 4x Serial ATA® | 1x EIDE (up to UDMA 6) | 8x USB 2.0 | PCI Bus (Rev. 2.3 compliant | 33 MHz) | 2x Express™ Card
High Definition Audio Interface
Integrated High Performance Video | DirectX®11 graphics with UVD 3.0 | Integrated VGA DAC | Dual Simultaneous Display Support
no PEG support
2x24 Bit | 800x600 to 1920X1200@60Hz; VESA standard or JEDIA data mapping; Automatic Panel Detection via EDID/EPI
2x DisplayPort 1.1a shared with HDMI ports | second port multiplexed with LVDS resolutions up to 2560x1600 - 18W APU | 1920x1200 - 9W APU
2x HDMI 1.3 Ports | shared with DisplayPort | second port multiplexed with LVDS | resolutions up to 1920x1080 / 1920x1200 for DVI mode
400 MHz RAMDAC | resolutions up to 2560x1600 - 18W APU | 1920x1200 9W APU
Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | BIOS Setup Data | Backup
I²C bus (fast mode | 400 kHz | multi-master) | Power Loss Controll
AMI-Aptio UEFI BIOS with congatec Embedded BIOS features
The conga-BAF can be optionally equipped with a discrete ”Trusted Platform Module” (TPM). It is capable of calculating efficient hash and
RSA algorithms with key lengths up to 2,048 bits and includes a real random number generator. Security sensitive applications such as gaming and
e-commerce will benefit also with improved authentication | integrity and confidence levels.
ACPI 3.0 with battery support
Microsoft® Windows8 | Microsoft® Windows7 | Microsoft® Windows XP | Microsoft® Windows® embedded Standard
Microsoft® Windows CE 6.0 | Microsoft® Windows Embedded Compact 7 | Linux
Typ. application: tbd. | see manual for full details | CMOS Battery Backup
Operating: 0 .. +60°C | Storage: -20 .. +80°C
Operating: 10 - 90% r. H. non cond. | Storage: 5 - 95% r. H. non cond.
95 x 125 mm (3.74” x 4.92”)
Power Management
Operating Systems
Power Consumption
Temperature
Humidity
Size
www.congatec.com
conga-BAF

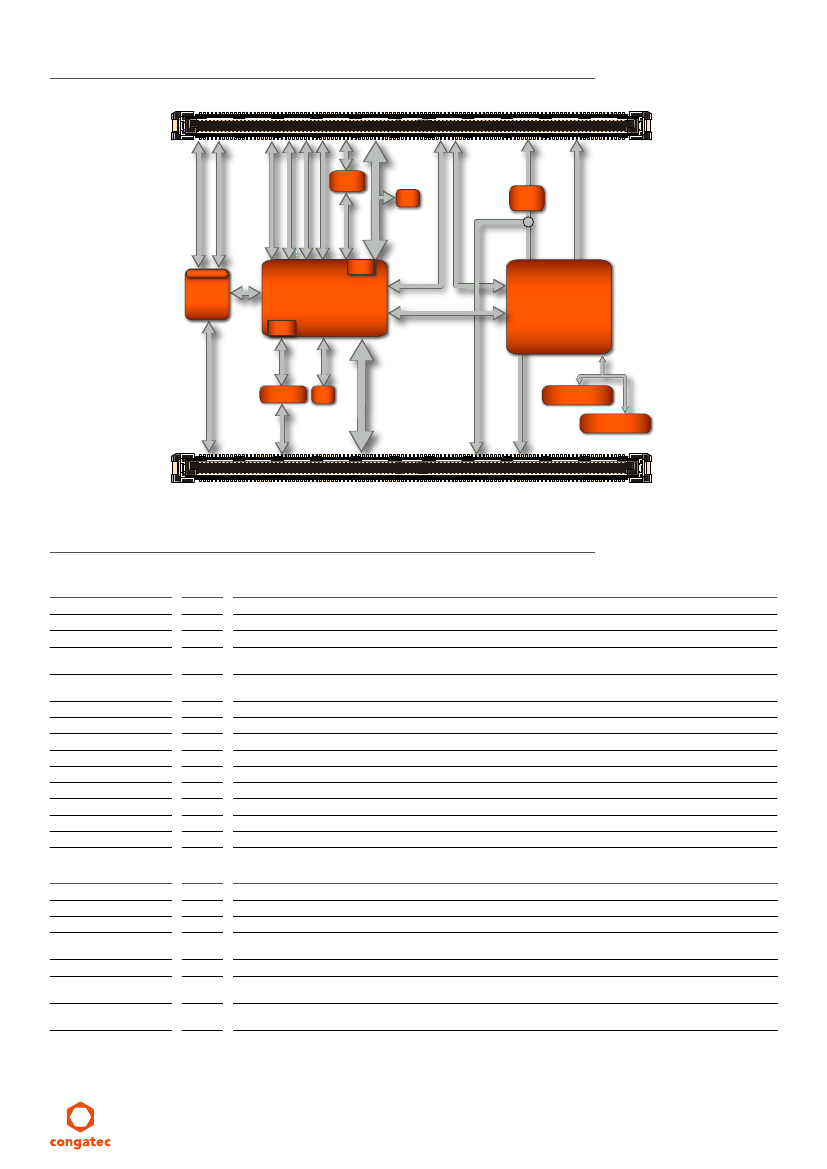

| Block diagram
A-B
LVDS
CRT
Memory Bus
(800-1066MHz)
DDR3-SODIMM
Socket (top)
DDR3-SODIMM
Socket (bottom)
PCIe GBE
PCIe Lanes 0,1,2,3
4 x1 or 1 x4
LPC Bus
RTL8111E
GPIs/GPOs
8x USB 2.0
TPM
Analogix
ANX3110
OR
4x SATA
SM Bus
PCIe x1
HDA
I2C
Watchdog
congatec
Board Controller
STM32F100R8
RTC
BC SPI
AMD
A55E FCH
HWM
PCIe x1
Lanes 4, 5
AMD APU
AMD G-T56N
or AMD G-T48N
or AMD G-T40N
or AMD G-T52R
or AMD G-T44R
UMI x4
DP C or HDMI C
(Only available if no LVDS option)
SATA 4
SPI
PCI Bus
SATA to PATA
JMD330
Fan Control
SPI
Flash
PATA
C-D
conga-BAF
| Order Information
Article
conga-BAF/T56N
conga-BAF/T40N
conga-BAF/T44R
conga-BAF/T40R
conga-BAF/T40E
conga-BAF/HSP-B
conga-BAF/HSP-T
conga-BAF/CSP-B
conga-BAF/CSP-T
conga-BAF/CSA-B
conga-BAF/CSA-T
DDR3-SODIMM-1066 (1GB)
DDR3L-SODIMM-1600 (2GB)
DDR3L-SODIMM-1600 (4GB)
PN
041001
041003
041005
041006
041007
041020
041021
041025
041026
041027
041028
068750
068755
068756
Description
AMD G-Series Dual Core Processor T56N 1.6GHz | 1MB L2 cache and 1333MT/s DDR3 SODIMM memory interface for up to 8GB
AMD G-Series Dual Core Processor T40N 1.0GHz | 1MB L2 cache and 1066MT/s DDR3 SODIMM memory interface for up to 8GB
AMD G-Series Single Core Processor T44R 1.2GHz | 512kB L2 cache and 1066MT/s DDR3 SODIMM memory interface for up to 8GB
AMD G-Series Single Core Processor T40R 1.0GHz | 5.5W | 1MB L2 cache and 1066MT/s DDR3 SODIMM memory interface for up to
8GB
AMD G-Series Dual Core Processor T40E 1.0GHz | 6.5W | 1MB L2 cache and 1066MT/s DDR3 SODIMM memory interface for up to
8GB
Standard passive cooling solution for module conga-BAF. All standoffs are with 2.7mm bore hole
Standard heatspreader for COM Express Basic module conga-BAF. All standoffs are M2.5mm thread
Standard passive cooling solution for module conga-BAF. All standoffs are with 2.7mm bore hole
Standard passive cooling solution for module conga-BAF. All standoffs are M2.5mm thread
Standard active cooling solution for module conga-BAF. Integrated 12V fan. All standoffs are with 2.7mm bore hole
Standard active cooling solution for module conga-BAF. Integrated 12V fan. All standoffs are M2.5mm thread
DDR3 SODIMM memory module with 1066MT/s and 1GB RAM
DDR3L SODIMM memory module with 1600 MT/s (PC3L-12800S) and 2GB RAM
DDR3L SODIMM memory module with 1600 MT/s (PC3L-12800S) and 4GB RAM
Accessories
conga-CEVAL
conga-Cdebug
conga-LDVI/EPI
conga-HDMI/Display Port
adapter
conga-FPA2
COM-Express-carrier-
board-Socket-5
COM-Express-carrier-
board-Socket-8
065749
047854
011115
500014
047250
400007
400004
Evaluation Carrier Board for COM Express Type 2 modules
COM-Express debugging platform. Including cable for COM | PS/2 and VGA.
LVDS to DVI converter board for digital flat panels with onboard EEPROM
The conga-HDMI/DisplayPort adapter is used fo convert the chipset graphic ports Port-B | Port-C and Port-D to the HDMI or
DisplayPort Interface
Flatpanel prototype adapter to develop your own flatpanel adapter Including cables set.
Connector for COM-Express carrier boards | height 5mm | packing unit 4 pieces
Connector for COM-Express carrier boards | height 8mm | packing unit 4 pieces
