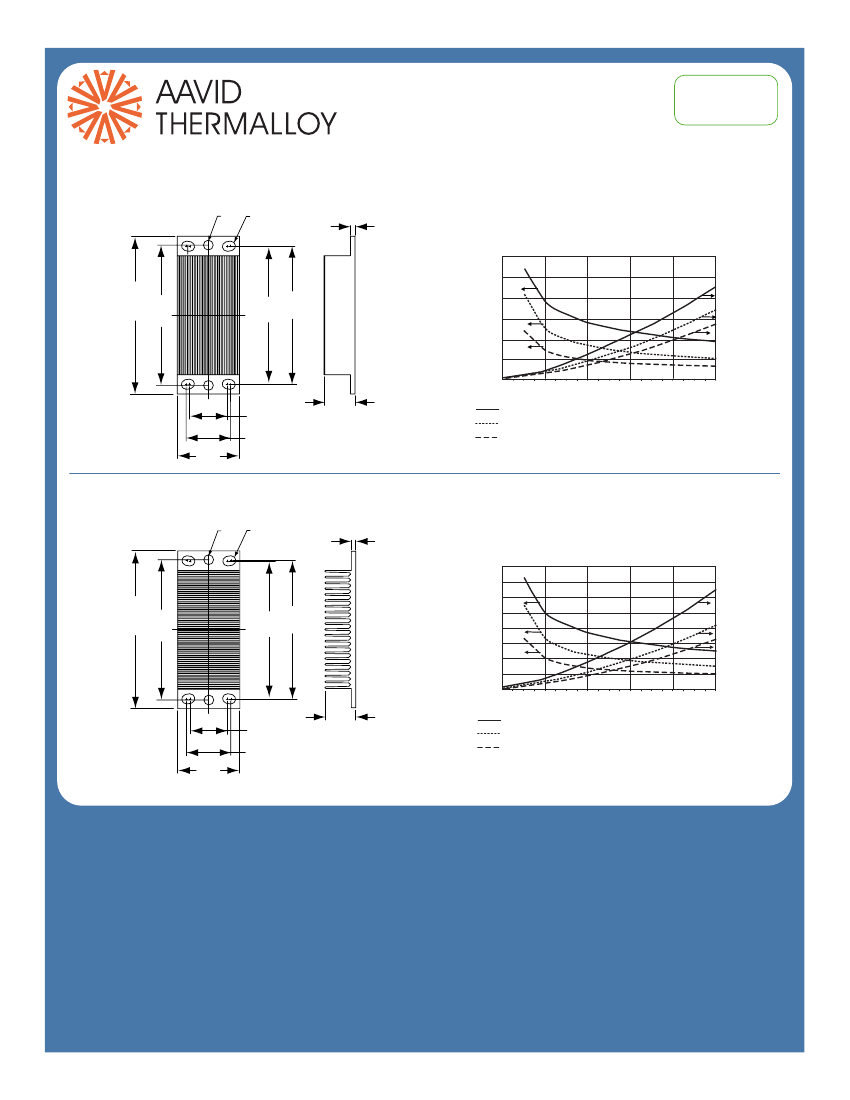

Heat Sinks for Eighth Brick
DC/DC Converters
RoHS
Compliant
STANDARD THERMAL SOLUTIONS
FOR EIGHTH BRICK CONVERTERS

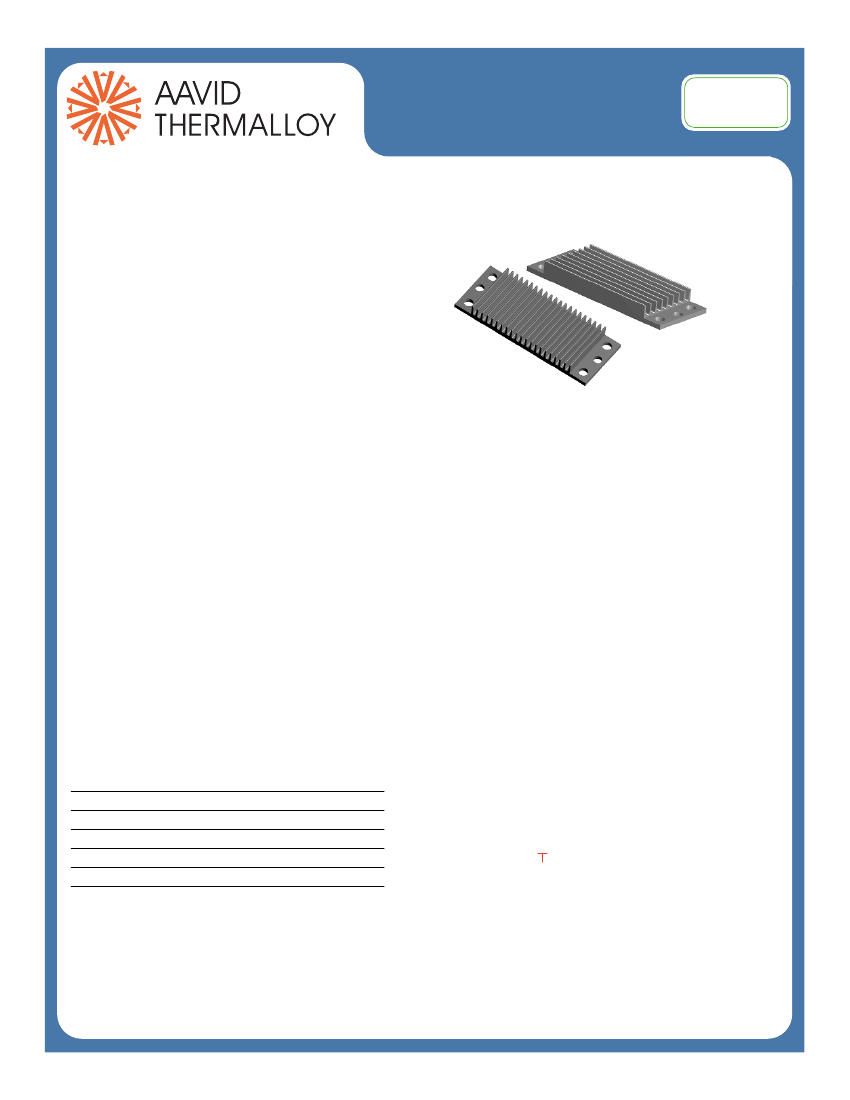

Aavid Thermalloy heat sinks are designed for engineers
seeking a complete off-the-shelf cooling solution for
industry standard eighth brick converters. Unlike other
converter heat sinks, Aavid designs feature thin fin
geometry which increases thermal performance and
reduces pressure drop. In addition, all heat sinks are
ready for mounting with interface material pre-applied
which streamlines procurement and assembly.
APPLICATION NEED:
• Maximum Performance
• Low Pressure Drop
• Fits industry standard Eighth Brick modules
FEATURES AND BENEFITS:
• High fin density has more surface area
for heat transfer, despite small foot print.
• Thin fin geometry improves system airflow
and reduces fan costs.
• Hole pattern fits 1/8 brick DC/DC Converters from
top manufacturers like Delta, Emerson and Tyco
• Lengthwise and crosswise fin orientations in three
fin heights to allow a precise match to the application
• High performance QPad3
TM
interface pad saves
time and optional hardware kit provides the
complete solution under a single part number
• Optimal configuration
• Simple assembly
ORDERING INFORMATION:
Part Number
241802B91200G
241804B91200G
241809B91200G
241802B92200G
241804B92200G
241809B92200G
Fin Configuration
Lengthwise
Lengthwise
Lengthwise
Crosswise
Crosswise
Crosswise
“H” height
6.1 (0.24)
11.4 (0.45)
22.9 (0.90)
6.1 (0.24)
11.4 (0.45)
22.9 (0.90)
Figure
A
A
A
B
B
B
Hardware Kit included
Optional Hardware Kit:
Four M3 x 0.5 x 4 screws with
captive lock washer individually bagged
Use code 03 in the 11th & 12th digit
Example: 241802B92203G
Q-pad is a registered trademark of the Bergquist Company
FOR MORE INFORMATION, VISIT OUR WEB SITE:
WWW.AAVIDTHERMALLOY.COM
TEL:
(603) 224-9988
Heat Sinks for Eighth Brick
DC/DC Converters
Lengthwise AirFlow
Figure A
ø 3.4
2X
R1.7
8X
1.65
(0.06) 2X
12
Thermal Resistance (°C / W)
Device Case to Ambient
RoHS
Compliant
0.36
Pressure Drop (in. of H2O)
Pressure Drop (in. of H2O)
10
8
6
4
2
0
0
100
200
300
400
500
600
700
800
0.30
0.24
0.18
0.12
0.06
0
900 1000
241802B91200G
241804B91200G
241809B91200G
Air Flow (LFM)
57.9
(2.28) 51.3
(2.02)
50.8
50.4
(2.00)
(1.98)
C
L
C
L
12.8
(0.50)
15.2
(0.60)
“H”
22.9
(0.90)
Crosswise AirFlow
Figure B
ø 3.4
2X
R1.7
8X
1.65
(0.06) 2X
8
Thermal Resistance (°C / W)
Device Case to Ambient
0.32
0.28
0.24
0.20
0.16
0.12
0.08
0.04
0
100
200
300
400
500
600
700
800
0
900 1000
7
6
5
4
3
2
1
0
57.9
(2.28) 51.3
(2.02)
50.8
50.4
(2.00)
(1.98)
C
L
C
L
12.8
(0.50)
15.2
(0.60)
“H”
241802B92200G
241804B92200G
241809B92200G
Air Flow (LFM)
22.9
(0.90)
North America
70 Commercial Street
Concord, NH 03301
TEL: (603) 224-9988
FAX: (603) 223-1790
EMAIL: info@aavid.com
Europe - Italy
Via Aprile,32
40057 Cadriano (BO), Italy
TEL: (39) 051 764011
FAX: (39) 051 764090
EMAIL: sales.it@aavid.com
Asia - Taiwan
14F-4, NO. 79, Hsin Tai Wu RD.
SEC. 1, Hsi Chih
Taipei Hsien
Taiwan
TEL: 011(886) 2–2698–9888
FAX: 011(886) 2–2698–9808
Asia - Singapore
31 Admiralty Road, #06-01
Singapore 739984
TEL: 65 –6362–8388
FAX: 65–6362–8588
PLEASE NOTE: Any information furnished by Aavid Thermalloy is believed to be accurate and reliable, but our customers bear all responsibility for use and applications of Aavid
Thermalloy products. AAVID THERMALLOY MAKES NO WARRANTIES EXPRESSED OR IMPLIED, AS TO THE FITNESS, MERCHANTABILITY, OR SUITABILITY OF ANY AAVID THERMALLOY
PRODUCTS FOR ANY SPECIFIC OR GENERAL USES. AAVID THERMALLOY SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND. All Aavid
Thermalloy products are sold pursuant to the Aavid Thermalloy Domestic Terms and Conditions of Sale in effect from time to time, a copy of which shall be furnished upon
request (8911A). Copyright © Aavid Thermalloy, LLC. March, 2008. All icons, drawings, illustrations, and trademarks are the property of Aavid Thermalloy, LLC. and may not be
reproduced without express written permission. (3/2008)
FOR MORE INFORMATION, VISIT OUR WEB SITE: WWW.AAVIDTHERMALLOY.COM
TEL: (603) 224-9988
