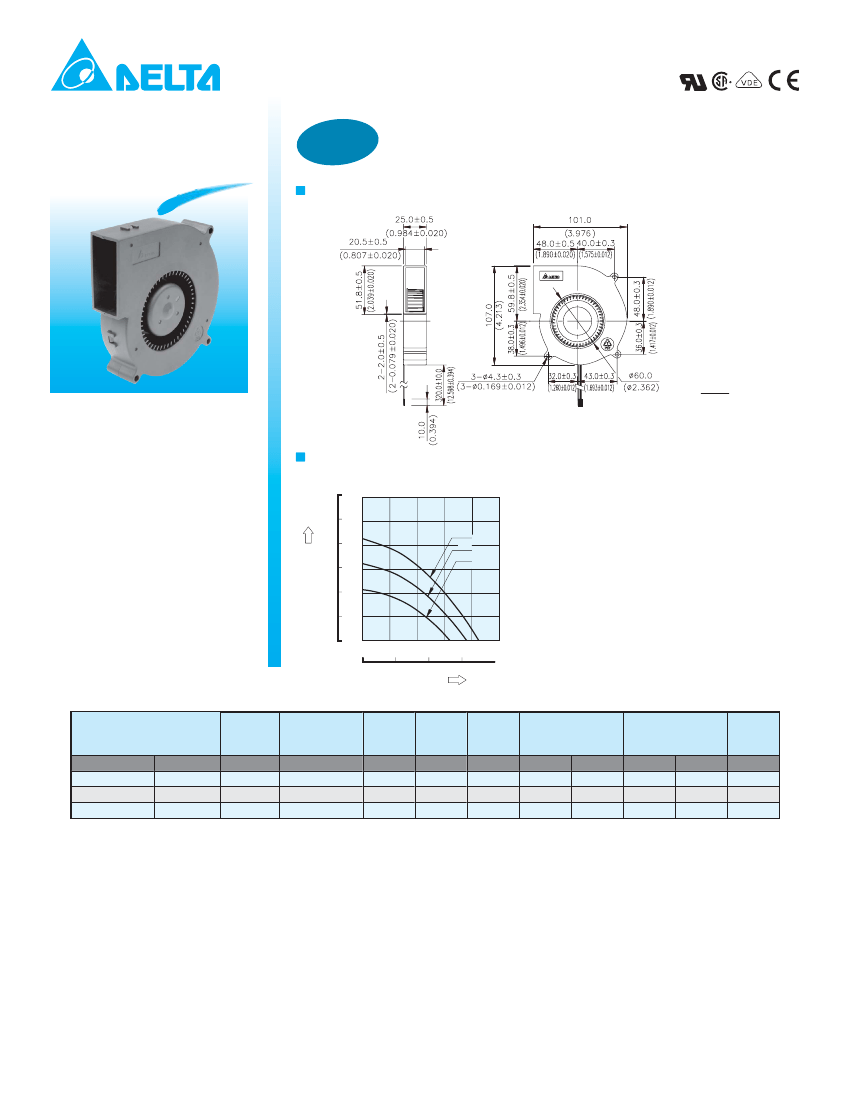

New
BFB
101 x 107 x 25 MM SERIES
DIMENSIONS DRAWING
UNIT:
mm
(INCH)
*
Bearing Type
Ball Bearings
*
Material
Impeller & Frame : Plastic(UL 94V-0)
*
Lead Wires :
UL 1007 AWG #24 OR Equivalent
Red Wire Positive(+)
Black Wire Negative(-)
*
Weight : 140.0g (4.94 OZ)
P & Q CURVE
(AT RATED VOLTAGE)
BFB1112X
1.2
1.0
0.8
0.6
0.4
0.2
0.0
(INCH H
2
O)
30.0
25.0
20.0
15.0
10.0
5.0
0.0
0.0
0
AIR PRESSURE
H
M
L
(mm H
2
O)
0.14
6.0
0.28
0.42
0.56
18.0
0.70
(M3/MIN.)
24.0
(CFM)
12.0
AIR FLOW
MODEL
PART NO.
BFB1112L
BFB1112M
BFB1112H
FUNCTION
-R00 / -F00
-R00 / -F00
-R00 / -F00
Rated
Voltage
VDC
12
12
12
Operating
Voltage
Range
VDC
4.0 to 13.8
4.0 to 13.8
4.0 to 13.2
Rated
Current
Amp
0.19
0.30
0.51
Rated
Input
Power
Watt
2.28
3.60
6.12
Speed
R.P.M.
2400
2800
3150
Maximum
Air Flow
m
3
/min
0.447
0.533
0.595
CFM
15.79
18.82
21.02
Maximum
Air Pressure
mmH
2
O
10.65
16.09
21.31
IN H
2
O
0.413
0.633
0.839
Noise
dB-A
41.0
45.0
49.0
* Function type is optional.
* The max. air flow and the speed are measured in free air ; max. air pressure is measured at zero air flow.
* Noise is measured in anechoic chamber in free air, one meter from intake side.
* All readings are typical values at rated voltage.
* Specifications are subject to change without notice.
89
