EMC filters
3-line filters
Sine-wave output filters
300/520 V AC, 4 A ... 390 A, 40
°C
Series/Type:
Date:
B84143V*R/S229
January 2017
© EPCOS AG 2017. Reproduction, publication and dissemination of this publication, enclosures hereto and the
information contained therein without EPCOS' prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
Line reactors, output chokes and output filters
Sine-wave output filters for 3-phase systems
B84143V*R/S229

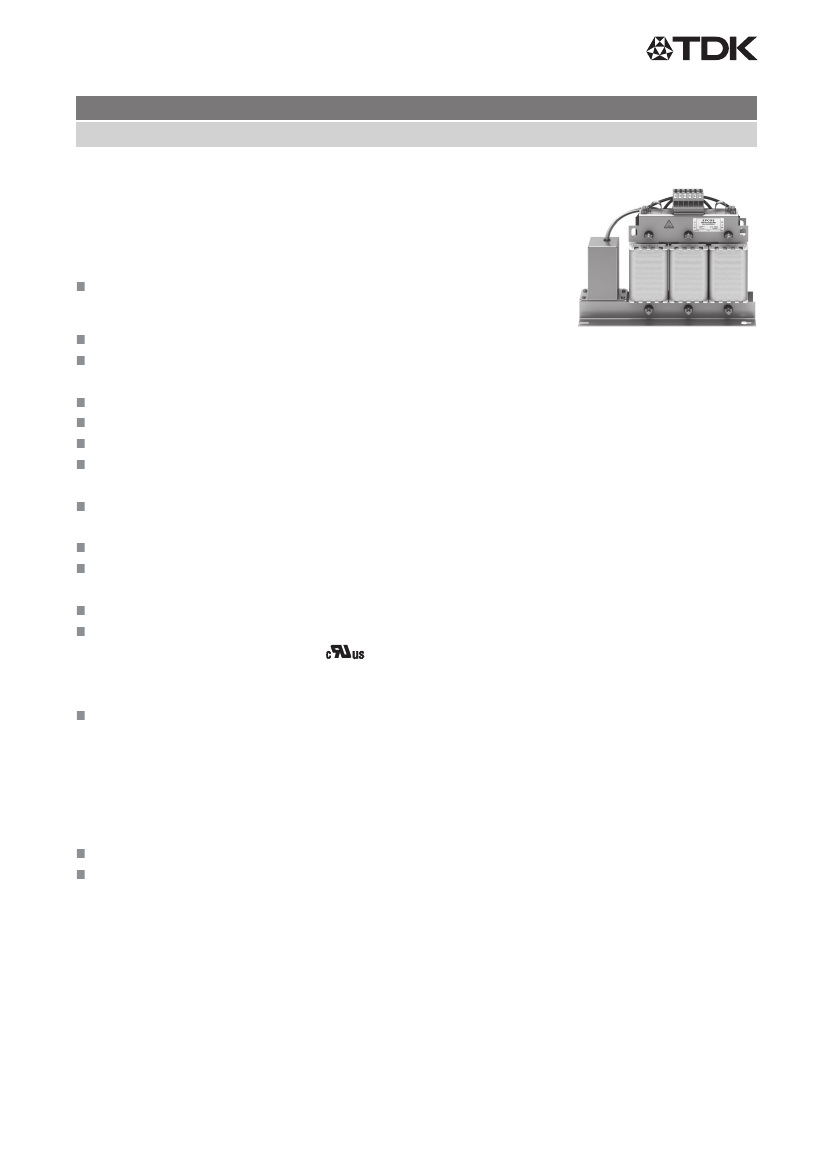

Sine-wave output filters for 3-phase systems
Rated voltage V
R
: 300/520 V AC
Rated current I
R
: 4 A to 390 A
Construction
3-line filters
Features
Reduction of motor noise and eddy current losses
Generation of sinusoidal phase-to-phase voltage with low
ripple
dv/dt reduction
Easy to install
Degree of protection: IP00
1)
Optional housing for degree of protection IP21 can be
ordered separately with ordering code B84143Q*R229
Optimized for long motor cables and operation under full
load
2)
Natural cooling
Wiring between inverter and filter must be shorter than
10 meters!
Designed with reference to IEC 60939 und UL1283
UL approved insulation system
(system designation: T-EIS-CF1)
Typical applications
Frequency converters for motor drives, e.g.
elevators
pumps
conveyer systems
HVAC systems (heating, ventilation and air conditioning)
Terminals
Up to 95 A: Finger-safe terminal blocks
162 A ... 390 A: Copper busbars
Marking
Marking on component:
Manufacturer’s logo, ordering code, rated voltage, rated
current, rated motor frequency, rated switch frequency, rated
temperature, climatic category, date code
Minimum data on packaging:
Manufacturer's logo, ordering code, quantity, date code
1) According to IEC 60529
2) The maximum permissible motor cable length depends on the application and must be checked.
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 24
Line reactors, output chokes and output filters
Sine-wave output filters for 3-phase systems
B84143V*R/S229
Typical circuit diagrams
Filters 4 A ... 33 A
Filters 50 A ... 95 A
Filters 162 A ... 390 A
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 24
Line reactors, output chokes and output filters
Sine-wave output filters for 3-phase systems
B84143V*R/S229
Connection
Converter:
U1
V1
W1
Motor:
U2
V2
W2
Connection order in case of terminal connection:
U1
U2
V1
V2
W1
W2
Connection order in case of busbar connection:
U2
U1
V2
V1
W2
W1
upper connectors = motor side
bottom connectors = converter side
Types 162 A, 230 A and 390 A contain a thermo switch
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 24
Line reactors, output chokes and output filters
Sine-wave output filters for 3-phase systems
B84143V*R/S229
Technical data and measuring conditions
Rated voltage V
R
[L-PE / L-L]
Rated current I
R
Test voltage V
test
Frequency
Motor
Pulse (Switching)
f
M
f
P
300/520 V AC (50/60 Hz)
Referred to 40
°C
rated temperature
1500 V AC, 2 s (line/line)
2500 V AC, 2 s (lines/case)
0 Hz ... 100 Hz
see table "Characteristics and ordering codes"
1.5 I
R
for 1 min per hour
5 kV/μs (request for higher values)
25/085/21 ( 25
°C/+85 °C/21
days damp heat test)
Overload capability (thermal)
Max. dv/dt on filter input
Climatic category (IEC 60068-1)
WARNING!
Hot surface! Risk of burns!
Characteristics and ordering codes
I
R
A
Terminal
R
typ
cross section
mm
2
mΩ
390
290
67
31
25
16
8.9
5.5
5.5
4.5
1.53
1.7
1.15
Min. pulse
frequency
kHz
3
3
3
3
3
3
3
3
3
3
2.4
2.4
2.4
Max. pulse P
L1)
frequency
kHz
W
10
10
10
10
10
10
10
8
8
8
6
6
4
60
100
90
80
140
160
220
250
310
400
550
900
1570
Approx. Ordering code
weight
kg
5
5
7
12
20
24
41
43
62
70
112
120
212
B84143V0004R229
B84143V0006R229
B84143V0011R229
B84143V0016R229
B84143V0025R229
B84143V0033R229
B84143V0050R229
B84143V0066R229
B84143V0075R229
B84143V0095R229
B84143V0162S229
B84143V0230S229
B84143V0390S229
V
R
= 300/520 V AC
6
4
6
6
6
11
10
16
10
25
10
33
35
50
35
66
35
75
35
95
40
×
3
162
40
×
3
230
40
×
4
390
1) Estimated total losses at rated current and voltage in operation on converter at min. pulse frequency
