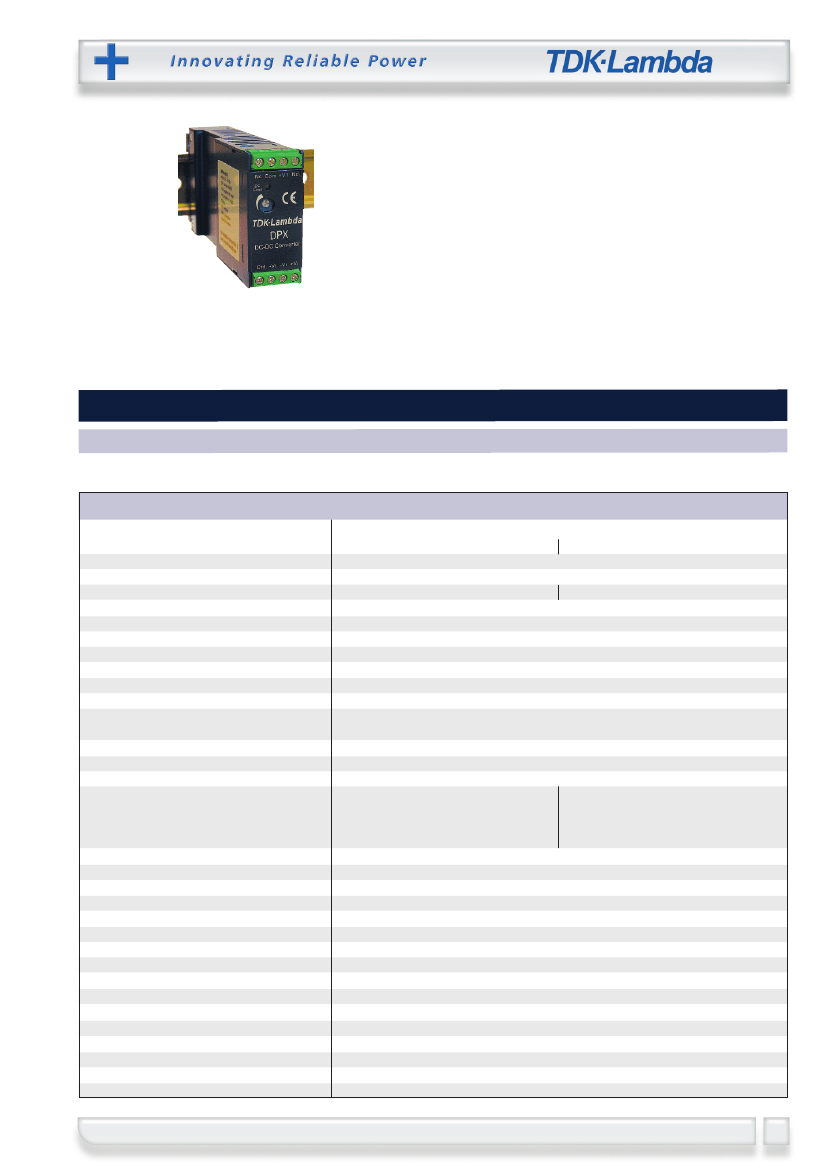

DPX30W Series
Single and Dual Output 30W Din Rail Mount
DC-DC Converters
• Single and dual output
• Meet EN55022 Class B
• Input fuse protection
• Input reverse polarity protection
• Input in-rush current protection
• Overload and short circuit protection
• Over voltage protection
• Reliable snap-on for DIN rail TS-35/7.5 or TS-35/15
• I/O-isolation 1600 VDC
• Output DC-OK indicator
Key Market Segments & Applications
Communication Systems, Industry Control Systems
Factory Automation, Semiconductor Equipment
DPX30W Features and Benefits
Features
• CE Approval
• Wide Range Input
Benefits
• Easier System Approvals
• Less Parts to Inventory
Specifications
ITEMS
Rated Input voltage range
Frequency
Maximum Input Current
Input Fuse
Max Output Power (W)
(Note 7)
Voltage Accuracy
Voltage Adjustment
Minimun Load
Line Regulation (LL to HL at full load)
Ripple and Noise
Start up time (Nominal Vin and constant resistive load)
(Note 2)
Remote on/off (option)
Efficiency
Over Current Protection, Factory Set
Short Circuit Protection
Overvoltage Protection
DPX30W
24V nominal input 10-40VDC
300Hz, typ
See Table
24V input, 6A Fuse
48V input, 4A fuse
See Table
Single/Dual ± 1.0% / Single (3.3vo) ± 1.5%
Single output ± 10%
N/A
Single ± 0.5% / Dual ± 0.5%
20MHz bandwidth See table
Power up 100mS, typ
POSITIVE Logic: ON: Open or 3-12V, OFF Short or <1.2V
NEGATIVE Logic: ON: Short or <1.2V, OFF Open or 3-12V
See Table
Maximum, 150% of full load
Hiccup, auto recovery
3.3V output
3.9V
5V output
6.2V
12V output
15V
15 output
18V
-40˚C ~ 67˚C (without derating) 67˚C ~ 90˚C (with derating - see curve)
-40˚C ~ 105˚C
MIL-STD-810F
5% to 95% RH
250µS
1,124,000 hrs
MIL-STD-810F
EN55022, Class B
EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6 Perf. Criteria A
CE
57.6 x 24.5 x 125.0 mm
170g
Screw Terminal
Convection
Output DC good
2 Years
48V nominal input 18-75VDC
(Note 3)
Operating Temperature
Storage Temperature
Thermal Shock
Relative Humidity (non condensing)
Transient Response (25% step load change)
MTBF BELLCORE TR-NWT-000332
(Note 1)
Vibration
Conducted and Radiated Emissions
Immunity
Safety
Size (H x W x D)
Weight
Connector
Cooling
Front Panel LED
Warranty
Notes:
See page 2
DPX30W Series
1
Notes
1.
2.
3.
4.
5.
6.
7.
BELLCORE TR-NWT-000332. Case I: 50% Stress, Temperature at 40∫C˚. MIL-HDBK-217F Notice2 @Ta=25 ∫C, Full load(Ground, Benign, controlled environment).
The ON/OFF control pin voltage is referenced to -Vin. Positive logic standard. To order Negative logic ON/OFF control add the suffix-N (Ex:DPX30-48WS05-N)
Typical value at nominal input voltage and full load.
Typical value at nominal input voltage and no load.
Maximum value at nominal input voltage and full load.
Test by minimum Vin and constant resistive load.
Single outputs have a potentiometer to adjust the output voltage.
Model Selector
Model
DPX30-24WS3P3
DPX30-24WS05
DPX30-24WS12
DPX30-24WS15
DPX30-24WD12
DPX30-24WD15
DPX30-48WS3P3
DPX30-48WS05
DPX30-48WS12
DPX30-48WS15
DPX30-48WD12
DPX30-48WD15
Input
Range
10 - 40 VDC
9.5 - 36 VDC
10 - 40 VDC
10 - 40 VDC
10 - 40 VDC
10 - 40 VDC
18 - 75 VDC
18 - 75 VDC
18 - 75 VDC
18 - 75 VDC
18 - 75 VDC
18 - 75 VDC
Output
Voltage
3.3 VDC
5 VDC
12 VDC
15 VDC
± 12 VDC
± 15 VDC
3.3 VDC
5 VDC
12 VDC
15 VDC
± 12 VDC
± 15 VDC
Output Current
Output (3)
Input Current
Eff. % Capacitor
Min Load Full Load Ripple & Noise No Load (4) Full Load (5) (3) Load Max (6)
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
0mA
6000mA
6000mA
2500mA
2000mA
± 1250 Ma
±1000mA
6000mA
6000mA
2500mA
2000mA
±1250mA
±1000mA
60mVp-p
75mVp-p
100mVp-p
100mVp-p
100mVp-p
100mVp-p
60mVp-p
75mVp-p
100mVp-p
100mVp-p
100mVp-p
100mVp-p
52mA
67mA
69mA
75mA
34mA
40mA
32mA
32mA
38mA
48mA
28mA
28mA
1031mA
1563mA
1563mA
1543mA
1623mA
1603mA
509mA
762mA
772mA
762mA
791mA
781mA
84
84
84
85
81
82
85
86
85
86
83
84
19500µF
10200µF
3300µF
1100µF
±1000µF
±680µF
19500µF
10200µF
3300µF
1100µF
±1000µF
±680µF

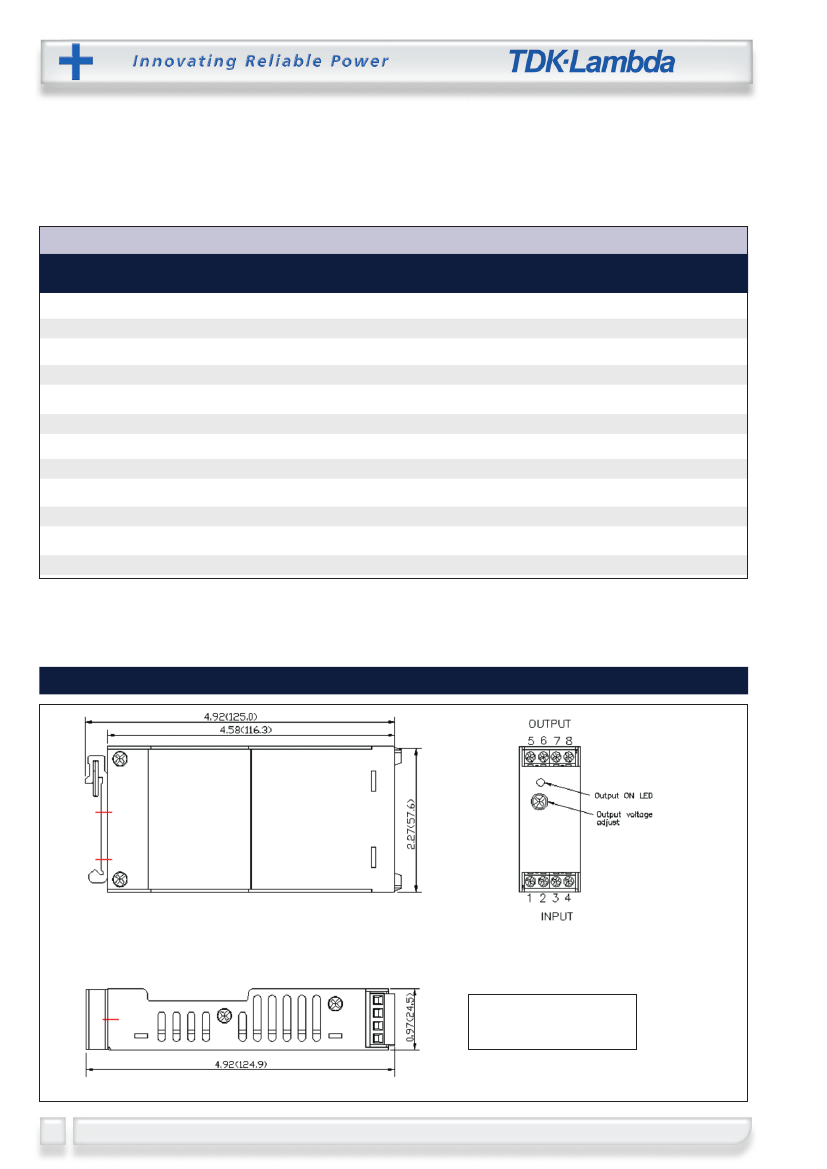

Outline Drawing DPX30W Series
All dimensions in inches (mm)
Tolerance: X. XX ± 0.04 (X.X±1.0)
X. XXX± 0.02 (X.XX±0.5)
2
DPX30W Series

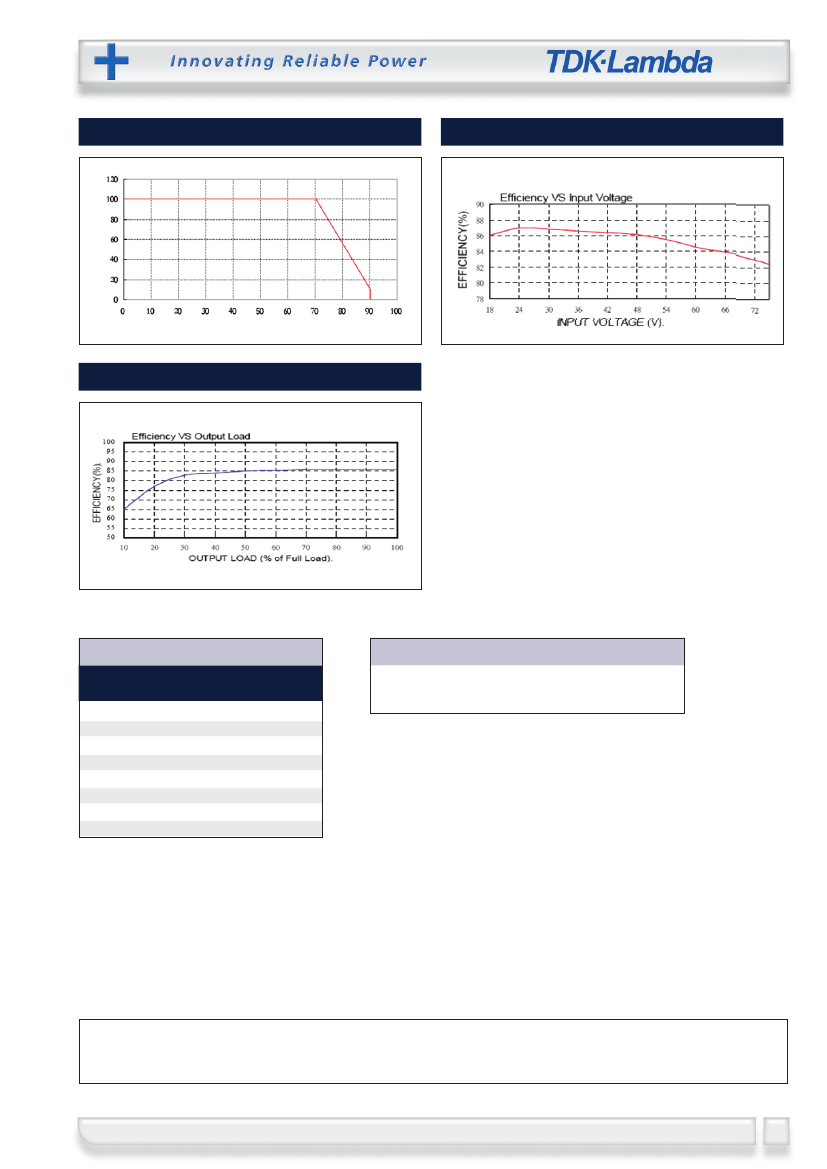

Derating Curve DPX30-48WS05
Derating Curve DPX30-48WS05
OUTPUT POWER (%)
AMBIENT TEMPERATURE (
˚
C)
Derating Curve DPX30-48WS05
Pinout
PIN
1
2
3
4
5
6
7
8
Single
CTRL
- Input
- Input
+ Input
NC
- Output
+ Output
NC
Dual
CTRL
- Input
- Input
+ Input
NC
- Output
Common
+ Output
Options
Option
Negative Logic Remote ON/OFF
Suffix
–N
NC: No connection
Screw terminals - wire range from 14 to 18 AWG
For full data and drawings please visit
www.emea.tdk-lambda.com/www/dpx
DPX30W Series
3
TDK-LAMBDA EMEA
