3210UF: DescriptionBridge Rectifier Diode, 3 Phase, 4A, 1000V V(RRM), Silicon; CategoryDiscrete semiconductor diode; File Size232KB，2 Pages; ManufacturerVOLTAGE MULTIPLIERS INC.; Websitehttp://www.voltagemultipliers.com/

Download Datasheet Parametric Compare View All

3210UF Overview

Bridge Rectifier Diode, 3 Phase, 4A, 1000V V(RRM), Silicon

3210UF Parametric

Parameter Name	Attribute value
package instruction	R-XUFM-X5
Reach Compliance Code	unknown
Configuration	BRIDGE, 6 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	2 V
JESD-30 code	R-XUFM-X5
Maximum non-repetitive peak forward current	25 A
Number of components	6
Phase	3
Number of terminals	5
Maximum operating temperature	150 °C
Maximum output current	4 A
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	1000 V
Maximum reverse recovery time	0.07 µs
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER
Base Number Matches	1

Preview

Download Datasheet

View All

200 V - 1,000 V Three Phase Bridge

4.0 A - 5.0 A Forward Current

70 ns - 3000 ns Recovery Time

3202 - 3210

3202F - 3210F

3202UF - 3210UF

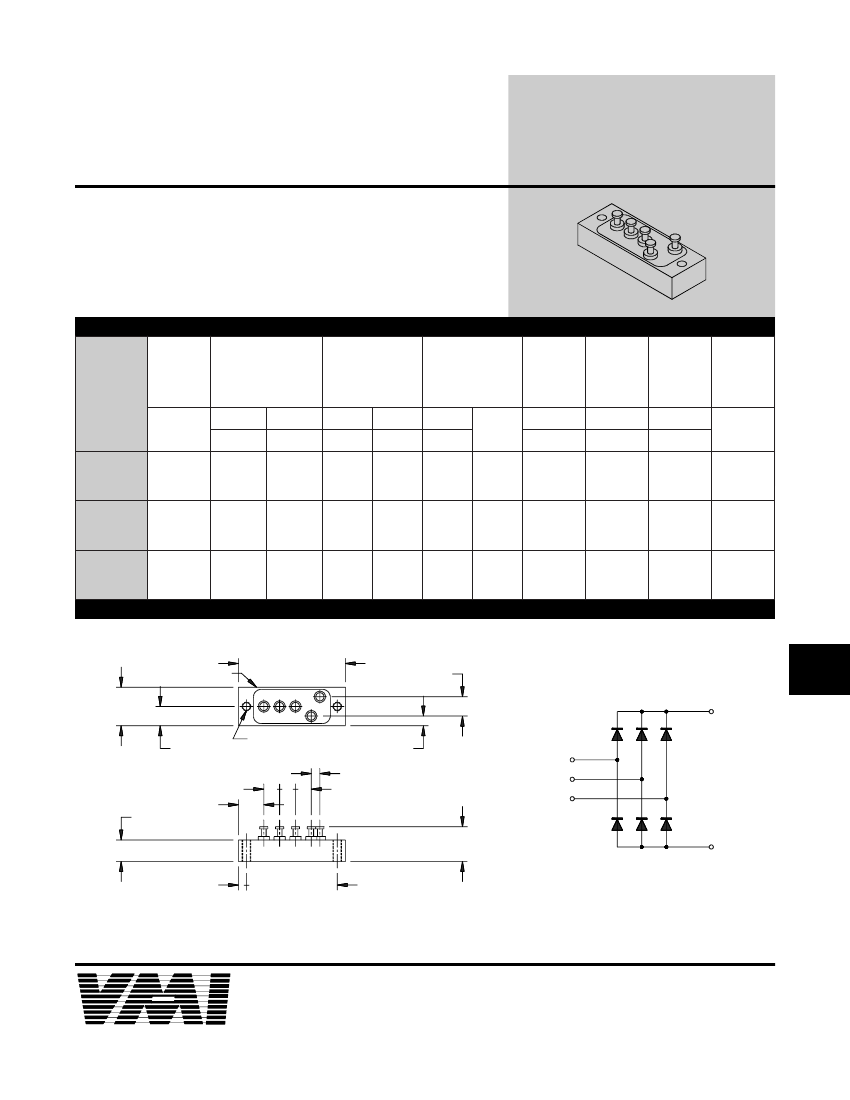

ELECTRICAL CHARACTERISTICS AND MAXIMUM RATINGS

Part Number

Working

Reverse

Voltage

(Vrwm)

Average

Rectified

Current

@TC

(Io)

55°C

Volts

3202

3206

3210

3202F

3206F

3210F

3202UF

3206UF

3210UF

Amps

100°C

Amps

Reverse

Current

@ Vrwm

(Ir)

25°C

µA

100°C

µA

25°C

Volts

Amps

Forward

Voltage

1 Cycle

Surge

Current

tp=8.3ms

(Ifsm)

25°C

Amps

Repetitive

Surge

Current

(Ifrm)

25°C

Amps

Reverse

Recovery

Time

(1)

(Trr)

25°C

ns

°C / W

Thermal

Impd.

(Vf)

u

J-C

200

600

1000

200

600

1000

200

600

1000

5.0

4.0

3.0

2.5

1.0

25

1.3

1.6

2.0

3.0

30

25

10

6

5

3000

150

70

5.5

(1)Trr Testing: If=0.5A, Ir=1.0A, Irr=0.25A *Op. Temp. & Stg. Temp. = -55°C to +150°C Isolation Voltage: 1500V

Aluminum Case

.450

(11.43)

.225

(5.71)

.297(7.54)

.250(6.35)

.094 ±.010

(2.39 ±.25)

1.250(31.75)

AC AC AC

_

.225(5.71)

+

.112(2.84)

.101(2.56)

.185(4.70)

(3 PL)

.45(11.43)

MAX.

11

AC

_

+

4-40 Thru

(2 PL)

1.062 ±.010

(27.0 ±.25)

Dimensions: In. (mm) • All temperatures are ambient unless otherwise noted. • Data subject to change without notice.

VOLTAGE MULTIPLIERS INC.

8711 W. Roosevelt Ave.

Visalia, CA 93291

TEL

559-651-1402

FAX

559-651-0740

www.voltagemultipliers.com
