3435-1000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 3435-1000

3435-1000: DescriptionDIN 41612 Connectors DIN SKT KEYING PLUG; CategoryThe connector; File Size380KB，3 Pages; Manufacturer3M; Websitehttp://3M.com/esd

Download Datasheet Parametric View All

3435-1000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3435-1000	-	-	View	Buy Now

3435-1000 Overview

DIN 41612 Connectors DIN SKT KEYING PLUG

3435-1000 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	3M
Product Category	DIN 41612 Connectors
RoHS	Details
Product	Accessories
Number of Positions	-
Number of Rows	-
Accessory Type	Keying Plug
Compliance	UL
Factory Pack Quantity	100
Unit Weight	1.700 lbs

Preview

Download Datasheet

View All

™

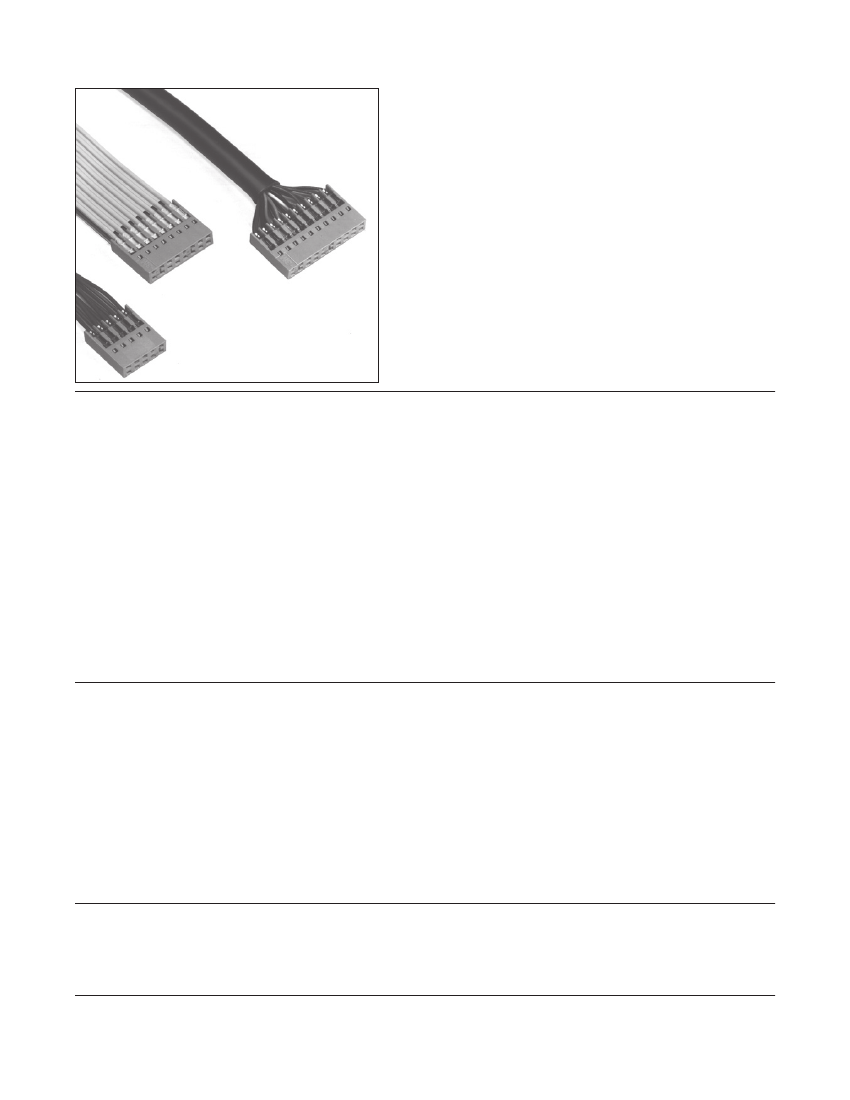

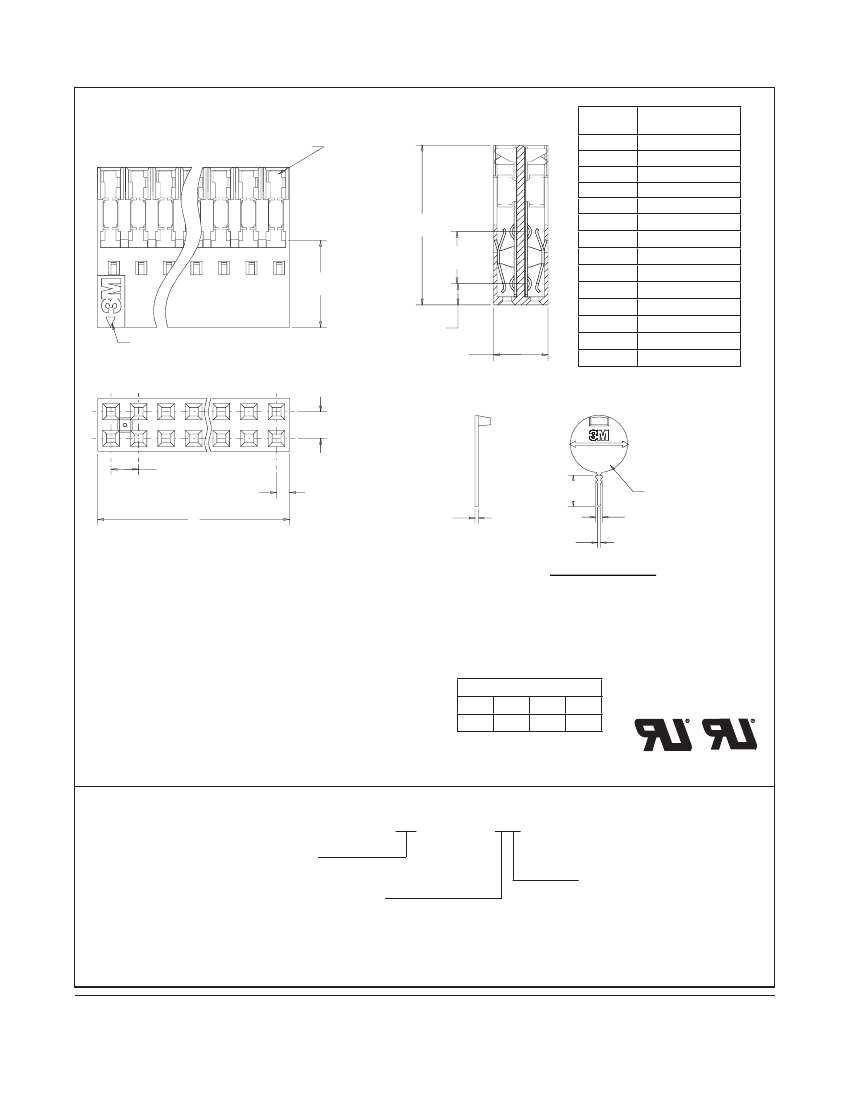

Wiremount Socket

.100" × .100" Two Row for .100" Pitch Notched Flat Cable or Discrete Wire CHG Series

•

CHG Series

Two row, side-to-side stackable

Mates to 3M two row pin strip headers

14 standard sizes, 6-72 positions

Twin slot IDC provides four points of contact

Exclusive L/H 4-wipe contact

3435-0 keying plug is optional - order separately

See the Regulatory Information Appendix (RIA) in the

“RoHS compliance” section of www.3Mconnector.com

for compliance information (RIA E1 and C1 Apply)

Date Modiﬁed: January 26, 2011

TS-0191-B

Sheet 1 of 2

Physical

Insulation:

Material: Glass Filled Polyester (PBT)

Flammability: UL 94V-0

Color: Gray

Contact:

Material: Copper Alloy

Plating:

Option P

First Wipe Area:

Second Wipe Area,

Underplating and U-Slot

Wire Accommodation:

Marking:

30 µ" [0.76 µm] Gold - MIL-G-45204, Type II, Grade C

100 µ" [ 2.54 µm ] Nickel - QQ-N-290, Class 2

See Ordering Information for Options

3M Logo and Orientation Triangle

Electrical

1 Line

4 Adjacent Lines

All Lines

22 AWG

4.5

3.0

1.5

24 AWG

3.75

2.5

1.25

26 AWG

3.5

2.0

1.0

28 AWG

3.5

2.0

1.0

Rating Conditions: EIA-364-070 Method 2, 30°C maximum temperature rise, 20%

derated. Reference appropriate 3M Product Speciﬁcation for detailed current

derating curves.

Insulation Resistance:

> 1 × 10

at 500 V

Withstanding Voltage:

500 V

RMS

at Sea Level

Current Rating:

Environmental

Temperature Rating:

-55°C to +105°C

UL File No.: E68080

Electronic Solutions Division

Interconnect Solutions

http://www.3Mconnector.com

*RoHS = Directive 2002/95/EC,

Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment

3M is a trademark of 3M Company.

For technical, sales or ordering information call

800-225-5373
