87715-3917

Description
PCI Express / PCI Connectors PCI Express 280ckt plastic peg L/F
CategoryThe connector
File Size30KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

87715-3917 Online Shopping

Suppliers Part Number Price MOQ In stock
87715-3917 - - View Buy Now

87715-3917 Overview

PCI Express / PCI Connectors PCI Express 280ckt plastic peg L/F

87715-3917 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerMolex
Product CategoryPCI Express / PCI Connectors
RoHSDetails
ProductPCI Express
Number of Positions280 Position
Mounting StyleThrough Hole
Mounting AngleVertical
Termination StyleThrough Hole
Contact PlatingGold
Current Rating1.1 A
PackagingTray
Voltage Rating50 VAC/DC
Factory Pack Quantity420
Unit Weight0.495599 oz

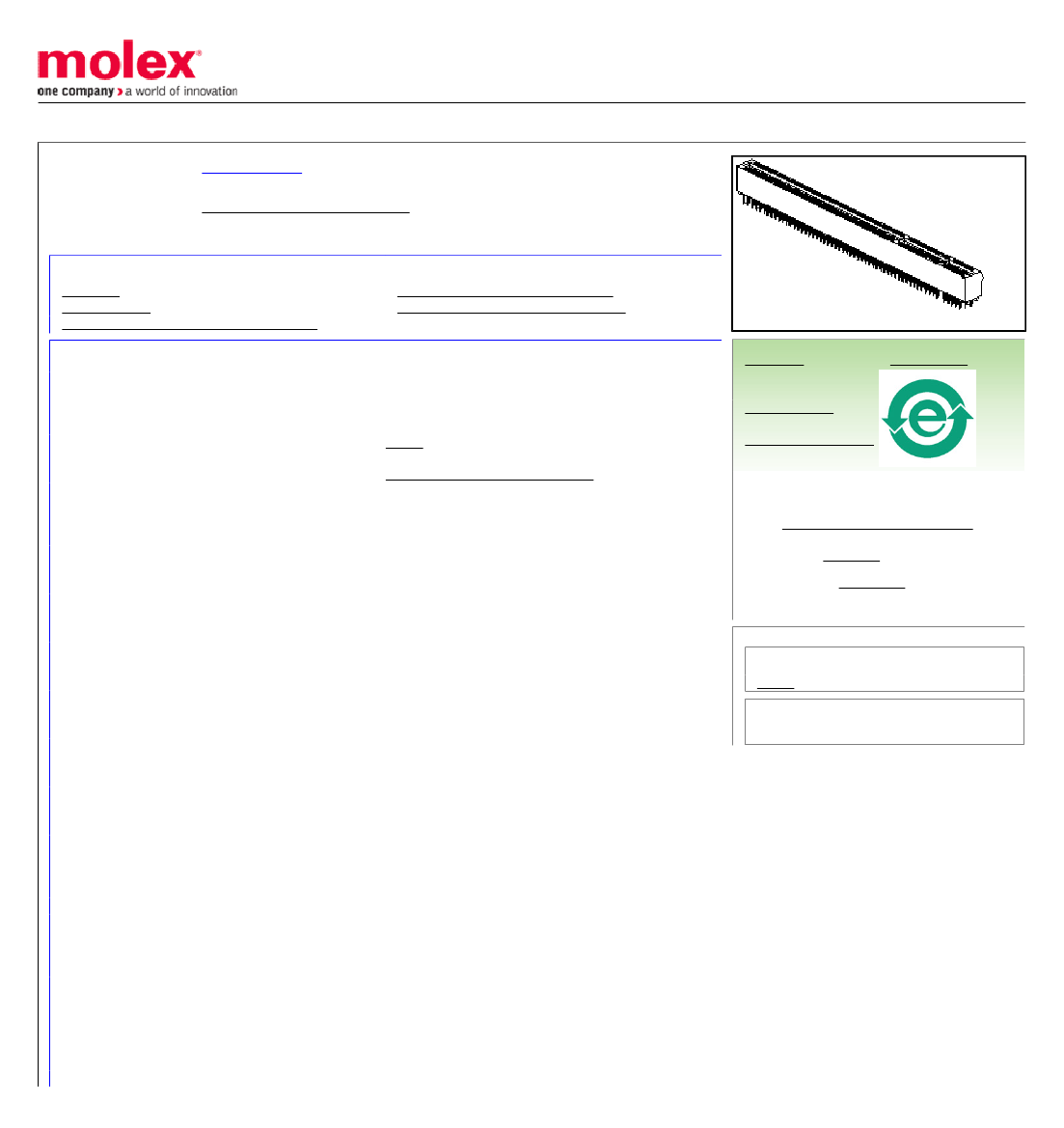

This document was generated on 09/19/2012
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
87715-3917
Active
PCI Express Card Edge Connector
1.00mm Pitch, PCI Express* Connector, 280 Circuits, Nylon 4/6 Glass-filled, Black
Housing, Phosphor Bronze, Gold Soldertail, Lead-Free
Documents:
3D Model
Drawing (PDF)
Product Specification PS-87715-206 (PDF)
Test Summary TS-87715-206 (PDF)
RoHS Certificate of Compliance (PDF)
image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Reviewed
China RoHS
Series
Agency Certification
CSA
LR19980
General
Product Family
Series
Component Type
Overview
Product Name
UPC
Edge Card Connectors
87715
Edgecard to PCB
PCI Express Card Edge Connector
PCI Express*
822350036689
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
(p)ower-(s)ignal Configuration
Circuits (Loaded)
Circuits (maximum)
Durability (mating cycles max)
Entry Angle
Flammability
Keying to Mating Part
Material - Plating Mating
Material - Plating Termination
Net Weight
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Polarized to Mating Part
Temperature Range - Operating
Termination Interface: Style
280s - 0p
280
280
50
Vertical (Top Entry)
94V-0
Yes
Gold
Tin
14.050/g
2.54mm
Yes
Yes
1.60mm
Tray
1.00mm
1.00mm
Yes
-55°C to +85°C
Through Hole
Search Parts in this Series
87715Series
Mates With
PCI Express Card
Electrical
Current - Maximum per Contact
Voltage - Maximum
1.1A
50V AC (RMS)/DC
Solder Process Data
Lead-free Process Capability
Process Temperature max. C
Wave Capable (TH only)
260
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-87715-206
SD-87715-206
