826-22-006-00-001000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 826-22-006-00-001000

826-22-006-00-001000: DescriptionHeaders & Wire Housings Spring-Loaded Hdr,2R Solder,Vert Mount,6P; CategoryThe connector The connector; File Size554KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

826-22-006-00-001000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	826-22-006-00-001000	-	-	View	Buy Now

826-22-006-00-001000 Overview

Headers & Wire Housings Spring-Loaded Hdr,2R Solder,Vert Mount,6P

826-22-006-00-001000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	2
Options	GENERAL PURPOSE
Termination type	SOLDER
Total number of contacts	6
Base Number Matches	1

Preview

Download Datasheet

View All

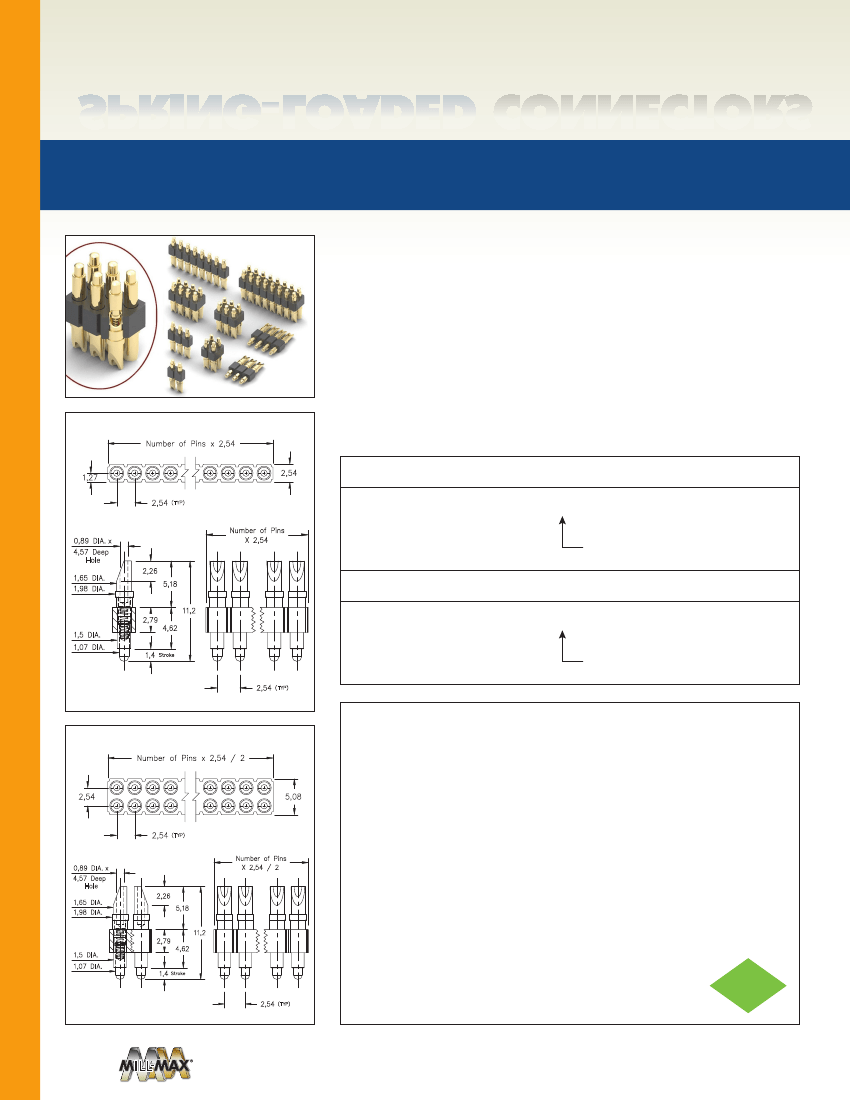

SPRING-LOADED

CONNECTORS

SERIES 824 & 826 • 2,54 GRID SOLDERCUP HEADER •

SINGLE AND DOUBLE ROW STRIPS

• Modular contacts for use on 2,54 grid, supplied in single and double row contact strips

• Precision-machined piston / base and gold-plated components assure up to 1,000,000

cycle life durability

• Pistons have a 0,7 mid. stroke and a 1,4 max. stroke

• Low resistance, high current contacts are rated at 2 amps continuous, 3 amps peak

• Insulators are high temperature thermoplastic

• Both 824 & 826 series strips have spring pins with wire termination soldercups. The

soldercups are aligned to provide easy access for soldering up to size 22 AWG wires

SINGLE ROW Series 824

ORDERING INFORMATION

Single Row Series 824

824-22-0XX-00-001000

Specify number of contacts

01-64

Double Row Series 826

826-22-0XX-00-001000

Specify number of contacts

04-72

DOUBLE ROW Series 826

PAGE 17 | SPRING-LOADED CONNECTORS

Materials:

Contact piston & base: Machined copper alloy plated 0,51μm gold over

2,54μm nickel

Spring: Beryllium copper-plated 0,25μm gold

Insulator: High temperature thermoplastic, rated UL94 V-0

Mechanical:

Spring force @ initial height: 25 grams

Spring force @ mid stroke (0,7): 60 grams

Durability: Up to 1,000,000 cycles

Electrical:

Voltage rating: 100Vrms/150Vdc

Current rating: 2A (continous), 3A (peak) per contact

Contact resistance: 20mW max.

Insulation resistance: 10,000MW min.

Dielectric strength: 700Vrms min.

Capacitance: 1pF max.

Technical Specifications

2011/65/EU

RoHS - 2

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
