380-013
EMI/RFI Non-Environmental Backshell
with Strain Relief
Type D - Rotatable Coupling - Standard Profile
38
CONNECTOR
DESIGNATORS

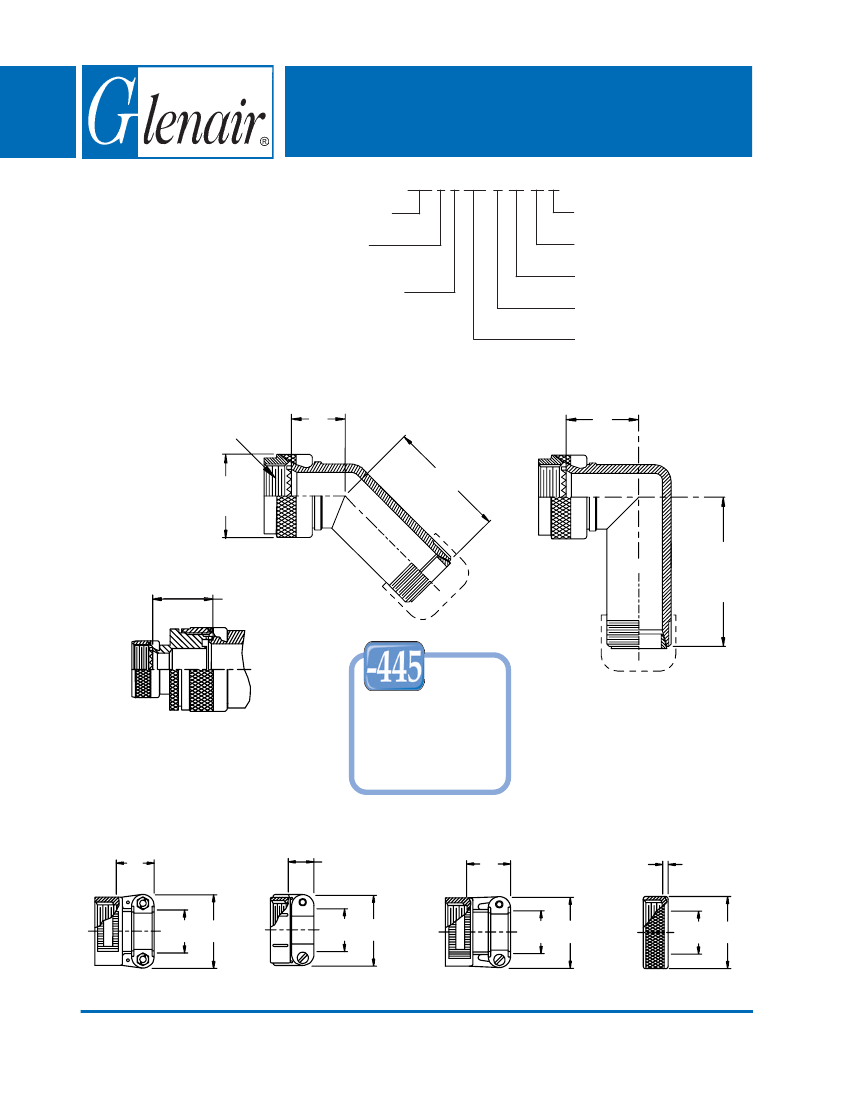

380 F H 013 M 24 12 A
Product Series
Connector
Designator
Angle and Profile
H = 45°
J = 90°
See page 38-70 for straight
Strain Relief Style (H, A, M, D)
Cable Entry (Table X, XI)
Shell Size (Table I)
Finish (Table II)
Basic Part No.
A-F-H-L-S
ROTATABLE
COUPLING
TYPE D INDIVIDUAL
OR OVERALL
SHIELD TERMINATION
A Thread
(Table I)
E
(Table III)
G
(Table III)
C Typ.
(Table I)
F (Table III)
H
(Table III)
.88 (22.4) Max
Now Available
with the “NESTOR”
STYLE 2
(See Note 1)
Glenair’s Non-Detent,
Spring-Loaded, Self-
Locking Coupling.
Add “-445” to Specify
This AS85049 Style “N”
Coupling Interface.
STYLE H
Heavy Duty
(Table X)
T
STYLE A
Medium Duty
(Table XI)
W
STYLE M
Medium Duty
(Table XI)
X
STYLE D
Medium Duty
(Table XI)
.135 (3.4)
Max
Cable
Range
V
Cable
Range
Y
Cable
Range
Y
Cable
Entry
Z
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 38 - Page 72
with Strain Relief
Type D - Rotatable Coupling - Standard Profile
TABLE III: ELBOW DIMENSIONS
Shell Size
E
Conn. Desig.
Max
A-F-L-S H
.639 (16.2)
09
08
.664 (16.9)
11
10
.688 (17.5)
13
12
.705 (17.9)
15
14
.732 (18.6)
17
16
.748 (19.0)
19
18
.773 (19.6)
21
20
.800 (20.3)
23
22
.823 (20.9)
25
24
1.041 (26.4)
28
1.092 (27.7)
32
1.138 (28.9)
36
F
Max
.940 (23.9)
.970 (24.6)
.990 (25.1)
1.020 (25.9)
1.040 (26.4)
1.050 (26.7)
1.070 (27.2)
1.110 (28.2)
1.140 (29.0)
1.310 (33.3)
1.350 (34.3)
1.400 (35.6)
G
Max
.750 (19.1)
.810 (20.6)
.870 (22.1)
.920 (23.4)
.980 (24.9)
1.020 (25.9)
1.080 (27.4)
1.140 (29.0)
1.200 (30.5)
1.480 (37.6)
1.610 (40.9)
1.720 (43.7)
H
Max
1.050 (26.7)
1.110 (28.2)
1.170 (29.7)
1.240 (31.5)
1.300 (33.0)
1.320 (33.5)
1.380 (35.1)
1.460 (37.1)
1.530 (38.9)
1.770 (45.0)
1.860 (47.2)
1.970 (50.0)
See inside back cover
fold-out or pages 13 and
14 for unabridged
Tables I and II.
TABLE II: STANDARD FINISHES
GLENAIR
SYMBOL
B
M
NF
FINISH
Cadmium Plate, Olive Drab
Electroless Nickel
Cadmium Plate, Olive Drab
Over Electroless Nickel
See Inside Back Cover
for Additional Finish Options
Dash
No.
04
06
08
10
12
16
20
24
28
32
TABLE X: CABLE ENTRY
Cable Range
V
T
Max
Max
Min
Max
.957 (24.3)
.780 (19.8)
.125 (3.2) .312 (7.9)
.250 (6.4) .437 (11.1)
.780 (19.8) 1.145 (29.1)
.780 (19.8) 1.332 (33.8)
.312 (7.9) .562 (14.3)
.350 (8.9) .625 (15.9)
.780 (19.8) 1.332 (33.8)
.811 (20.6) 1.551 (39.4)
.500 (12.7) .750 (19.1)
.905 (23.0) 1.770 (45.0)
.625 (15.9) .937 (23.8)
.875 (22.2) 1.250 (31.8)
1.092 (27.7) 2.113 (53.7)
1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9)
1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3)
1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6)
1. When maximum cable entry (page 21) is
exceeded, Style 2 will be supplied.
Dimensions E, F, G and H will not apply.
Please consult factory.
2. Metric dimensions (mm) are indicated in
parentheses.
3. Cable range is defined as the accommo-
dations range for the wire bundle or
cable. Dimensions shown are not
intended for inspection criteria.
TABLE XI: CABLE ENTRY
Dash
Z
X
Y
W
Cable Range
No.
Max
Max
Max
Min **
Max
Max
03* .437 (11.1) .760 (19.3) .843 (21.4)
.630 (16.0) .156 (4.0) .250 (6.4)
04* .437 (11.1) .760 (19.3) .906 (23.0)
.755 (19.2) .188 (4.8) .312 (7.9)
06* .500 (12.7) .760 (19.3) 1.093 (27.8)
.942 (23.9) .281 (7.1) .438 (11.1)
08
.563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1) .344 (8.7) .562 (14.3)
10
.563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3) .375 (9.5) .625 (15.9)
12
.563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1) .438 (11.1) .750 (19.1)
16
.656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) .562 (14.3) .938 (23.8)
20
.656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) .750 (19.1) 1.250 (31.8)
24
.656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) .781 (19.8) 1.375 (34.9)
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) .969 (24.6) 1.625 (41.3)
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0) 1.125 (28.6) 1.875 (47.6)
40* 1.125 (28.6) 1.572 (39.9) 3.531 (89.7) 3.255 (82.7) 1.469 (37.3) 2.375 (60.3)
* Not available in Style M clamp.
** Not Applicable Style D
