3-6450140-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 3-6450140-4

3-6450140-4: DescriptionMBXL VERT RCPT 3P+36S+3P; CategoryThe connector; File Size1MB，11 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

3-6450140-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-6450140-4	-	-	View	Buy Now

3-6450140-4 Overview

MBXL VERT RCPT 3P+36S+3P

3-6450140-4 Parametric

Parameter Name	Attribute value
Housing type	female end, female end
Connector System	Board to Board
Sealable	no
Connectors and terminals terminate to	A printed circuit board
Terminal type	socket
Number of Positions	42
PCB mounting direction	vertical
Number of power supply locations	6
Number of signal positions	36
Rows	4
Line spacing	2.54 mm [ .1 in ]
Board-to-board configuration	vertical
Operating voltage (VAC)	60, 200
Operating voltage (VDC)	60, 200
Contact Current Rating (Max) (A)	42
Terminal retention	Without
Terminal termination area plating material	tin
Terminal contact plating material	precious metals
Plating thickness of terminal contact parts	.76 µm [ 30 µin ]
PCB Termination Methods	Through Hole - Solder
Connector mounting type	board mounting
Centerline (Pitch) (mm)	2.54, 6.35
Centerline (Pitch) (in)	.1, .25
UL fire rating	UL 94V-0
Shell color	black
Shell material	high temperature thermoplastic
Working group temperature range	-20 – 105 °C [ -4 – 221 °F ]
Circuit Application	Power and Signal
Glow Wire Ratings	High Temperature Components - Non-Glow Wire
Encapsulation method	tray

Preview

Download Datasheet

View All

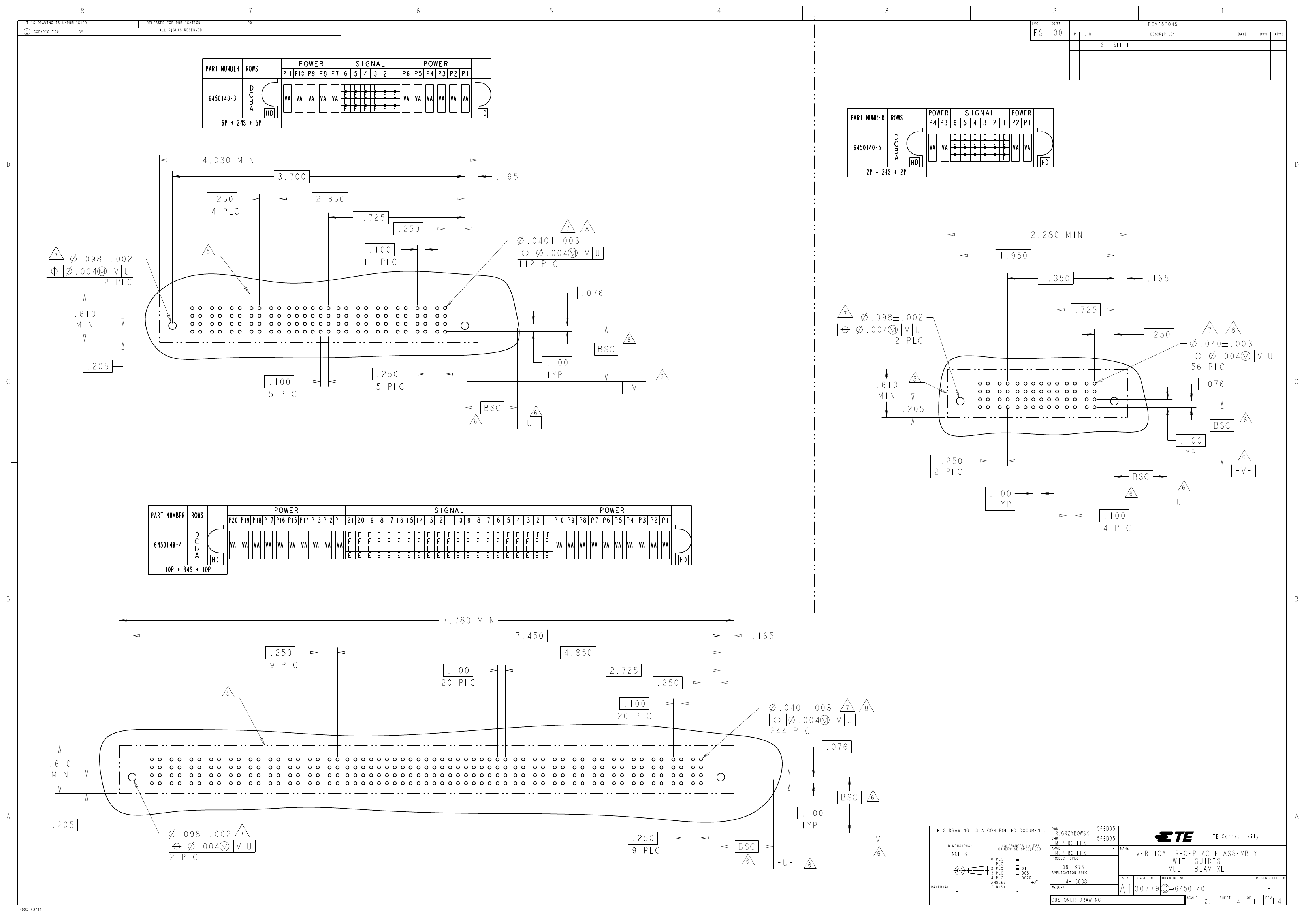

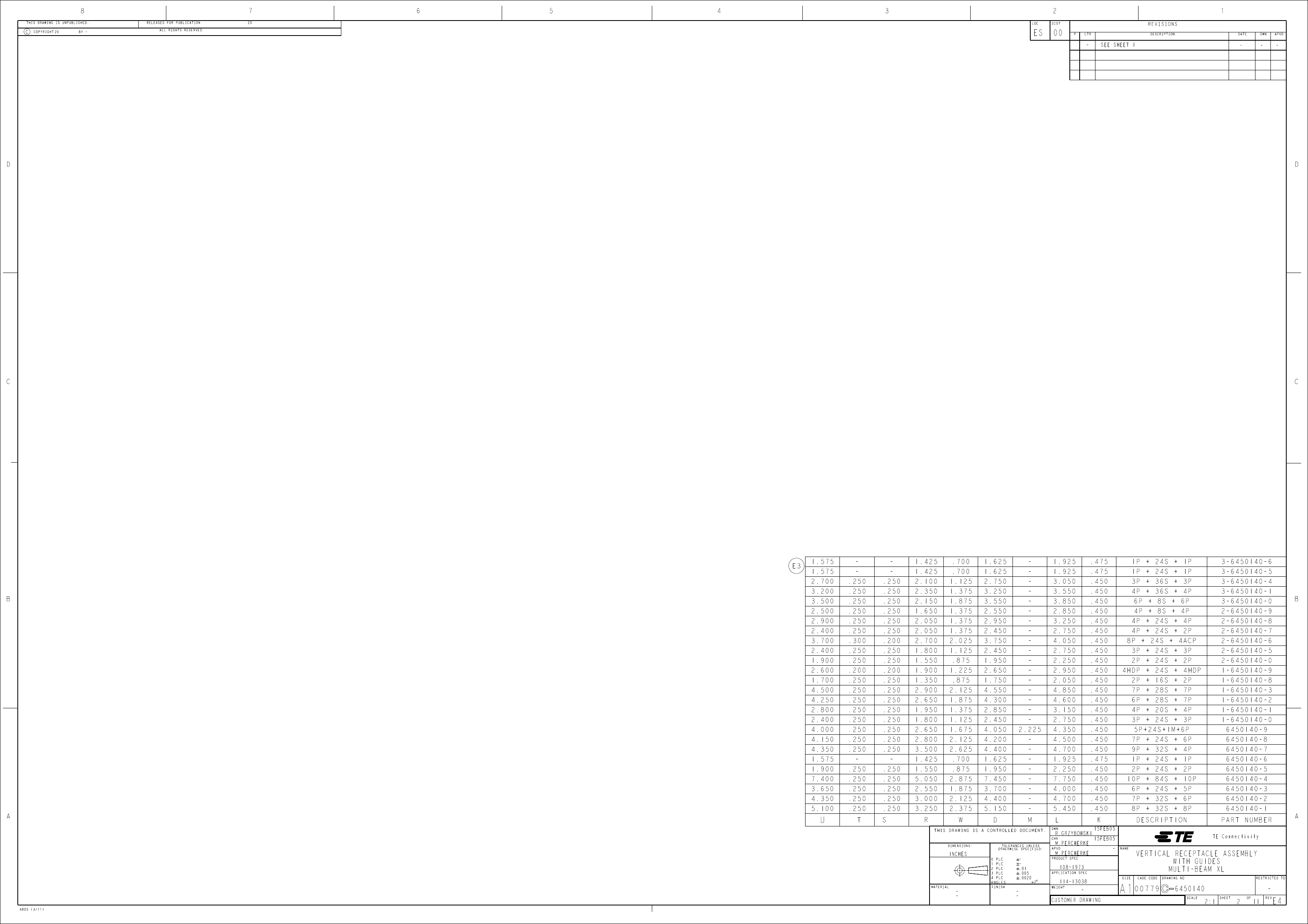

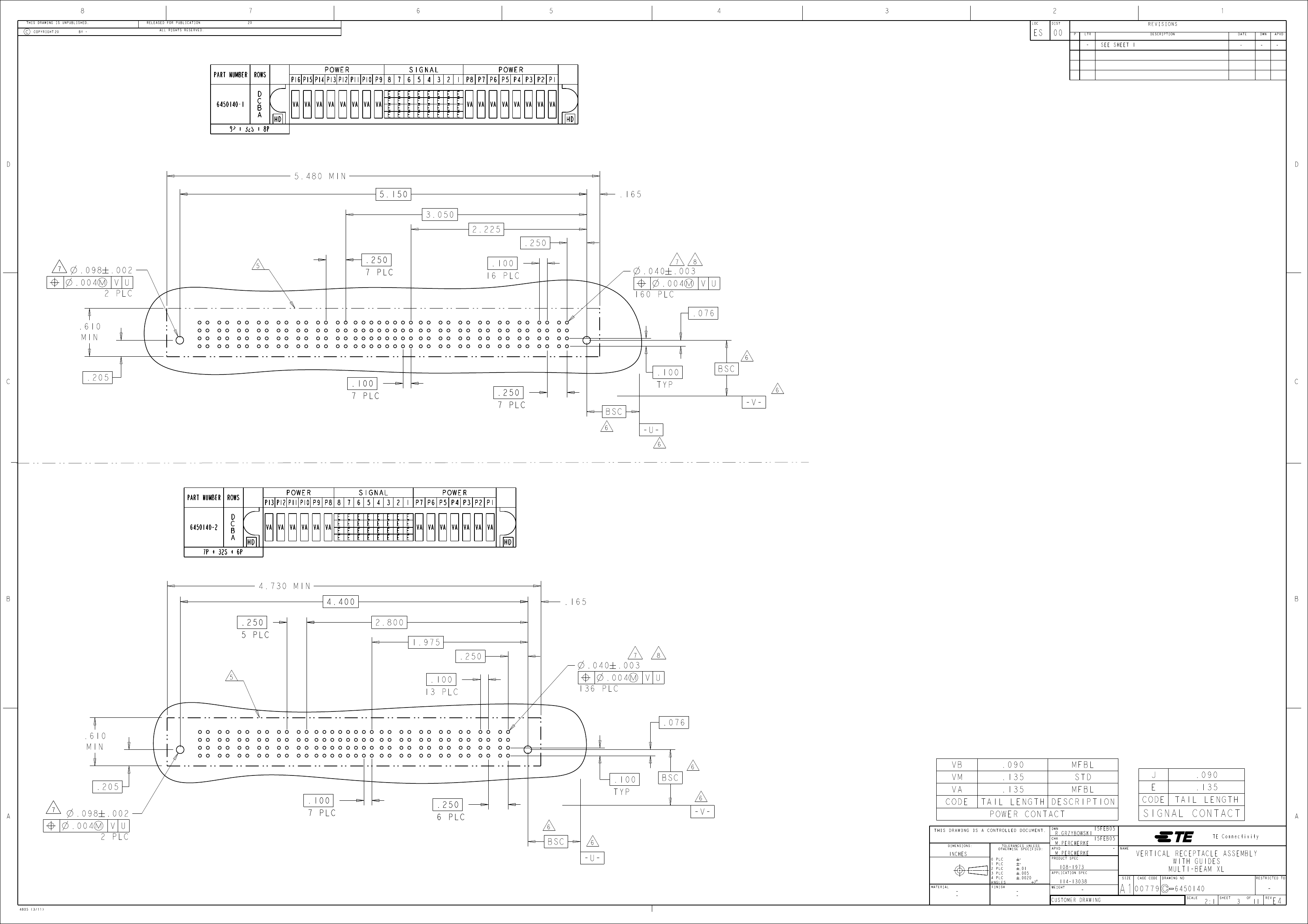

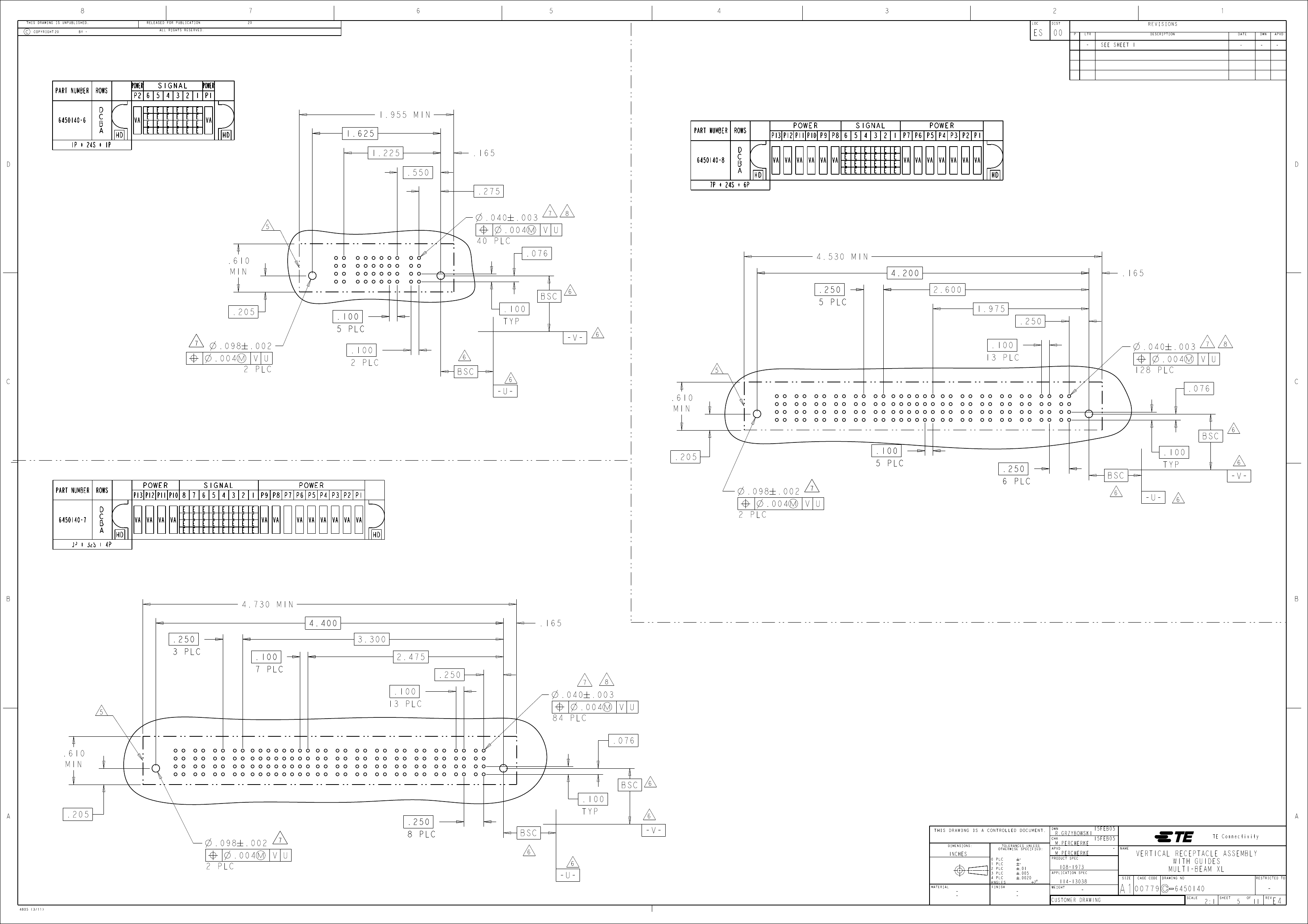

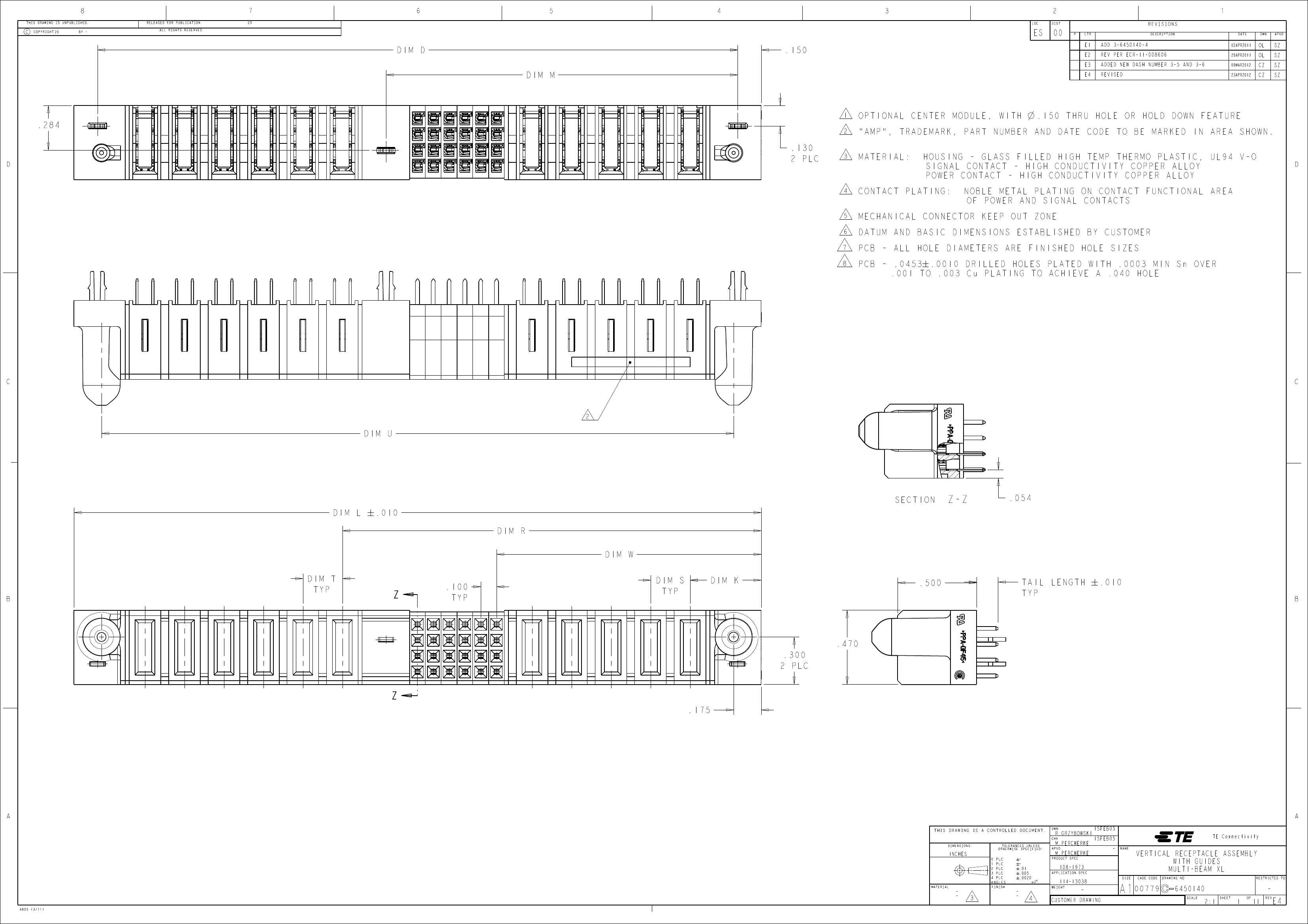

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

DIM D

DIM M

.150

ADD 3-6450140-4

REV PER ECR-11-008606

ADDED NEW DASH NUMBER 3-5 AND 3-6

REVISED

02APR2011

29APR2011

09MAR2012

23APR2012

.284

.130

2 PLC

OPTIONAL CENTER MODULE, WITH

n .150 THRU HOLE OR HOLD DOWN FEATURE

"AMP", TRADEMARK, PART NUMBER AND DATE CODE TO BE MARKED IN AREA SHOWN.

MATERIAL:

HOUSING - GLASS FILLED HIGH TEMP THERMO PLASTIC, UL94 V-O

SIGNAL CONTACT - HIGH CONDUCTIVITY COPPER ALLOY

POWER CONTACT - HIGH CONDUCTIVITY COPPER ALLOY

NOBLE METAL PLATING ON CONTACT FUNCTIONAL AREA

OF POWER AND SIGNAL CONTACTS

CONTACT PLATING:

MECHANICAL CONNECTOR KEEP OUT ZONE

DATUM AND BASIC DIMENSIONS ESTABLISHED BY CUSTOMER

PCB - ALL HOLE DIAMETERS ARE FINISHED HOLE SIZES

PCB - .0453 # .0010 DRILLED HOLES PLATED WITH .0003 MIN Sn OVER

.001 TO .003 Cu PLATING TO ACHIEVE A .040 HOLE

DIM U

DIM L

# .010

DIM R

DIM W

SECTION

Z-Z

.054

DIM T

TYP

.100

TYP

DIM S

TYP

DIM K

.500

TAIL LENGTH

TYP

# .010

.300

2 PLC

.470

.175

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

R.GRZYBOWSKI

M.PERCHERKE

108-1973

15FEB05

NAME

TE Connectivity

INCHES

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

.01

.005

.0020

PRODUCT SPEC

APPLICATION SPEC

2 $

WEIGHT

114-13038

CUSTOMER DRAWING

00779

SIZE

VERTICAL RECEPTACLE ASSEMBLY

WITH GUIDES

MULTI-BEAM XL

CAGE CODE

DRAWING NO

RESTRICTED TO

6450140

SCALE

4805 (3/11)

2:1

SHEET

REV
