32C9023-CG datasheet, PDF - EEWORLD Datasheet

32C9023-CG: DescriptionFixed Disk Controller, 10MBps, CMOS, PQFP128; CategoryThe embedded processor and controller Microcontrollers and processors; File Size675KB，29 Pages; ManufacturerSilicon Systems Inc.

Download Datasheet Parametric Compare View All

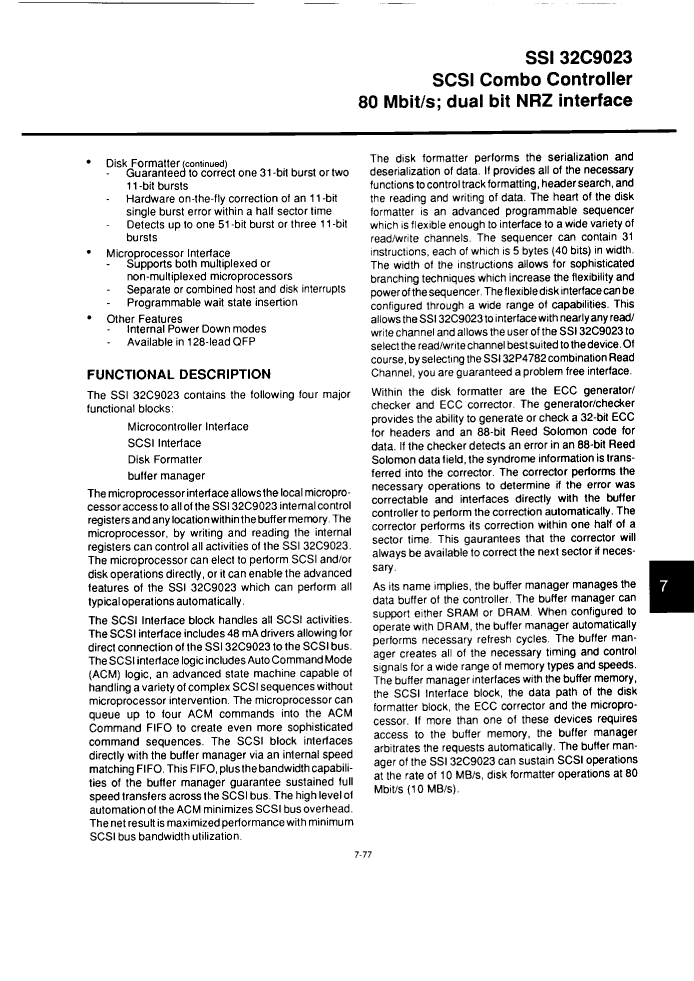

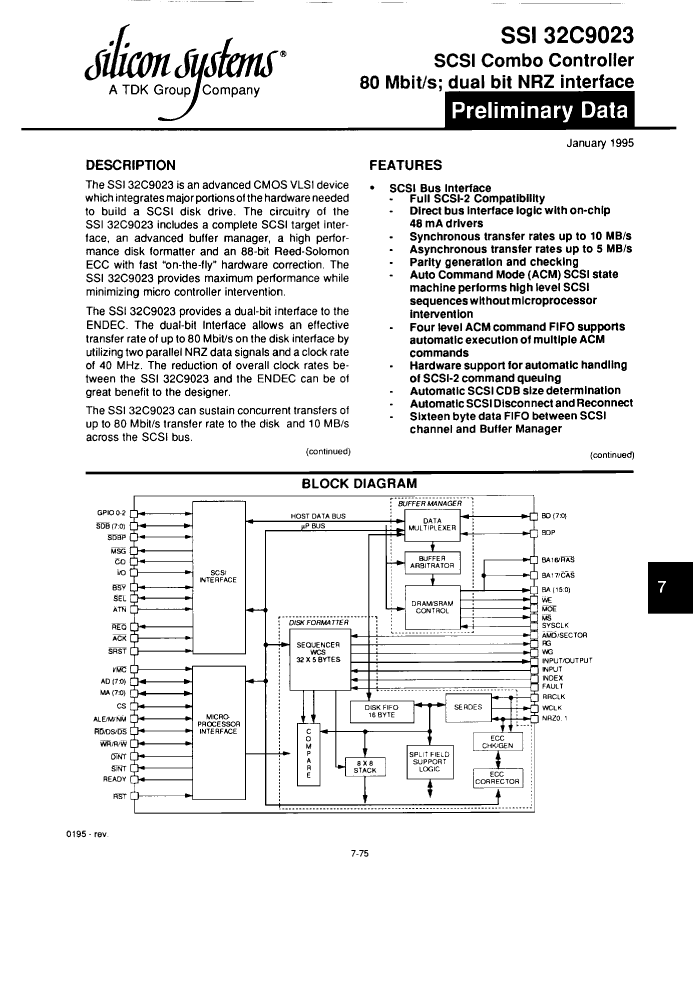

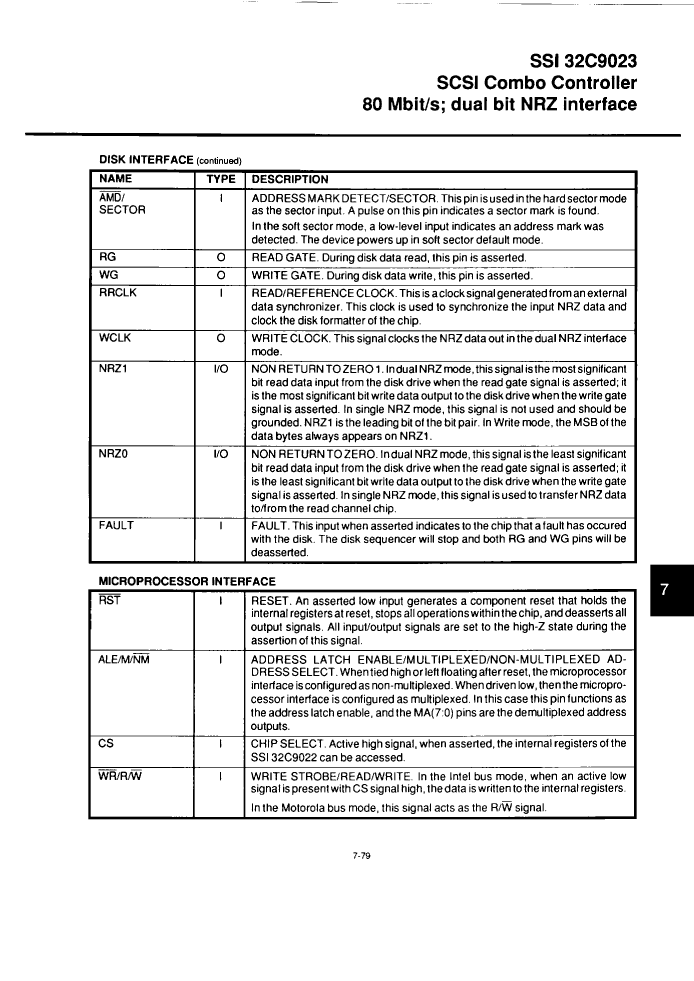

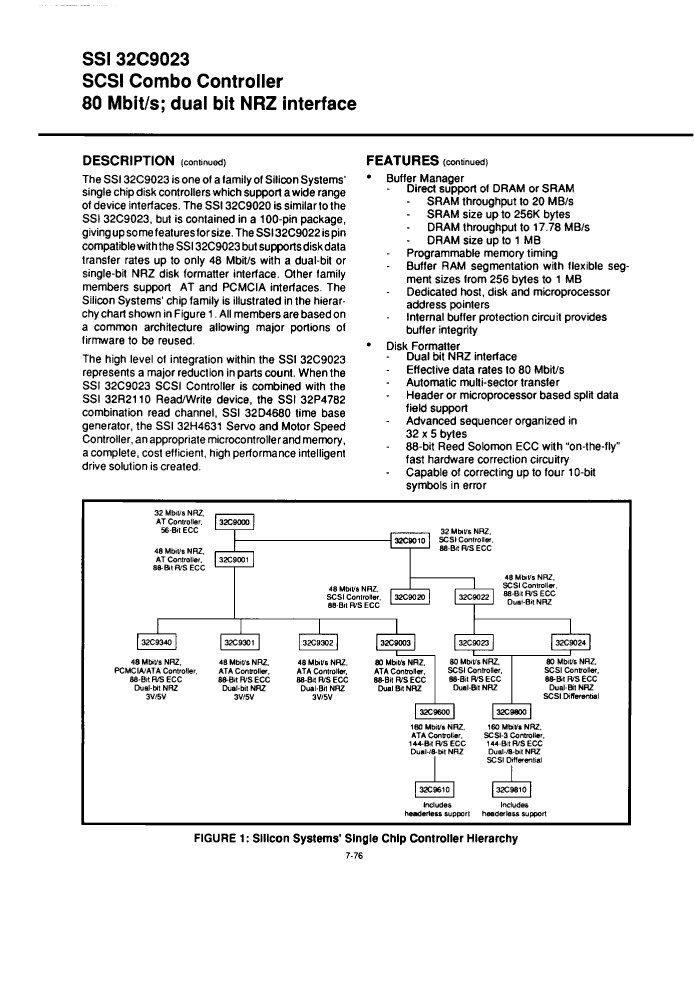

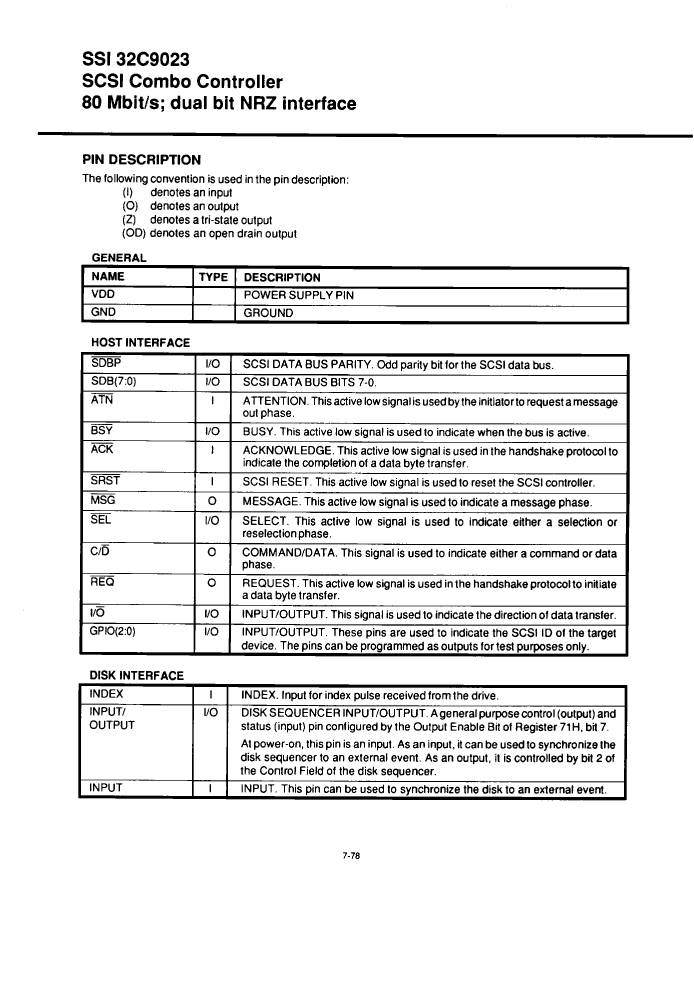

32C9023-CG Overview

Fixed Disk Controller, 10MBps, CMOS, PQFP128

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Maximum data transfer rate	10 MBps
External data bus width	8
Maximum host data transfer rate	10 MBps
Host interface standard	SCSI-2
JESD-30 code	R-PQFP-G128
Number of terminals	128
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLATPACK
Certification status	Not Qualified
Maximum slew rate	50 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	QUAD
uPs/uCs/peripheral integrated circuit type	SECONDARY STORAGE CONTROLLER, FIXED DISK
Base Number Matches	1

	32C9023-CG	32C9023-CGT
Description	Fixed Disk Controller, 10MBps, CMOS, PQFP128	Fixed Disk Controller, 10MBps, CMOS, PQFP128
Reach Compliance Code	unknown	unknown
Maximum data transfer rate	10 MBps	10 MBps
External data bus width	8	8
Maximum host data transfer rate	10 MBps	10 MBps
Host interface standard	SCSI-2	SCSI-2
JESD-30 code	R-PQFP-G128	R-PQFP-G128
Number of terminals	128	128
Maximum operating temperature	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK
Certification status	Not Qualified	Not Qualified
Maximum slew rate	50 mA	50 mA
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING
Terminal location	QUAD	QUAD
uPs/uCs/peripheral integrated circuit type	SECONDARY STORAGE CONTROLLER, FIXED DISK	SECONDARY STORAGE CONTROLLER, FIXED DISK
Base Number Matches	1	1
