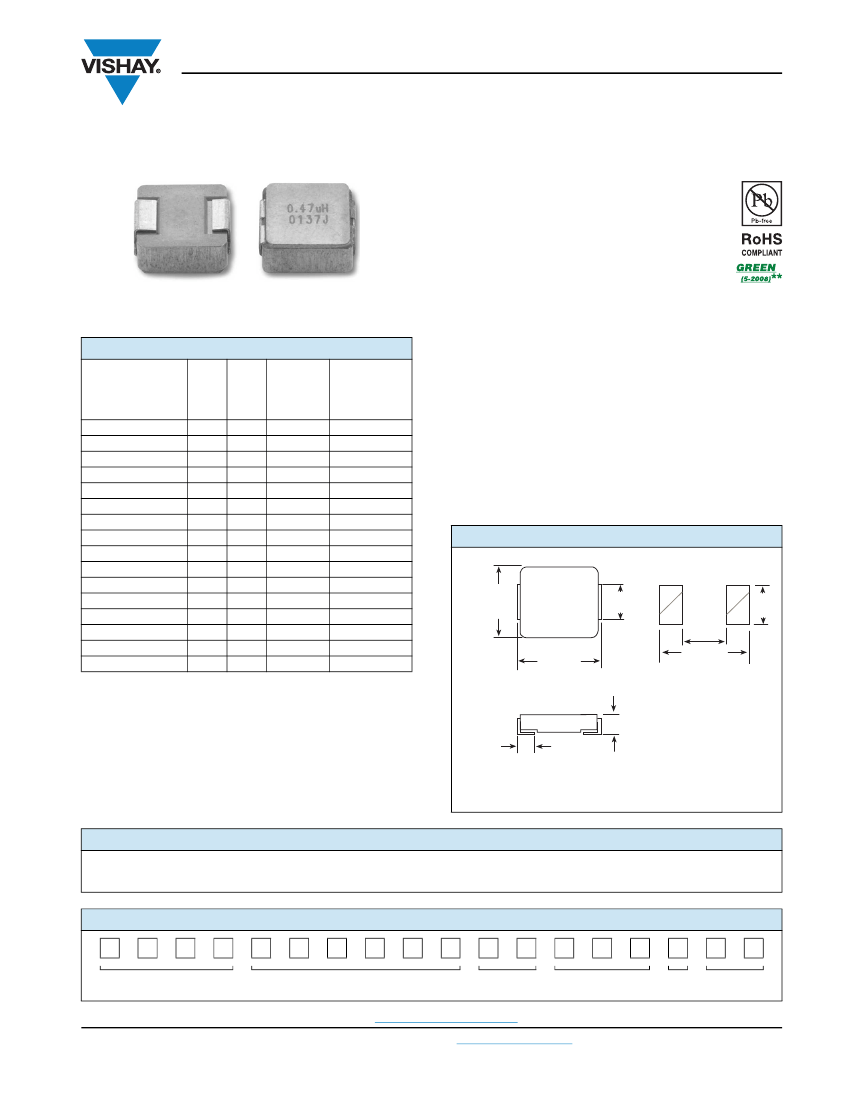

IHLP-2525CZ-01
Vishay Dale
Low Profile, High Current IHLP
®
Inductors
FEATURES
• Lowest height (3.0 mm) in this package footprint
• Shielded construction
• Frequency range up to 5.0 MHz
• Lowest DCR/μH, in this package size
Manufactured under one or more of the following:
US Patents; 6,198,375/6,204,744/6,449,829/6,460,244.
Several foreign patents, and other patents pending.
• Handles high transient current spikes without
saturation
• Ultra low buzz noise, due to composite construction
• Compliant to RoHS Directive 2002/95/EC
STANDARD ELECTRICAL SPECIFICATIONS
L
0
INDUCTANCE
± 20 % AT 100 kHz,
0.25 V, 0 A
(μH)
0.10
0.15
0.20
0.22
0.33
0.47
0.68
0.82
1.0
1.5
2.2
3.3
4.7
6.8
8.2
10
DCR
TYP.
25 °C
(m)
1.5
1.9
2.4
2.5
3.5
4
5
6.7
9
14
18
28
37
54
64
102
HEAT
DCR
RATING SATURATION
MAX. CURRENT
CURRENT
25 °C DC TYP.
DC TYP.
(m)
(A)
(3)
(A)
(4)
1.7
32.5
60
2.5
26
52
3.0
24
41
2.8
23
40
3.9
20
30
4.2
17.5
26
5.5
15.5
25
8
13
24
10
11
22
15
9
18
20
8
14
30
6
13.5
40
5.5
10
60
4.5
8
68
4
7.5
105
3
7.0
APPLICATIONS
• PDA/notebook/desktop/server applications
• High current POL converters
• Low profile, high current power supplies
• Battery powered devices
• DC/DC converters in distributed power systems
• DC/DC converter for Field Programmable Gate Array
(FPGA)
DIMENSIONS
in inches [millimeters]
Typical Pad Layout (Min.)
0.255 ± 0.010
[6.47 ± 0.254]
0.125 ± 0.01
[3.18 ± 0.3]
0.146
[3.71]
0.290
[7.37]
0.135
[3.43]
Notes
(1)
All test data is referenced to 25 °C ambient
(2)
Operating temperature range - 55 °C to + 125 °C
(3)
DC current (A) that will cause an approximate
T
of 40 °C
(4)
DC current (A) that will cause L to drop approximately 20 %
0
(5)
The part temperature (ambient + temp. rise) should not exceed
125 °C under worst case operating conditions. Circuit design,
component placement, PWB trace size and thickness, airflow
and other cooling provisions all affect the part temperature. Part
temperature should be verified in the end application.
0.270 ± 0.015
[6.86 ± 0.381]
0.118 [3.0] Max.
0.050 ± 0.012
[1.27 ± 0.30]
DESCRIPTION
IHLP-2525CZ-01
MODEL
1.0 μH
INDUCTANCE VALUE
± 20 %
INDUCTANCE TOLERANCE
ER
PACKAGE CODE
e3
JEDEC LEAD (Pb)-FREE STANDARD
GLOBAL PART NUMBER
I
H
L
P
2
5
2
SIZE
5
C
Z
E
R
1
R
0
M
TOL.
0
1
PRODUCT FAMILY
PACKAGE
CODE
INDUCTANCE
VALUE
SERIES
** Please see document “Vishay Material Category Policy”:
www.vishay.com/doc?99902
Document Number: 34104
Revision: 24-Feb-11
For technical questions, contact:
magnetics@vishay.com
www.vishay.com

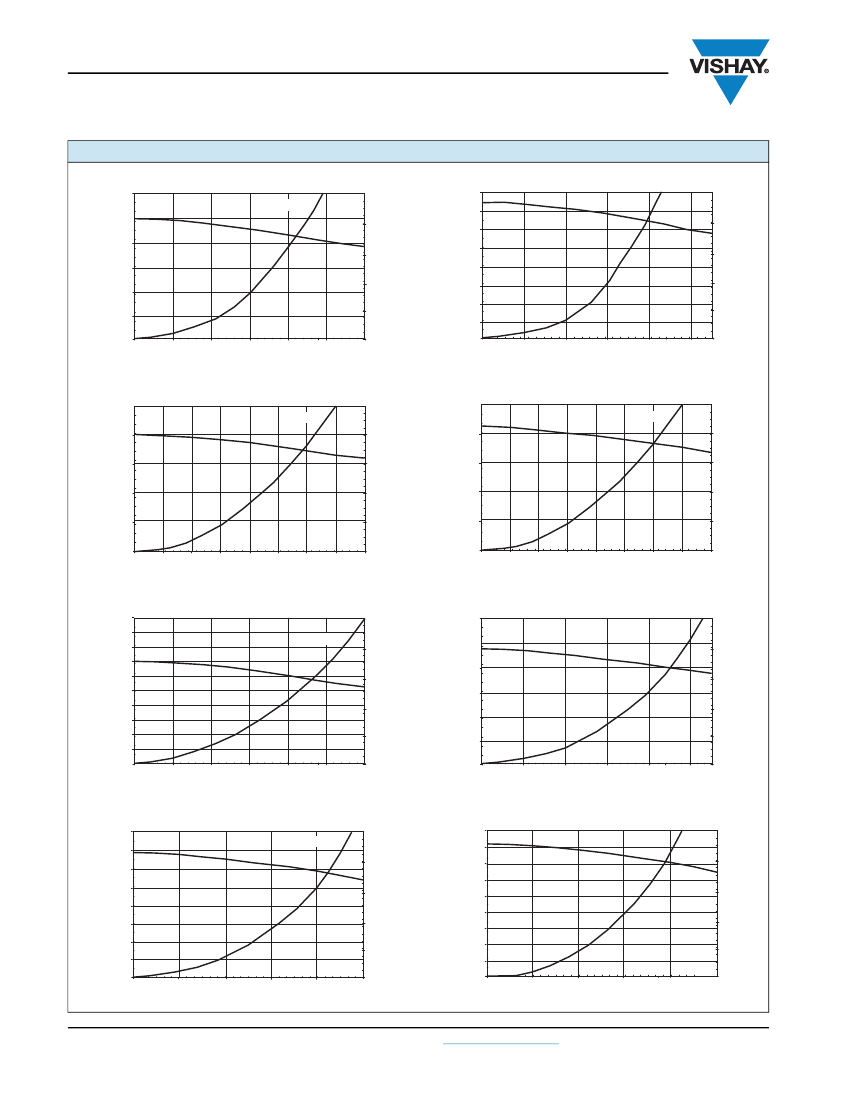

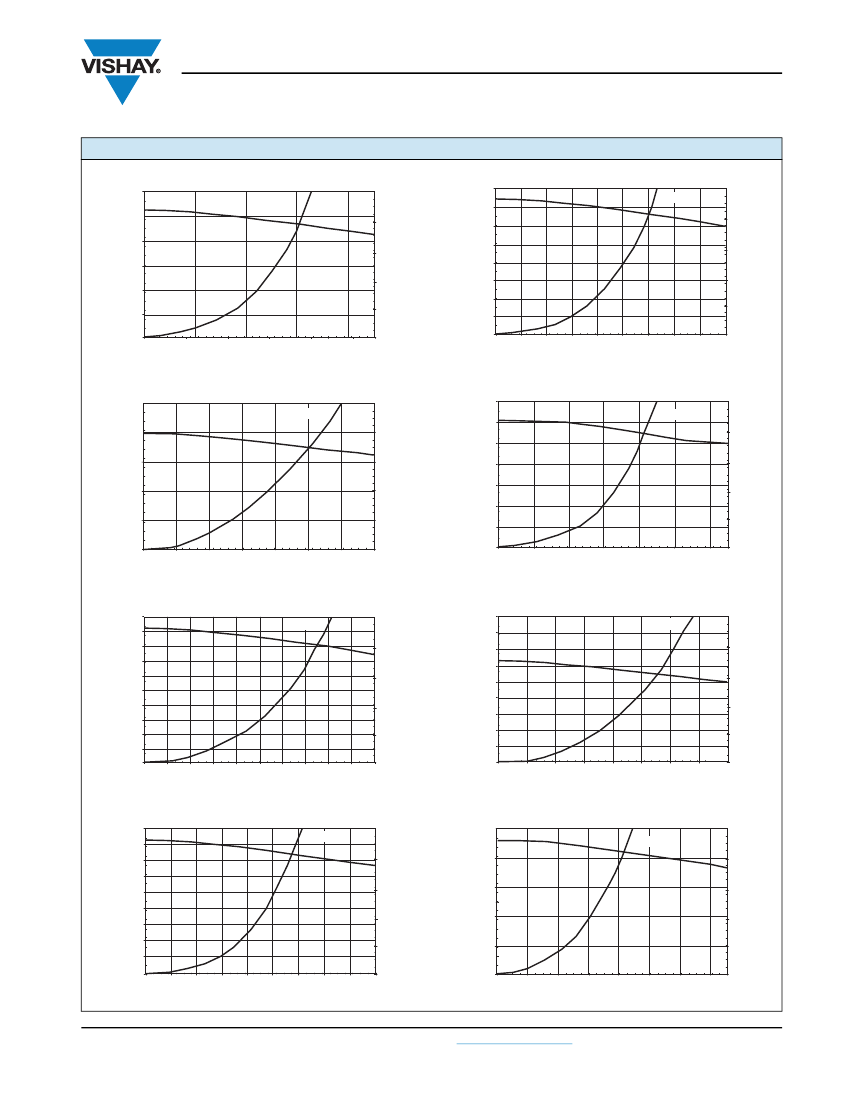

1
