3M
™

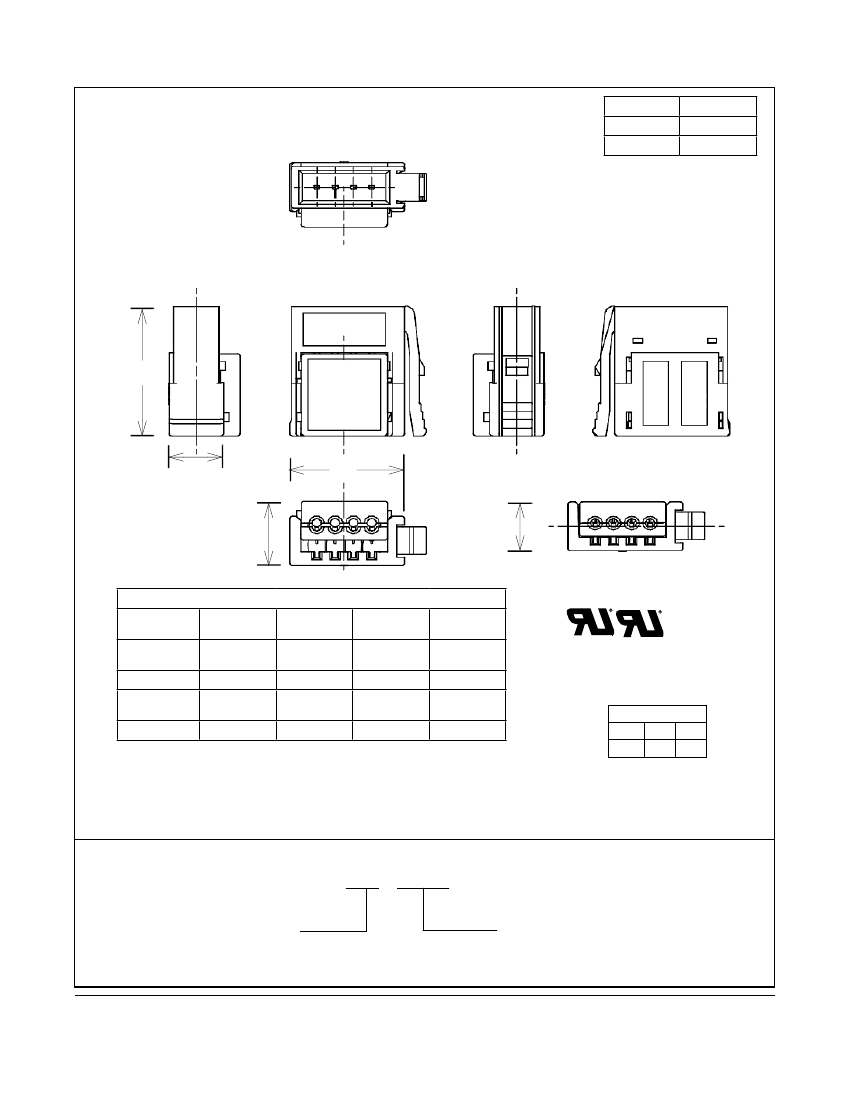

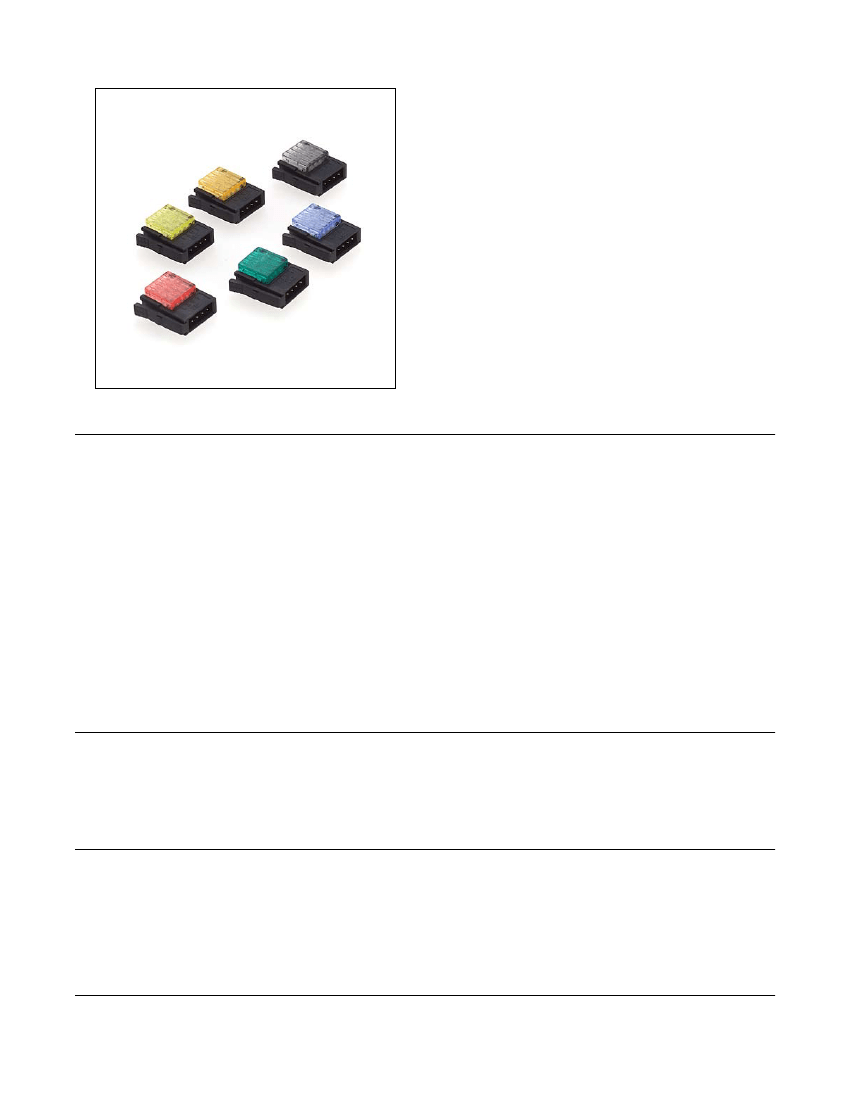

Mini-Clamp Plug
Designed for Wiring Supplied from Japan and Asia, 2 mm, IDC, Wiremount
371 Series
•
Designed to accommodate typical wiring specifications per
Japanese and Asian suppliers
•
No special wire preparation
•
Integrated cable retention
•
Design accepts multiple wire size diameters
•
Easy, quick, and reliable IDC termination using a standard
pliers
•
Debris free wire termination
•
Mating latches provide a reliable interconnection in
demanding applications
•
High number of mating cycles
•
Compact design saves board space
•
Reduces maintenance work by providing higher
connection reliability
•
See Regulatory Information Appendix (RIA) for chemical
compliance information
Date Modified: March 31, 2008
TS-2092-C
Sheet 1 of 3
Physical
Insulation:
Material: Glass reinforced thermoplastic body & lower cover, transparent thermoplastic cover
Flammability: UL 94V-0
Color: Black body, cover-white & color (see Table 1)
Contact:
Material: Copper Alloy
Plating:
Underplating: 2.54 µm [100 µ”] minimum Nickel
Wiping Area:: 0.2 µm [8 µ”] minimum Gold with Lubricant
IDC: Nickel
Accommodation:
Annealed Copper, high-strength Copper, or Copper Alloy. Bare, tinned,
or tin overcoated, 20~26 AWG [ 0.14~0.5 ] stranded
Wire Insulation:
Flexible vinyl, semi-rigid vinyl, x -linked polyethylene, or ETFE (see Table 1)
Marking: 3M Logo, Position Indicator, Wire Gauge, Insulator Material
Electrical
Current Rating:
Voltage Rating:
Insulation Resistance:
Withstanding Voltage:
3.0 Amps
32 Volts
>1 X 10
6
Ω
at 600 V
DC
1,000 V
RMS
at sea level
Environmental
Temperature Rating:
-20˚C to +85˚C ambient (1.0 A max.)
-20˚C to +75˚C ambient (2.0 A max.)
-20 C to +60˚C ambient (3.0 A max.)
(Note: UL rating is 65˚C at 3.0A, 32V)
UL File No.: E68080
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Mini-Clamp Plug

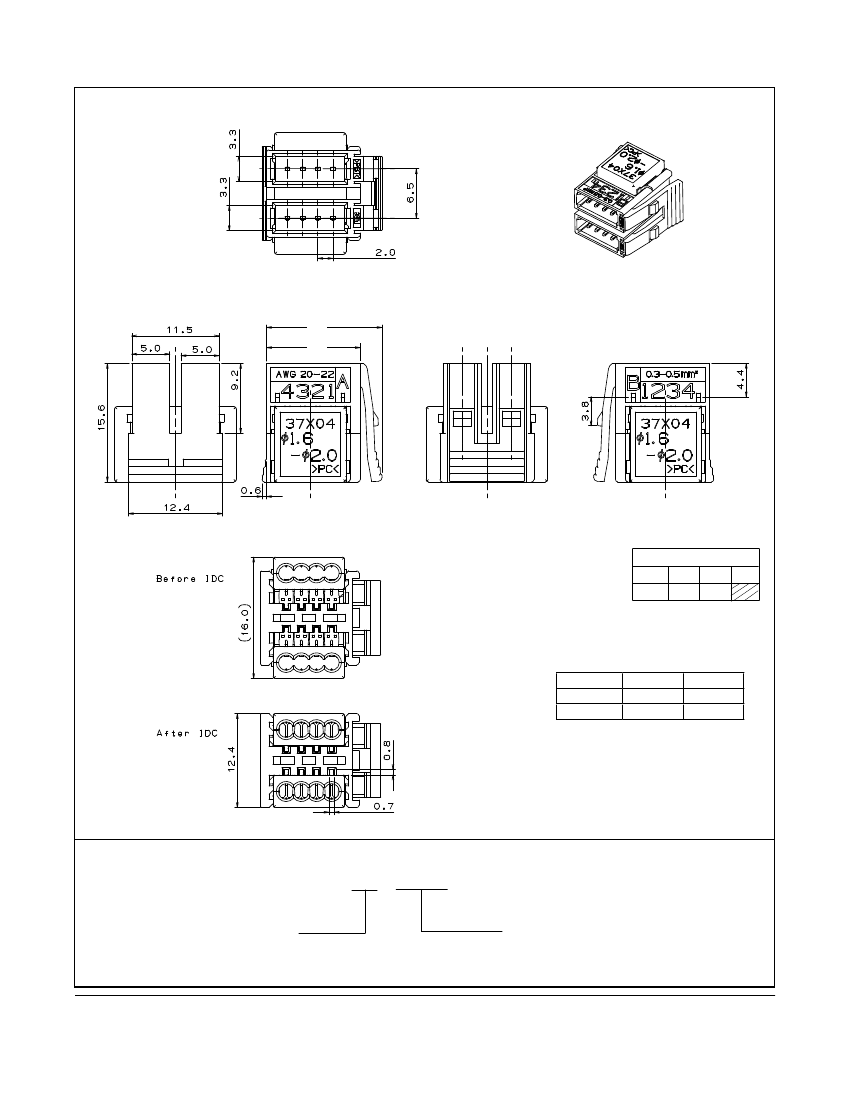

Designed for Wiring Supplied from Japan and Asia, 2 mm, IDC, Wiremount
3 and 4 Position
# Positions
3
4
371 Series
Dim A
12.9 [.51]
14.9 [.59]
4 3 2 1
>PA<
Ø
0.8 -
Ø
1.0
>PC<
5.9
[.23]
DIM
A
Before
Termination
After
Termination
7.7
[.30]
5.9
[.23]
Table 1
Wire OD
Part #
20-22 AWG
Cover Color
Part #
24-26 AWG
Color
1.6 ~ 2.0
[.063 ~.079]
2206
Gray
1.2 ~ 1.6
[.047 ~ .063]
2165
Blue
3163
Orange
1.0 ~ 1.2
[.039 ~ .047]
2124
Green
3122
Yellow
3101
Red
mm
[Inch]
Tolerance Unless Noted
0.8 ~ 1.0
[.031 ~ .039]
C
0.0
mm
±.1
0.00
±.01
[ ] Dimensions for
Reference only
Ordering Information
371XX - XXXX - 000 FL
Positions
03 or 04
Note: Terminate using common pliers or 3M™ Scotchlok™ Crimping Tools E-9BM or E-9E
(RIA E1 & C1 apply)
Wire AWG & OD:
2XXX = 20-22 AWG
3XXX = 24-26 AWG
Wire OD - see Table 1
TS-2092-C
Sheet 2 of 3
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
0.14 - 0.2
mm
2
24 - 26
AWG
15.6
[.61]
37104
3M
™
Mini-Clamp Plug
Designed for Wiring Supplied from Japan and Asia, 2 mm, IDC, Wiremount
6 and 8 Position
371 Series
B
A
mm
[Inch]
Tolerance Unless Noted
.0
mm
±.1
.00
±.10
.000
[ ] Dimensions for
Reference only
# Positions
6 (3x2)
8 (4x2)
A
10.4 [0.41]
12.4 [0.49]
B (Ref.)
13.2 [0.52]
15.2 [0.60]
Ordering Information
371XX - XXXX - 0W0 FL
Positions
06 or 08
Note: Terminate using common pliers or 3M™ Scotchlok™ Crimping Tools E-9BM or E-9E
Wire AWG & OD:
2XXX = 20-22 AWG
3XXX = 24-26 AWG
Wire OD – see Table
TS-2092-C
Sheet 3 of 3
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Regulatory Information Appendix
3M Electronic Solutions Division/Interconnect
EUROPE
Appendix E1: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product is RoHS Compliant 2005/95/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of
the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless
the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information
represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E2: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product contains lead in the compliant pin area in excess of the maximum concentration value allowed but is
compliant by exemption under EU Commission Decision 2005/747/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of
the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless
the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information
represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E3: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment as
amended by Commission Decision 2005/618/EC.
This product contains lead in the solder tail area in excess of the maximum concentration value allowed.
Unless otherwise stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon information
provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E4: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product contains decaBDE in the insulating material in excess of the maximum concentration value allowed but is
compliant by exemption under EU Commission Decision 2005/717/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of
the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless
the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information
represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
RIA-2217B-D
Appendix E5: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product contains lead in excess of the maximum concentration value allowed but is compliant by exemption under
Item 6 of the Annex to the Directive.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of
the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless
the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information
represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
CHINA
Appendix C1: China RoHS
Electronic Industry Standard of the People’s Republic of China, SJ/T11363-2006, Requirements for Concentration Limits for
Certain Hazardous Substances in Electronic Information Products.
This symbol, per Marking for the Control of Pollution Caused by Electronic Information Products, SJ/T11364-2006, means
that the product or part
does not
contain any of the following substances in excess of the following maximum concentration
values in any homogeneous material: (a) 0.1% (by weight) for lead, mercury, hexavalent chromium, polybrominated biphenyls
or polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by 3M in writing, this
information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix C2: China RoHS
Electronic Industry Standard of the People’s Republic of China, SJ/T11363-2006, Requirements for Concentration Limits for
Certain Hazardous Substances in Electronic Information Products.
This symbol, per Marking for the Control of Pollution Caused by Electronic Information Products, SJ/T11364-2006, means that
the product or part
does
contain a substance, as detailed in the chart below, in excess of the following maximum concentration
values in any homogeneous material: (a) 0.1% (by weight) for lead, mercury, hexavalent chromium, polybrominated biphenyls
or polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by 3M in writing, this
information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
The numerical reference in the symbol above should not be construed as a representation regarding the product’s life or an
extension of a product warranty. The product warranty is stated below. In the event any product is proven not to conform with
3M’s Regulatory Information Appendix, then 3M’s entire liability and Buyer’s exclusive remedy will be in accordance with the
product Warranty stated below.
RIA-2217B-D
