KSM-915TH5N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> KSM-915TH5N

KSM-915TH5N: DescriptionOptic receiver module; CategoryLED optoelectronic/LED photoelectric; File Size186KB，2 Pages; ManufacturerKODENSHI; Websitehttp://www.kodenshi.co.jp

Download Datasheet Parametric Compare View All

KSM-915TH5N Overview

Optic receiver module

KSM-915TH5N Parametric

Parameter Name	Attribute value
Maker	KODENSHI
Reach Compliance Code	unknow
Installation features	THROUGH HOLE MOUNT
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
Maximum slew rate	0.0022 mA
Nominal supply voltage	5 V
surface mount	NO

Preview

Download Datasheet

View All

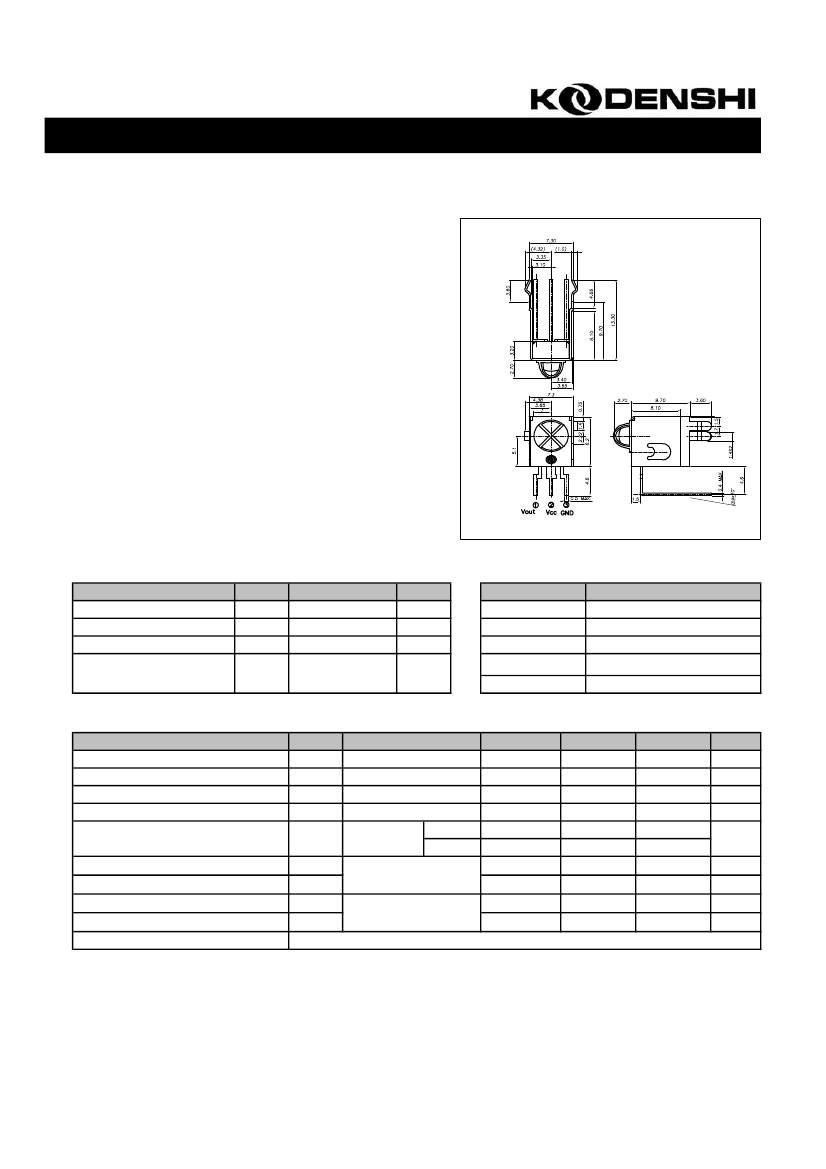

Optic receiver module

KSM-91□TH5N

The KSM-91□TH5N consist of a PIN Photodiode of high

speed and a preamplifier IC in the package as an receiver

for Infrared remote control systems

Features

ㆍ

Wide angle design

ㆍ

Supply-voltage range : 4.5V to 5.5V

ㆍ

Shielded against electrical field disturbance

ㆍ

Enhanced immunity against ambient light disturbances

ㆍ

Enhanced reception distance

ㆍ

Continuous data transmission possible (NRZ 1000 bit/s)

ㆍ

Available for carrier frequencies between 32.7KHz to 56.9KHz

ㆍ

TTL and CMOS compatible

Applications

ㆍ

Audio & Video Applications (TV, VTR, Audio, DVDP, CDP)

ㆍ

Home Appliances (Air conditioner, Computer, Camcoder)

ㆍ

Wireless Toys

ㆍ

Remote Control Equipment

Maximum Ratings

Parameter

Supply Voltage

Operating Temperature

Storage Temperature

Soldering Temperature

Symbol

Vcc

Topr

Tstg

Tsol

Ratings

6.0

-10 ~ +60

-20 ~ +75

260

(Max 5 sec)

[Ta=25℃]

Unit

℃

DIMENSIONS

B.P.F Center Frequency

Model No.

KSM-911TH5N

KSM-912TH5N

KSM-913TH5N

KSM-914TH5N

KSM-915TH5N

B.P.F Center Frequency(㎑)

40.0

36.7

37.9

32.7

56.9

[Ta=25℃, Vcc=5.0V]

Max.

Unit

5.5

2.2

㎃

㎚

㎑

0.5

700

㎲

Electro-Optical Characteristics

Parameter

Recommended Supply Voltage

Current Consumption

Peak Wavelength

B.P.F Center Frequency

Transmission Distance

High level Output voltage

Low level Output voltage

Symbol

Vcc

Icc

λp

Condition

No signal input

Min.

4.5

500

Typ.

1.2

940

37.9

5.0

0.1

600

250±50lx

30cm over

the ray axis

0˚

±30˚

High level Output Pulse Width *1

Low level Output Pulse Width *1

Output Form

Burst wave=600㎲

Period = 1.2㎳

500

600

Active Low Output

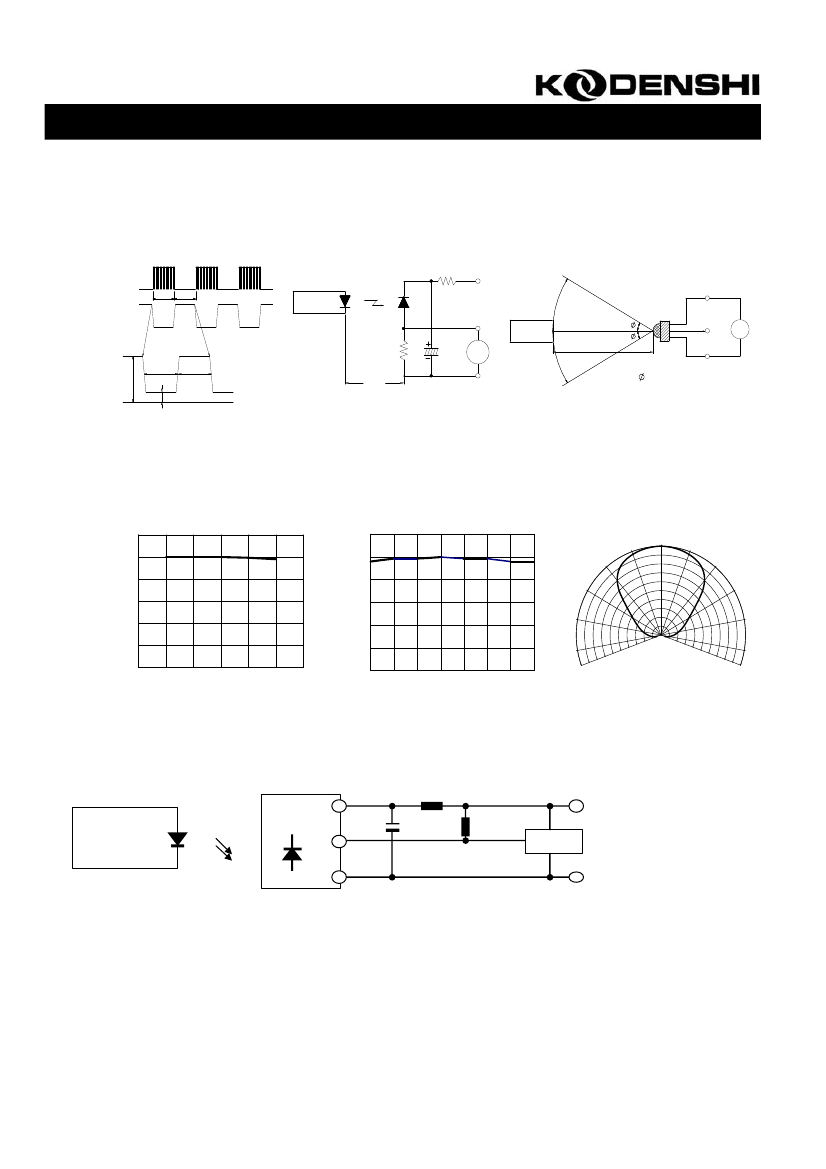

*1. It specifies the maxmum distance between emitter and detector that the output wave form satisfies the standard under the conditions

below against the standard transmitter.

1) Measuring place

: Indoor without extreme reflection of light

high frequency lightning

3) Standard transmitter : Burst wave of standard transmitter shall be arranged to 50mVP-P under the measuring circuit

2) Ambient light source : Detecting surface illumination shall be irradiate 200±50lx under ordinary white fluorescence lamp without

1/2
