Proven splicing technology designed for your
specific applications.
Some 50 years after 3M introduced the industry’s original
insulation displacement connector, 3M Scotchlok Insulation
™
™
Displacement Connectors still offer the quick installation
and reliability that electricians and contractors demand. IDCs
also incorporate a full wire range capability, an increased
port size that accommodates up to 0.190" (4.82mm) insulation
sizes, double “U” elements and a solvent-resistant plastic
construction. Choose from 35 different Scotchlok IDCs to
meet a variety of uses, including fluorescent ballast
installation and replacement, fixture and appliance wiring,
automotive and marine wiring and control circuit wiring.

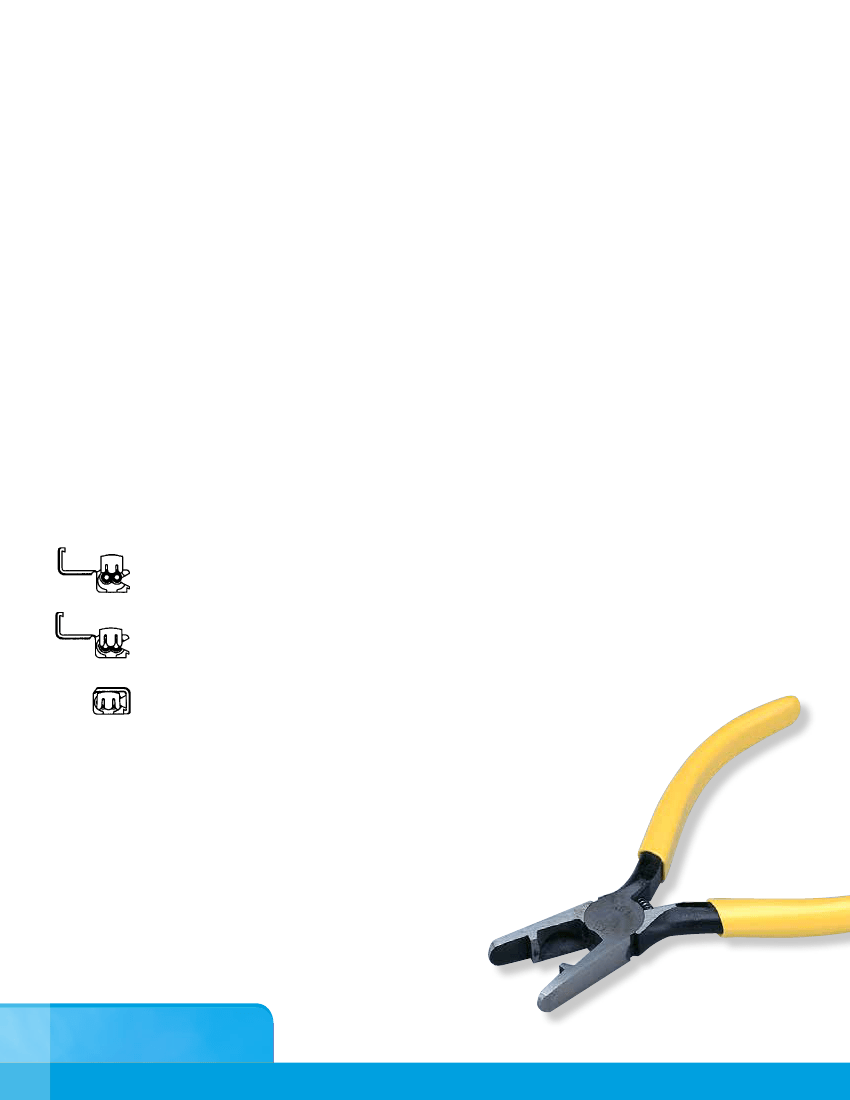

3M Connector Crimping Tools make your
job even easier.
™
E-9BM Crimping Tool
• For use with most Scotchlok connectors.
• Parallel closing action with adjustable jaws.
• High mechanical advantage.
E-9C Cartridge Tool with Case
•
Holds connectors (in cartridges)
firmly in place, allowing
the craftsperson use of the other hand for guiding wires.
• Time saving tool holds cartridges of many communications
connectors.
• Automatic feed, ratchet and parallel jaw action assure
perfect crimps.
Quick, reliable splices are a snap.
And a squeeze.
Scotchlok insulation displacement connectors (IDCs) are
easy to use and can save time—to install one, just squeeze—
no stripping or twisting. Our unique “U” contact provides a
dependable electrical connection.
A “live-spring” joint is made by driving
the “U” contact down into connector.
As the “U” contact is pressed into
connector, it grasps conductors as it
displaces insulation.
Contact grips conductor and holds with
a firm, resilient pressure.
• Many Scotchlok IDCs are either UL-Listed (file No.
E23458) or CSA-Certified (file No. LR 15503).
• UL Listed and CSA Certified products have a voltage rating
of 600V maximum for building wire, 1000V maximum for
signs or lighting fixtures (luminaries).
E-9CW Cartridge Tool with Case and Window
• Same as E-9C tool with the addition of a window for viewing
the connection.
E-9E Crimping Tool
• Parallel closing action tool for use with Scotchlok butt and
tap connectors.
E-9Y Crimping Tool
• Stepped jaws and long nose provide parallel crimping action.
• Features include a side wire cutter, insulated handles
and a return spring.
3M Scotchlok Crimping
Tool E-9Y
™
™

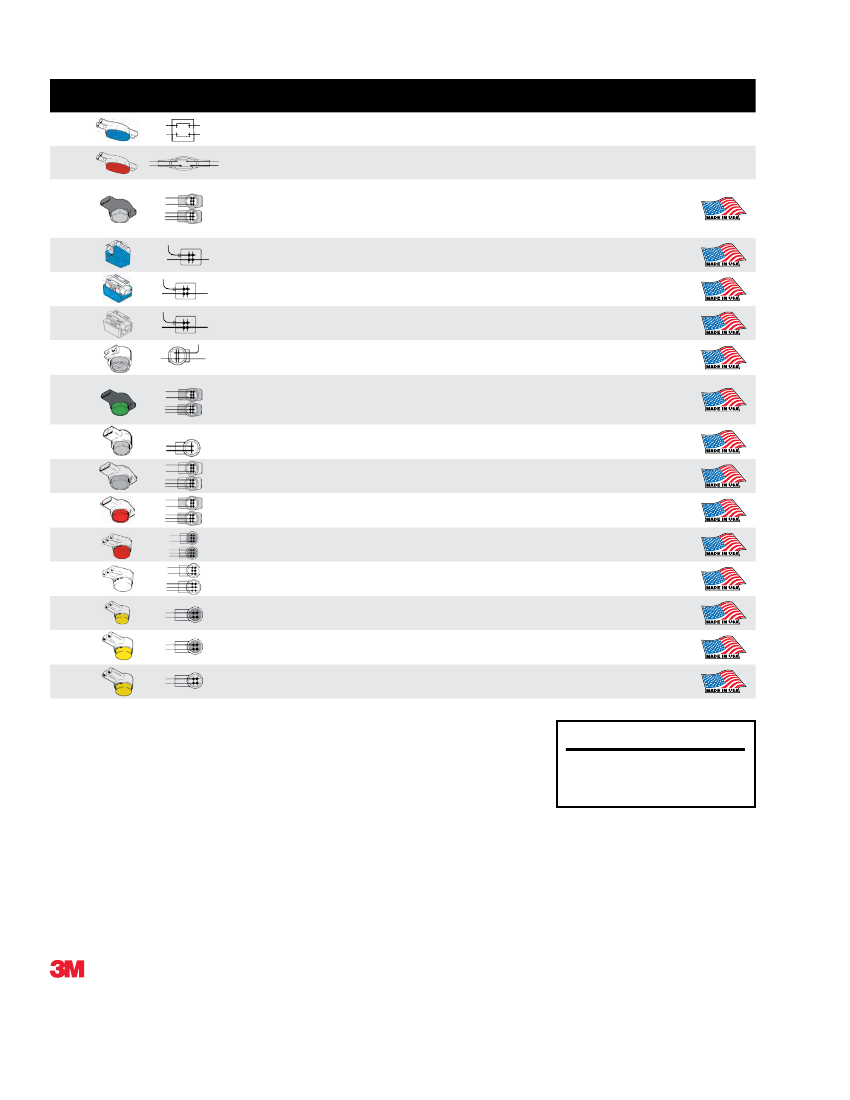

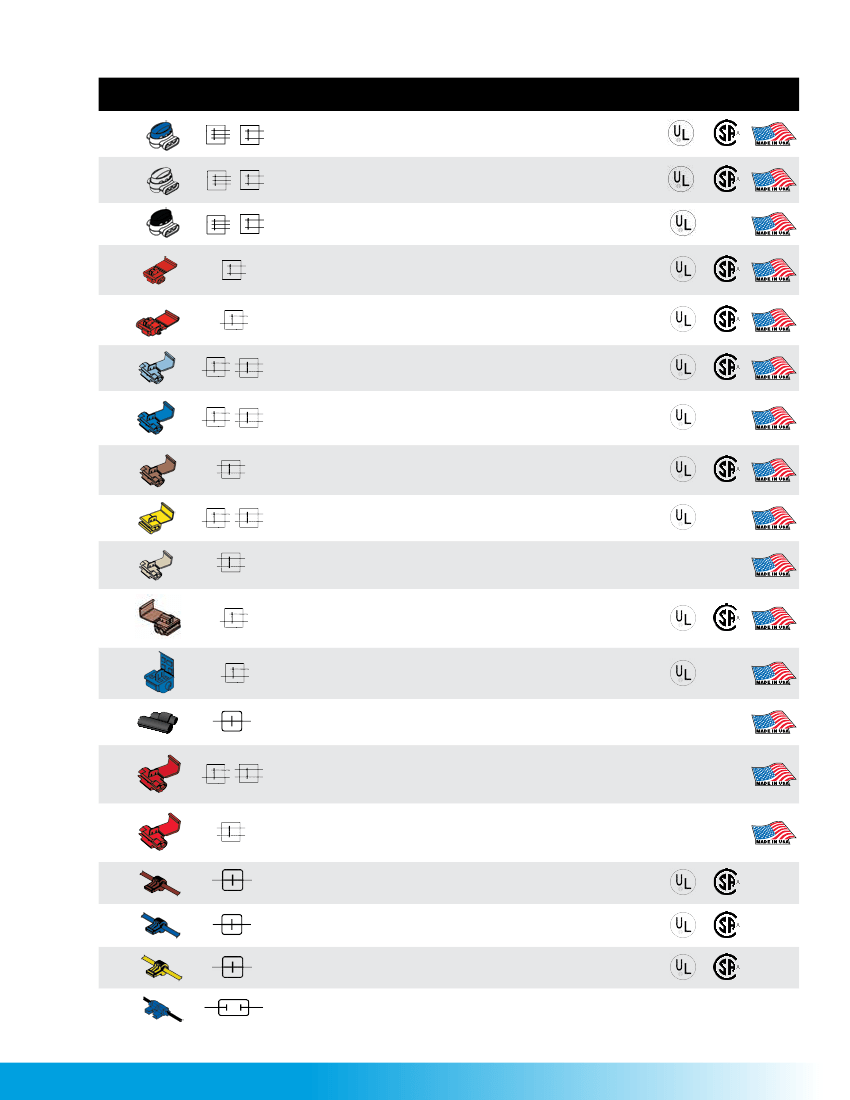

3M Scotchlok Insulation Displacement Connectors (IDCs) for Electrical Applications
™
™
Connector
U1B**
U1R**
Type Connector
Special Features
Full Pair
Full Pair
For Aluminum
Copper
Maximum
Insulation
0.125" (3,18 mm)
0.125" (3,18 mm)
0.082" (2,08 mm)
Outside port
0.076" (1,93 mm)
Center port
AWG (mm )
Wire Range
2
Operating
Temperature
-40 to 285°F
(-40 to 140°C)
-40 to 285°F
(-40 to 140°C)
-40 to 285°F
(-40 to 140°C)
UL or CSA
Certified
–
–
–
16-19 (1,3-0,9)
Solid Wire
19-24 (0,9-0,5)
Solid Wire
17-20 (1,15-0,5)
Solid Wire
19-24 (0,9-0,5)
Copper
UAL**
UB2A**
UB2A-D**
UG**
RUS Listed
Full Featured
RUS Listed
Full Featured
Moisture
Resistant Seal
0.082" (2,08 mm)
0.082" (2,08 mm)
0.066" (1,67 mm)
19-26 (0,9-0,4)
Solid Wire
19-26 (0,9-0,4)
Solid Wire
19-26 (0,9-0,4)
Solid Wire
-40 to 285°F
(-40 to 140°C)
-40 to 285°F
(-40 to 140°C)
-40 to 285°F
(-40 to 140°C)
–
–
–
UP2**
UP3**
UR**
UR2**
UR2-D**
UY**
UY2**
UY2-D**
**Solid wire only.
Dry
Flame Retardant
Dry
Flame Retardant
Moisture
Resistant Seal
RUS Listed
Full Featured
Dry
Full Featured
Moisture
Resistant Seal
RUS Listed
Full Featured
Dry
Full Featured
0.060" (1,52 mm)
0.060" (1,52 mm)
0.060" (1,52 mm)
0.082" (2,08 mm)
0.082" (2,08 mm)
0.060" (1,52 mm)
0.082" (2,08 mm)
0.082" (2,08 mm)
22-26 (0,7-0,4)
Solid Wire
19-26 (0,9-0,4)
Solid Wire
19-26 (0,9-0,4)
Solid Wire
19-26 (0,9-0,4)
Solid Wire
19-26 (0,9-0,4)
Solid Wire
22-26 (0,7-0,4)
Solid Wire
19-26 (0,9-0,4)
Solid Wire
19-26 (0,9-0,4)
Solid Wire
-40 to 285°F
(-40 to 140°C)
-40 to 285°F
(-40 to 140°C)
-40 to 285°F
(-40 to 140°C)
-40 to 285°F
(-40 to 140°C)
-40 to 285°F
(-40 to 140°C)
-40 to 285°F
(-40 to 140°C)
-40 to 285°F
(-40 to 140°C)
-40 to 285°F
(-40 to 140°C)
–
–
–
–
–
–
–
–
m
WARNING
Turn power off before installing terminal
or connector. All work should be done
according to appropriate electrical codes.
For more information, call 800-245-3573 or contact your local 3M Sales Representative.
3M is a trademark of 3M Company.
Important Notice
Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated with such use.
Warranty; Limited Remedy; Limited Liability.
3M’s product warranty is stated in its Product Literature available upon request.
3M MAKES NO OTHER WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
If this product is defective within the warranty period stated above, your exclusive
remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except where prohibited by law, 3M will not be liable
for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of the legal theory asserted.
Electrical Markets Division
6801 River Place Blvd.
Austin, TX 78726-9000
800/245 3573
www.3M.com/electrical
Please recycle. Printed in USA.
© 3M 2013. All rights reserved.
80-6109-4023-3C
