F05E-043146R datasheet, PDF - EEWORLD Datasheet

F05E-043146R: DescriptionFFC & FPC Connectors VERTICAL 4 PIN; CategoryThe connector The connector; File Size589KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric View All

F05E-043146R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	F05E-043146R	-	-	View	Buy Now

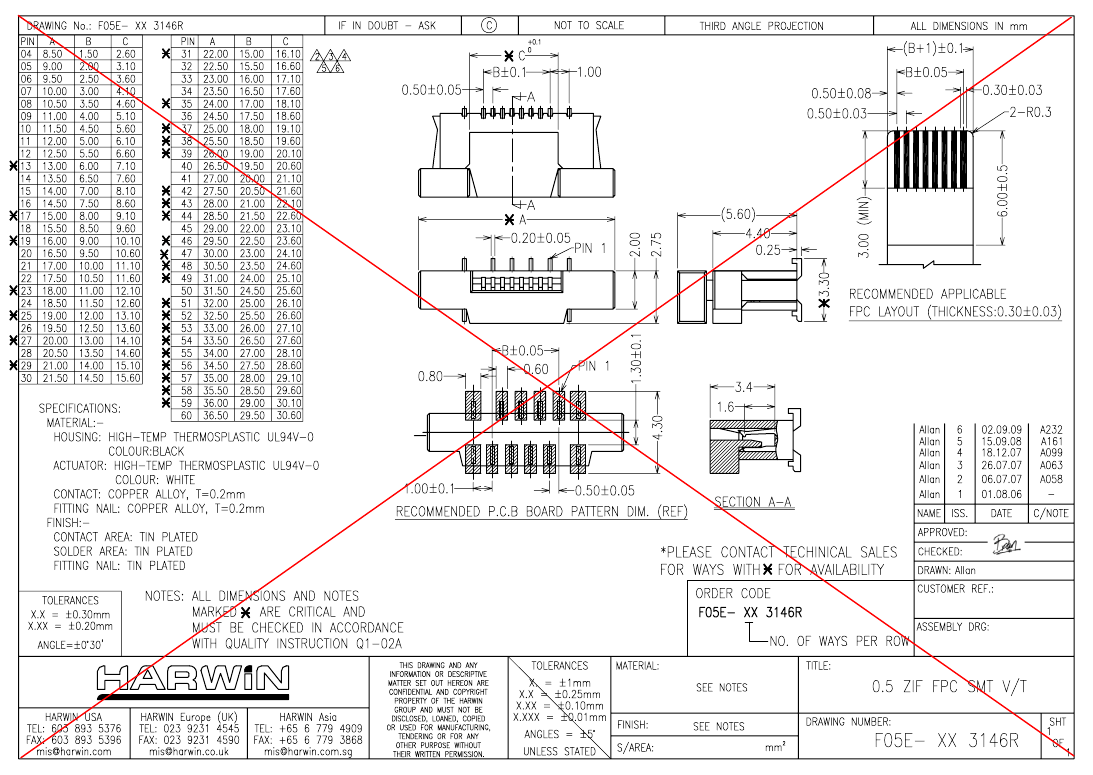

FFC & FPC Connectors VERTICAL 4 PIN

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Harwin
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ZIF
Board mount options	FITTING NAIL
body width	0.108 inch
subject depth	0.183 inch
body length	0.335 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	Matte Tin (Sn)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.02 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.794 mm
Rated current (signal)	0.4 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	8
UL Flammability Code	94V-0
Evacuation force-minimum value	ZIF N

OBSOLETE
