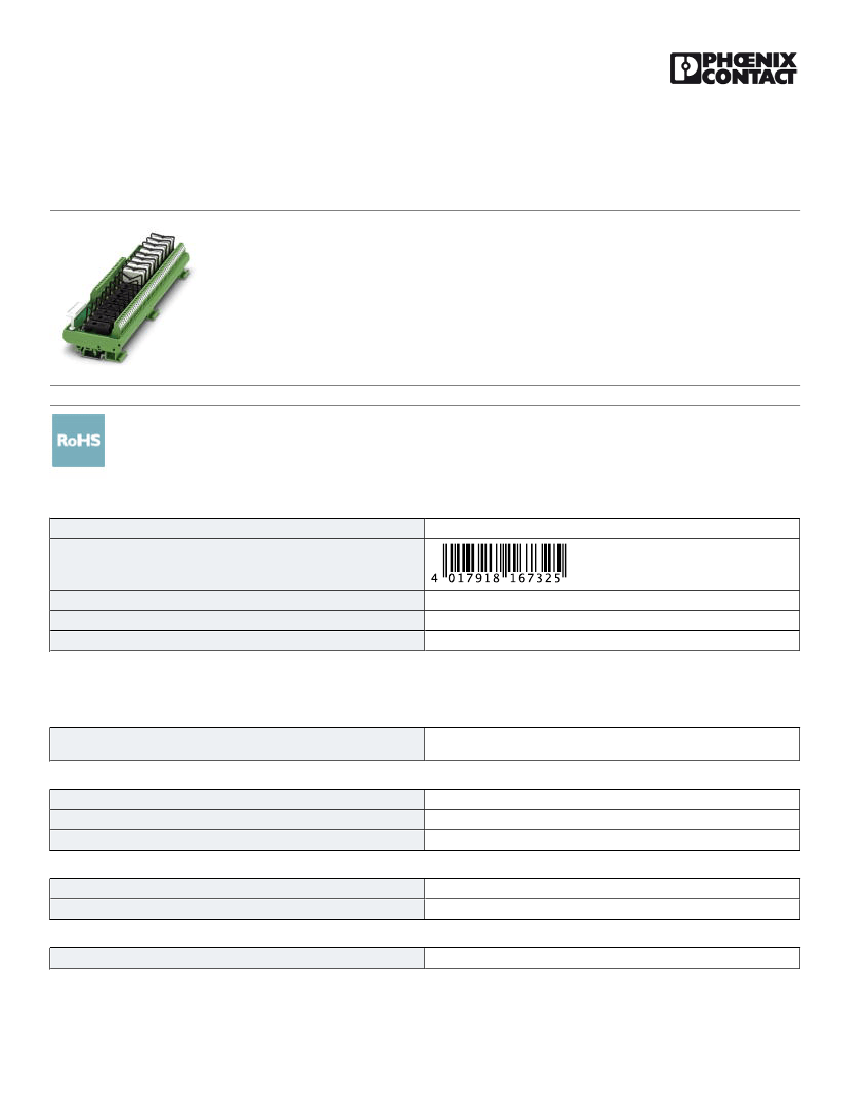

Multiple relay module - UMK-16 RELS/24DC/MKDS/M - 2974299
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
VARIOFACE module, for 16 plug-in miniature relays or miniature solid-state relays, with LED, negative switching,
24 V DC input voltage
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Country of origin
4017918167325
85364190
Germany
1 STK
Technical data
Note
Utilization restriction
EMC: class A product, see manufacturer's declaration in the download
area
Dimensions
Width
Height
Depth
259 mm
77 mm
59 mm
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
-20 °C ... 50 °C
-20 °C ... 70 °C
Input data
Nominal input voltage U
N
24 V DC
12/29/2016 Page 1 / 4
https://www.phoenixcontact.com/us/products/2974299
Multiple relay module - UMK-16 RELS/24DC/MKDS/M - 2974299
Technical data
Input data
Type of protection
Protective circuit/component
Type of protection
Protective circuit/component
Operating voltage display
Status display/channel
Free-wheeling diode
Damping diode
Reverse polarity protection
Polarity protection diode
Yellow LED
Yellow LED
Output data
Contact type
Maximum switching voltage
Limiting continuous current
1 PDT or 1 N/O contact
250 V AC/DC
5A
General
No. of channels
Operating mode
Mounting position
Assembly instructions
Color
16
100% operating factor
any
In rows with zero spacing
green
Connection data for connection 1
Connection name
Connection method
Stripping length
Screw thread
Conductor cross section solid
Conductor cross section flexible
Conductor cross section AWG
Input
Screw connection
8 mm
M3
0.2 mm² ... 4 mm²
0.2 mm² ... 2.5 mm²
24 ... 12
Connection data for connection 2
Connection name
Connection method
Stripping length
Screw thread
Conductor cross section solid
Conductor cross section flexible
Conductor cross section AWG
Output
Screw connection
8 mm
M3
0.2 mm² ... 4 mm²
0.2 mm² ... 2.5 mm²
24 ... 12
Standards and Regulations
Standards/regulations
Rated insulation voltage
DIN EN 50178
260 V AC
12/29/2016 Page 2 / 4
https://www.phoenixcontact.com/us/products/2974299
Multiple relay module - UMK-16 RELS/24DC/MKDS/M - 2974299
Technical data
Standards and Regulations
Rated surge voltage
4 kV (basic insulation)
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category
“Manufacturer's declaration”
Classifications
eCl@ss
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27371603
27371603
27371603
27371603
27371603
27371603
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
ETIM 6.0
EC001456
EC001456
EC001456
EC001456
EC001456
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211916
39121543
39121543
39121543
39122326
Approvals
Approvals
Approvals
EAC
12/29/2016 Page 3 / 4
https://www.phoenixcontact.com/us/products/2974299
Multiple relay module - UMK-16 RELS/24DC/MKDS/M - 2974299
Approvals
Ex Approvals
Approval details
EAC
7500651.22.01.00244
