220-17E16-19PN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 220-17E16-19PN

220-17E16-19PN: DescriptionCircular MIL Spec Connector REAR MT JAM NUT BOX SCOOP PROOF ENV PINS; CategoryThe connector The connector; File Size196KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

220-17E16-19PN Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	220-17E16-19PN	-	-	View	Buy Now

220-17E16-19PN Overview

Circular MIL Spec Connector REAR MT JAM NUT BOX SCOOP PROOF ENV PINS

220-17E16-19PN Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Factory Lead Time	17 weeks 1 day
Other features	POLARIZED, SEAL MATERIAL: FLUOROSILICONE RUBBER, CONTACT MATERIAL: NICKEL COPPER, PRESSURE RATE: 5000 PSI/345 BAR
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION/ENVIRONMENT RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	WATERPROOF
Shell surface	NICKEL PLATED
Shell material	STAINLESS STEEL
Housing size	16
Termination type	SOLDER
Total number of contacts	19
Base Number Matches	1

Preview

Download Datasheet

View All

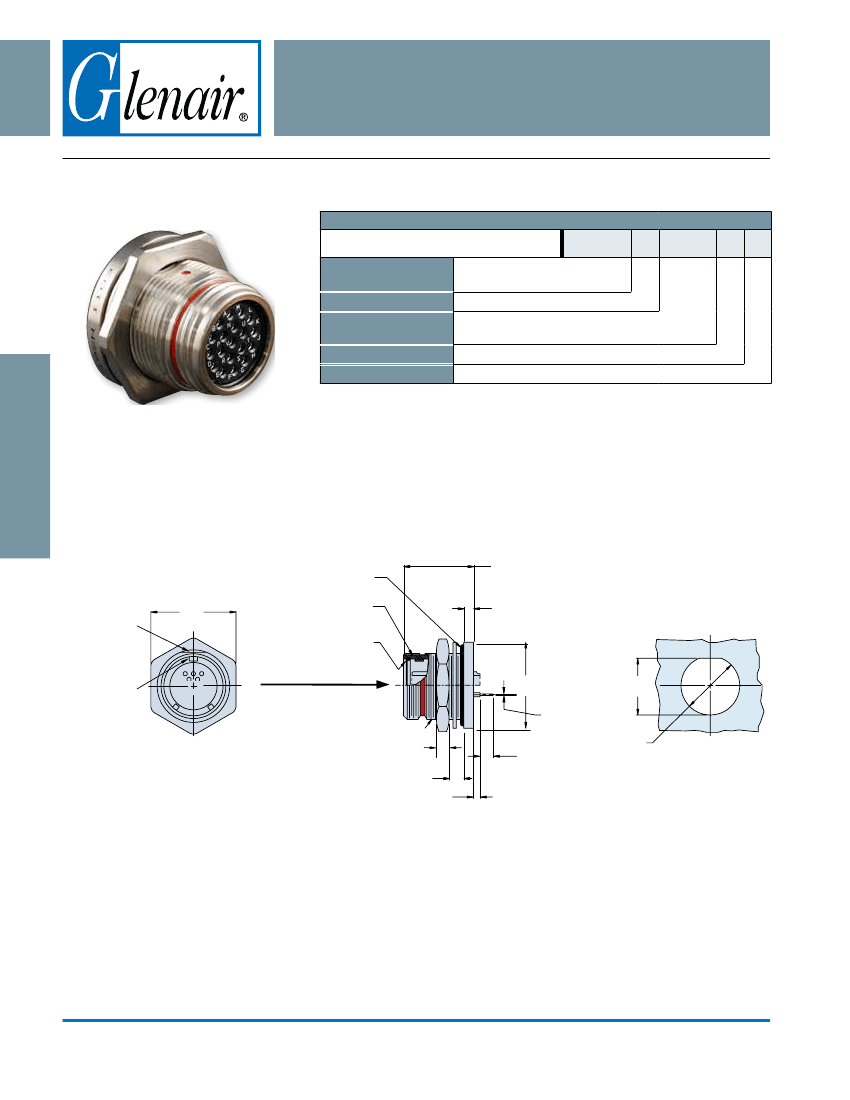

220-07 and 220-17

High-Pressure Environmental/Hermetic Jam Nut

Receptacle, Rear Box Mount

SERIES 22 JAM NUT RECEPTACLE WITH PIN, SOCKET, PIN PCB OR SOCKET PCB CONTACTS

How To Order

Sample Part Number

Series and Shell Style

Class

Shell Size-

Insert Arrangement

Contact Style

Polarization

220-07

- Standard

220-17

- Scoop-Proof

= Hermetic

See page A-6

= Pin

= Socket

= Pin PCB

= Socket PCB

N, 1, 2, 3, 4

See page A-6

= Environmental

Geo-Marine

Connectors

220-07

24-61

Prior to use, lubricate O-rings with high grade silicone lubricant

(Moly-kote M55 or equivalent).

220-07

: 1.32 (33.5) Max

220-17

: 1.57 (39.9) Max

Flange O-Ring

Jam Nut

B Thread

Piston O-Ring

Direction of Pressure

Capability - Class H

C Thread

.16 (4.1) Ref

.50 (12.7) Max

Panel Accommodation

.050 Typ

.18 (4.8)

Master Key

Indicator

Red Dot

Master

Key

Recommended

Panel Cutout

H (See Table V)

.125

Typ

Series 22 Geo-Marine

U.S. CAGE Code 06324

Rev 7-11-14

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

B-14

E-Mail: sales@glenair.com
