10118744-1133169LF datasheet, PDF

Datasheet> All Categories > The connector> 10118744-1133169LF

10118744-1133169LF: DescriptionBoard to Board & Mezzanine Connectors 10118744-1133169LF-CONAN 1.0PLUG 4.15MM 69P; CategoryThe connector; File Size373KB，7 Pages; ManufacturerFCI [First Components International]

Download Datasheet Parametric Compare View All

10118744-1133169LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	10118744-1133169LF	-	-	View	Buy Now

10118744-1133169LF Overview

Board to Board & Mezzanine Connectors 10118744-1133169LF-CONAN 1.0PLUG 4.15MM 69P

10118744-1133169LF Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	FCI [First Components International]
Product Category	Board to Board & Mezzanine Connectors
RoHS	Details
Product	Plugs
Number of Positions	69 Position
Pitch	1 mm
Termination Style	SMD
Current Rating	1 A
Voltage Rating	500 V
Packaging	Reel
Contact Plating	Gold
Housing Material	Liquid Crystal Polymer (LCP)
Contact Material	Copper Alloy
Insulation Resistance	1000 MOhms
Stack Height	4.15 mm
Factory Pack Quantity	500

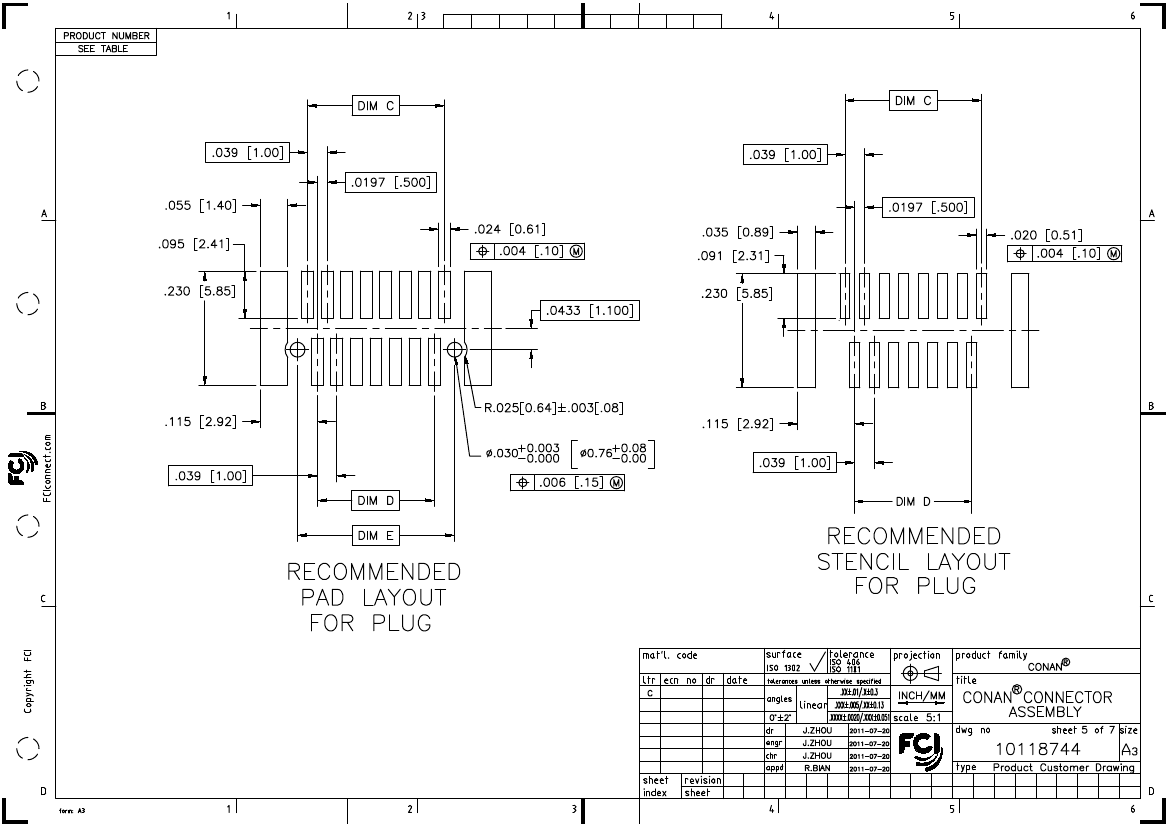

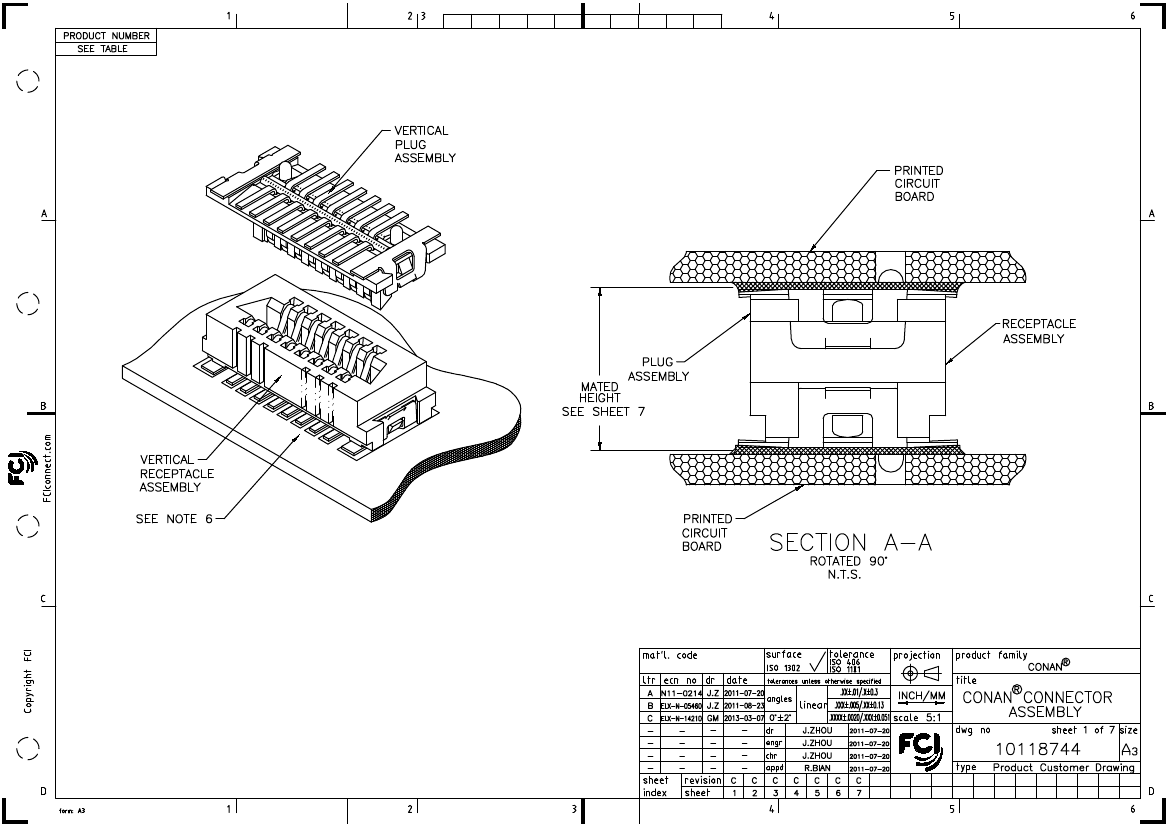

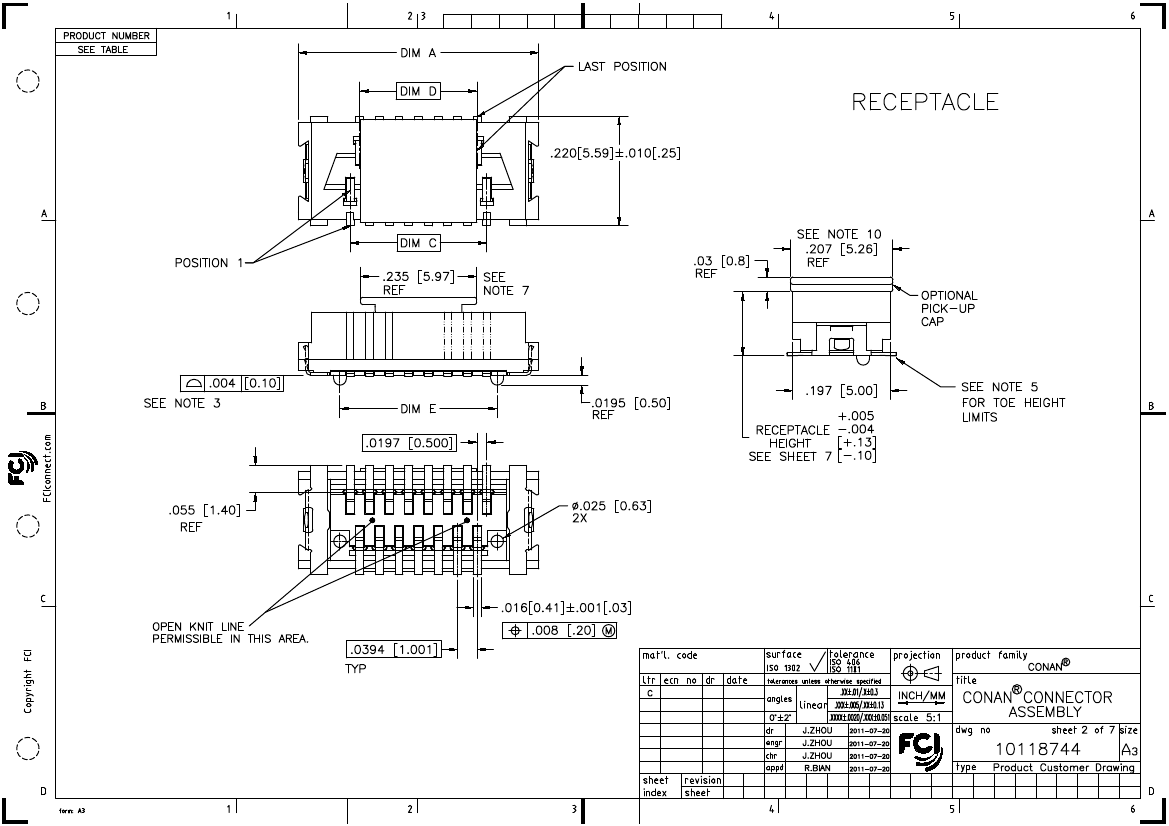

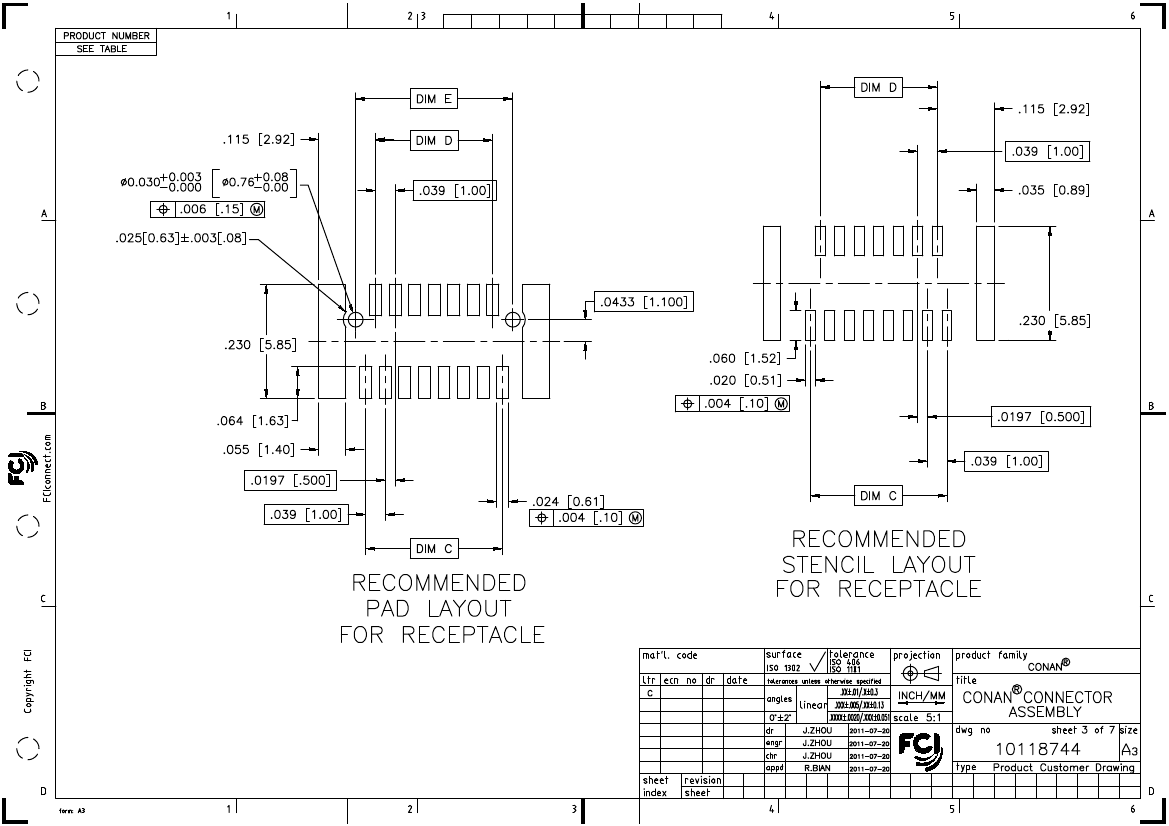

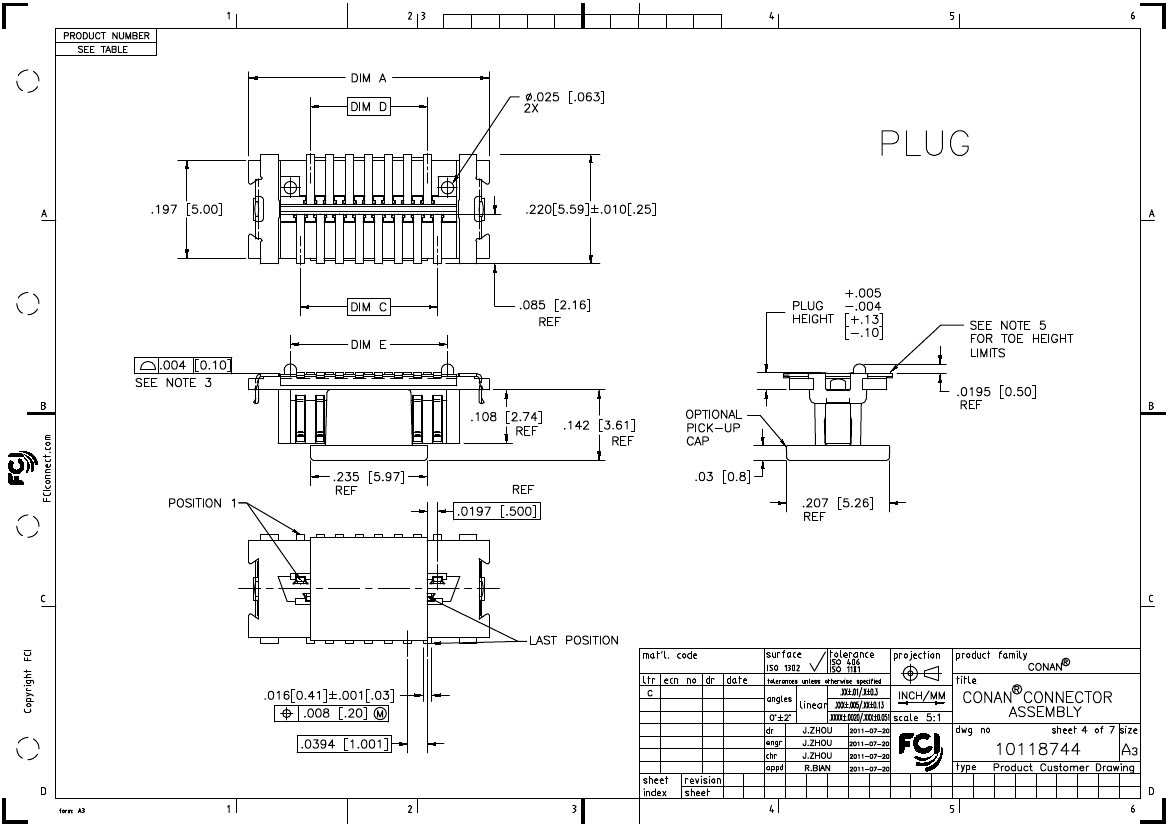

Preview

Download Datasheet

View All

PDS: Rev :C

STATUS:Released

Printed: Mar 08, 2013

10118744-1133169LF Related Products

	10118744-1133169LF	10118744-1133325LF	10118744-1133409LF	10118744-1133431LF	10118744-1133121LF	10118744-1133441LF	10118744-3133109LF	10118744-3133151LF	10118744-1133521LF	10118744-1133109LF
Description	Board to Board & Mezzanine Connectors 10118744-1133169LF-CONAN 1.0PLUG 4.15MM 69P	Board to Board & Mezzanine Connectors 10118744-1133325LF-CONAN 1.0MM PLUG 5.0 25P	Board to Board & Mezzanine Connectors 10118744-1133409LF-CONAN 1.0MM PLUG 6.0 9P	Board to Board & Mezzanine Connectors 10118744-1133431LF-CONAN 1.0MM PLUG 6.0 31P	Board to Board & Mezzanine Connectors 10118744-1133121LF-CONAN 1.0PLUG 4.15MM 21P	Board to Board & Mezzanine Connectors C - Commercial Series; Mezzanine Plug, SMT; 1mm Pitch; 6mm Mated Height, 41p	Board to Board & Mezzanine Connectors C - Commercial Series; Mezzanine Receptacle, SMT; 1mm Pitch; 9p	Board to Board & Mezzanine Connectors C - Commercial Series; Mezzanine Receptacle, SMT; 1mm Pitch; 51p	Board to Board & Mezzanine Connectors C - Commercial Series; Mezzanine Plug, SMT; 1mm Pitch; 7mm Mated Height, 21p	Board to Board & Mezzanine Connectors C - Commercial Series; Mezzanine Plug, SMT; 1mm Pitch; 4.15mm Mated Height, 9p
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	FCI [First Components International]	FCI [First Components International]	FCI [First Components International]	FCI [First Components International]	FCI [First Components International]	FCI [First Components International]	FCI [First Components International]	FCI [First Components International]	FCI [First Components International]	FCI [First Components International]
Product Category	Board to Board & Mezzanine Connectors	Board to Board & Mezzanine Connectors	Board to Board & Mezzanine Connectors	Board to Board & Mezzanine Connectors	Board to Board & Mezzanine Connectors	Board to Board & Mezzanine Connectors	Board to Board & Mezzanine Connectors	Board to Board & Mezzanine Connectors	Board to Board & Mezzanine Connectors	Board to Board & Mezzanine Connectors
Product	Plugs	Plugs	Plugs	Plugs	Plugs	Plugs	Receptacles	Receptacles	Plugs	Plugs
Number of Positions	69 Position	25 Position	9 Position	31 Position	21 Position	41 Position	9 Position	51 Position	21 Position	9 Position
Pitch	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm
Termination Style	SMD	SMD	SMD	SMD	SMD	SMD	SMD	SMD	SMD	SMD
Current Rating	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Voltage Rating	500 V	500 V	500 V	500 V	500 V	500 V	500 V	500 V	500 V	500 V
Contact Plating	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold
Housing Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Contact Material	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy
Insulation Resistance	1000 MOhms	1000 MOhms	1000 MOhms	1000 MOhms	1000 MOhms	1000 MOhms	1000 MOhms	1000 MOhms	1000 MOhms	1000 MOhms
Stack Height	4.15 mm	5 mm	6 mm	6 mm	4.15 mm	6 mm	6 mm	7 mm	7 mm	4.15 mm
RoHS	Details	Details	Details	Details	Details	Details	Details	Details	Details	-
Packaging	Reel	Reel	Reel	Reel	Reel	Reel	Reel	Reel	-	-
Factory Pack Quantity	500	800	500	500	800	500	800	800	500	-
