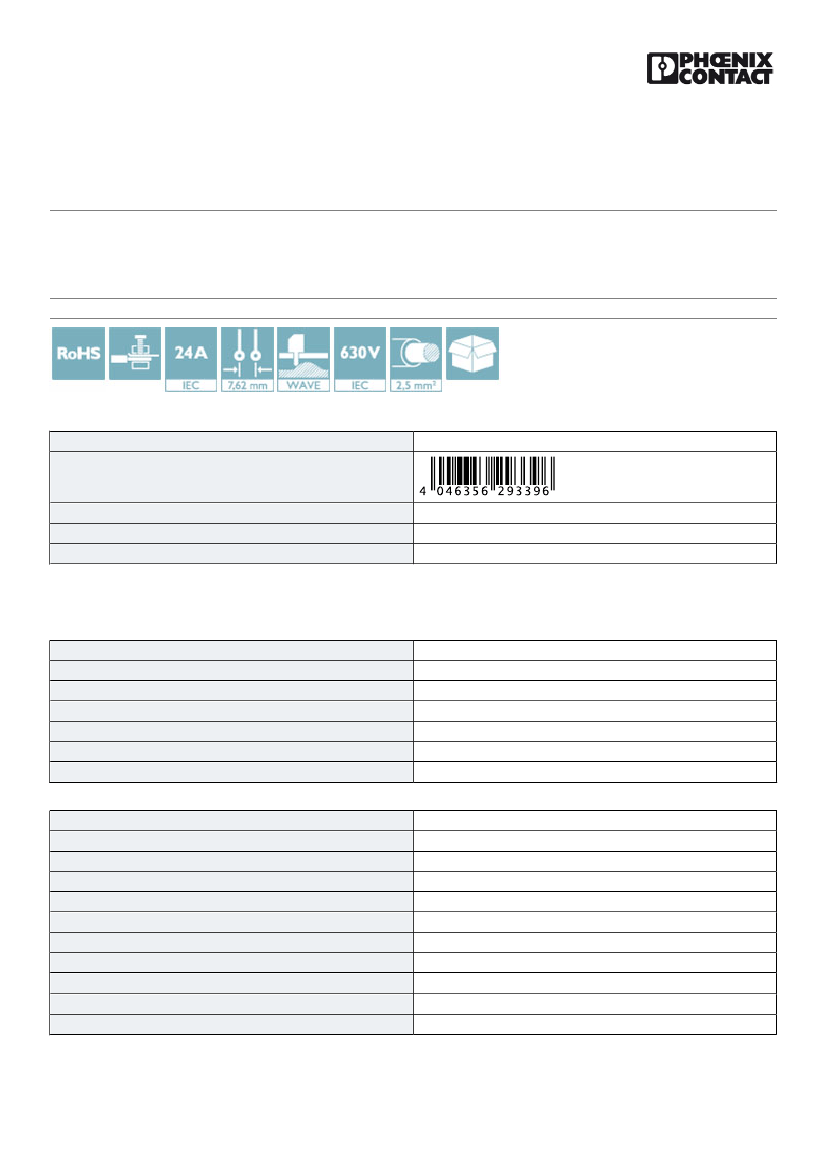

PCB terminal block - GMKDS 3/ 7-7,62 PIN 3,5 NZ4744 - 1746974
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB terminal block, Nominal current: 24 A, Nom. voltage: 630 V, Pitch: 7.62 mm, Number of positions: 7,
Connection method: Screw connection with tension sleeve, Mounting: Wave soldering, Conductor/PCB
connection direction: 0 °, Color: green
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4046356293396
85369010
Made to Order (non-returnable)
50 STK
Technical data
Dimensions
Length
Pitch
Dimension a
Constructional height
Length of the solder pin
Pin dimensions
Hole diameter
11.2 mm
7.62 mm
45.72 mm
18 mm
3.5 mm
0,9 x 0,9 mm
1.3 mm
General
Range of articles
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Solder pin surface
GMKDS 3
6 kV
6 kV
6 kV
500 V
630 V
1000 V
EN-VDE
24 A
2.5 mm²
Sn
11/14/2016 Page 1 / 3
https://www.phoenixcontact.com/hq/products/1746974
PCB terminal block - GMKDS 3/ 7-7,62 PIN 3,5 NZ4744 - 1746974
Technical data
General
Internal cylindrical gage
Stripping length
Number of positions
Screw thread
Tightening torque, min
Tightening torque max
A3
8 mm
7
M3
0.5 Nm
0.6 Nm
Connection data
Conductor cross section AWG min.
Conductor cross section AWG max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
24
12
0.2 mm²
1.5 mm²
0.2 mm²
1.5 mm²
0.25 mm²
0.75 mm²
0.5 mm²
1.5 mm²
Standards and Regulations
Connection in acc. with standard
EN-VDE
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Approvals
Approvals
Approvals
EAC
Ex Approvals
Approval details
11/14/2016 Page 2 / 3
https://www.phoenixcontact.com/hq/products/1746974
PCB terminal block - GMKDS 3/ 7-7,62 PIN 3,5 NZ4744 - 1746974
Approvals
EAC B.01742
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/14/2016 Page 3 / 3
