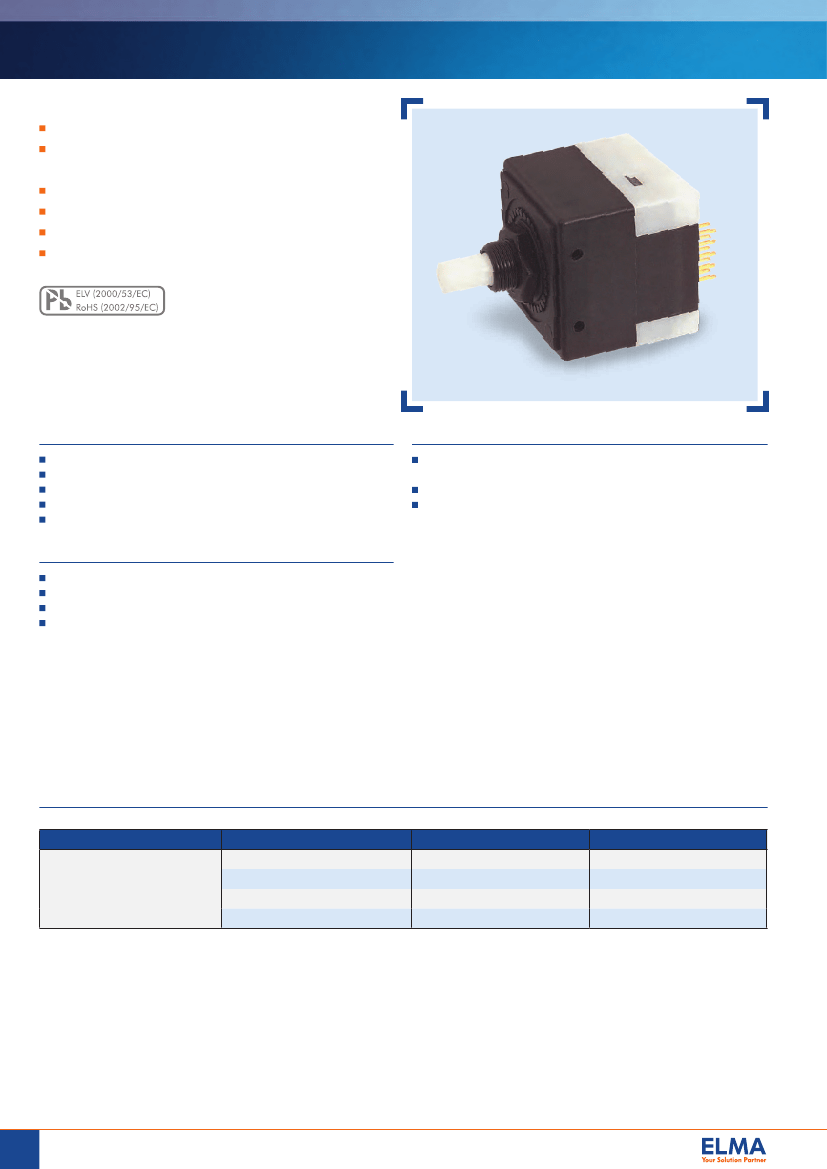

Magneto-Optical Encoder Type E50
Wear-free design provides 10,000,000 revolutions
Contactless magnetic indexing system enables
free running operation (virtually no friction)
Optical high speed contact sensing
24 or 32 detents resolution
With or without integrated push button
Switching torque: From 0.45 to 1.5 Ncm
Standard Product Variety
5 N push button force or without push button
24 or 32 detents revolution
0.45, 0.6, 1.3 or 1.5 Ncm switching torque
6 mm or
¼"
shaft diameter
5 VDC regulated or 5 to 26 VDC operating voltage
Typical Applications
Time shift controls for test & measurement and
audio/video mixer desks
High value medical devices
Applications with extensive use and/or long life cyles
Possible Customization
Shaft dimensions and shape
Switching torque
Software filtered pulse/level change
Others
Preference Types Selection Chart
1
Push Button
Switching Torque
0.45 Ncm
Yes, 5N
0.6 Ncm
1.3 Ncm
1.5 Ncm
24 Detents
E50-1211-000X
-
-
E50-1212-000X
32 Detents
-
E50-2213-000X
E50-2214-000X
-
1
For other types/options, see type key.
35
Rotary Switches
www.elma.com
Magneto-Optical Encoder Type E50
Specifications
Encoder
Mechanical Data
Resolution: ........................................................................24 or 32 detents
Switching torque: ...............................................................24 detents: 0.45 or 1.5 Ncm (+/- 50%)
32 detents: 0.6 or 1.3 Ncm (+/- 50%)
Rotational life: ...................................................................10,000,000 revolutions min.
Shaft load (continuous operation): ......................................3 N max. radial, 2 N max. axial
Fastening torque of nut: .....................................................0.4 Nm max.
Electrical Data
Coding/output: ..................................................................2-bit quadrature
Resolution: ........................................................................24 or 32 pulses per revolution (PPR) per channel
Operating speed: ..............................................................600 RPM max.
Operating voltage: ............................................................Regulated version: 5 VDC (+/- 10%)
or 5 to 26 VDC (with internal voltage regulator)
Output current load: ..........................................................20 mA max.
Supply current: ..................................................................40 mA typ. (at no load condition)
Material Data
Shaft: ................................................................................Plastic
Housing: ...........................................................................Plastic
Nut: ..................................................................................Plastic
Connector leads: ...............................................................Alloy copper, gold plated (AuCo)
Environmental Data
Operating temperature range:............................................-20 to +70°C
Storage temperature range: ...............................................-20 to +80°C
IP sealing: .........................................................................IP50 shaft/front panel sealing
Flammability:.....................................................................UL94-HB
Packaging Size:..................................................................1 pce
Soldering Conditions
Hand soldering:.................................................................340°C max. during 2 s max.
Additional Data for Push Button Switch
Push button actuation force: ...............................................5 N (+/- 50%)
Push button switch travel: ...................................................0.9 mm (+/- 0.2 mm)
Push button switch life: .......................................................5,000,000 actuations min.
Actuation strength: .............................................................50 N min.

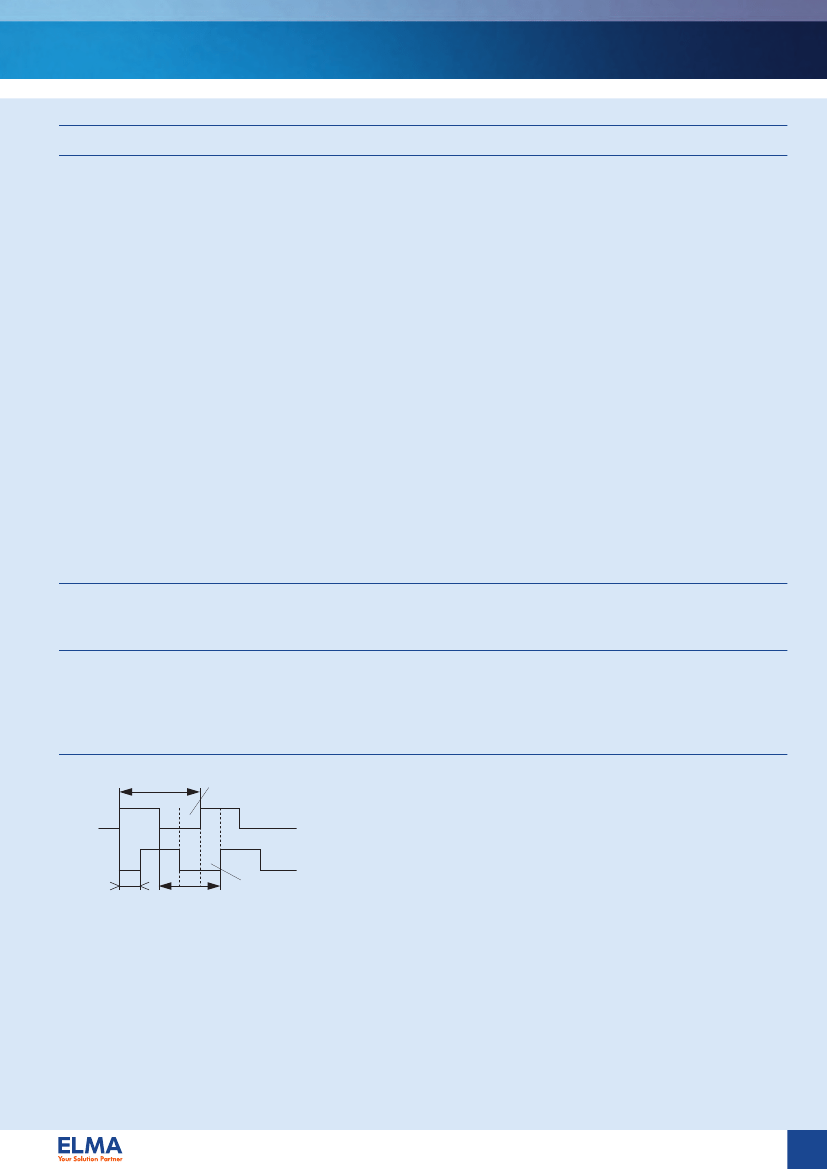

Output Timing
1 cycle = 360°
Recommended
detection initiation range
Channel B
- Signal A is nominally in quadrature to signal B (90° phase shift).
- A = B = High is the indexed position and is outside of the detection range because of
magnetic indexing.
- The signals should not be evaluated until the state A = B = Low is reached.
Channel A
90°+/-60°
Detection range
Recommended
detection evaluati-
on range
www.elma.com
Rotary Switches
36
Magneto-Optical Encoder Type E50

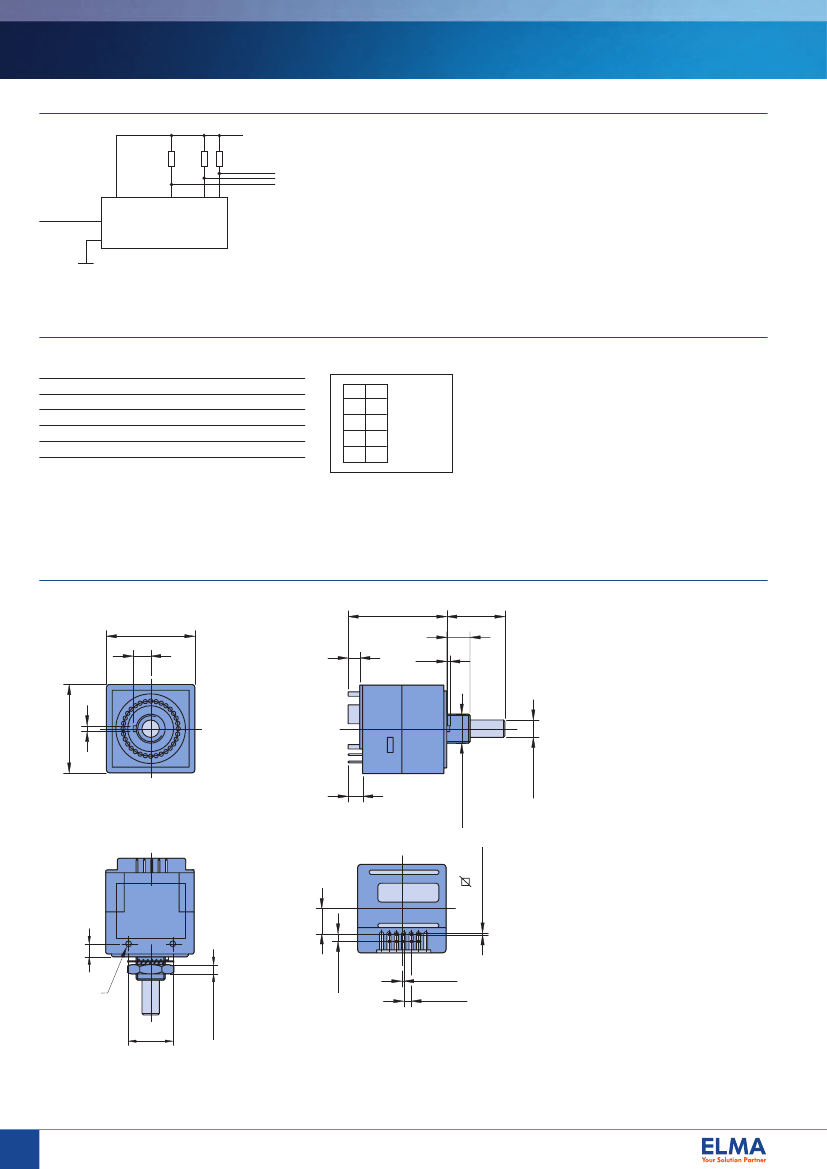

System Interfacing
U
ce
(0 to 50VDC)
Pull up
7
Common
10
PB
4 9
A B
As driver an ULN2003A with open collector output with integrated clamp diodes
is used. The cathode of all clamp diodes is connected to common and protects
the encoder against, for instance, inductive surges. For this purpose, the com-
mon pin must be connected to U
ce
to which the pull-up or load resistors are also
connected.
5 VDC reg.
5
V
dd
5 to 26 VDC
6
Gnd
E50
Pin Allocation
Connector Assignment
1
3
5
7
9
No connection
No connection
V
dd
Common (clamp diodes)
Channel B
2
4
6
8
10
No connection
Channel A
Ground
No connection
Push button
1
3
5
7
9
2
4
6
8
10
Drawings
30,3
6
6
30,3
6
6
30,3
30,3
4
4
34,5
34,5
4
34,5 AL 25
8
34,5 AL 25
1
8
1
8
8
AL 25
AL 25
1
4 1
30,3
30,3
30,3
2
30,3
2
ø 6,35 / ø 6,35 / ø 6
6
M10x0,75
M10x0,75
5
5
5
5
6,35
M10x0,75
M10x0,75
Pin
6,35
9
9
Pin
4,5
4,5
9
BushingBushing Nut Nylon 66
Nut Nylon 66
2,54
2,54
BushingBushing Nut Nylon 66
Nut Nylon 66
pin 1
pin 1
9
pin 1
4,5
ø1,65x5
ø1,65x5
ø1,65x5
4,5
2,54
0,63
pin 1
2,54
0,63
2,54
0,63
2,54
0,63
2,54
3,0
3,0 (SW14) (SW14)
3,0
3,0 (SW14) (SW14)
ø1,65x5
15,24
15,24
15,24
15,24
2,54
37
Rotary Switches
www.elma.com
Pin
Pin
6,35
6,35
ø 6,35
ø 6,35 / ø 6 / ø 6
2
2
