46437-1047: DescriptionPower to the Board TEN50 RA PLUG ASSY RA PLUG ASSY 8P-12S; CategoryThe connector; File Size27KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

46437-1047 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	46437-1047	-	-	View	Buy Now

46437-1047 Overview

Power to the Board TEN50 RA PLUG ASSY RA PLUG ASSY 8P-12S

46437-1047 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Molex
Product Category	Power to the Board
RoHS	Details
Current Rating	60 A
Voltage Rating	600 VAC/250 VDC
Number of Positions	20 Position
Mounting Style	Through Hole
Termination Style	Through Hole
Pitch	2.54 mm, 5.5 mm
Packaging	Tray
Contact Plating	Gold
Housing Material	Thermoplastic
Number of Rows	1 Row
Contact Material	Copper Alloy, High Conductivity
Factory Pack Quantity	100
Unit Weight	0.705479 oz

Preview

Download Datasheet

View All

This document was generated on 01/19/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

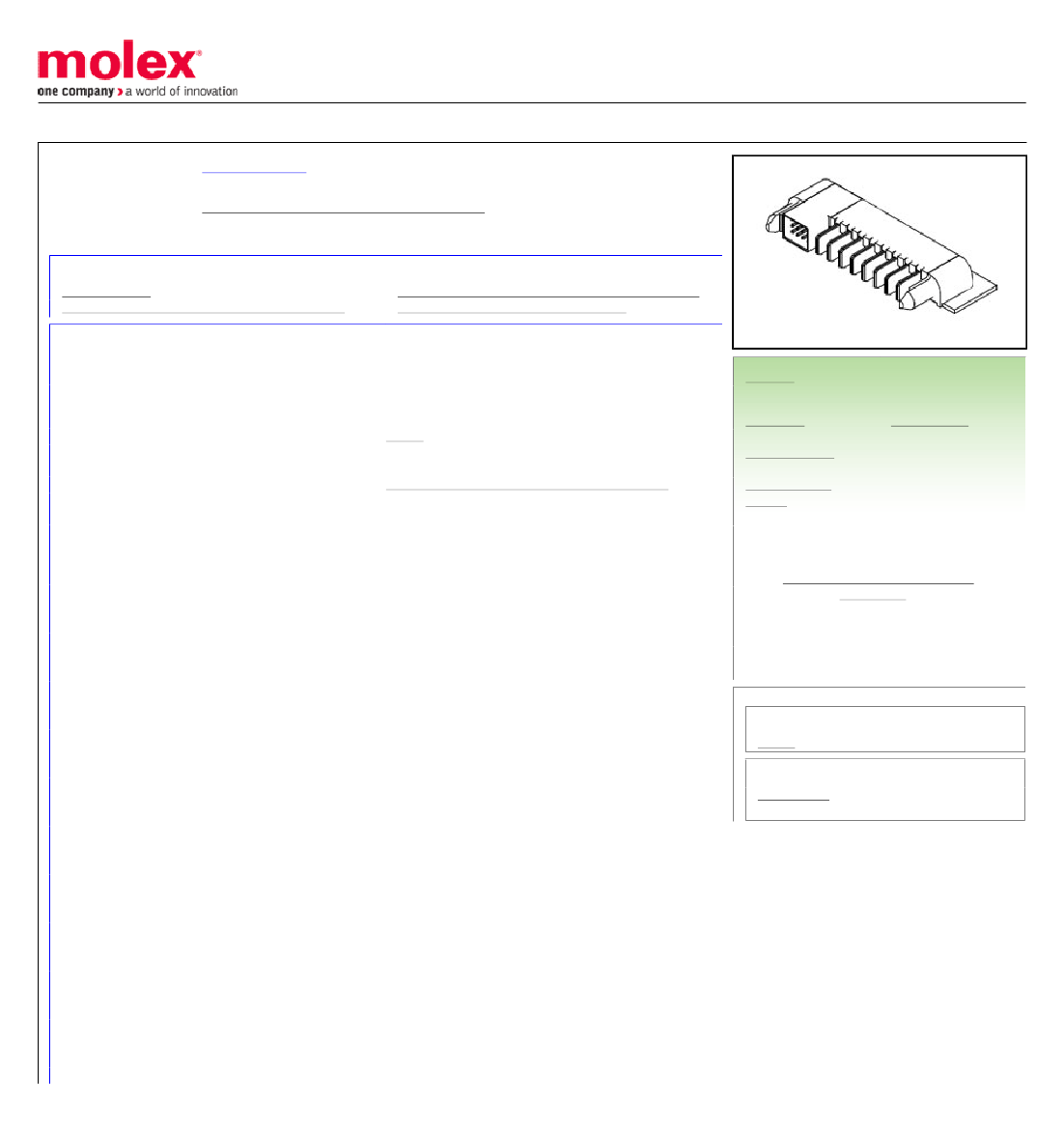

0464371047

Active

EXTreme Ten60Power High-Current Connector

2.54mm, 5.50mm Pitch EXTreme Ten60Power Right Angle Plug Assembly with Guide

Pins, 12 Signal Circuits, 8 Power Circuits

Documents:

Drawing (PDF)

Product Specification PS-46436-100-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Comments

Overview

Product Name

UPC

Physical

(p)ower-(s)ignal Configuration

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Application Specification AS-46436-100-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

LR19980

E29179

PCB Headers

46437

Board-to-Board, Power, Signal

See PS-46436-100 for details

EXTreme Ten60Power High-Current Connector

EXTreme Ten60Power

883906535896

12s - 8p

Black

200

94V-0

Yes

None

18.00mm

Copper

Gold

Tin

High Temperature Thermoplastic

20.000/g

1, 3

Right Angle

2.84mm

Yes

None

1.58mm

Tray

2.54mm, 5.50mm

Yes

-40°C to +105°C

Through Hole - Compliant Pin

EU ELV

Not Reviewed

EU RoHS

China RoHS

Not Reviewed

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Not Reviewed

Search Parts in this Series

46437 Series

Mates With

46562-1047 EXTreme Ten60Power Vertical

Receptacle
