KPY53A: DescriptionABSOLUTE, PEIZORESISTIVE PRESSURE SENSOR, 0-23.2Psi, 0.35%, 0-70mV, ROUND, THROUGH HOLE MOUNT; CategoryThe sensor Sensor/transducer; File Size119KB，4 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric View All

KPY53A Overview

ABSOLUTE, PEIZORESISTIVE PRESSURE SENSOR, 0-23.2Psi, 0.35%, 0-70mV, ROUND, THROUGH HOLE MOUNT

KPY53A Parametric

Parameter Name	Attribute value
Maker	SIEMENS
Reach Compliance Code	unknown
Maximum accuracy(%)	0.35%
body height	8.9 mm
Body length or diameter	19 mm
shell	STAINLESS STEEL
Linearity(%)	0.35 %
Installation features	THROUGH HOLE MOUNT
Nominal offset	0MV
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Output range	0-70mV
Output type	ANALOG VOLTAGE
Package Shape/Form	ROUND
Maximum pressure range	23.2 Psi
Minimum pressure range
Pressure sensing mode	ABSOLUTE
Sensitivity (mV/V)	8.8 mV/V
Sensor/Transducer Type	PRESSURE SENSOR,PIEZORESISTIVE
Maximum supply voltage	12 V
surface mount	NO
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

Silicon Piezoresistive

Absolute Pressure Sensor

Features

Low pressure and temperature hysteresis

Fast response

High sensitivity and linearity

Fatigue free monocrystaline silicon diaphragm

giving high load cycle stability

• High long term stability

• Built in silicon temperature sensor

• Media compatible stainless steel housing

•

KPY 52-A

KPY 56-A

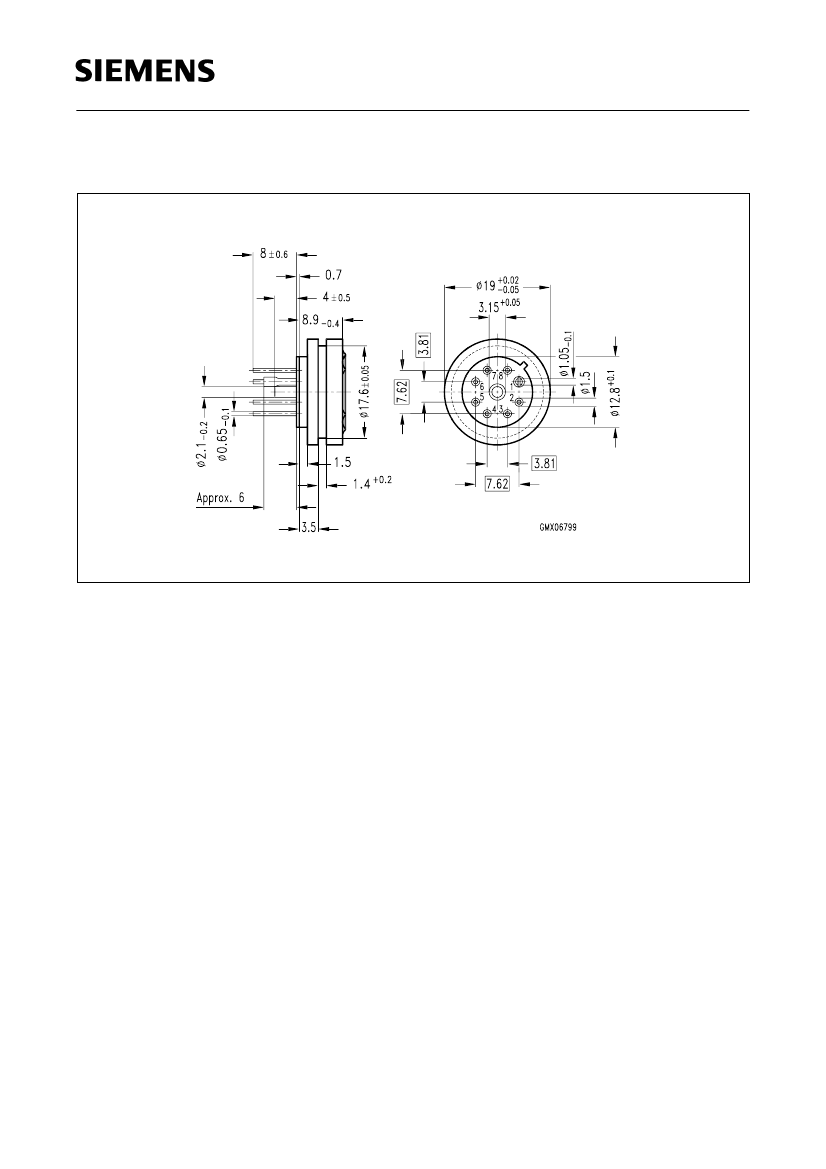

Stainless Steel Package

Type and

Marking

KPY 52 A

KPY 53 A

KPY 54 A

KPY 55 A

KPY 56 A

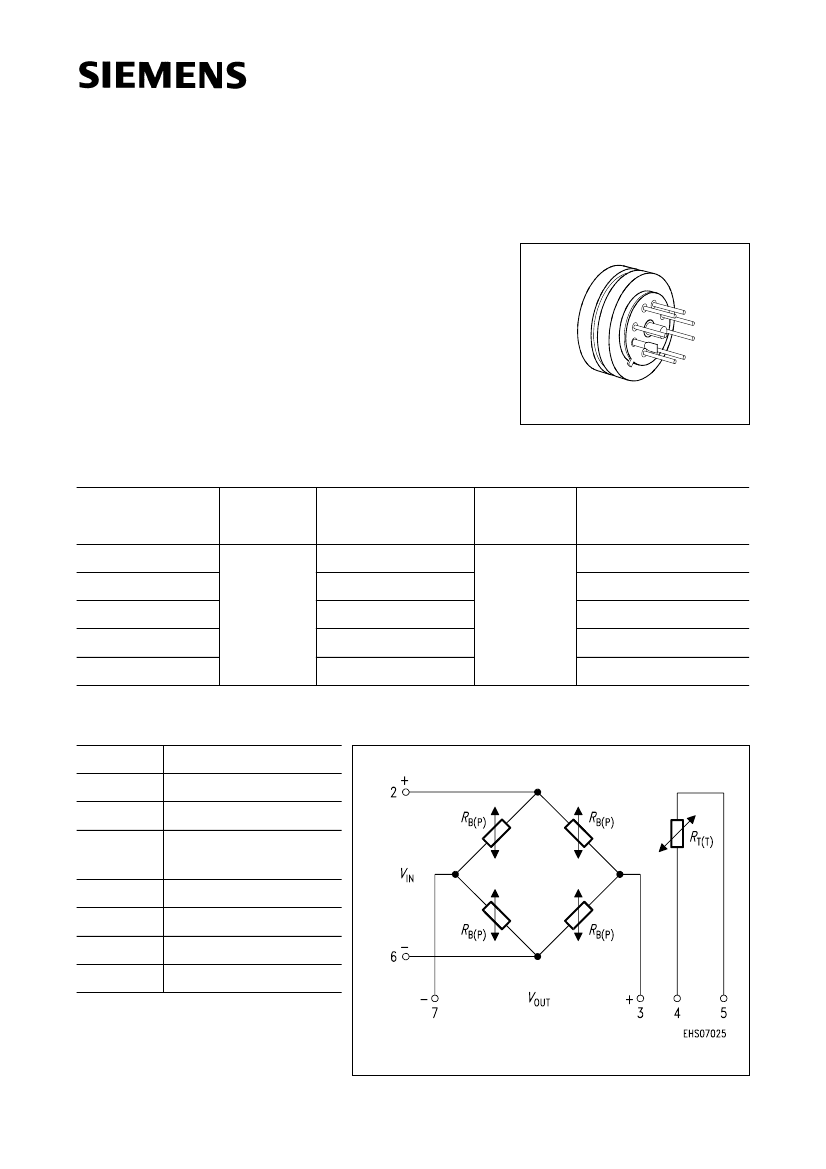

Pin Configuration

Symbol

Pressure Range

…

0.6

…

1.6

…

Unit

bar

Ordering Code

Q62705-K211

Q62705-K177

Q62705-K179

Q62705-K181

Q62705-K183

…

Capillary tube

−

OUT

Temperature sensor

(typ.

= 2 kΩ)

Temperature sensor

−

OUT

Not connected

Semiconductor Group

02.97
