Spec No.JEYF01FS-1005E-01
P.1/5
FERRITECORE
FSSA_RNN**S Series (Sand Core)
1. Scope
Reference Specification
This reference specification is applied to ferrite core (FSSA_RNN**S Series) used for noise suppression.
Please contact us when using this product for any other applications than described in the above.
2. Murata Part Number
Part Numbering
(1)
(1)Ferrite
(2)Plate Core
(3)
Dimensions
(4)
Outer Dimension Supplement Code
(5)
Length
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(6)
Material
(7)
Process
N0:Two or more cores Type/ N3:Tape UL510(FR)
(8)
Individual Specification Code
(9) Packing Code
S:Sheet
3.Material
Ferrite
RN (Ni-Zn Type)
Permeability
Electrical resistance:
Adhesive tape
Adhesive film
Acrylic
:
μiac
: 550 ± 30%
130 °C
10
5
Basic characteristics of material (Averagevalue)
Curie temperature : Tc
m
FSSA******RNN00S
Acrylic
FSSA******RNN30S
Acrylic (UL510FR)
4
Use in the environment Storage condition
Operating temperature : -25~85°C
Storage temperature
: -25~85°C
Storage condition :
Use the products within 6 months after delivered.
Products should be storage on the following conditions.
Heat and high humidity and the intense place of temperature change make a cause,
which causes characteristic degradation.
< Recommended storage condition >
Temperature : 35°C max.
Humidity
: Around 50% relative humidity
Cool and dark place (No change on temperature and humidity as much as possible)
5. Operating Condition
Cable: Correspond by the thickness of 0.6mm
When you use it exceeding this, please evaluate reliability in your company.
6. Appearance Standard
There must be no defects, cracks and foreign substance on the core,
which is harmful in practical.
The defects is 5.0mm
2
maximum.(please see fig. 1)
If there is any doubt about the appearance, the limit sample shall be made.
5.0mm
2
Max.
fig.1
MURATA MFG CO.,LTD.
Spec No.JEYF01FS-1005E-01
7. Electrical Characteristic
No.
Item
Impedance
7.1
Specifications
FSSA101005RNN00S
FSSA101005RNN30S
FSSA151005RNN00S
FSSA151005RNN30S
Test Methods
14
14
Instruments : 4191A (or equivalent)
Frequency : 100MHz
Lead wire :FSSA1** t0.6 -25mm
Temperature 23±2°C
Impedance shall be measured at fig.2
P.2/5
fig.2
7.2
Frequency-characteristics
of Impedance (reference).
Please see P.5/5
8. Shape and Dimension
Ferrite core (Murata Mfg.)
*The size of ferrite core
Unit: mm
Adhesive tape : Acrylic
Adhesive film : Acrylic
Adhesive film
P/N
FSSA101005RNN00S
FSSA101005RNN30S
FSSA151005RNN00S
FSSA151005RNN30S
Film
-
UL510(FR)
-
UL510(FR)
Ferrite core
A
10.00±0.35
15.00±0.35
B
5.0±0.3
5.0±0.3
T
0.5±0.1
0.5±0.1
C
9.5±0.5
9.5±0.5
D
35.0±0.5
45.0±0.5
MURATA MFG CO.,LTD.
Spec No.JEYF01FS-1005E-01
9. Inspection
9.1 Test condition
P.3/5
Characteristics shall be measured at 20±15°C, 85% RH under. If the measured value should be doubted,
characteristics shall be measured at 23±2°C, 85% RH under again.
9.2 Inspection Level: ANSI/ASQC Z1.4-1993, Revel S-4, Normal, Single inspection.
Inspection item
Characteristic
Appearance
Dimension
Judgment
n=10,Ac=0,Re=1
AQL 2.5%
n=10,Ac=0,Re=1
Measurement
4191A (or equivalent)
Visual Inspection
Slide Calipers… etc.
10. Packing
Basic packing
Minimum packing
Inner Case
Packing
A
Outer case
fig.4
Packing
B
fig.3 Inner sheet
fig.5 Outer case (406×265×118mm)
Inner casex5cases/Outer case
Above Outer Case size is typical.
When quantity is less than standard
quantity, size or kind of outer case and
inner case is changed if needed.
None
fig.6 Outer case (265×89×118mm)
Quantity in package mass
MURATA
Part Number
Packing quantity (pc.)
Minimum packing
Inner case
core
sheets
total
Total quantity
Packing
Min. order
qty. (pc.)
mass
unit
(g/pc.)
total
(kg/case)
FSSA101005RNN00S
FSSA101005RNN30S
FSSA151005RNN00S
FSSA151005RNN30S
25
25
20
20
500
500
2,000
-
10,000
2,000
A
B
500
500
0.28
0.43
4.2
1.5
Marking for Outside package
Customer name Purchasing Order Number, Customer Part Number, MURATA part number,
Inspection number( 1),RoHS Marking( 2), Quantity, etc
OOOO
1) « Expression of Inspection No. »
(1)
Factory Code
(2)
Date
(3)
Serial No.
(1)
(2)
(3)
First digit
Second digit
Third, Fourth digit
: Year / Last digit of year
: Month / Jan. to Sep. 1 to 9, Oct. to Dec.
: Day
O,N,D
2) « Expression of RoHS Marking »
(1)
RoHS regulation conformity parts.
(2)
MURATA classification number
ROHS – Y ( )
(1) (2)
MURATA MFG CO.,LTD.
Spec No.JEYF01FS-1005E-01
11. Changes of specification
Any changes in these devices shall be enforced after consultation.
P.4/5
12.
CAUTION
1) Limitation of Applications
Please contact us before using our products for the under mentioned applications requiring especially high reliability in
order to prevent defects which might directly cause damage to other party's life, body or property (listed below).
(1) Aircraft equipment
(2) Aerospace equipment
(3) Undersea equipment
(4) Nuclear control apparatus
(5) Medical equipment
(6) Transportation equipment (automobiles, trains, ships, etc.)
(7) Traffic signal equipment
(8) Disaster prevention / crime prevention equipment
(9) Data-processing equipment
(10) Applications of similar complexity or with reliability requirements comparable to the applications listed in the
above
2) Be sure to provide an appropriate fail-safe function on your product to prevent a second damage that may be
caused by the abnormal function or the failure of our product.
13. Notice
1) Protect product from damage that may occur in transit such as cracking of core.
2) Handle product with care. Do not drop.
3) Do not apply excessive force to the product.
4) Core should be taken to damage of lead wire when it is inserting or rolling in core.
5) This product is designed for use in the environment specified in this approval drawing; do not be used in the following
environments or under the following conditions.
(1) Ambient air containing corrosive gas. (Cl
2
, H
2
S, NH
3
, SO
2
, NO
X
, etc.)
(2) In liquid.
(3) Other environments similar to (1) through (2).
Please contact us before using our products for the below mentioned environments.
6) Please don’t peel off and put a tape again due to using strong adhesive tape in order to fix long term.
14.
Note:
1) Please make sure that your product has been evaluated in view of your specifications with our product being mounted to
your product.
2) You are requested not to use our product deviating from the reference specifications.
3) The contents of this reference specification are subject to change without advance notice.
Please approve our product specifications or transact the approval sheet for product specifications before ordering
MURATA MFG CO.,LTD.
Spec No.JEYF01FS-1005E-01
P.5/5

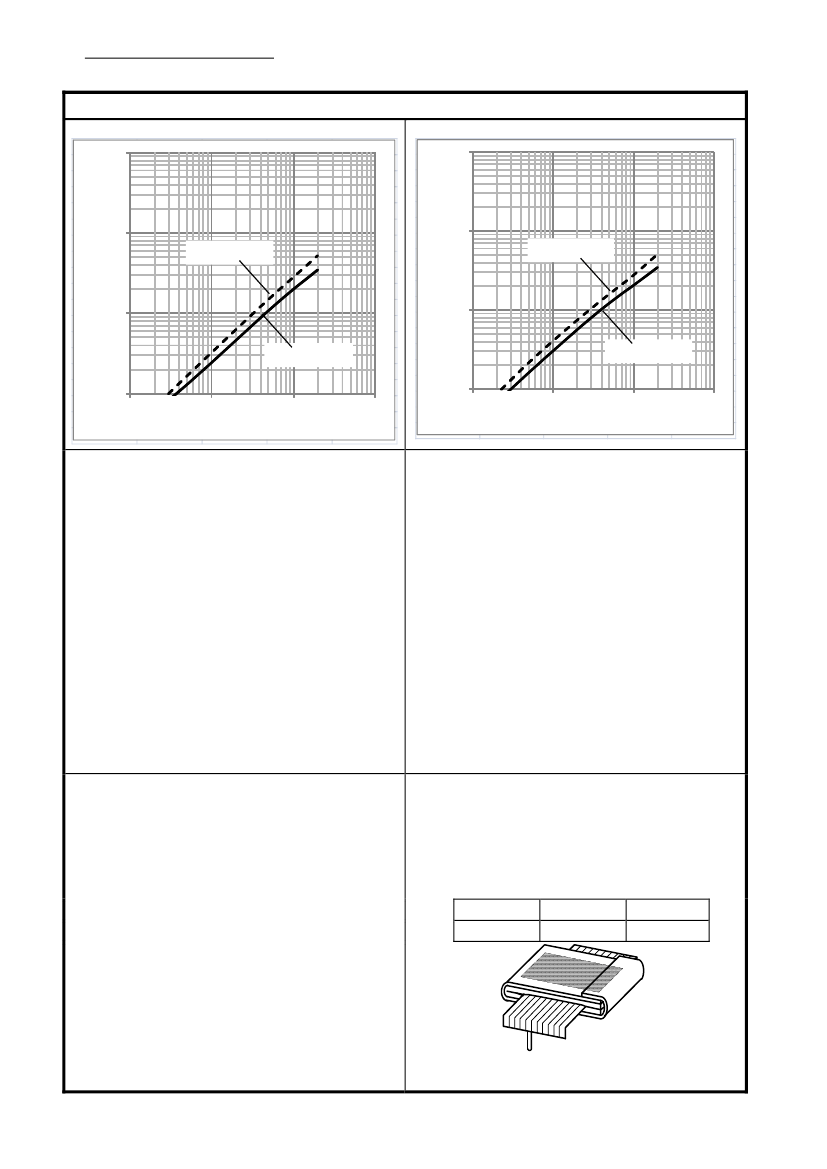

Frequency-characteristics of Impedance (reference).
Graph
1000
Graph
1000
Impedance ( )
Impedance ( )
100
Gap:0.3mm
100
Gap:0.3mm
10
10
Gap:0.6mm
1
1
10
100
Frequency (MHz)
1000
1
1
Gap:0.6mm
10
100
Frequency (MHz)
1000
Measuring conditions
Instruments : 4191A (or equivalent)
Measuring method :
Gap:0.6mm
Lead wire
Gap:0.3mm(Ref.)
Gap Cable thickness
P/N
FSSA1**
t0.6-L25mm
t0.3-L40mm
MURATA MFG CO.,LTD.
