MAL205658152E3

Description
Aluminum Electrolytic Capacitors - Snap In 1500uF 63V 22x30mm 85 C 12000h
CategoryPassive components    capacitor
File Size148KB,11 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

MAL205658152E3 Online Shopping

Suppliers Part Number Price MOQ In stock
MAL205658152E3 - - View Buy Now

MAL205658152E3 Overview

Aluminum Electrolytic Capacitors - Snap In 1500uF 63V 22x30mm 85 C 12000h

MAL205658152E3 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerVishay
package instruction,
Reach Compliance Codenot_compliant
ECCN codeEAR99
capacitance1500 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
diameter22 mm
dielectric materialsALUMINUM (WET)
ESR105 mΩ
JESD-609 codee3
leakage current0.571 mA
length30 mm
Installation featuresTHROUGH HOLE MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
Package shapeCYLINDRICAL PACKAGE
Package formSnap-in
method of packingBULK
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)63 V
ripple current1870 mA
surface mountNO
Terminal surfaceMatte Tin (Sn)
Terminal pitch10 mm
Terminal shapeSNAP-IN
Base Number Matches1

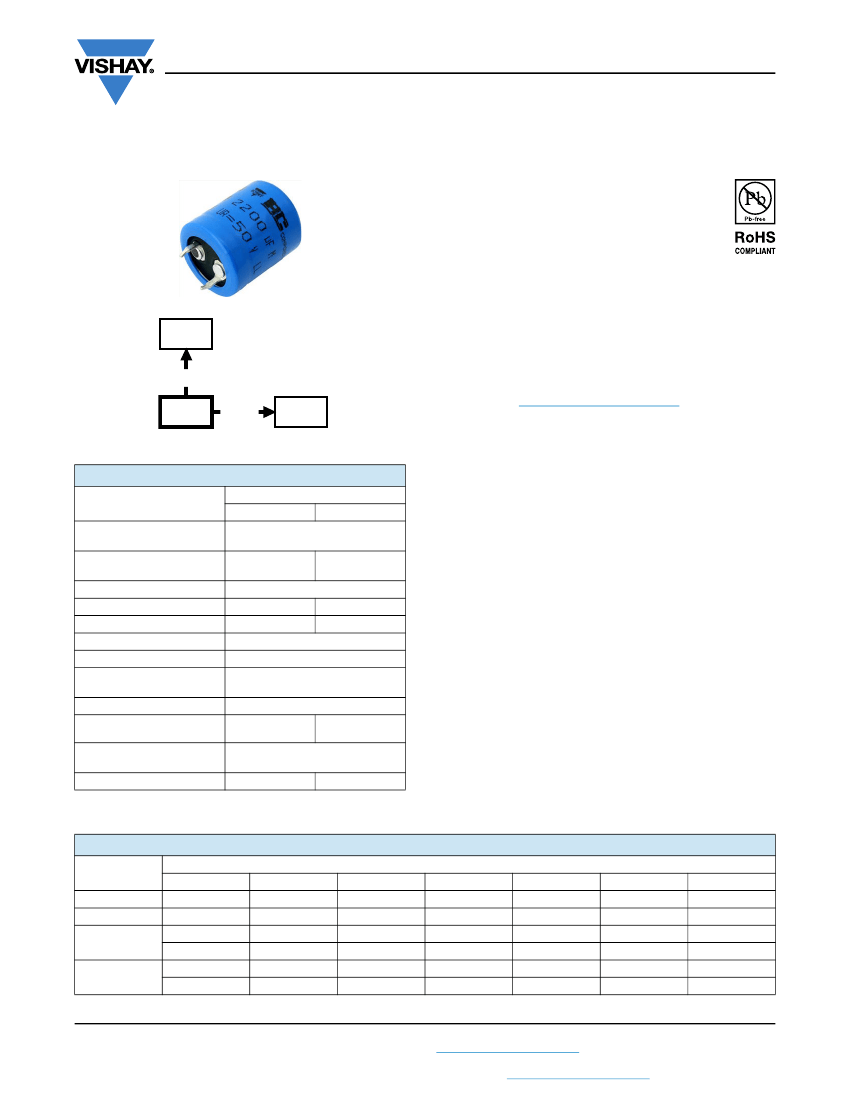

056/057 PSM-SI
www.vishay.com
Vishay BCcomponents
Aluminum Electrolytic Capacitors
Power Standard Miniature Snap-In
FEATURES
• Long useful life: 12 000 h at 85 °C
• Low ESR
• Polarized aluminum electrolytic capacitors,
non-solid electrolyte
• Large types, minimized dimensions, cylindrical aluminum
case, insulated with a blue sleeve
• Pressure relief on the top of the aluminum case
156/157
PUM-SI
• Charge and discharge proof
• High ripple current capability
• Keyed polarity version available
long life
105
°C
058/059
PLL-SI
smaller
dimensions
056/057
PSM-SI
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
APPLICATIONS
Fig. 1
• General purpose, industrial and audio / video systems
• Smoothing and filtering
VALUE
056
057
QUICK REFERENCE DATA
DESCRIPTION
Nominal case size
(Ø D x L in mm)
Rated capacitance range
(E6 series), C
R
Tolerance on C
R
Rated voltage range, U
R
Endurance test at 85 °C
Useful life at 85 °C
Useful life at 40 °C and
1.4 x I
R
applied
Shelf life at 0 V, 85 °C
Max. RMS value of
ripple voltage
Based on sectional
specification
Climatic category IEC 60068
(1)
• Standard and switched mode power supplies
• Energy storage in pulse systems
22 x 25 to 35 x 50
470 μF to
68 000 μF
± 20 %
10 V to 100 V
200 V to 450 V
47 μF to
1500 μF
MARKING
The capacitors are marked (where possible) with the
following information:
• Rated capacitance (in μF)
• Tolerance code on rated capacitance, code letter in
accordance with IEC 60062 (M for ± 20 %)
• Rated voltage (in V)
• Date code (YYMM or in 2 digits according to IEC 60062)
• Name of manufacturer
• Code for factory of origin
• “-” sign to identify the negative terminal, visible from the
top and side of the capacitor
• Code number
• Climatic category in accordance with IEC 60068
Category temperature range -40 °C to +85 °C -25 °C to +85 °C
5000 h (450 V: 2000 h)
12 000 h (450 V: 5000 h)
210 000 h (450 V: 90 000 h)
500 h
n/a
12 V
IEC 60384-4 / EN130300
40 / 085 / 056
25 / 085 / 56
Note
(1)
A 420 V range is available on request
SELECTION CHART FOR C
R
, U
R
, AND RELEVANT NOMINAL CASE SIZES FOR 056 SERIES
(Ø D x L in mm)
C
R
(μF)
470
680
1000
1500
U
R
(V)
10
-
-
-
-
-
-
16
-
-
-
-
-
-
25
-
-
-
-
-
-
40
-
-
-
-
-
-
50
-
-
-
-
22 x 25
-
63
-
-
22 x 25
-
22 x 30
-
100
22 x 25
22 x 30
25 x 30
22 x 40
30 x 30
25 x 40
Revision: 12-Oct-16
Document Number: 28340
1
For technical questions, contact:
aluminumcaps2@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
