“High Frequency Ceramic Solutions”
5.3 GHz Balun
Detail Specification: 01/08/03
P/N 5325BL15B050
Page 1 of 2
Part
Number
5325BL15B050_
Frequency
(MHz)
5150 - 5500
Impedance
Unbal. / Bal.
50/50
Ω
Insertion
Loss
1.0 dB
Return
Loss
9.5 dB
Phase
Difference
180°±10°
Amplitude
Difference
2.0 dB
Input Power
3 Watts max
Impedance
50 /50
Ω
Operating Temperature Range
-40 to +85°C
Reel Qty
4,000

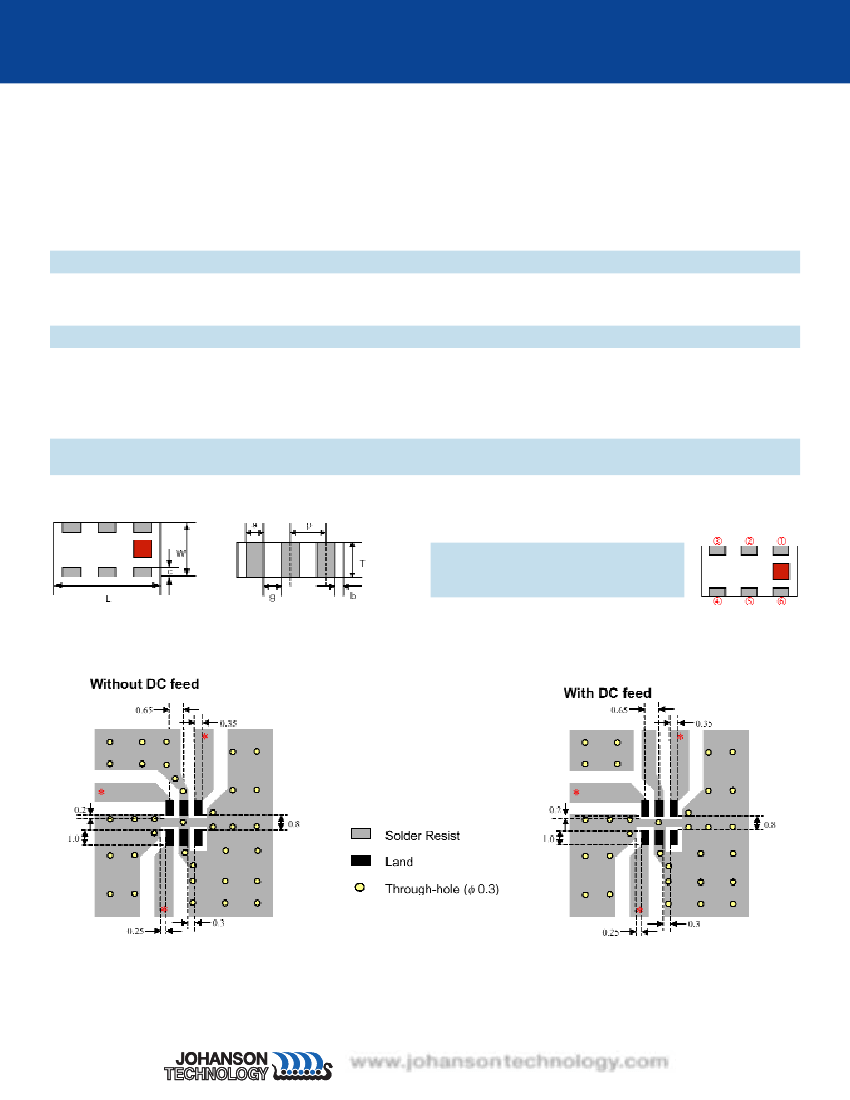

Mechanical Dimensions
L
Inches
mm
0.079 ± .004
2.0 ± 0.1
W
0.049± .004
1.25 ± 0.1
T
0.034 ± .004
0.85 ± 0.1
a
0.012 ± .004
0.30 ± 0.1
b
0.008 ± .004
0.20 ± 0.1
c
0.012 + .004/-.008
0.30+0.1/-0.2
g
0.014 ± .004
0.35 ± 0.1
p
0.026 ±.002
0.65 ± 0.05
Terminal Configuration
1
2
3
Unbalanced Port
GND or DC Feed
Balanced Port
4
5
6
Balanced Port
GND
NC
Mounting Considerations
Mount devices with colored mark facing up.
*
Line width should be designed to
provide 50Ω impedance matching
characteristics.
Units: mm
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johanson technology.com
931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
“High Frequency Ceramic Solutions”
5.30 GHz Balun
Detail Specification: 01/08/03
P/N 5325BL15B050
Page 2 of 2
P/N 5325BL15B050

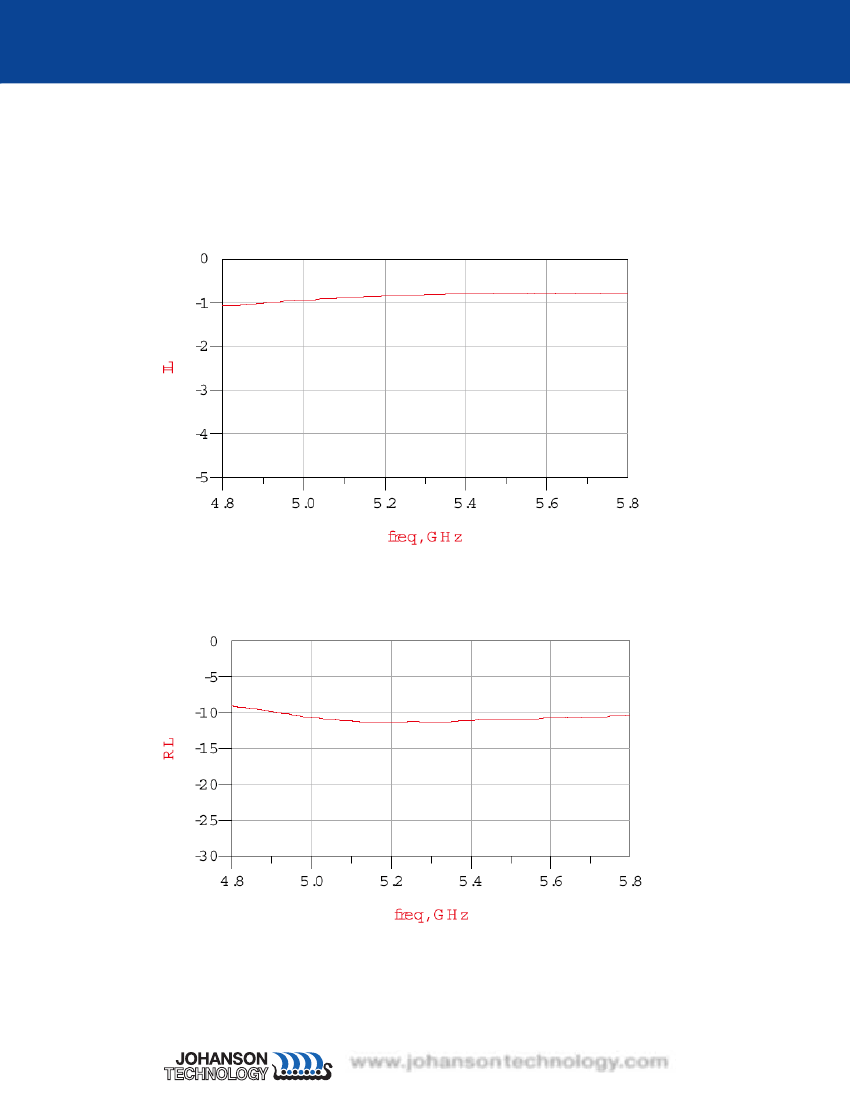

Typical Insertion Loss
P/N 5325BL15B050
Typical Return Loss
www.johanson technology.com
931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
