KIA7809AF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> KIA7809AF

KIA7809AF: Description9 V FIXED POSITIVE REGULATOR, PSSO3; CategoryPower/power management The power supply circuit; File Size485KB，17 Pages; ManufacturerKEC; Websitehttp://www.keccorp.com/

Download Datasheet Parametric Compare View All

KIA7809AF Overview

9 V FIXED POSITIVE REGULATOR, PSSO3

KIA7809AF Parametric

Parameter Name	Attribute value
Parts packaging code	TO-252
package instruction	DPAK-3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum input voltage	26 V
Minimum input voltage	11.5 V
JESD-30 code	R-PSSO-G3
length	6.6 mm
Number of functions	1
Number of terminals	3
Working temperatureTJ-Max	125 °C
Operating temperatureTJ-Mi
Maximum output current 1	1 A
Maximum output voltage 1	9.45 V
Minimum output voltage 1	8.55 V
Nominal output voltage 1	9 V
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Maximum seat height	2.5 mm
surface mount	YES
technology	BIPOLAR
Terminal form	GULL WING
Terminal pitch	2.3 mm
Terminal location	SINGLE
width	6.1 mm
Base Number Matches	1

Preview

Download Datasheet

View All

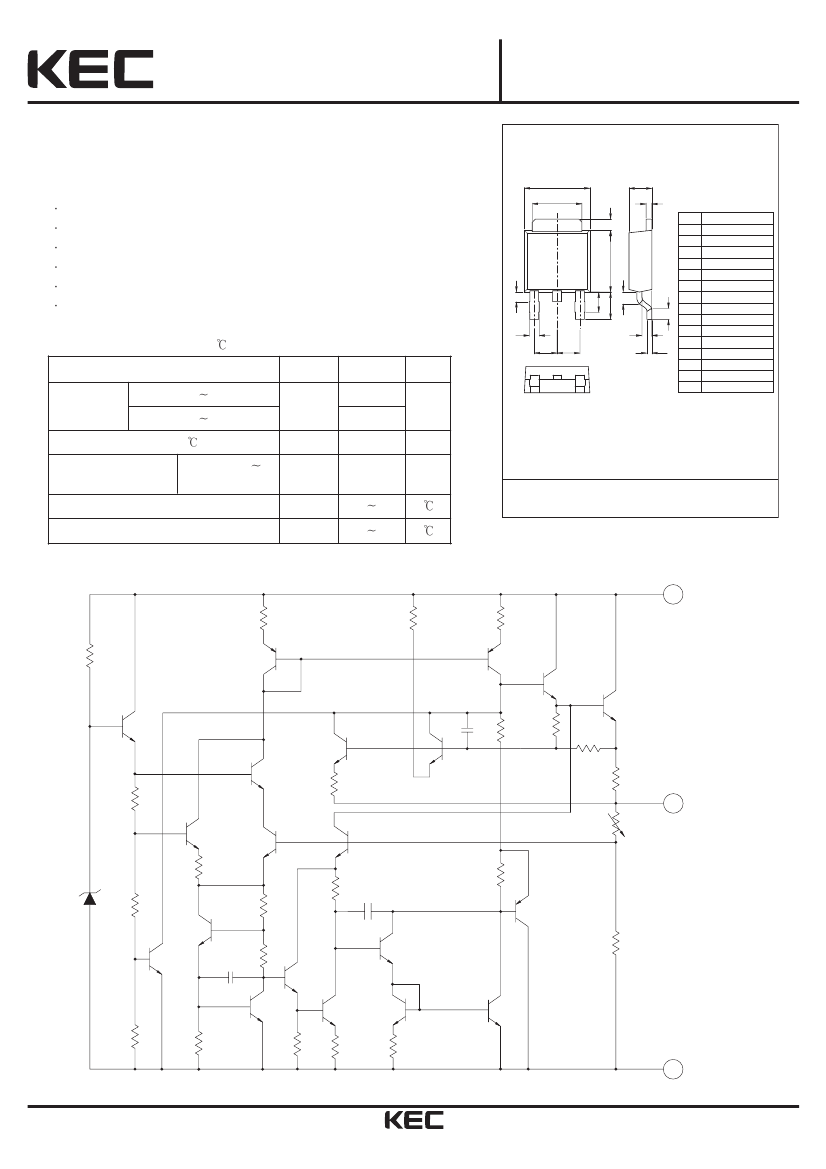

SEMICONDUCTOR

TECHNICAL DATA

THREE TERMINAL POSITIVE VOLTAGE REGULATORS

5V, 6V, 8V, 9V, 10V, 12V, 15V, 18V, 20V, 24V.

FEATURES

Suitable for C-MOS, TTL, the Other Digital IC's Power Supply.

Internal Thermal Overload Protection.

Internal Short Circuit Current Limiting.

Output Current in Excess of 1A.

Satisfies IEC-65 Specification. (International Electronical Commission).

Package is DPAK.

MAXIMUM RATINGS (Ta=25

CHARACTERISTIC

Input Voltage

KIA7805AF

KIA7818AF

)

KIA7805AF

KIA7824AF

KIA7815AF

KIA7824AF

)

SYMBOL

stg

RATING

1.3

-30 150

-55 150

UNIT

KIA7805AF~KIA7824AF

BIPOLAR LINEAR INTEGRATED CIRCUIT

DIM

MILLIMETERS

6.60 + 0.2

6.10 + 0.2

5.0 + 0.2

1.10 + 0.2

2.70 + 0.2

_ 0.1

2.30 +

1.00 MAX

2.30 + 0.2

0.50 + 0.1

2.00 + 0.20

_ 0.10

0.50 +

0.91 + 0.10

0.90 + 0.1

1.00 + 0.10

0.95 MAX

1. INPUT

2. COMMON

3. OUTPUT

Power Dissipation (Tc=25

Power Dissipation

(Without Heatsink)

Operating Junction Temperature

Storage Temperature

EQUIVALENT CIRCUIT

DPAK

R22

R17

R23

INPUT

Q11

Q11-1

Q15

Q16

R15

Q12

Q14

R19

Q17

R12

Q19

R10

R14

R16

Q18

R18

R20

OUTPUT

R11

Q10

R21

Q13

R13

COMMON (GND)

2002. 9. 24

Revision No : 2

1/17

KIA7809AF Related Products

	KIA7809AF	KIA780524AF	KIA7808AF	KIA7805AF
Description	9 V FIXED POSITIVE REGULATOR, PSSO3	9 V FIXED POSITIVE REGULATOR, PSSO3	9 V FIXED POSITIVE REGULATOR, PSSO3	5 V FIXED POSITIVE REGULATOR, PSSO3
Maximum input voltage	26 V	26 V	25 V	25 V
Minimum input voltage	11.5 V	11.5 V	10.5 V	7 V
length	6.6 mm	6.6 mm	6.6 mm	6.6 mm
Number of functions	1	1	1	1
Number of terminals	3	3	3	3
Maximum output current 1	1 A	1 A	1 A	1 A
Maximum output voltage 1	9.45 V	9.45 V	8.4 V	5.25 V
Minimum output voltage 1	8.55 V	8.55 V	7.6 V	4.75 V
surface mount	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
width	6.1 mm	6.1 mm	6.1 mm	6.1 mm
Parts packaging code	TO-252	-	TO-252	TO-252
Contacts	3	-	3	3
Reach Compliance Code	unknow	-	unknow	unknow
ECCN code	EAR99	-	EAR99	EAR99
JESD-30 code	R-PSSO-G3	-	R-PSSO-G3	R-PSSO-G3
Working temperatureTJ-Max	125 °C	-	125 °C	125 °C
Nominal output voltage 1	9 V	-	8 V	5 V
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	-	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	-	Not Qualified	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	-	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Maximum seat height	2.5 mm	-	2.5 mm	2.5 mm
technology	BIPOLAR	-	BIPOLAR	BIPOLAR
Terminal pitch	2.3 mm	-	2.3 mm	2.3 mm
