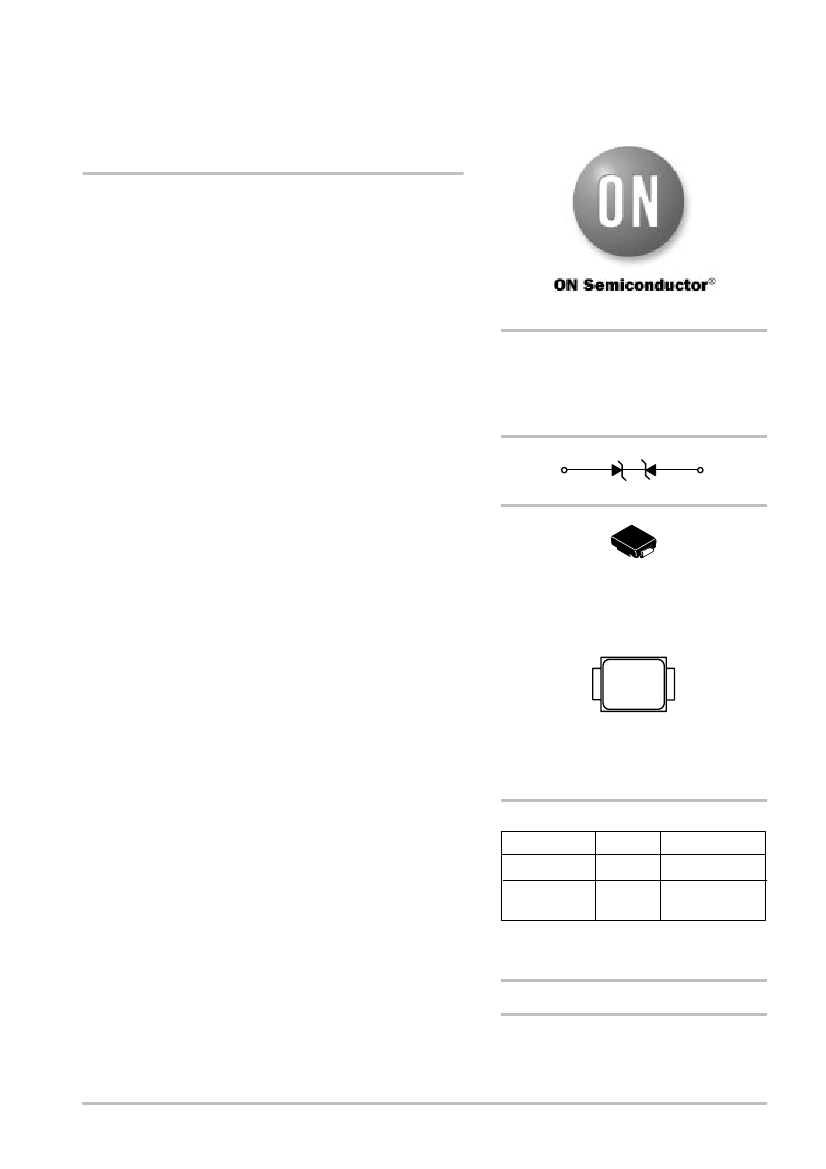

1SMB10CAT3 Series
Watt Peak Power Zener
Transient Voltage Suppressors
Bidirectional*
The SMB series is designed to protect voltage sensitive
components from high voltage, high energy transients. They have
excellent clamping capability, high surge capability, low zener
impedance and fast response time. The SMB series is supplied in
ON Semiconductor’s exclusive, cost-effective, highly reliable
Surmetic™ package and is ideally suited for use in communication
systems, automotive, numerical controls, process controls, medical
equipment, business machines, power supplies and many other
industrial/consumer applications.
Features
http://onsemi.com
PLASTIC SURFACE MOUNT
ZENER OVERVOLTAGE
TRANSIENT SUPPRESSORS
10−78 V, 600 W PEAK POWER
•
•
•
•
•
•
•
•
•
Working Peak Reverse Voltage Range − 10 V to 78 V
Standard Zener Breakdown Voltage Range − 11.7 V to 91.3 V
Peak Power − 600 Watts @ 1 ms
ESD Rating of Class 3 (> 16 KV) per Human Body Model
Maximum Clamp Voltage @ Peak Pulse Current
Low Leakage < 5
mA
Above 10 V
UL 497B for Isolated Loop Circuit Protection
Response Time is Typically < 1 ns
Pb−Free Packages are Available
SMB
CASE 403A
PLASTIC
MARKING DIAGRAM
YWW
xxC
Y
WW
xxC
= Year
= Work Week
= Specific Device Code
=
(See Table Next Page)
Mechanical Characteristics
CASE:
Void-free, transfer-molded, thermosetting plastic
FINISH:
All external surfaces are corrosion resistant and leads are
readily solderable
MAXIMUM CASE TEMPERATURE FOR SOLDERING PURPOSES:
260°C for 10 Seconds
LEADS:
Modified L−Bend providing more contact area to bond pads
POLARITY:
Polarity band will not be indicated
MOUNTING POSITION:
Any
ORDERING INFORMATION
Device
*
1SMBxxCAT3
1SMBxxCAT3G
Package
SMB
SMB
(Pb−Free)
Shipping
†
2500/Tape & Reel
2500/Tape & Reel
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
Individual devices are listed on page 3 of this data sheet.
*The “T3” suffix refers to a 13 inch reel.
©
Semiconductor Components Industries, LLC, 2005
1
January, 2005 − Rev. 6
Publication Order Number:
1SMB10CAT3/D
1SMB10CAT3 Series
MAXIMUM RATINGS
Rating
Peak Power Dissipation (Note 1.)
@ T
L
= 25°C, Pulse Width = 1 ms
DC Power Dissipation @ T
L
= 75°C
Measured Zero Lead Length (Note 2.)
Derate Above 75°C
Thermal Resistance from Junction−to−Lead
DC Power Dissipation (Note 3.) @ T
A
= 25°C
Derate Above 25°C
Thermal Resistance from Junction−to−Ambient
Operating and Storage
Temperature Range
Symbol
P
PK
P
D
Value
600
3.0
40
25
0.55
4.4
226
−65 to +150
Unit
W
W
mW/°C
°C/W
W
mW/°C
°C/W
°C
R
qJL
P
D
R
qJA
T
J
, T
stg
Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit
values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not
implied, damage may occur and reliability may be affected.
1. 10 X 1000
ms,
non−repetitive
2. 1″ square copper pad, FR−4 board
3. FR−4 board, using ON Semiconductor minimum recommended footprint, as
shown in 403A case outline dimensions spec.
*Please see 1SMB5.0AT3 to 1SMB170AT3 for Unidirectional devices.
ELECTRICAL CHARACTERISTICS
(T
A
= 25°C unless otherwise noted)
Symbol
I
PP
V
C
V
RWM
I
R
V
BR
I
T
Parameter
Maximum Reverse Peak Pulse Current
Clamping Voltage @ I
PP
Working Peak Reverse Voltage
Maximum Reverse Leakage Current @ V
RWM
Breakdown Voltage @ I
T
Test Current
I
T
V
C
V
BR
V
RWM
I
R
I
PP
I
I
R
V
RWM
V
BR
V
C
I
T
V
I
PP
Bi−Directional TVS
http://onsemi.com
2
1SMB10CAT3 Series
ELECTRICAL CHARACTERISTICS
(Devices listed in
bold, italic
are ON Semiconductor Preferred devices.)
V
RWM
(Note 1)
Volts
10
11
12
13
14
15
16
17
18
20
22
24
26
28
30
33
36
40
43
45
48
51
54
58
60
64
70
75
78
Breakdown Voltage
I
R
@ V
RWM
mA
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
V
BR
(Note 2)
Volts
Min
11.1
12.2
13.3
14.4
15.6
16.7
17.8
18.9
20.0
22.2
24.4
26.7
28.9
31.1
33.3
36.7
40.0
44.4
47.8
50.0
53.3
56.7
60.0
64.4
66.7
71.1
77.8
83.3
86.7
Nom
11.69
12.84
14.00
15.16
16.42
17.58
18.74
19.90
21.06
23.37
25.69
28.11
30.42
32.74
35.06
38.63
42.11
46.74
50.32
52.63
56.11
59.69
63.16
67.79
70.21
74.84
81.90
91.65
91.26
Max
12.27
13.5
14.7
15.9
17.2
18.5
19.7
20.9
22.1
24.5
27.0
29.5
31.9
34.4
36.8
40.6
44.2
49.1
52.8
55.3
58.9
62.7
66.32
71.18
73.72
78.58
85.99
92.07
95.83
@ I
T
mA
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
V
C
@ I
PP
(Note 3)
V
C
Volts
17.0
18.2
19.9
21.5
23.2
24.4
26.0
27.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.2
77.4
82.4
87.1
93.6
96.8
103
113
121
126
I
PP
Amps
35.3
33.0
30.2
27.9
25.8
24.0
23.1
21.7
20.5
18.5
16.9
15.4
14.2
13.2
12.4
11.3
10.3
9.3
8.6
8.3
7.7
7.3
6.9
6.4
6.2
5.8
5.3
4.9
4.7
Device
1SMB10CAT3, G*
1SMB11CAT3, G*
1SMB12CAT3, G*
1SMB13CAT3, G*
1SMB14CAT3
1SMB15CAT3, G*
1SMB16CAT3
1SMB17CAT3
1SMB18CAT3
1SMB20CAT3, G*
1SMB22CAT3, G*
1SMB24CAT3
1SMB26CAT3
1SMB28CAT3
1SMB30CAT3, G*
1SMB33CAT3, G*
1SMB36CAT3, G*
1SMB40CAT3, G*
1SMB43CAT3
1SMB45CAT3
1SMB48CAT3
1SMB51CAT3, G*
1SMB54CAT3
1SMB58CAT3
1SMB60CAT3, G*
1SMB64CAT3
1SMB70CAT3
1SMB75CAT3
1SMB78CAT3
Device
Marking
KXC
KZC
LEC
LGC
LKC
LMC
LPC
LRC
LTC
LVC
LXC
LZC
MEC
MGC
MKC
MMC
MPC
MRC
MTC
MVC
MXC
MZC
NEC
NGC
NKC
NMC
NPC
NRC
NTC
1. A transient suppressor is normally selected according to the working peak reverse voltage (V
RWM
), which should be equal to or greater than
the DC or continuous peak operating voltage level.
2. V
BR
measured at pulse test current I
T
at an ambient temperature of 25°C.
3. Surge current waveform per Figure 2 and derate per Figure 3 of the General Data − 600 Watt at the beginning of this group.
* The “G” suffix indicates Pb−Free package available.
http://onsemi.com
3
1SMB10CAT3 Series
100
P
PK
, PEAK POWER (kW)
NONREPETITIVE
PULSE WAVEFORM
SHOWN IN FIGURE 2
10
t
r
≤
10
ms
100
VALUE (%)
PEAK VALUE − I
PP
I
PP
2
PULSE WIDTH (t
P
) IS DEFINED
AS THAT POINT WHERE THE PEAK
CURRENT DECAYS TO 50% OF I
PP
.
HALF VALUE −
50
t
P
1
0.1
0.1
ms
1
ms
10
ms
100
ms
1 ms
10 ms
0
0
1
2
t, TIME (ms)
3
4
t
P
, PULSE WIDTH
Figure 1. Pulse Rating Curve
160
PEAK PULSE DERATING IN % OF
PEAK POWER OR CURRENT @ T = 25
°
C
A
140
120
100
80
60
40
20
0
0
25
50
75
100
125
150
V
in
Figure 2. Pulse Waveform
TYPICAL PROTECTION CIRCUIT
Z
in
LOAD
V
L
T
A
, AMBIENT TEMPERATURE (°C)
Figure 3. Pulse Derating Curve
APPLICATION NOTES
RESPONSE TIME
In most applications, the transient suppressor device is
placed in parallel with the equipment or component to be
protected. In this situation, there is a time delay associated
with the capacitance of the device and an overshoot
condition associated with the inductance of the device and
the inductance of the connection method. The capacitive
effect is of minor importance in the parallel protection
scheme because it only produces a time delay in the
transition from the operating voltage to the clamp voltage as
shown in Figure 4.
The inductive effects in the device are due to actual
turn-on time (time required for the device to go from zero
current to full current) and lead inductance. This inductive
effect produces an overshoot in the voltage across the
equipment or component being protected as shown in
Figure 5. Minimizing this overshoot is very important in the
application, since the main purpose for adding a transient
suppressor is to clamp voltage spikes. The SMB series have
a very good response time, typically < 1 ns and negligible
inductance. However, external inductive effects could
produce unacceptable overshoot. Proper circuit layout,
minimum lead lengths and placing the suppressor device as
close as possible to the equipment or components to be
protected will minimize this overshoot.
Some input impedance represented by Z
in
is essential to
prevent overstress of the protection device. This impedance
should be as high as possible, without restricting the circuit
operation.
DUTY CYCLE DERATING
The data of Figure 1 applies for non-repetitive conditions
and at a lead temperature of 25°C. If the duty cycle increases,
the peak power must be reduced as indicated by the curves
of Figure 6. Average power must be derated as the lead or
ambient temperature rises above 25°C. The average power
derating curve normally given on data sheets may be
normalized and used for this purpose.
At first glance the derating curves of Figure 6 appear to be
in error as the 10 ms pulse has a higher derating factor than
the 10
ms
pulse. However, when the derating factor for a
given pulse of Figure 6 is multiplied by the peak power value
of Figure 1 for the same pulse, the results follow the
expected trend.
http://onsemi.com
4
1SMB10CAT3 Series
OVERSHOOT DUE TO
INDUCTIVE EFFECTS
V
in
(TRANSIENT)
V
L
V
L
V
V
in
(TRANSIENT)
V
V
in
t
d
t
D
= TIME DELAY DUE TO CAPACITIVE EFFECT
t
t
Figure 4.
Figure 5.
1
0.7
0.5
DERATING FACTOR
0.3
0.2
0.1
0.07
0.05
0.03
0.02
10
ms
0.01
0.1 0.2
0.5
1
2
5
10
D, DUTY CYCLE (%)
20
50 100
100
ms
PULSE WIDTH
10 ms
1 ms
Figure 6. Typical Derating Factor for Duty Cycle
UL RECOGNITION
The entire series has
Underwriters Laboratory
Recognition
for the classification of protectors (QVGV2)
under the UL standard for safety 497B and File #116110.
Many competitors only have one or two devices recognized
or have recognition in a non-protective category. Some
competitors have no recognition at all. With the UL497B
recognition, our parts successfully passed several tests
including Strike Voltage Breakdown test, Endurance
Conditioning,
Temperature
test,
Dielectric
Voltage-Withstand test, Discharge test and several more.
Whereas, some competitors have only passed a
flammability test for the package material, we have been
recognized for much more to be included in their Protector
category.
http://onsemi.com
5
京公网安备 11010802033920号
EEWORLD
