SMT Power Inductors
Series/Type:
B82464Z4
The following products presented in this data sheet are being withdrawn.
Ordering Code
B82464Z4821M000
B82464Z4684M000
B82464Z4683M000
Substitute Product
B82464G*, B82464P*
B82464G*, B82464P*
B82464G*, B82464P*
Date of Withdrawal
2010-07-23
2010-07-23
2010-07-23
Deadline Last
Orders
2010-10-31
2010-10-31
2010-10-31
Last Shipments
2011-01-31
2011-01-31
2011-01-31
Ordering Code
B82464Z4682M000
B82464Z4474M000
B82464Z4473M000
B82464Z4472M000
B82464Z4334M000
B82464Z4333M000
B82464Z4332M000
B82464Z4224M000
B82464Z4223M000
B82464Z4222M000
B82464Z4154M000
B82464Z4153M000
B82464Z4152M000
B82464Z4105M000
B82464Z4104M000
B82464Z4103M000
B82464Z4102M000
Substitute Product
B82464G*, B82464P*
B82464G*, B82464P*
B82464G*, B82464P*
B82464G*, B82464P*
B82464G*, B82464P*
B82464G*, B82464P*
B82464G*, B82464P*
B82464G*, B82464P*
B82464G*, B82464P*
B82464G*, B82464P*
B82464G*, B82464P*
B82464G*, B82464P*
B82464G*, B82464P*
B82464G*, B82464P*
B82464G*, B82464P*
B82464G*, B82464P*
B82464G*, B82464P*
Date of Withdrawal
2010-07-23
2010-07-23
2010-07-23
2010-07-23
2010-07-23
2010-07-23
2010-07-23
2010-07-23
2010-07-23
2010-07-23
2010-07-23
2010-07-23
2010-07-23
2010-07-23
2010-07-23
2010-07-23
2010-07-23
Deadline Last
Orders
2010-10-31
2010-10-31
2010-10-31
2010-10-31
2010-10-31
2010-10-31
2010-10-31
2010-10-31
2010-10-31
2010-10-31
2010-10-31
2010-10-31
2010-10-31
2010-10-31
2010-10-31
2010-10-31
2010-10-31
Last Shipments
2011-01-31
2011-01-31
2011-01-31
2011-01-31
2011-01-31
2011-01-31
2011-01-31
2011-01-31
2011-01-31
2011-01-31
2011-01-31
2011-01-31
2011-01-31
2011-01-31
2011-01-31
2011-01-31
2011-01-31
For further information please contact your nearest EPCOS sales office, which will also support you in selecting a
suitable substitute. The addresses of our worldwide sales network are presented at www.epcos.com/sales.
SMT power inductors
Size 10.4
×
10.4
×
4.8 (mm)
Rated inductance 0.82
µH
to 1000
µH
Rated current 0.34 A to 7.6 A
Construction
■
■
■
■
B82464Z4
Ferrite core
Magnetically shielded
Winding: enamel copper wire
Winding welded to terminals
Features
■
■
■
■
■
Temperature range up to 125 °C
High rated current
Low DC resistance
Suitable for lead-free reflow soldering
RoHS-compatibel
Applications
■
■
■
■
■
Filtering of supply voltages
Coupling, decoupling
DC/DC converters
Telecom, EDP, consumer electronics
Industrial electronics
Terminals
■
Base material CuSn6P
■
Layer composition Ni, Sn (lead-free)
■
Electro-plated
Marking
■
Marking on component:
Manufacturer, L value (µH, coded),
manufacturing date (YWWD)
■
Minimum data on reel:
Manufacturer, ordering code, L value,
quantity, date of packing
Delivery mode and packing unit
■
24-mm blister tape, wound on 330-mm
∅
reel
■
Packing unit: 750 pcs./reel
Please read
Cautions and warnings
and
Important notes
at the end of this document.
2
03/08
SMT power inductors
Size 10.4
×
10.4
×
4.8 (mm)

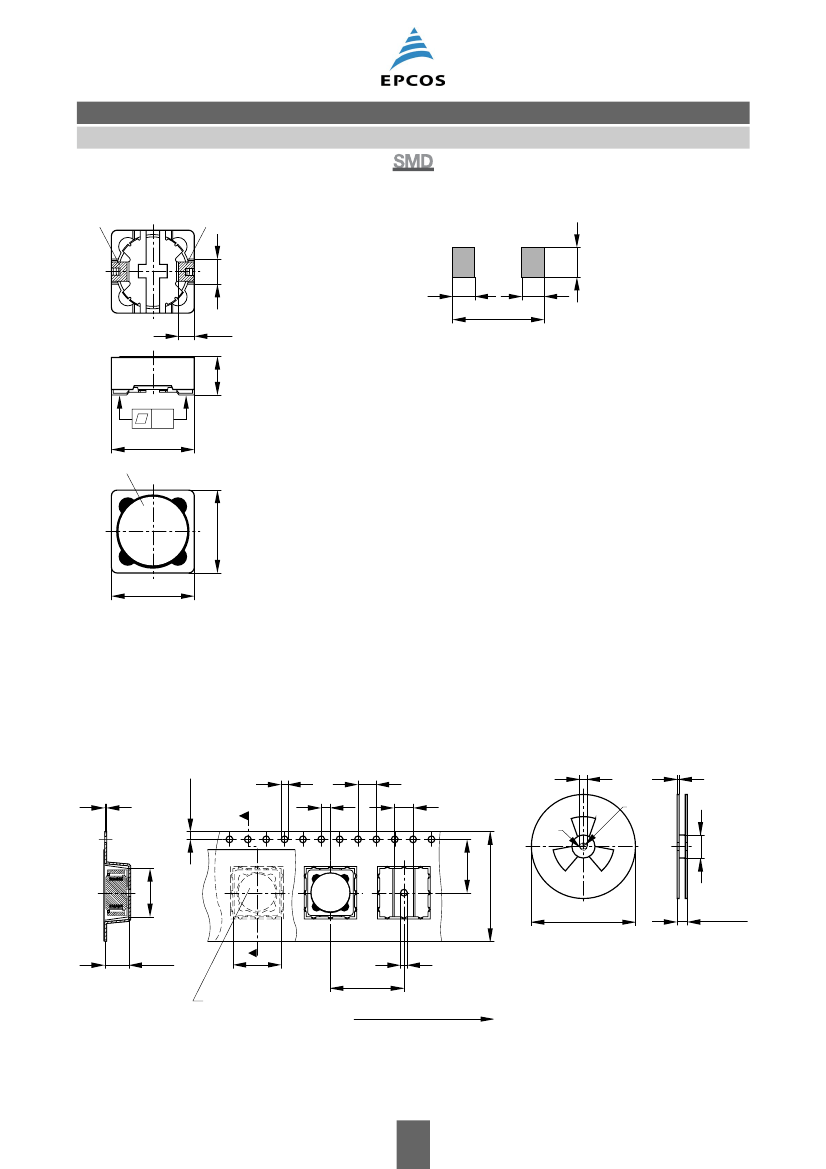

Dimensional drawing and layout recommendation
1)
1)
B82464Z4
3±0.1
2.7
11
2.7
IND0474-K
2±0.2
4.8 max.
0.1
10±0.2
Marking
10.4 max.
10.4 max.
1) Soldering area
IND0603-T-E
Dimensions in mm
Taping and packing
Blister tape
1.75±0.1
_
0
1.5
+0.1
Reel
4±0.1
2±0.05
4.1
1.0
21±0.5
2.5±0.5
13±0.2
0.5±0.05
3.6
10.4±0.1
11.5±0.1
24±0.3
330±1
30.4 max.
IND0348-6
5.3±0.1
10.4±0.1
Component
16±0.1
1.5
Direction of unreeling
IND0911-L-E
Dimensions in mm
Please read
Cautions and warnings
and
Important notes
at the end of this document.
3
03/08
75±1
SMT power inductors
Size 10.4
×
10.4
×
4.8 (mm)
Technical data and measuring conditions
Rated inductance L
R
Rated temperature T
R
Rated current I
R
Saturation current I
sat
DC resistance R
max
Solderability (lead-free)
B82464Z4
Measured with LCR meter Agilent 4284A at frequency f
L
,
0.1 V, 20 °C
85 °C
Max. permissible DC with temperature increase of
≤
40 K
at rated temperature
Max. permissible DC with inductance decrease
∆L/L
0
of approx. 10%
Measured at 20 °C
Dip and look method Sn95.5Ag3.8Cu0.7:
(245
±5)
°C, (5
±0.3)
s,
Wetting of soldering area
≥
90%
(based on IEC 60068-2-58)
260 °C, 10 s (as referenced in JEDEC J-STD 020C)
55/125/56 (to IEC 60068-1)
Mounted: –55 °C … +125 °C
Packaged: –25 °C … +40 °C,
≤
75% RH
Approx. 2 g
Resistance to soldering heat
Climatic category
Storage conditions
Weight
Please read
Cautions and warnings
and
Important notes
at the end of this document.
4
03/08
