KBPC804G datasheet, PDF - EEWORLD Datasheet

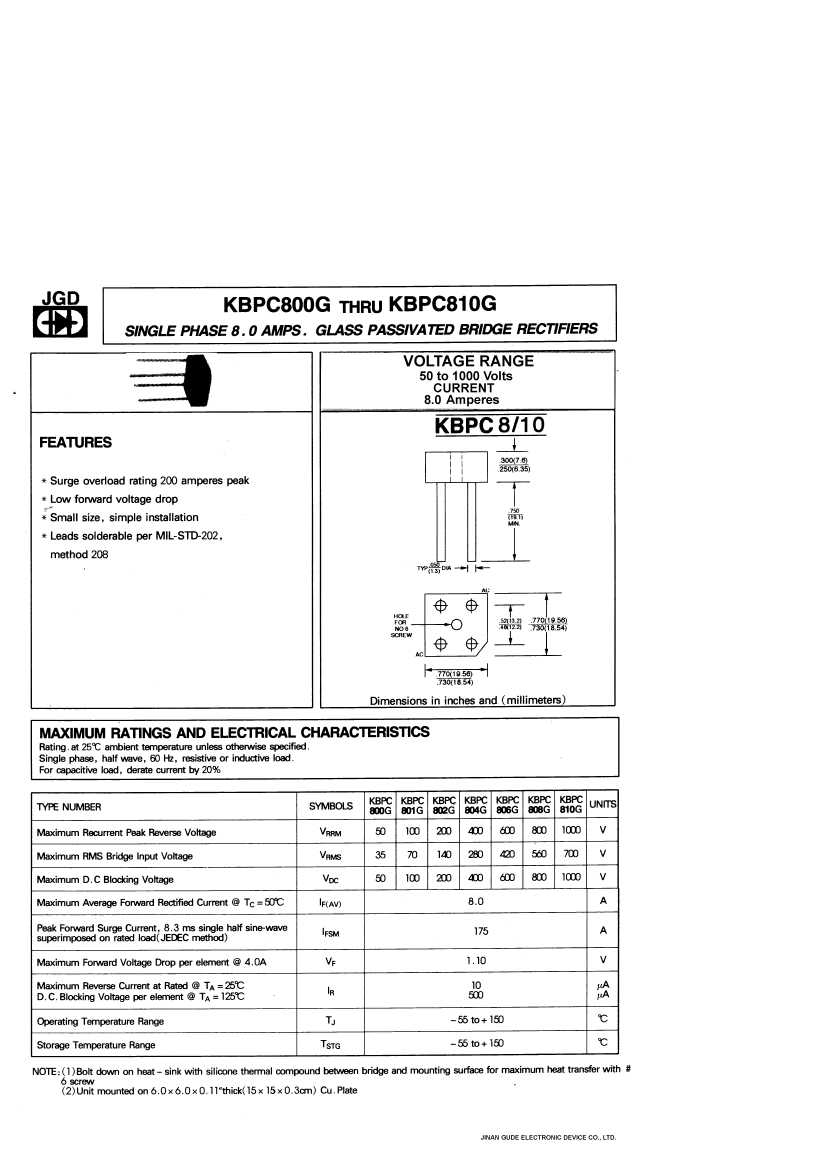

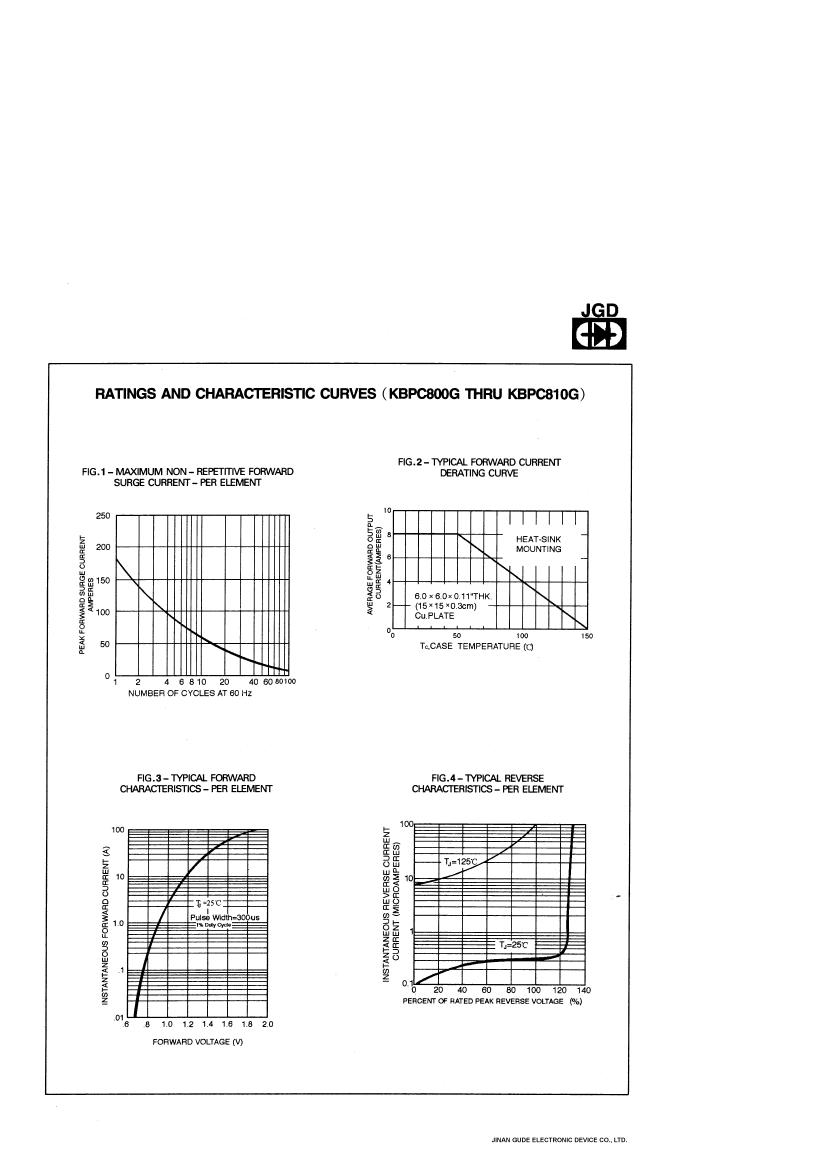

KBPC804G: Description8 A, 400 V, SILICON, BRIDGE RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size118KB，2 Pages; ManufacturerJGD（Jinan Gude Electronic Device）; Websitehttp://www.jgd.com.cn/

Download Datasheet Parametric Compare View All

KBPC804G Overview

8 A, 400 V, SILICON, BRIDGE RECTIFIER DIODE

Parameter Name	Attribute value
Maker	JGD（Jinan Gude Electronic Device）
Reach Compliance Code	unknow
Configuration	BRIDGE, 4 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
Maximum non-repetitive peak forward current	175 A
Number of components	4
Maximum operating temperature	150 °C
Maximum output current	8 A
Maximum repetitive peak reverse voltage	400 V
surface mount	NO

	KBPC804G	KBPC810G	KBPC808G	KBPC802G	KBPC801G	KBPC800G
Description	8 A, 400 V, SILICON, BRIDGE RECTIFIER DIODE	8 A, SILICON, BRIDGE RECTIFIER DIODE	8 A, SILICON, BRIDGE RECTIFIER DIODE	8 A, SILICON, BRIDGE RECTIFIER DIODE	8 A, SILICON, BRIDGE RECTIFIER DIODE	8 A, 50 V, SILICON, BRIDGE RECTIFIER DIODE
Maker	JGD（Jinan Gude Electronic Device）	JGD（Jinan Gude Electronic Device）	JGD（Jinan Gude Electronic Device）	JGD（Jinan Gude Electronic Device）	JGD（Jinan Gude Electronic Device）	JGD（Jinan Gude Electronic Device）
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V
Maximum non-repetitive peak forward current	175 A	175 A	175 A	175 A	175 A	175 A
Number of components	4	4	4	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	8 A	8 A	8 A	8 A	8 A	8 A
Maximum repetitive peak reverse voltage	400 V	1000 V	800 V	200 V	100 V	50 V
surface mount	NO	NO	NO	NO	NO	NO
