KBPC108: Description3 A, 800 V, SILICON, BRIDGE RECTIFIER DIODE; Categorysemiconductor Discrete semiconductor; File Size128KB，2 Pages; ManufacturerSHANGHAI SHANGLANG ELECTRONIC TECHNOLOGY CO., LTD.

Download Datasheet Compare View All

KBPC108 Overview

3 A, 800 V, SILICON, BRIDGE RECTIFIER DIODE

Preview

Download Datasheet

View All

CHENYI ELECTRONICS

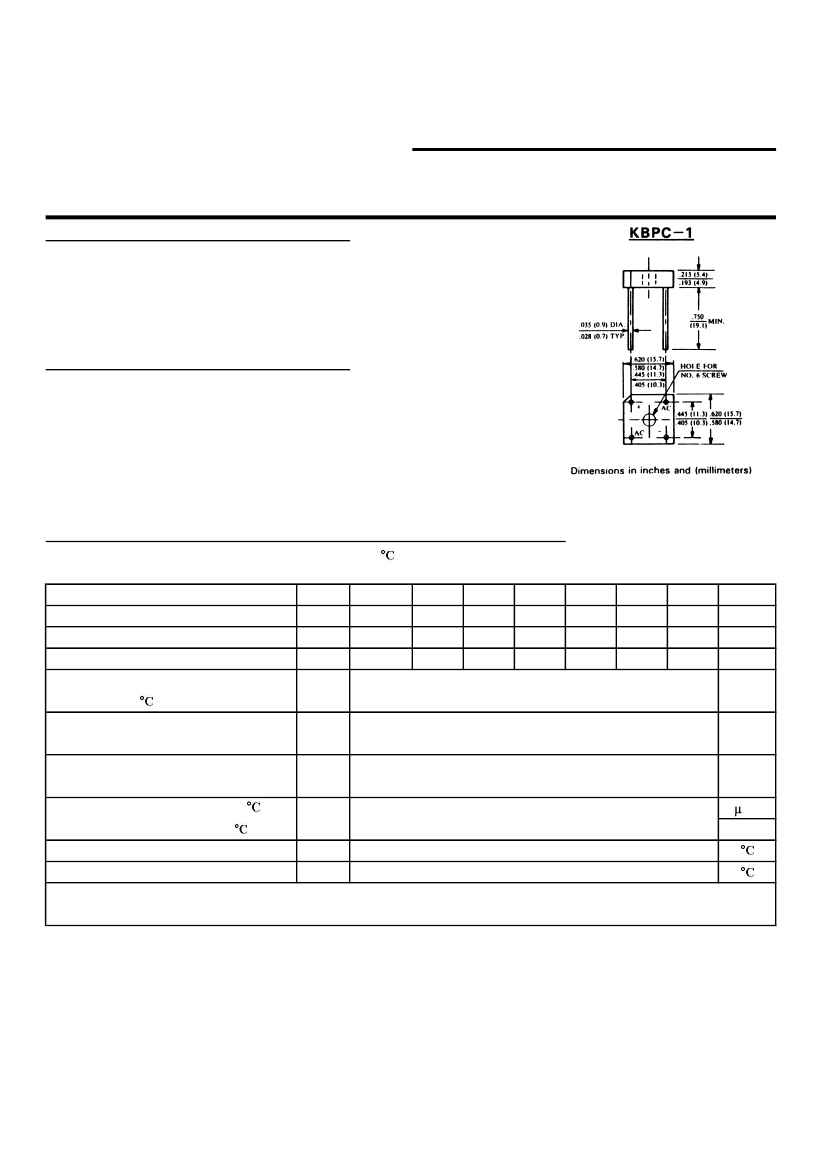

FEATURES

Ideal for printed circuit board

Surge overload rating: 50A peak

High case dielectric strength

KBPC1005 THRU KBPC110

SINGLE PHASE GLASS

BRIDGE RECTIFIER

Voltage: 50 TO 1000V CURRENT:3.0A

MECHANICAL DATA

Terminal:

Plated leads solderable per

MIL-STD 202E, method 208C

Case:

UL-94 Class V-0 recognized Flame Retardant Epoxy

Polarity:

Polarity symbol marked on body

Mounting

: Hole thru for #6 screw

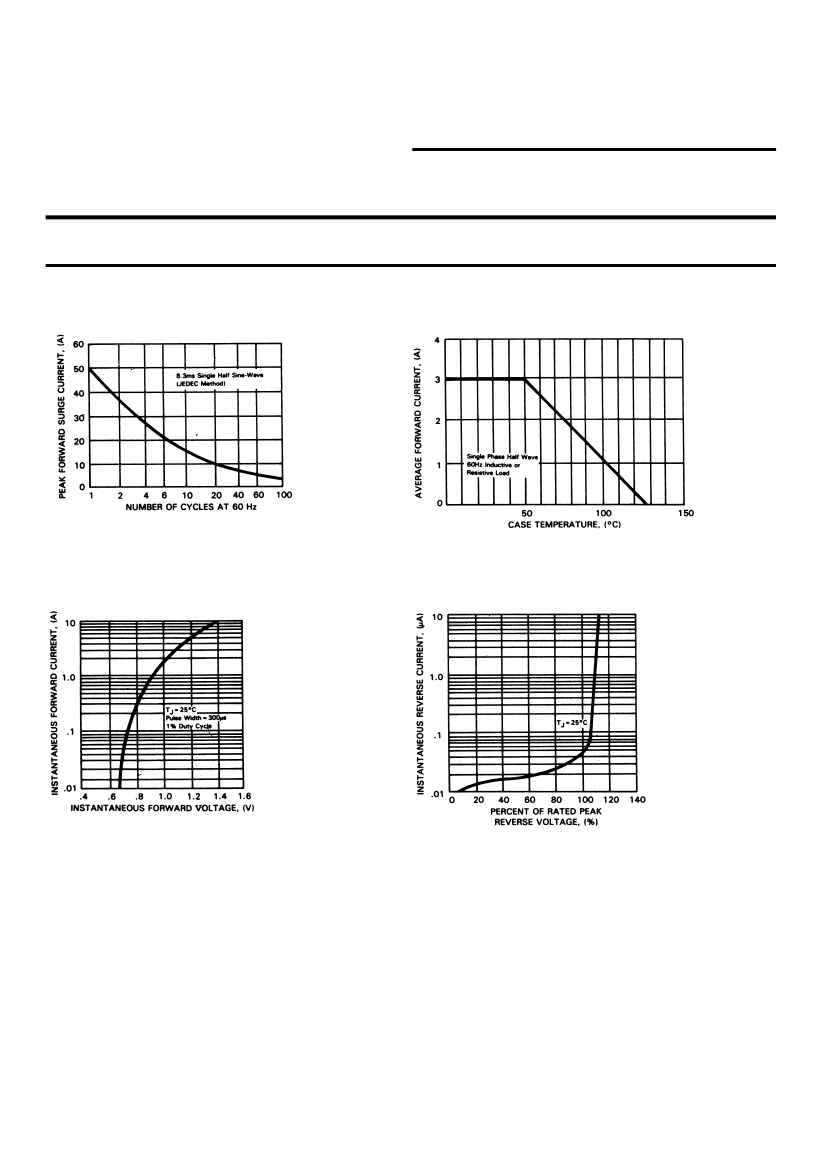

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(Single-phase, half-wave, 60HZ, resistive or inductive load rating at 25

for capacitive load, derate current by 20%)

SYMBOL KBPC1005 KBPC101 KBPC102 KBPC104 KBPC106 KBPC108 KBPC110

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC blocking Voltage

Maximum Average Forward Rectified

current at Ta=50

Peak Forward Surge Current 8.3ms single

half sine-wave superimposed on rated load

Maximum Instantaneous Forward Voltage at

forward current 1.5A DC

Maximum DC Reverse Voltage Ta=25

at rated DC blocking voltage Ta=100

Operating Temperature Range

Storage and operation Junction Temperature

Tstg

1.1

10.0

1.0

-55 to +125

-55 to +150

Ifsm

If(av)

3.0

Vrrm

Vrms

Vdc

100

200

140

200

400

280

400

600

420

600

800

560

800

1000

700

1000

, unless otherwise stated,

units
